11136048
Optical Fiber IdentifierWavelength: 800-1700nmPass Through Insesrtion Loss: 250um/900um optical fiber: 1.0dB2.0mm/3.0mm optical fiber: 1.5dBApplication Of Optical Fiber: 250um/900um/2mm/3mm optical fiberIdentified Signal Type: 270Hz/1KHz/2KHzIdentification of Modulated Signals: YesPower Measurement: YesDisplay: LED Color ScreenTone: YesLow Power Monitoring: YesDetector Type: InGaAsOptical Power MeterWavelength: 800nm-1700nmCalibration Certificate: 850/1300/1310/1490/1550/1625nmMeasurement Range: -70~+10dBm or -50~+26dBmConnector Type: 2.5 universal connectorOtherPower Supply: 2*AA 1.5V Alkaline Battery ( Not Included)Operation Temperature: -20℃~+60℃Storage Temperature: -30℃~+70℃Outline Size: 220*38*28mmWeight: 145gPackage Contents:1*Optical Fiber Identifier1*User Manual

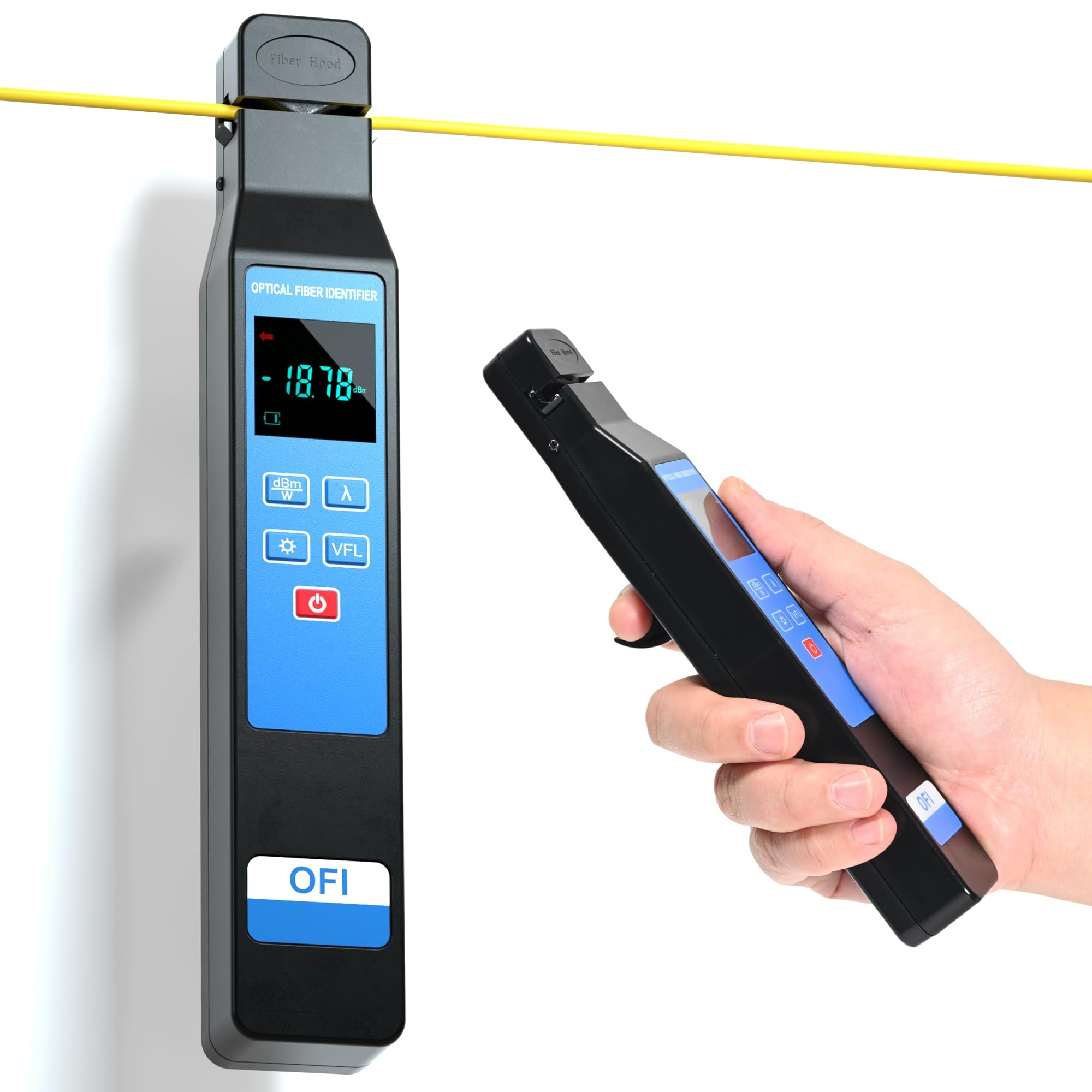

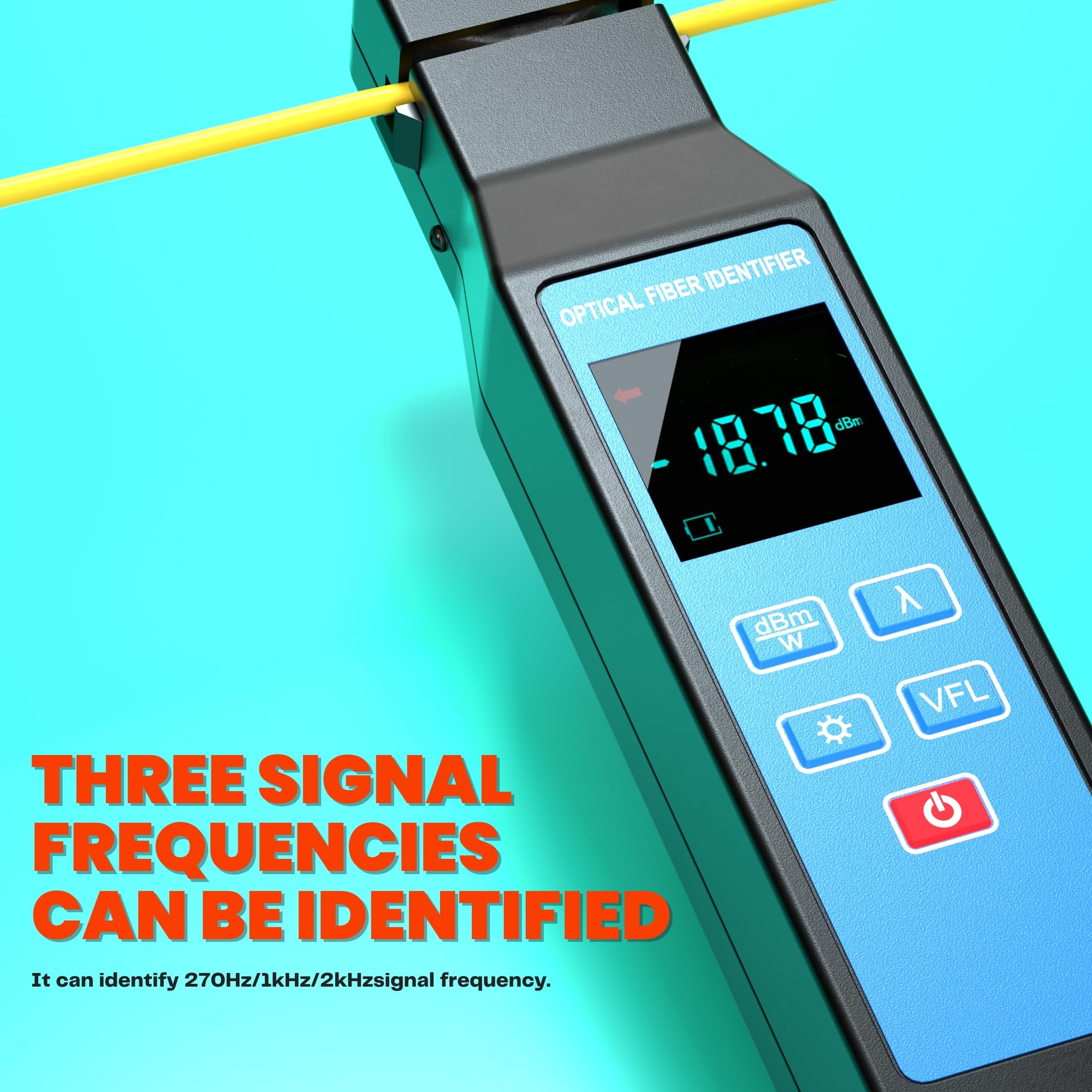

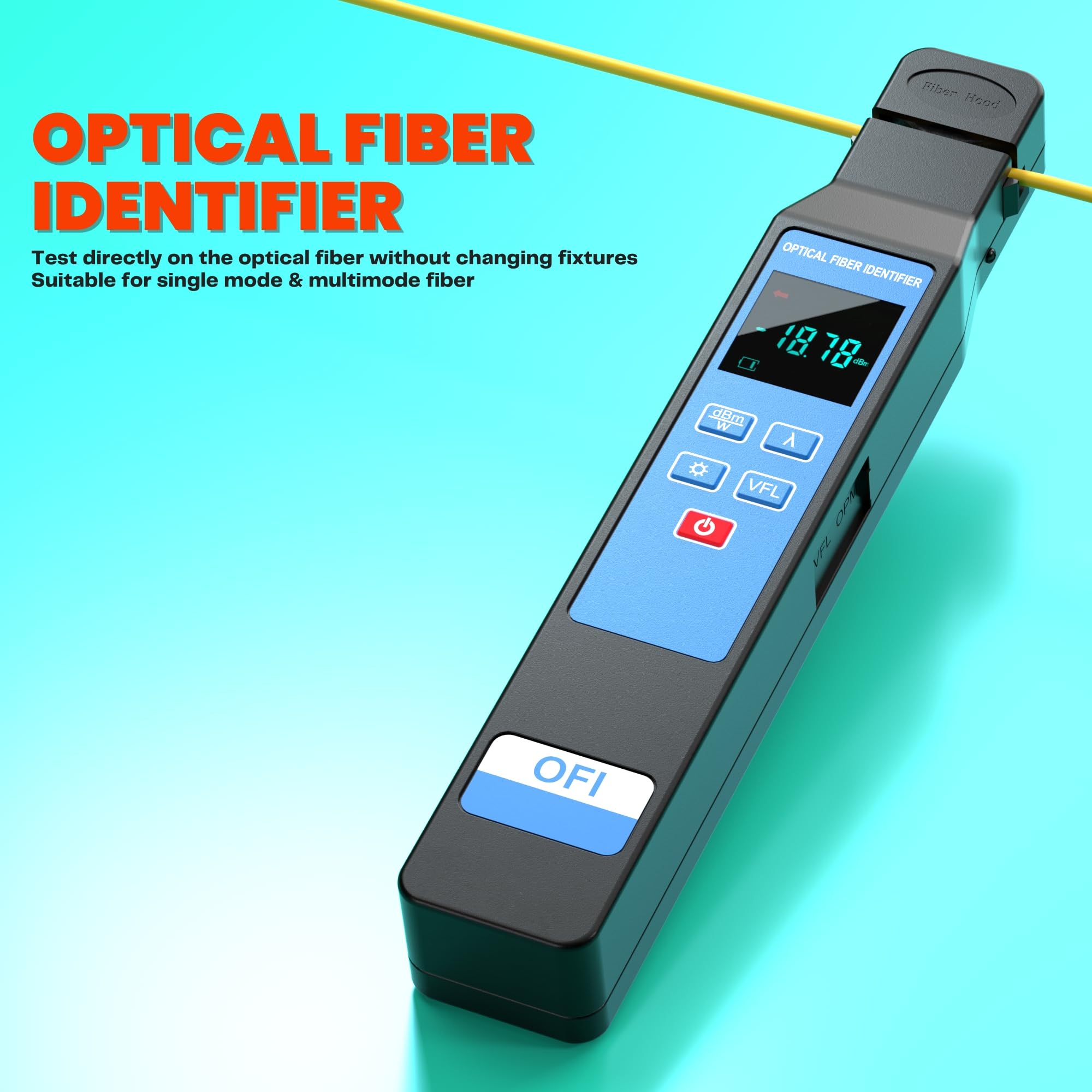

Live Optical Fiber Identifier with wave respond 800-1700nm; Can detect optical signals in the tone signal fixed load 270Hz, 1KHz and 2KHz.
Can measure the fiber distance is about 10-15km
Build in OPM function, test wavelength 850/1300/1310/1490/1550/1625nm, measurement range -70~+10dBm or -50~+26dBm.

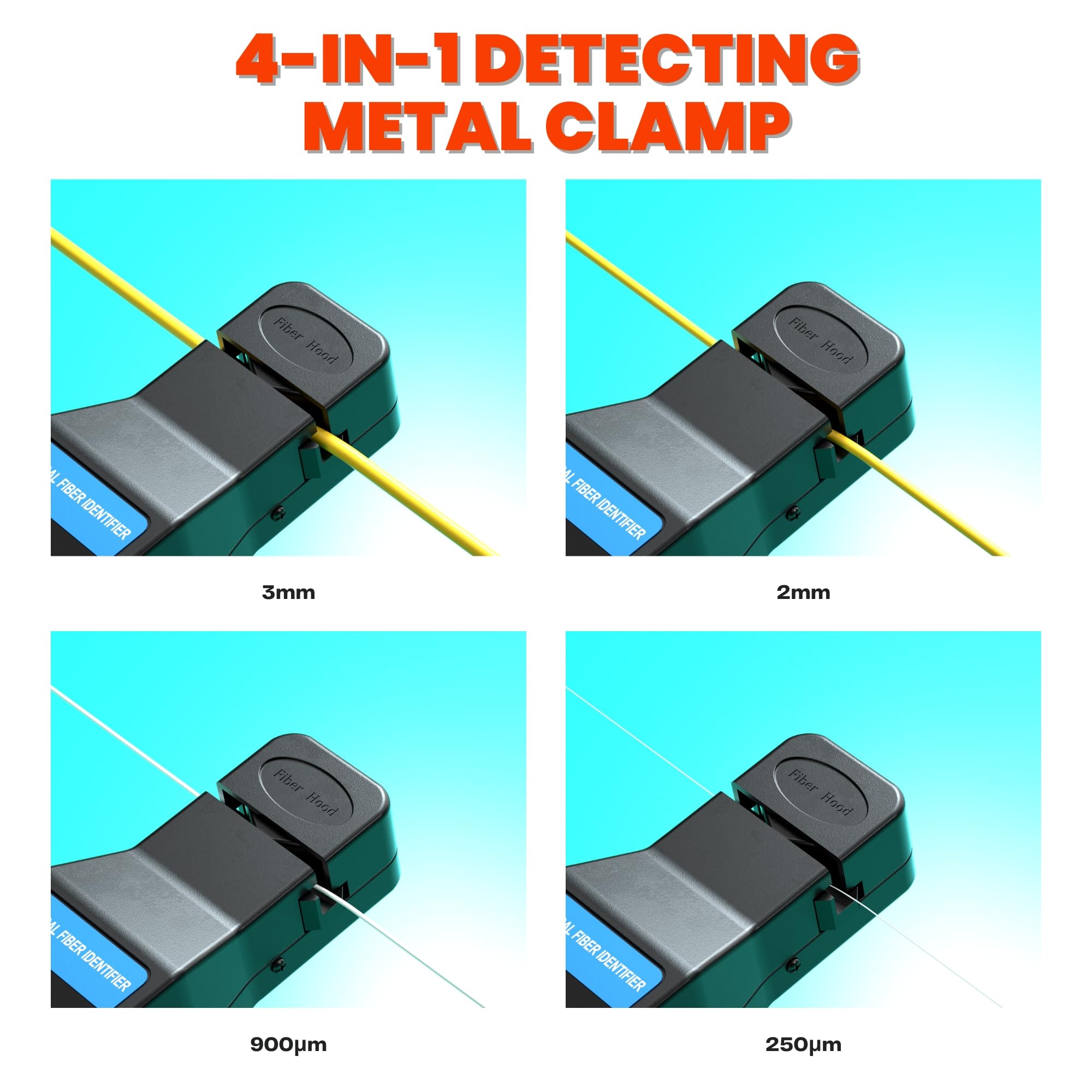

Application of optical fiber 250um/900um/2mm/3mm
Lightweight and with LED Color Screen
