FCD 50M OM1 LC to SC Fiber Optic Cable - 1G Plenum Duplex 62.5/125 Multimode Jumper (164.04ft) | USA Made | 0.5M-300M Length Options | Compatible with 1G/10G SFP, 1GBase | Ideal for Data Centers, Server Rooms & Network Installations

Features

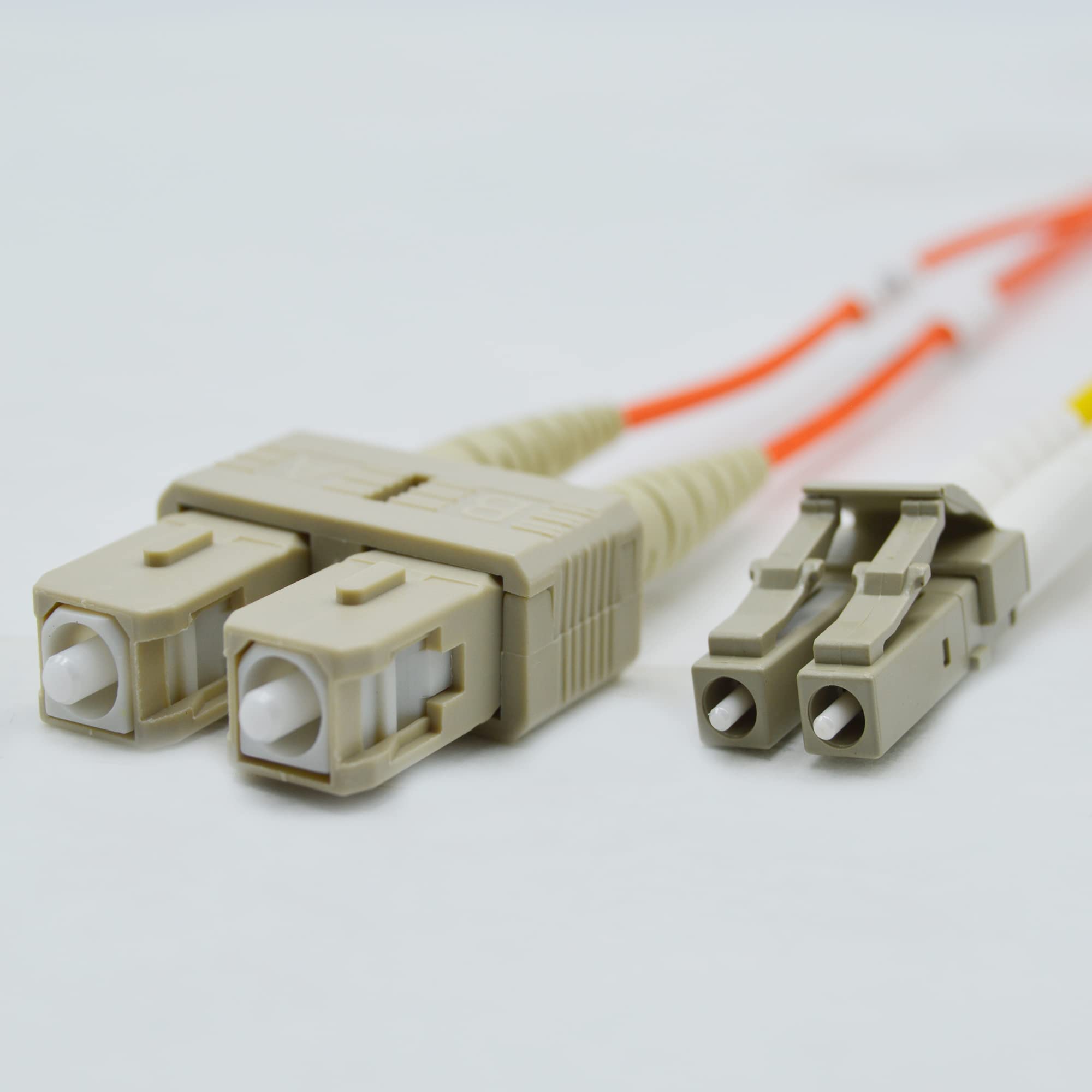

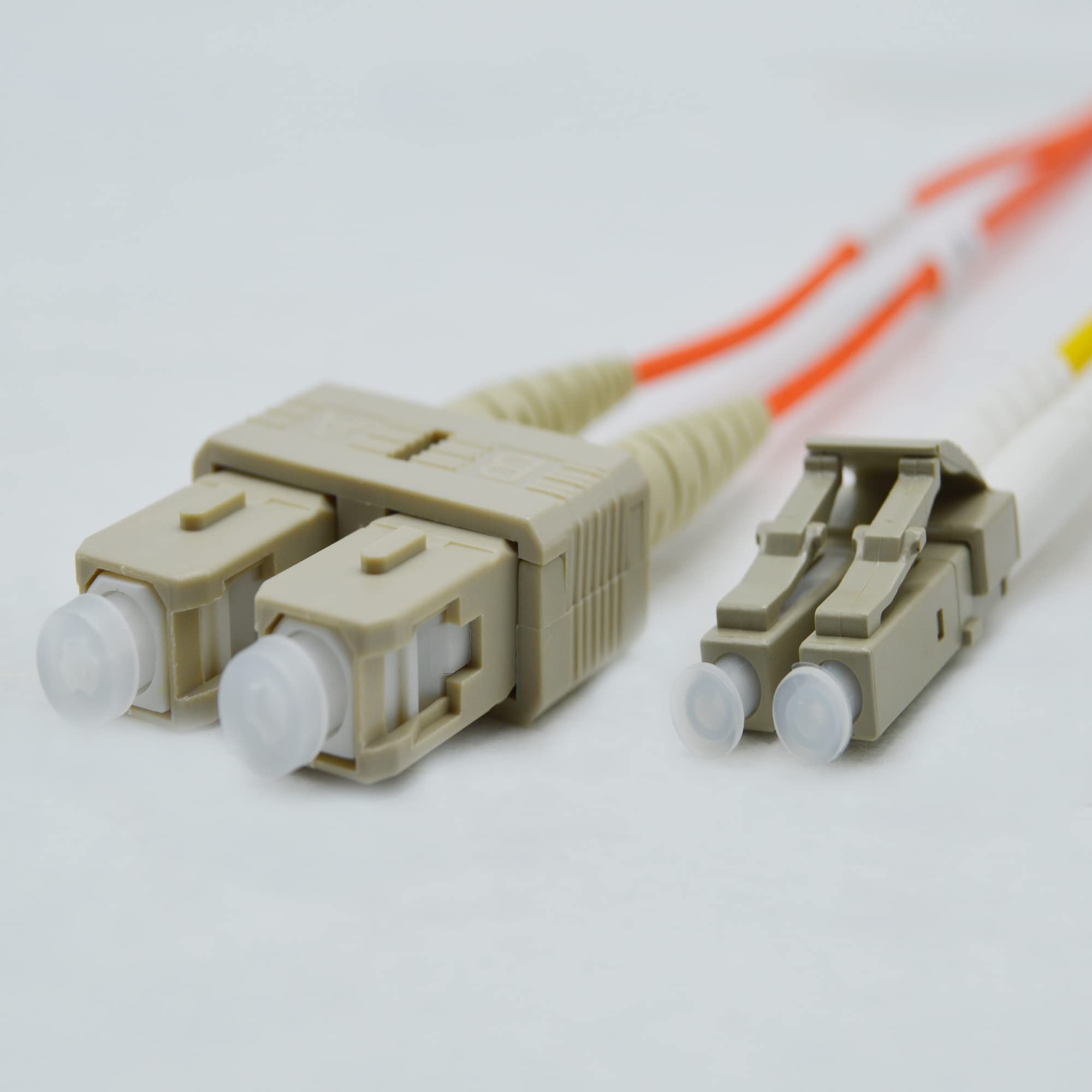

Fiber Cable Description OM1 LC to SC Plenum Fiber Patch Cable 50 Meter | OFNP Duplex LC SC Multimode Fiber (MMF) Patch Cable 62.5/125 Corning optical fiber core/cladding. Ceramic ferrule LC and SC fiber connectors. High bandwidth fiber for high speed, low loss, data transmission. Orange, 2.0mm outer diameter, zip-cord reinforced, jacket. | Education, Corporate, Military/Defense, Government, Healthcare, Finance and General Commercial, Computer Networking Applications.

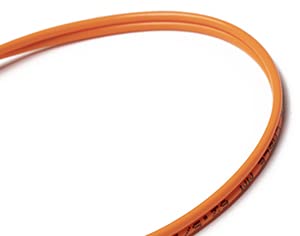

Fiber Patch Cable Details 50 Meter (164.04 feet), Duplex (2 fiber), 2.0 mm, Outer Diameter, Zip-Cord Reinforced, LC to SC Terminated, Multimode Fiber (MMF) Optical Patch Cable / Jumper Cord.

Core / Cladding Corning 62.5µm (micron) diameter fiber core / 125µm diameter cladding (1 micron is 1 one-millionth/1 meter). The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection) causing the fiber within the patch cord assembly to act as a wave-guide. Light travels through the fiber bouncing off the boundary between core & cladding.

Optical Modality Details for OM1 Ethernet Over Multimode Fiber 1Gb Ethernet Distance of 300 Meters at 850 nm / 600 Meters at 1310 nm. 10Gb Ethernet Distance of 33 Meters at 850 nm / 300 Meters at 1310 nm. OM1 Bandwidth is 160-200/500 MHz-km @850/1300 nm.

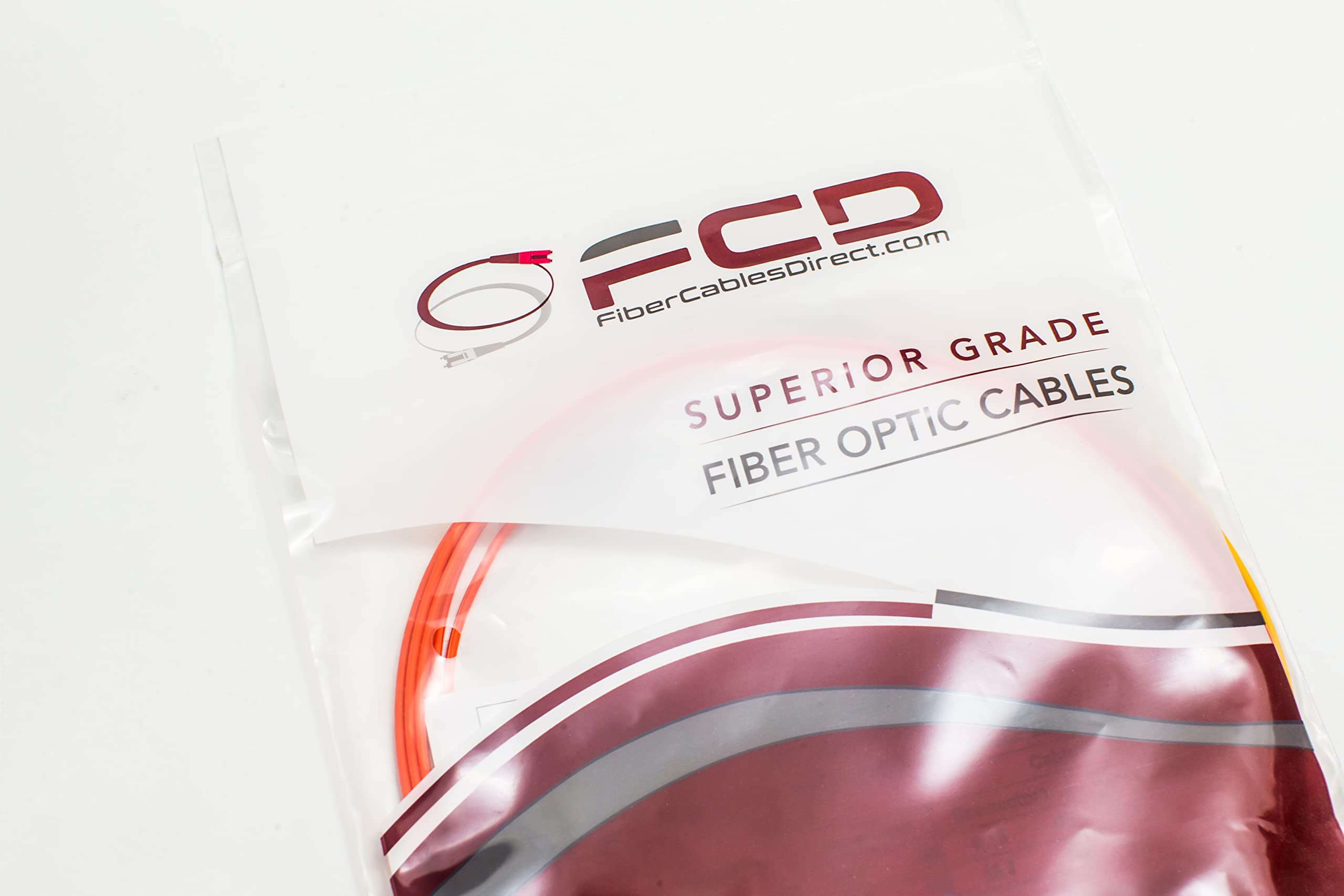

Durable Construction, Commercial Grade | Cost Effective and Built to Last | 100% Lifetime Warranty on All Fiber Cables Direct Products. Superior packaging for safe delivery anywhere in the world, using any available carrier and selected delivery priority.
