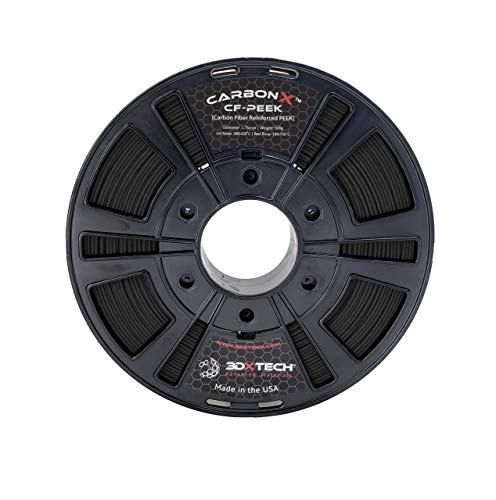

3DXTECH CarbonX Carbon Fiber PEEK 1.75mm 3D Printer Filament - 500g Spool for High-Temperature, Industrial & Engineering Applications

Recommended Print Conditions Extruder Temp: 380-410°C Bed Temp: 130-150°C Heated Chamber: Recommended Nozzle Specs: Hardened Steel Nozzle 0.4mm minimum diameter Read more Other Recommendations Bed Adhesion: Ultem PEI sheet or tape Layer Height: 0.25mm and greater Drying Instructions: 120°C for 4 hours Supports: Requires high-temperature support Read more Proven Performance PEEK, considered one of the highest-performing thermoplastics ever invented, mixed 10% with high-modulus chopped carbon fiber. Exceptionally strong mechanical, thermal, and chemical resistance properties make this one of the most premiere materials among the most demanding applications. The additional stiffness and light-weight nature of the carbon fiber reinforcement make this very popular in automotive, aerospace, defense, semi-conductor, and oil/gas industries. Read more Material Properties High stiffness and rigidity Chemical resistance to many chemicals found in the oil/gas, automotive, aerospace, industrial, semi-conductor, and chemical processing industries Inherent flame resistance (UL94 V-0) Hydrolysis resistance in boiling water and super-heated steam Near zero moisture absorption 154-260°C CUT The Continuous Use Temp (CUT) is the highest temperature at which this product can be used over long periods of time without any significant changes in material properties. 143°C Tg At the Glass Transition Temp (Tg), the amorphous regions of a material begin to change from rigid to a more flexible state. 343°C Melt Temp The Melt Temp is the temperature at which a substance begins its changes from a solid state into a liquid. The exact melting point depends on pressure and is usually measured at the specified 1 atmosphere or 100 kPa. Material Properties 154-260°C CUT 143°C Tg 343°C Melt Temp (function(f) {var _np=(window.P._namespace("AplusModule"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { // register javascript with unique module id P.when("jQuery", "AplusModules-module-6", "ready").execute(function($, hoverModule) { hoverModule("aplus-module-6-3"); }); })); Carbon Fiber Reinforced Filament What Is It? Fibers 5-10 micrometers wide made of carbon. The fibers are aligned following the axis of the material. This, along with their physical makeup, are what give this material its excellent properties. What Does It Do? Carbon Fibers demonstrate a lot of desirable material properties: high stiffness high tensile strength high heat tolerance high chemical resistance low weight low thermal expansion How Does It Work? Reinforcing plastic with carbon fibers produces a 3D printing filament which exhibits the best properties of both the carbon fibers and the plastic of choice. What Is It Good For? Ideal for any applications which require light weight and rigidity. For these reasons, carbon fiber reinforced filament is very popular in aerospace, civil engineering, the military, and motorsports. Read more Abrasive Material This material is particularly abrasive among 3D printing filaments. Users may find standard brass nozzles are chewed through very quickly compared to standard wear and tear. When worn through, the nozzle diameter will widen inconsistently and the printer will experience extrusion issues. Because of this, it's strongly recommended this material be printed through a hardened steel nozzle rather than a softer metal. Hardened steel nozzles can often be inexpensive and easily installed depending on your printer manufacturer's instructions. Read more
