TL290T 4-in-1 Fiber Optic Tester Kit with OTDR, Power Meter, Light Source & Visual Fault Locator - 4" IPS Display for Network Installation & Maintenance

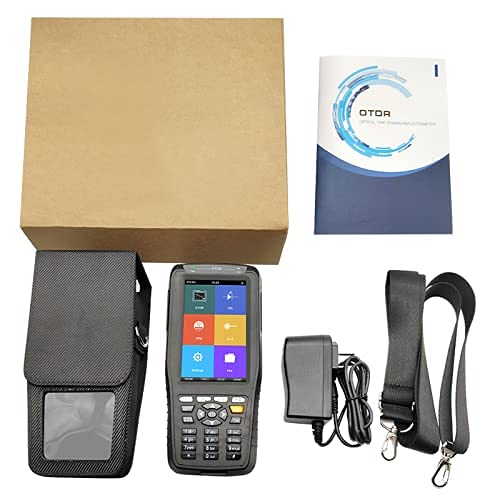

Selected SpecificationOTDR Wavelength: 1310/1550nm Dynamic Range: 22/20dB Measure Distance: 0-60km Type of Fiber: 9/125um Single-Mode Optical Fiber Dead Zone of Reflection Event: 2m Dead Zone of Attenuation Event: 12m Optical Power Meter Measurement Range: -70~+10dBm Wavelength Range: 800~1650 Calibrated Wavelength: 850, 1300, 1310,1490, 1550, 1625nm Detector: InGaAs Visual Fault Locator Wavelength: 650nm Out put Power: >=10 KM range Mode: 0Hz, 1Hz, 2Hz Fiber Type: SM/MM Optical Light Source Emitter: FP-LD Wavelength: 1310/1550nm Connector: FC/PC Output Power:>=-5dbm Other Features Editable file name and line number; Support upgrade Quick boost, only take 2 seconds to test Packing List OTDR Tester with FC/UPC Connector *1 AC/DC Charger *1; CD/USB (software and user manual) *1 User Manual *1, Test Report *1 Patch Cord and Adaptor *1; Soft Carry Case *1 Data Download Reminder Up to 200 test records can be stored in the tester, greater than that will be overwritten from back to front. Please download data timely. Please contact us if you have any question. Connect Fiber ReminderPlease make sure the connector type matches, and connector is clean; both the unmatched or/ and the contaminated connector can cause inaccurate measurements and can even damage the instrument
