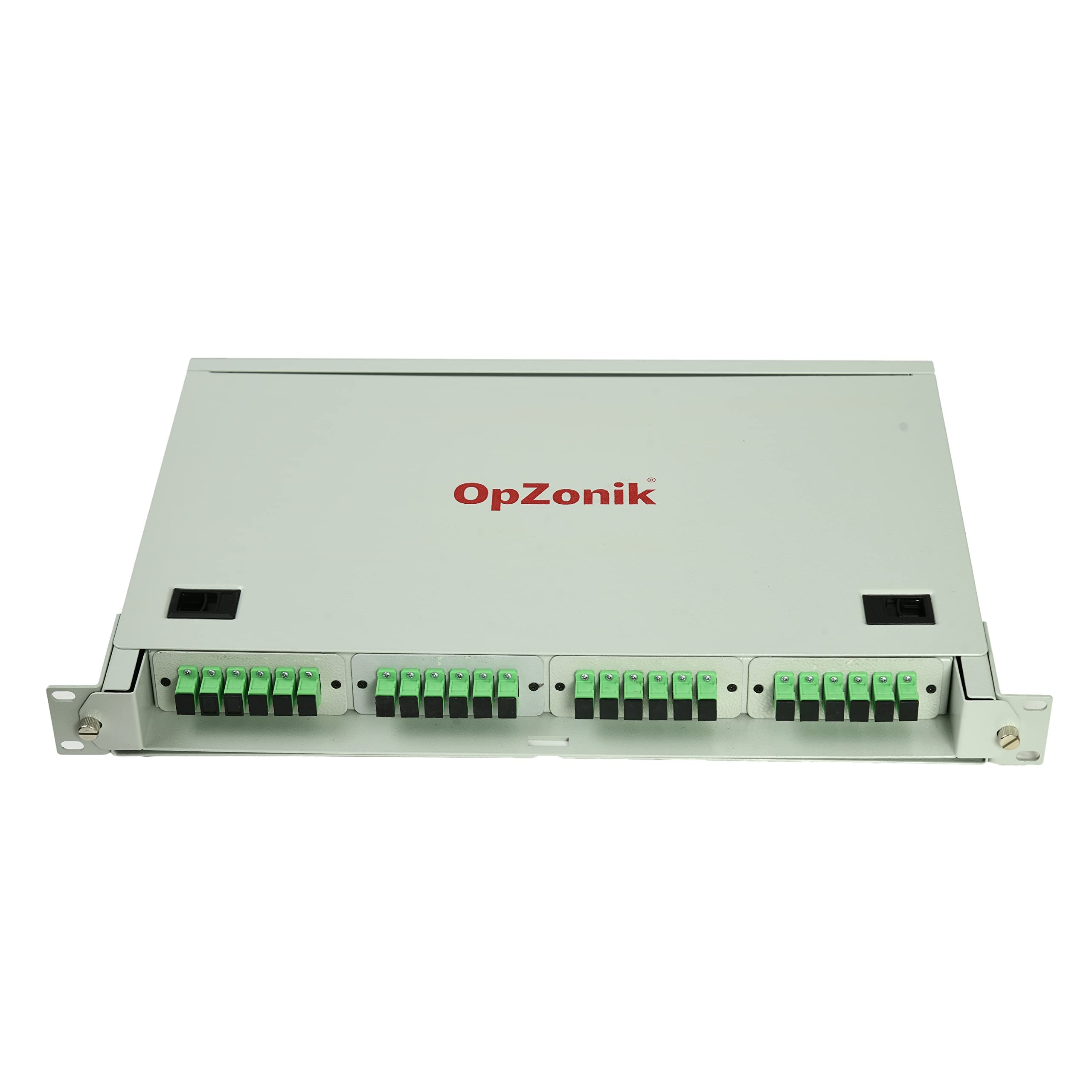

24 Port SC/APC Singlemode Fiber Optic Patch Panel - 1U Rack Mount Enclosure with Telescoping Sliding Design - 19" Fiber Distribution Panel for Data Centers & Telecom Networks

Features

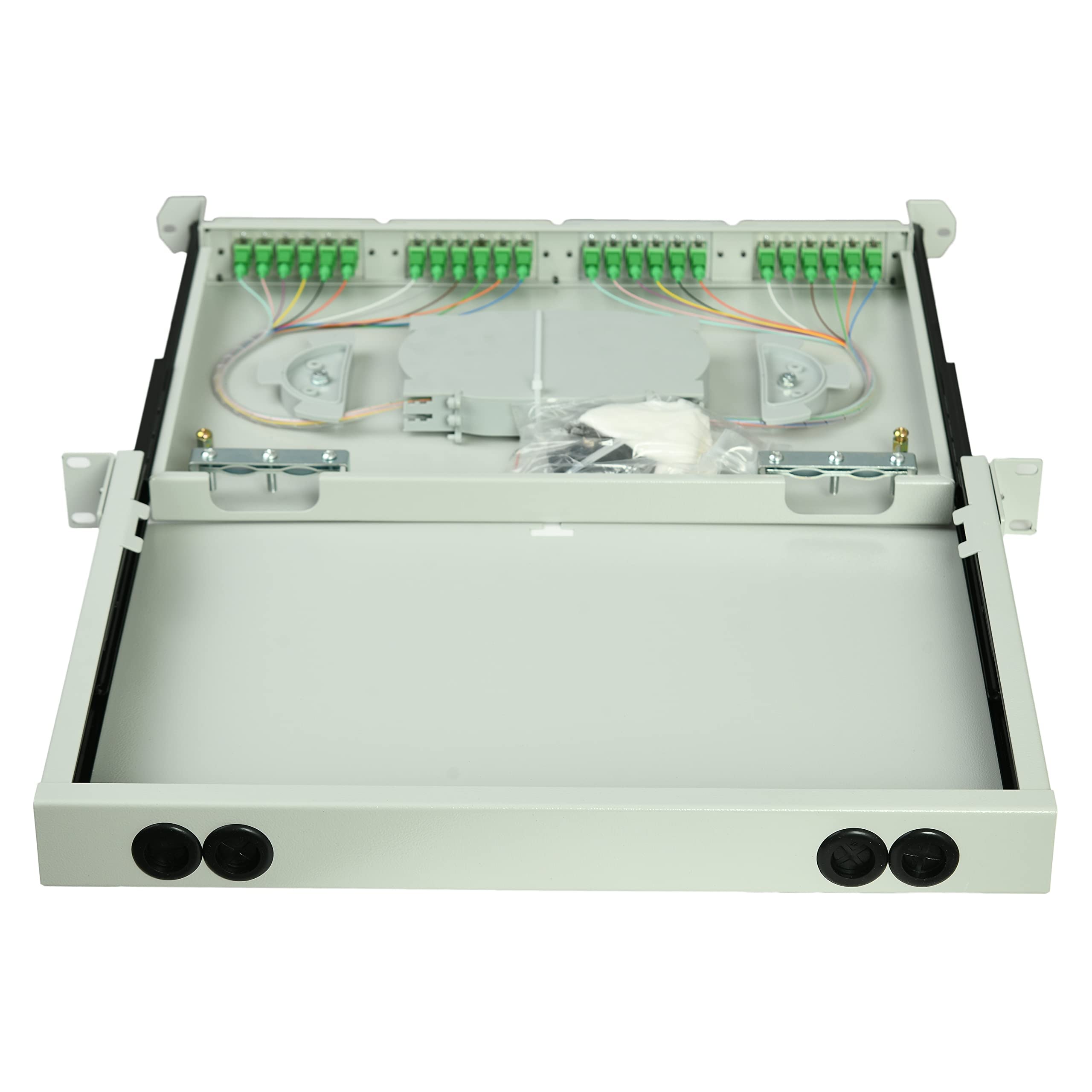

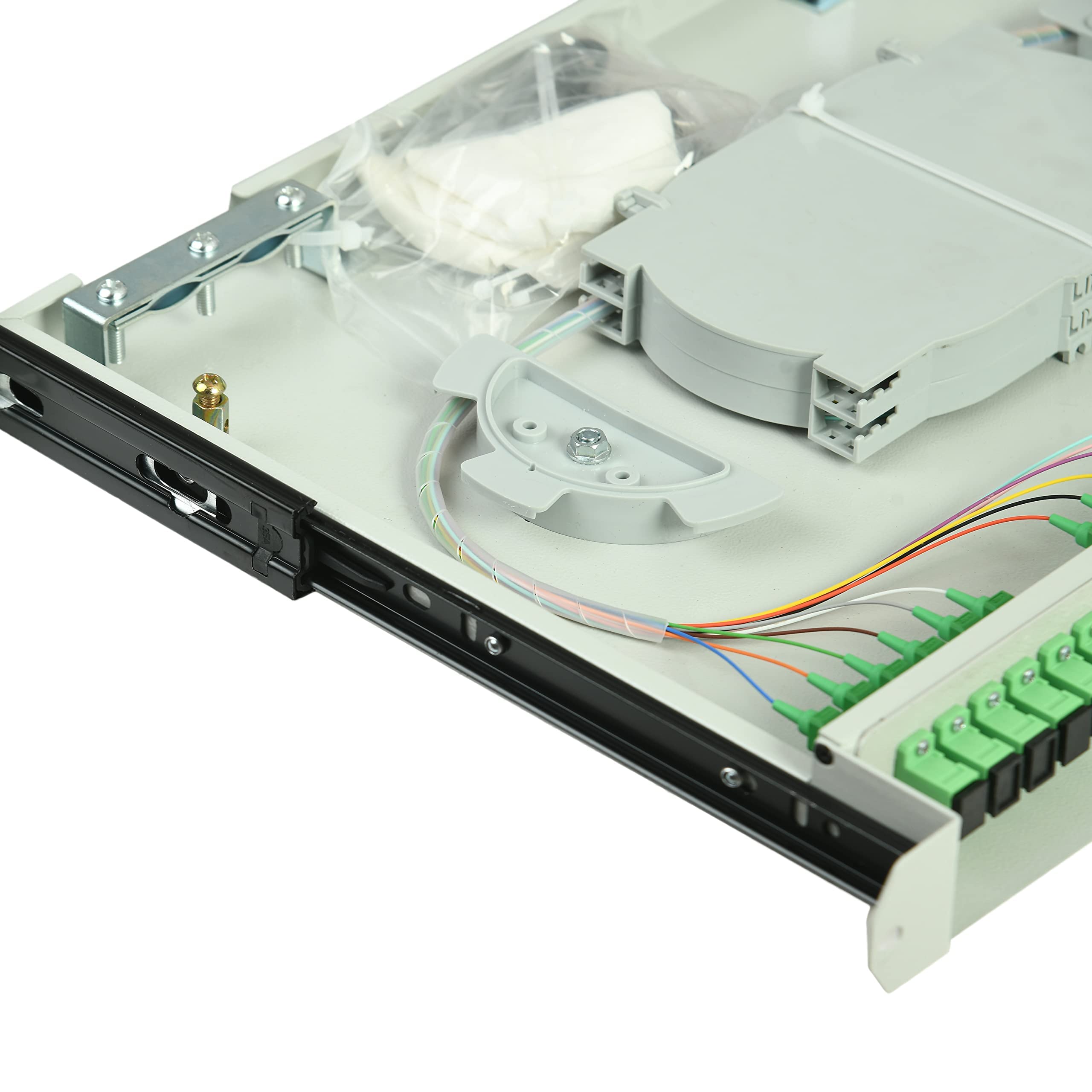

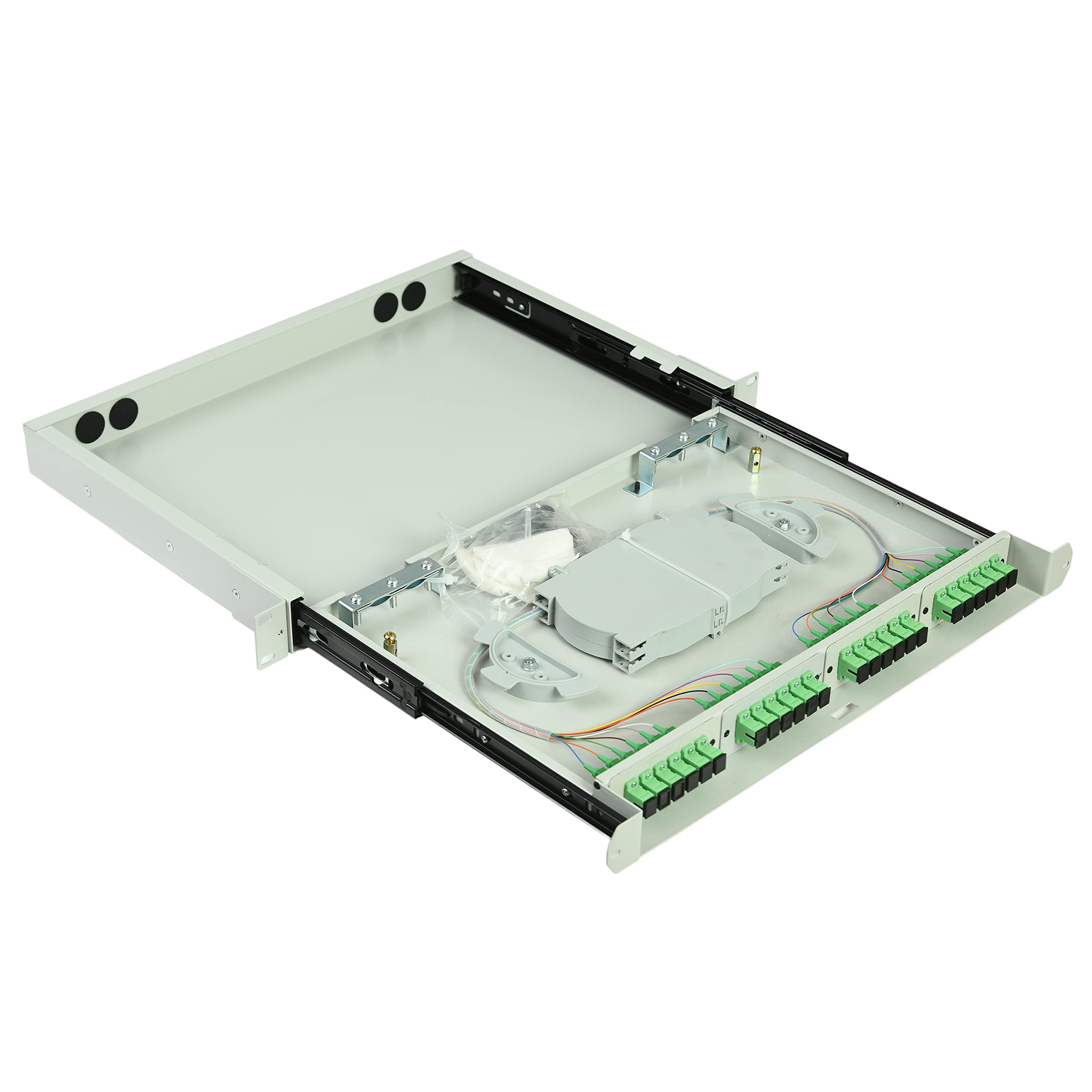

OpZonik Fiber optic patch panel is also called fiber distribution panel. Its main function is to terminate the fiber optic cable and provide connection access to the cable’s individual fibers. The front opening of the optical fiber patch panel is easy pull out & push in telescoping sliding style and the top panel on the above which is removable for easy accessibility.

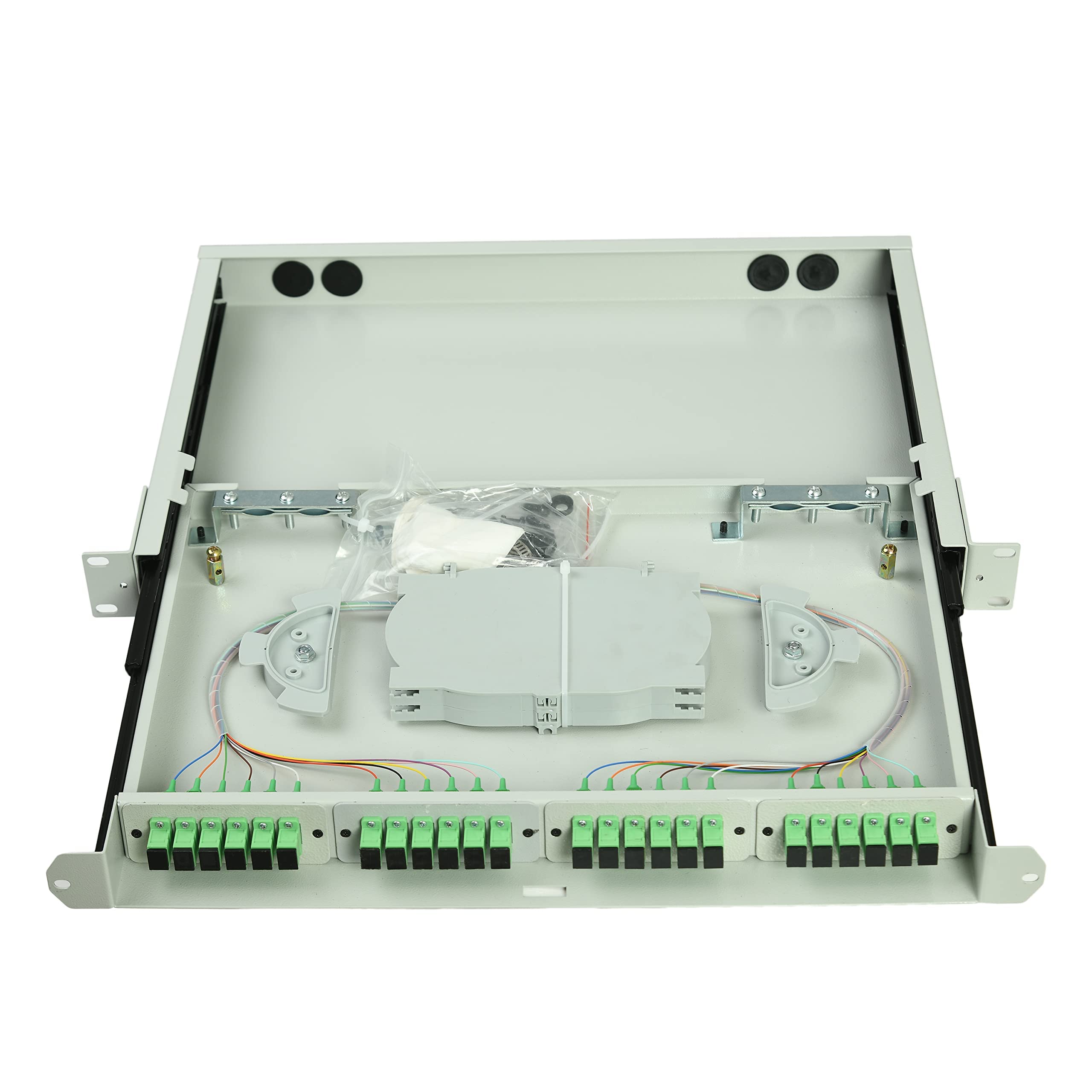

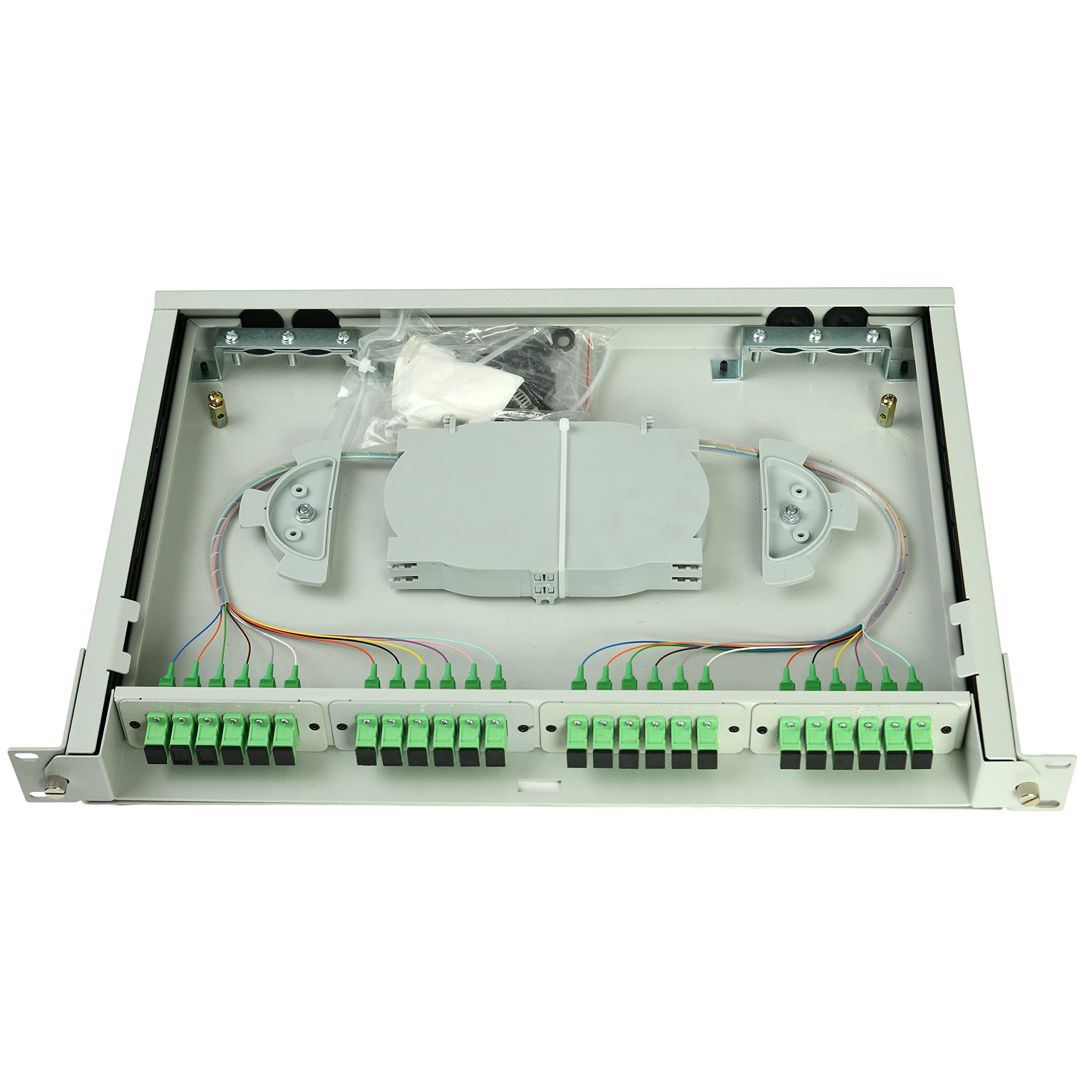

OpZonik Fiber optic patch panel comes fitted with 24 SCAPC Singlemode Simplex Adapters, 24 SCAPC Fiber Optic Pigtails, Splice Trays for 24 Fiber Capacity. Includes 24 Splicing Sleeves, Cable Ties, Double sided tape, Nuts Bolt and mounting ear screws to fix and hold the incoming Fiber Optic Cables.

Provide space for the installation of optical cable terminals and storage of the remaining fiber, which is convenient for installation and operation. Rack mount enclosure provides with removable rubber grommets to protect the entry points of fiber at the rear of the unit.

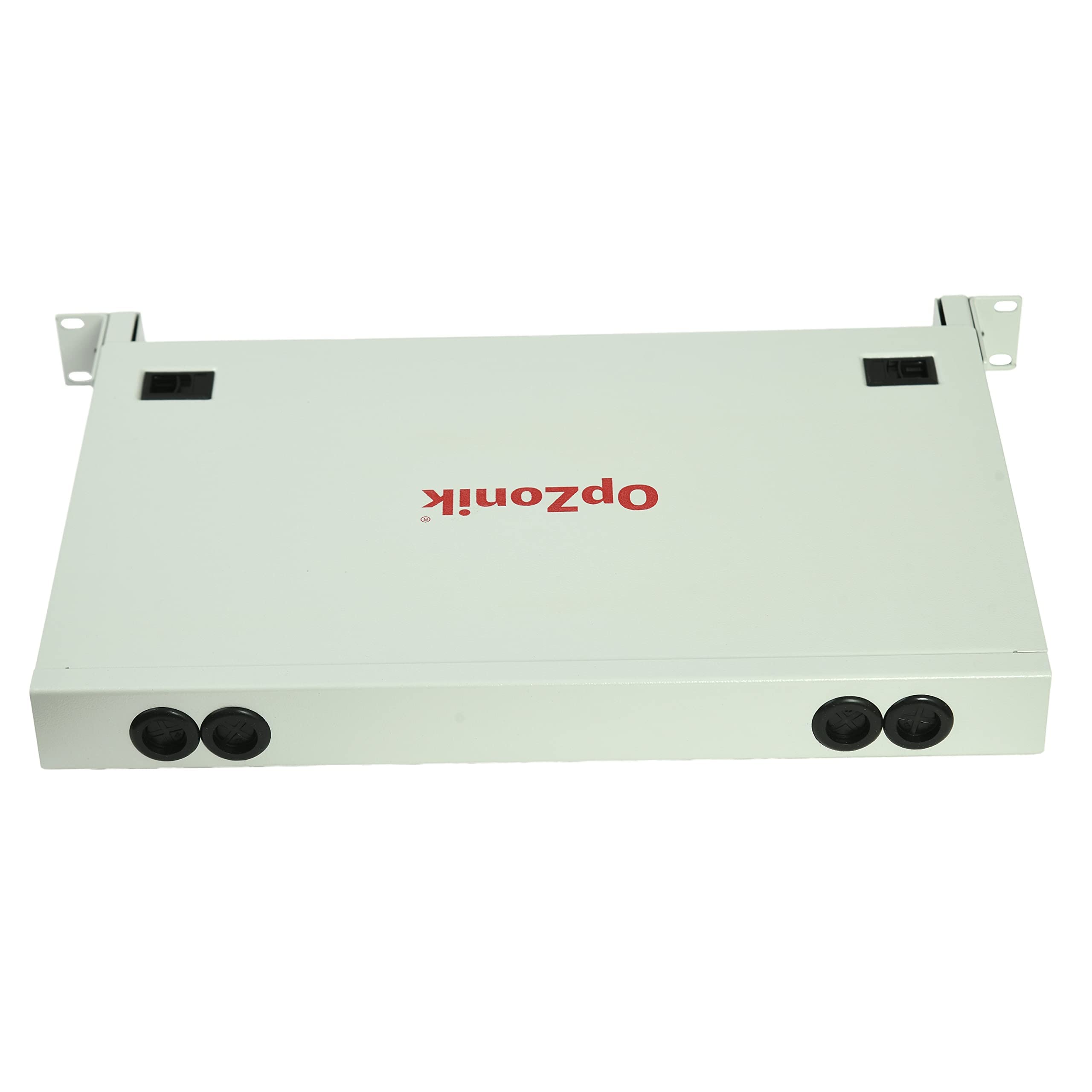

This rackmount Enclosure is made up of High quality cold rolled steel and comes in a Grey colour powder coated. The Dimensions for this panel are H 1-3/4" x W 19” x D 12-1/4” standard solid structure.

The device is flexible in configuration, easy to install and use, easy to maintain and manageable, and is an indispensable device for fiber optic cable terminal or relay node to realize fiber splice and jumper cable splice and access. The box with sufficient impact strength is fixed to facilitate installation in different occasions.
