26622116

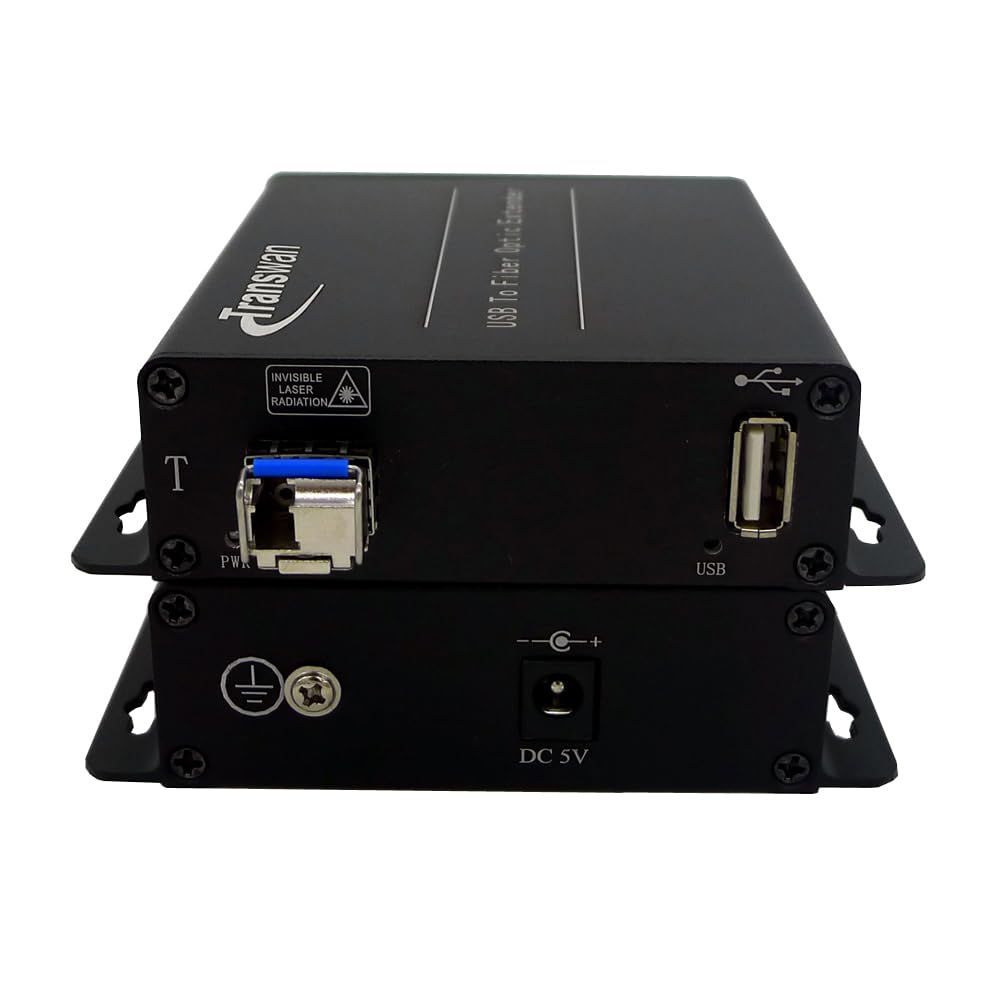

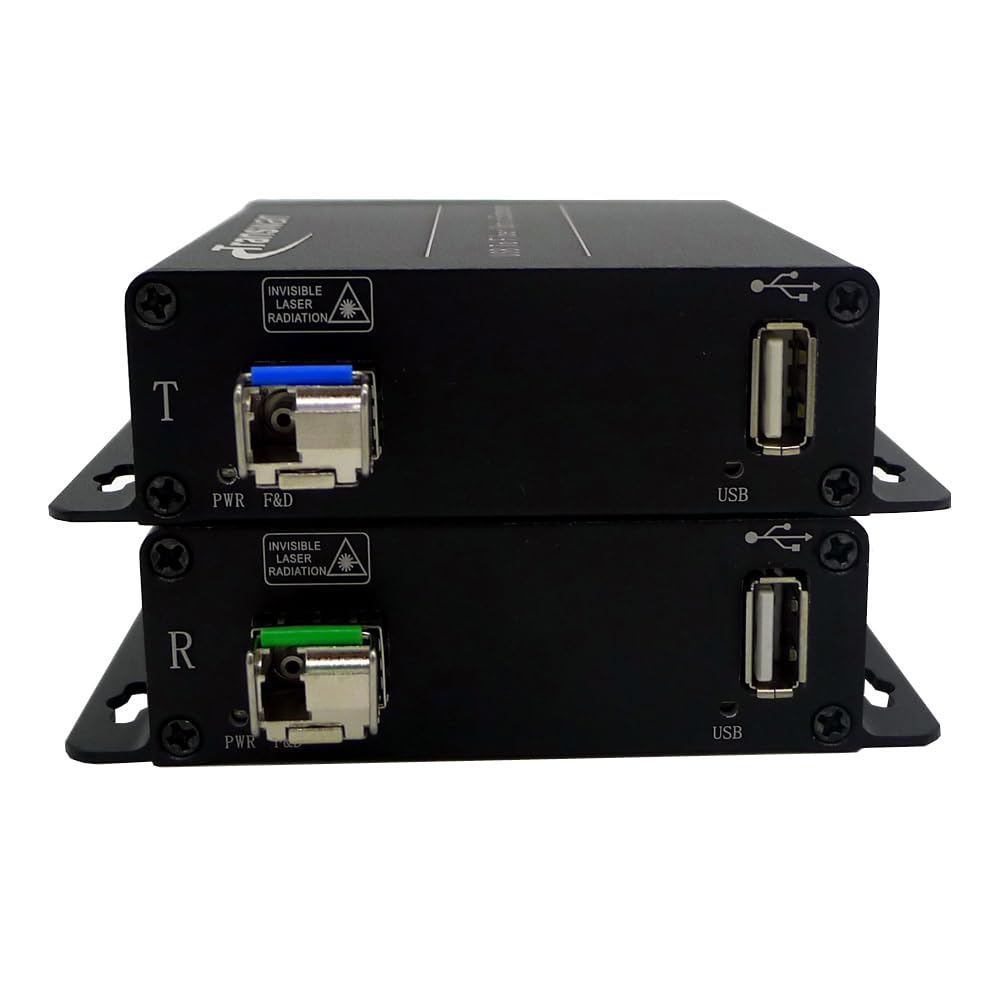

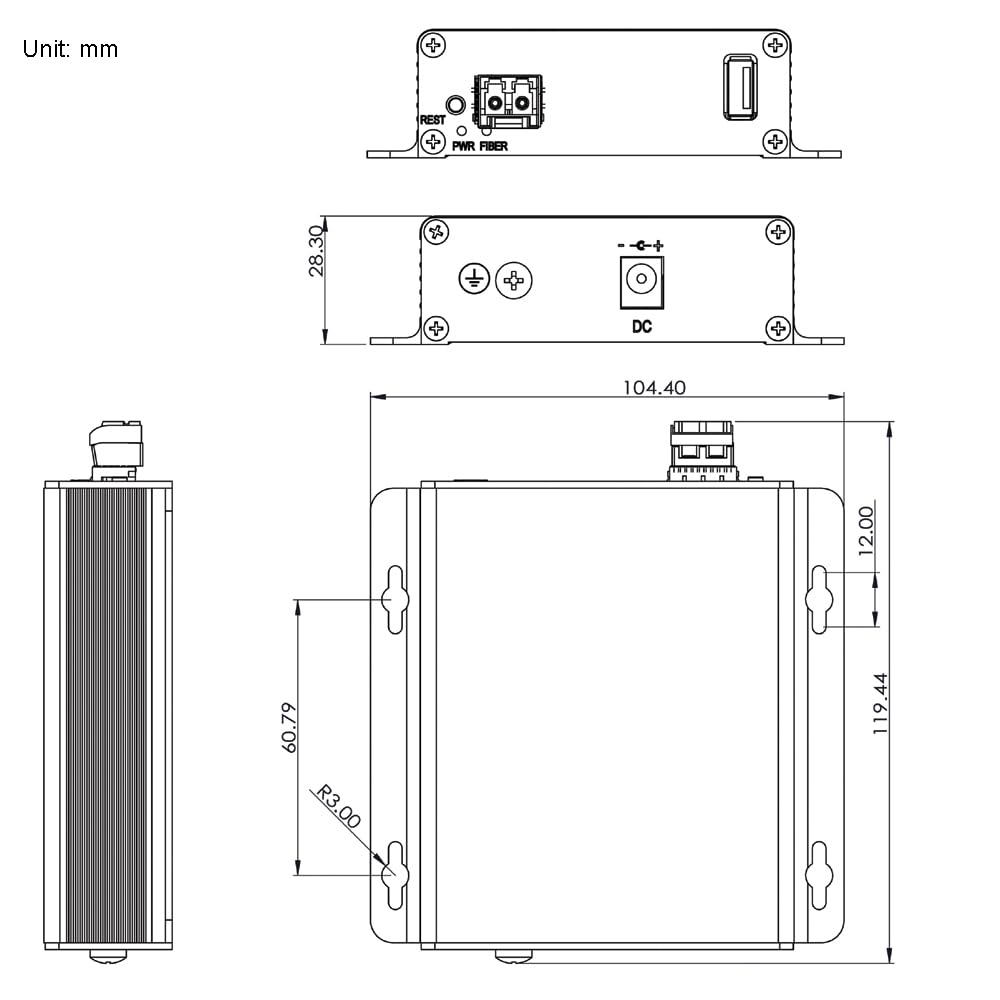

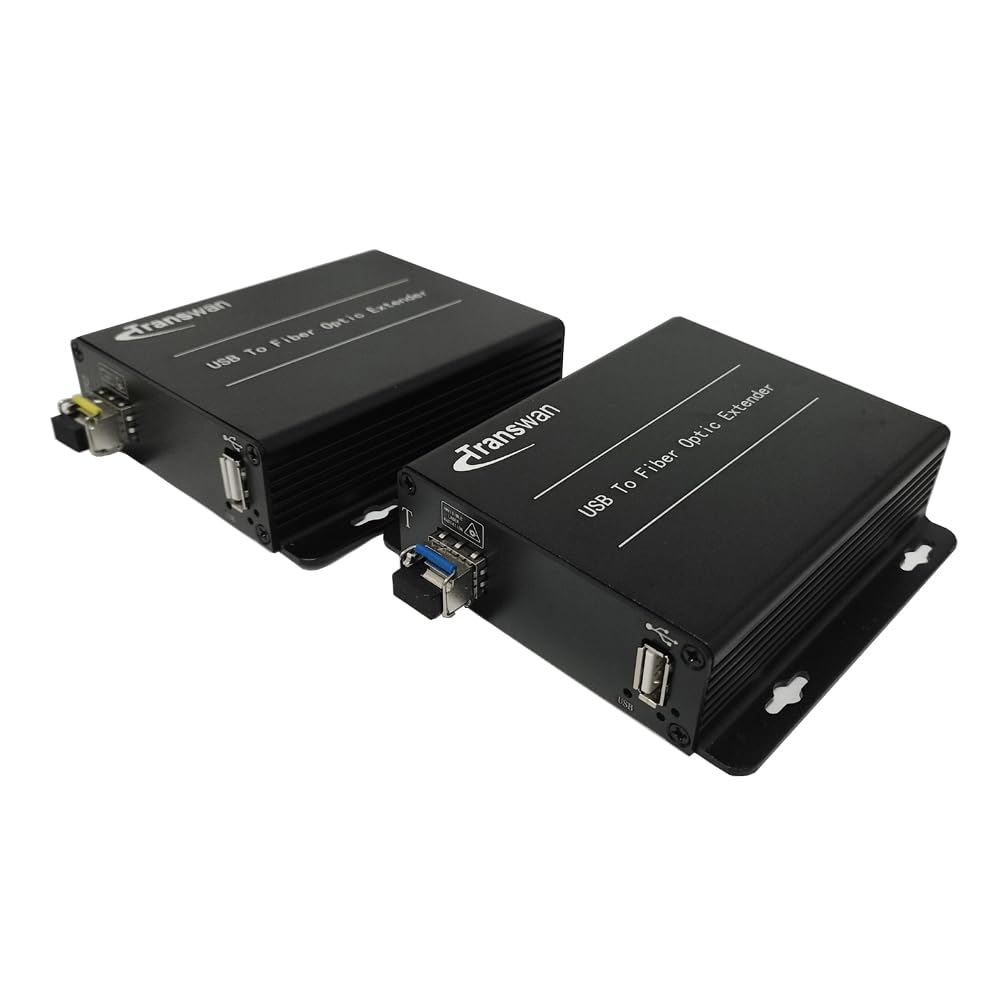

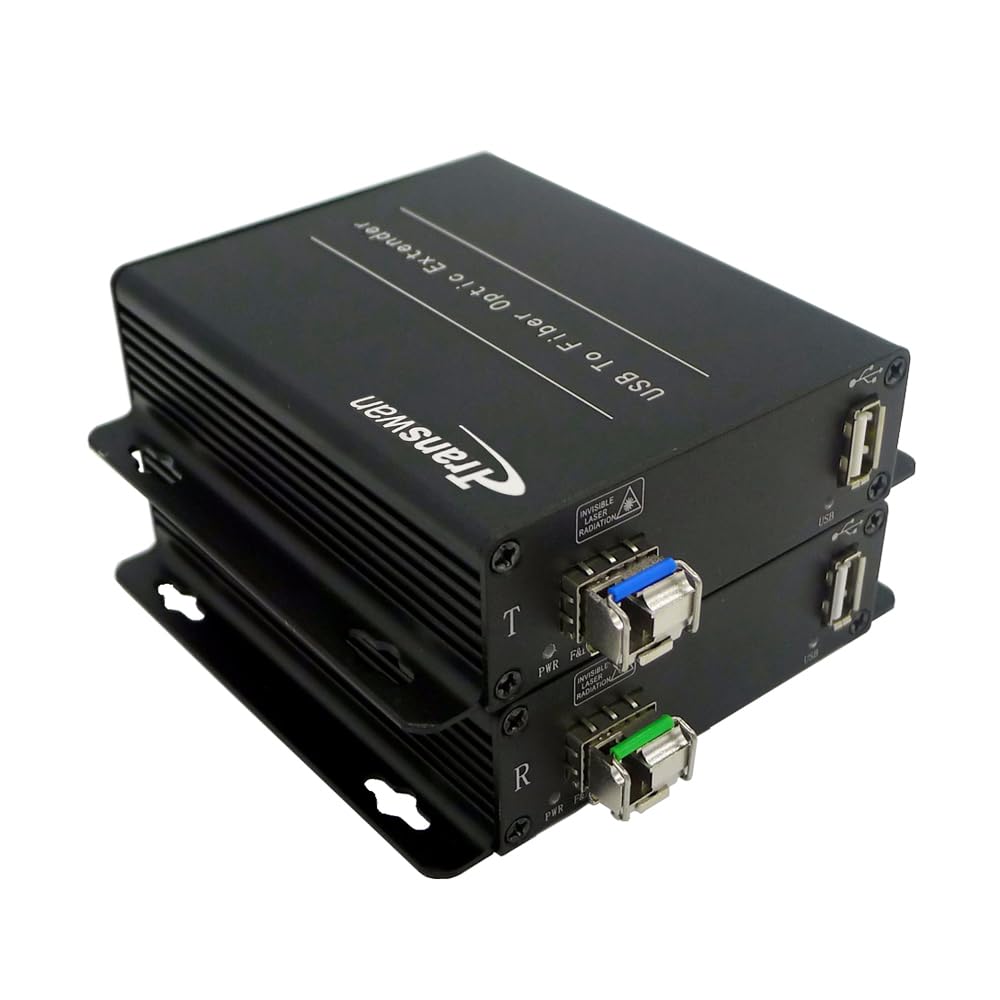

BY-USB-395SF-FBA includes a transmitter and a receiver, which can extend USB 2.0 device to a remote location over 1 fiber cable, Max 5 Kilometers Singlemode Fiber or Max 250 Meters Multimode Fiber . It can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc Optical Connector: 1x LC/PC Wave length: 1310/1550 nm Support Fiber types: 50/125μm(MMF), 62.5/125μm(MMF), 9/125μm(SMF) Physical Size (L× W ×H): 104mm x104mm x28mm Case: Aluminum Color: Black N.W.: 0.75Kg Power Voltage: 5~12V DC Transmitter power consumption: <10W Receiver power consumption: <3.5W Environment Working temperature: -20℃-70℃ Storage temperature: -40-85℃ Humidity: 0-95% (non-condensing) USB interface(Type A): Receiver: 1 port, connect to PC Transmitter: 1 port, connect to USB 2.0 device Package: 1. 1 x transmitter (client side). 2. 1 x receiver (host side). 3. 1 x Power supply adapters DC 5~12V with US plug for the transmitter. 4. 1 x USB 2.0 cable, the receiver powered by the local PC via USB cable. 5. 1 x Manual.Power-up sequence: Because of USB status (Suspend and Resume), Both the the computer and the USB device it's being connected to should be shut down completely BEFORE making all the connections. The USB devices and the transmitter module it's connected to must both be powered up and running BEFORE the computer is booted up. Otherwise, the USB device's driver in the computer will not be loaded, and the devices will not connect. In case the USB device's driver shows can not Identify the Device or shows "Unknown Device", please unplug and plug the receiver module.

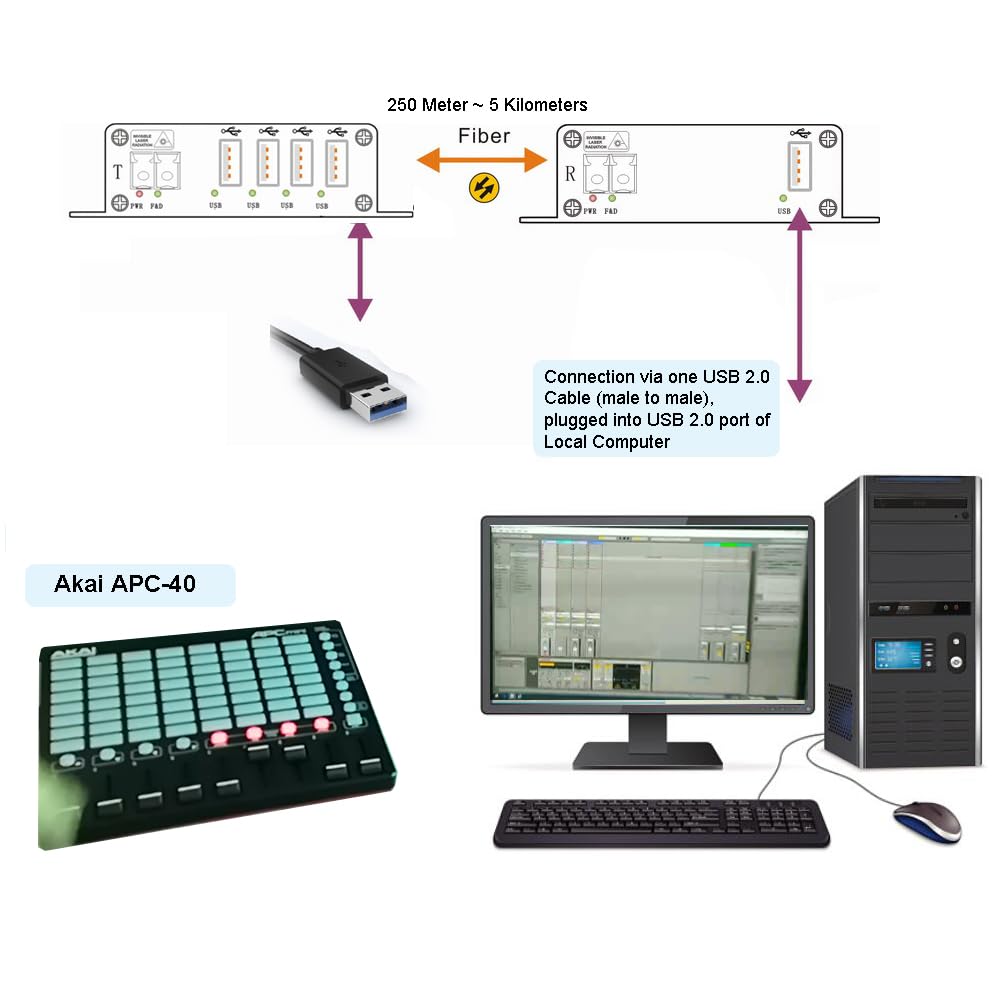

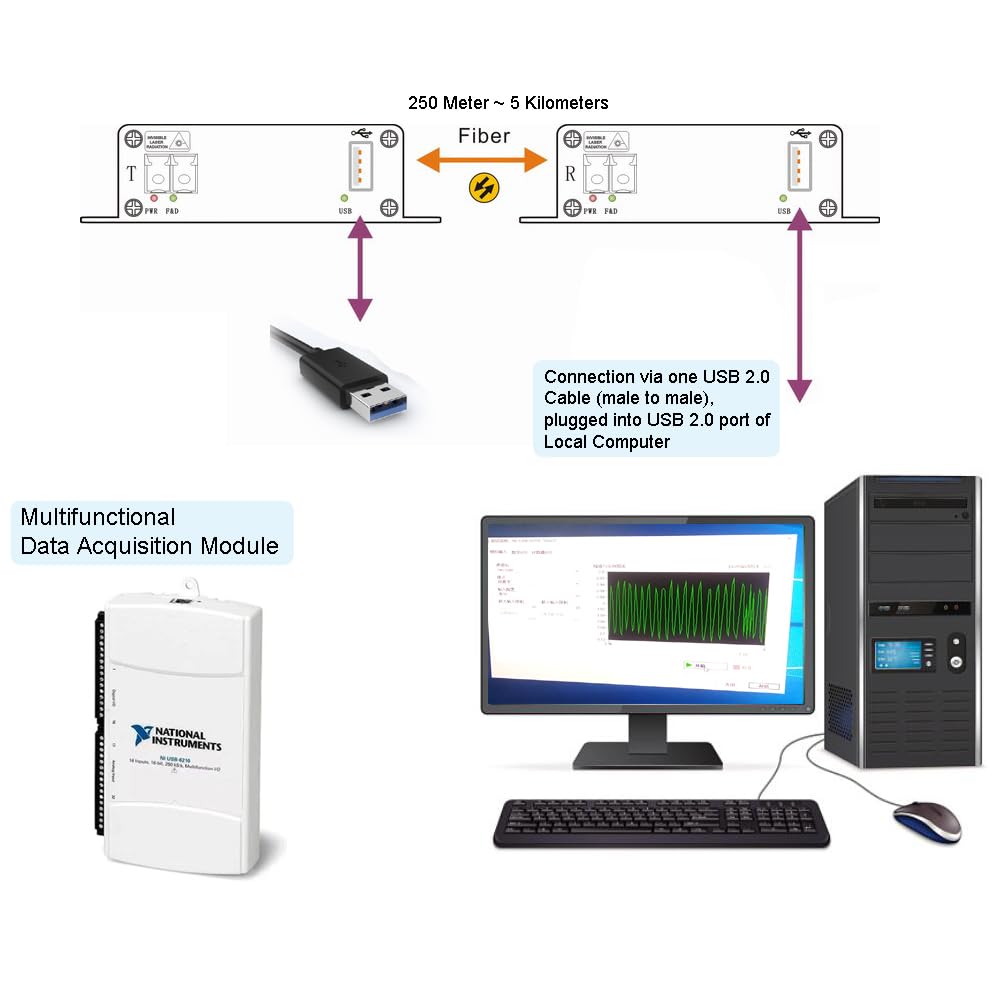

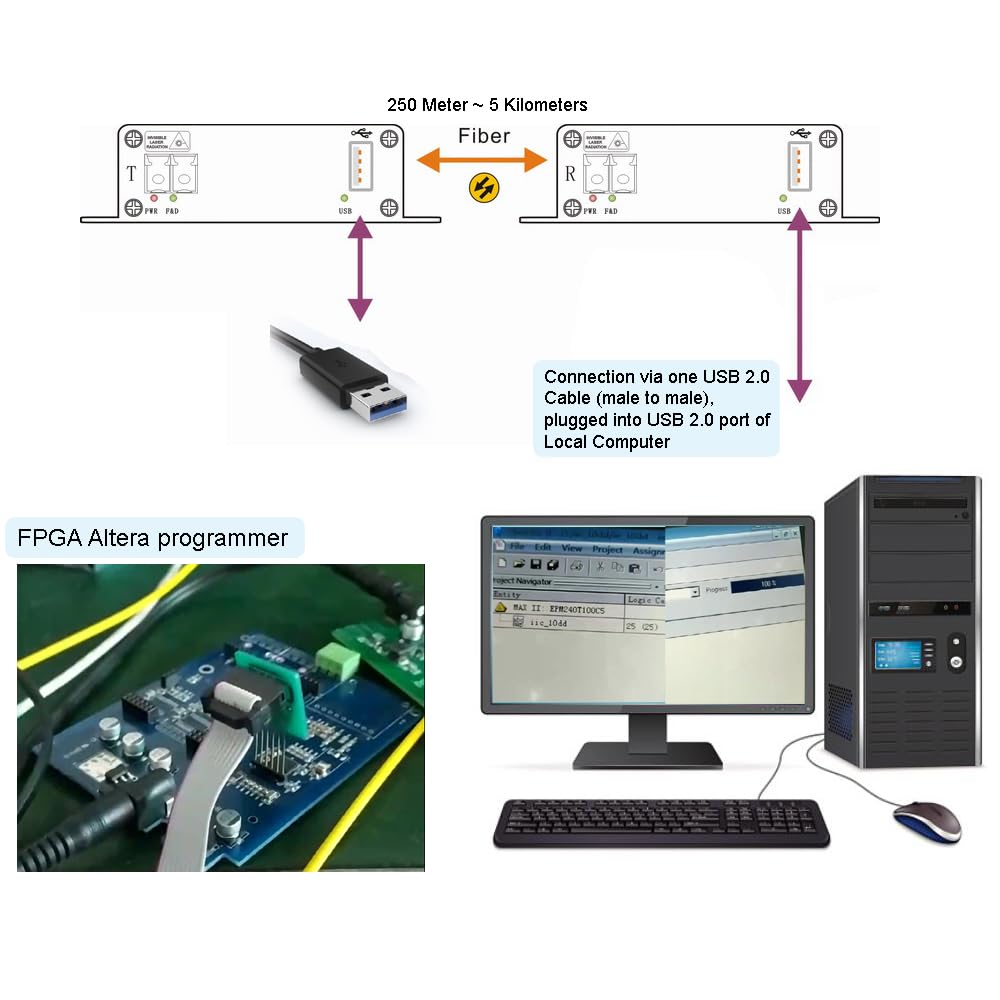

Support USB1.1 and USB 2.0 devices, Such as Cameras, Printers, Scanners, Audio devices, USB touch screens, Game Controllers, Mouse and Keyboard Dongle, FTDI RS232 Converter, FPGA Programmer, USB video capture device, Orientalmotor Controller, USB Wireless Dongle, USB headset, USB to RS232 Adapter,Arbitrary Waveform Generator 33250A & 82357B, Oscilloscope Kit, Data Acquisition Device (DAQ),Akai APC devices etc.
USB 2.0 port to Max 5 Kilometers Singlemode Fiber or Max 250 Meters Multimode Fiber; Backwards compatible with USB 1.1
1 fiber bi-directional transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
Auto recognition of High-speed (25Mbps～480Mbps)、Full-speed (500Kbps～12Mbps)、Low-speed (10Kbps～1.5Mbps) USB devices.
Power-up sequence Because of USB status (Suspend and Resume), Both the the computer and the USB device it's being connected to should be shut down completely BEFORE making all the connections. The USB devices and the transmitter module it's connected to must both be powered up and running BEFORE the computer is booted up. Otherwise, the USB device's driver in the computer will not be loaded, and the devices will not connect.
