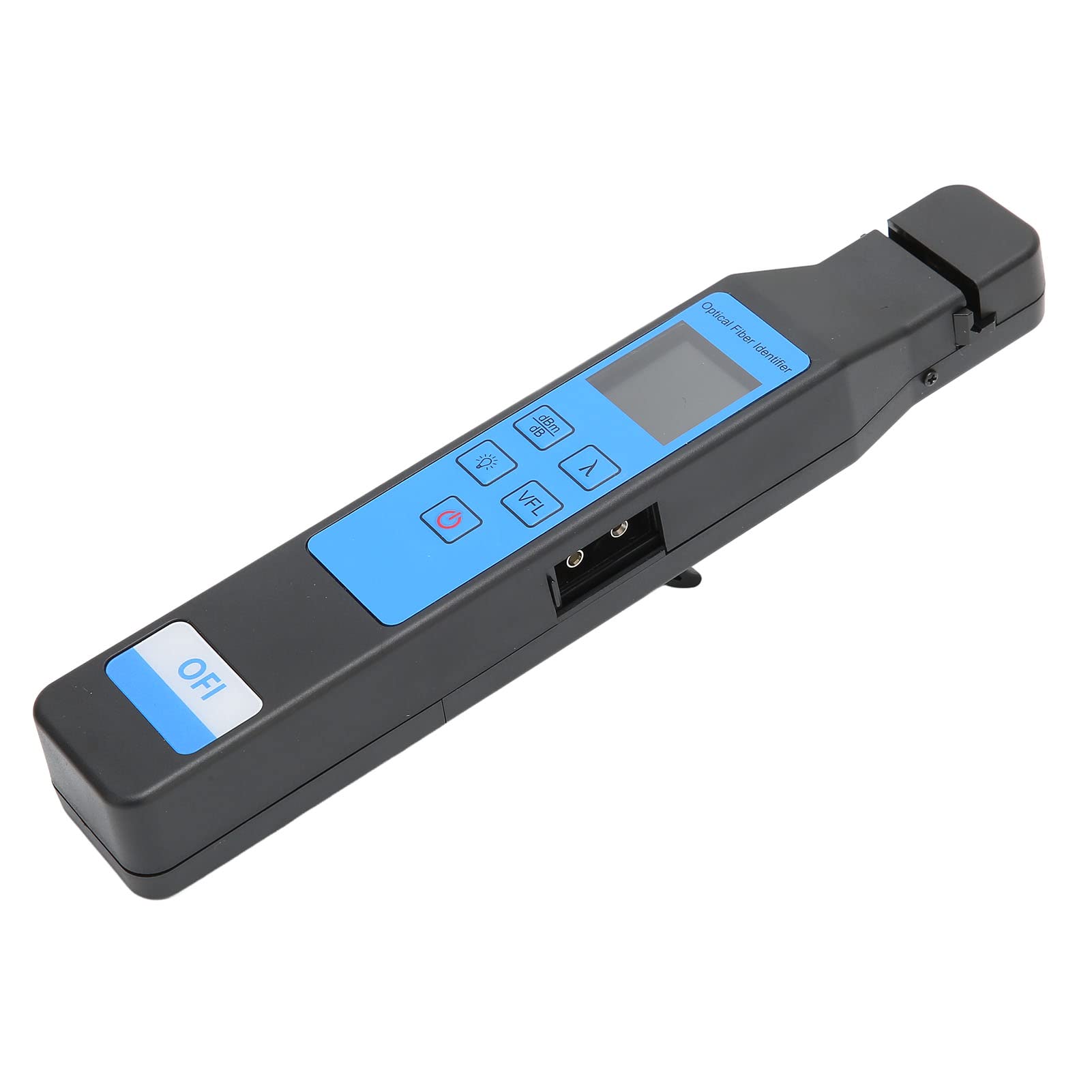

Specification:Item Type: Optical Fiber IdentifierMaterial: ABSSpecifications:Wavelength: 800nm-1700nmStraight Insertion Loss: 1. 250um/900um Fiber: 1.0dB; 2, 2.0/3.0 Fiber: 1.5dBFiber Application: 250um/900um/2mm/3mm FiberRecognized Signal Type: 270hz/1khz/2khzIdentification of Modulated Signals: SupportPower Measurement: SupportDisplay: LED Color Screen: SupportLow Power Monitoring: SupportDetector Type: 1mm InGaAsVFL Specification:Wavelength: 650nm±10nmOutput Power: 10mWFiber Port: 2.5 Universal ConnectorOPM Specification:Wavelength: 800-1700nmCalibration Certificate: 850/1300/1310/1490/1550/1625nmMeasurement Range: -50 to +26dbmConnector Type: 2.5 Universal ConnectorOperating Temperature: -10°C to +50°CStorage Temperature: -20°C to +70°CBattery:2 x AA (not Included)How to Use:Use after installing two AA batteries (not included).(1) Insert the fiber into the adapter head and push the button up to lock the ferrule.(2) When the light signal passes through the optical fiber, the LED light fixture will indicate the traffic direction with intermittent sound, and the relative core power will also be displayed in digital format.(3) If no light signal passes through the fiber, the LED light fixture goes out and LO will be displayed at the relative core power position.(4) The fiber identifier can also detect the existence of 2KHz, 1KHz and 270Hz modulated tones by continuously audible tones.Package List:1 x Optical Fiber Identifier 1 x Portable Storage Bag1 x User Manual1 x ScrewdriverNote:Ships without battery.
Strong Practicability: Optical fiber identifier is an important tool for fiber maintenance. It is used for non destructive fiber identification projects. It has a visual fault location module, fault location and energy meter functions.
Quick Detection: The Portable fiber identifier can detect the optical signal in the signal of fixed load 270Hz, 1KHz and 2KHz to identify the specific fiber, which can quickly find the required fiber.
Multiple Functions: LED fiber identifier built in 10 mW VFL function; OPM, metal holder, no need to replace adapter, low battery monitoring function, recognition and other functions.
Macrobending Measurement: Macrobending is to detect the direction and intension of the optical signal by using the weak optical signal leaked when the optical fiber is bent, without damaging the optical fiber or interrupting the communication.
Connector Type: Multifunctional fiber identifier adopts online macrobending technology for non destructive testing, which can measure signal direction and power to avoid line interruption caused by misoperation.
