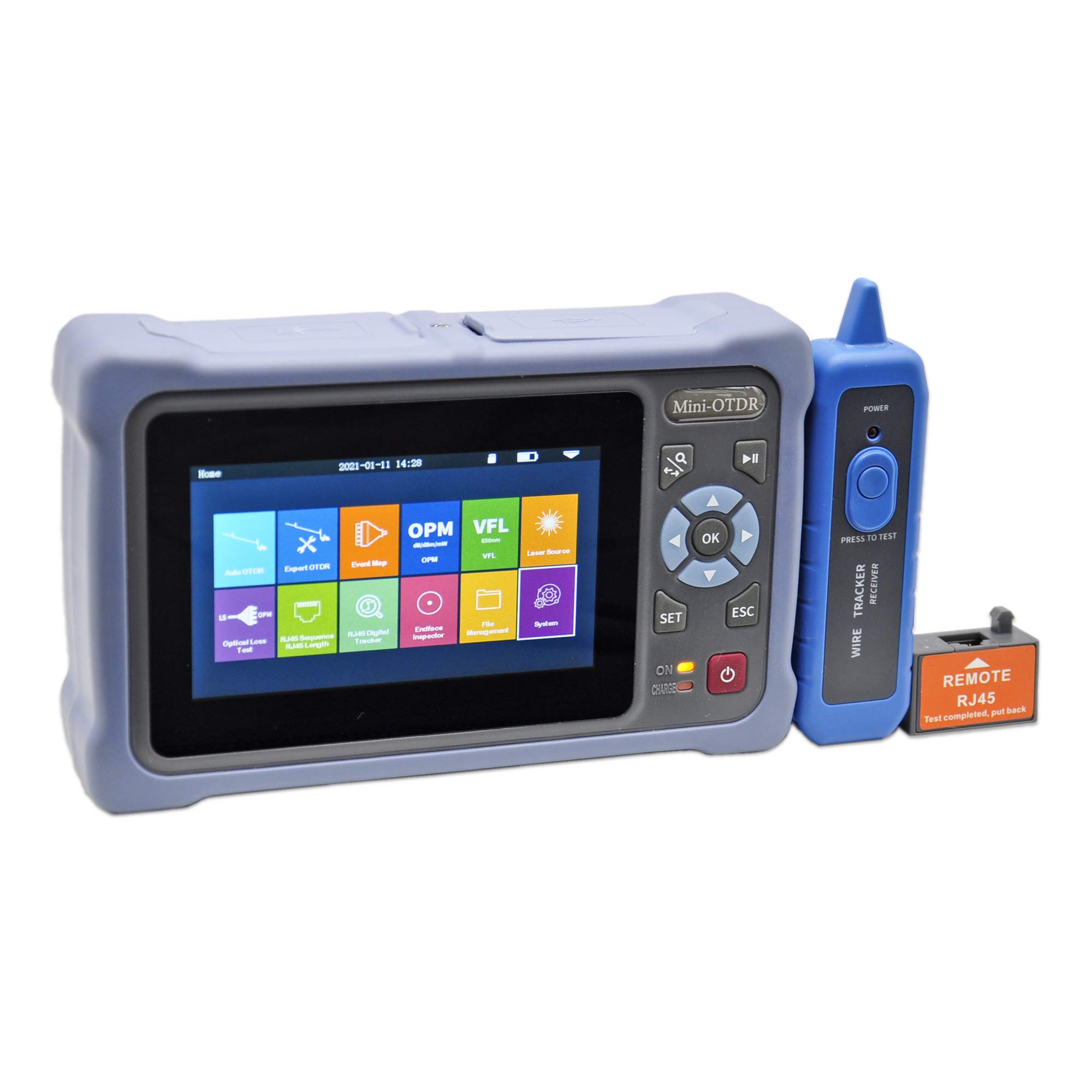

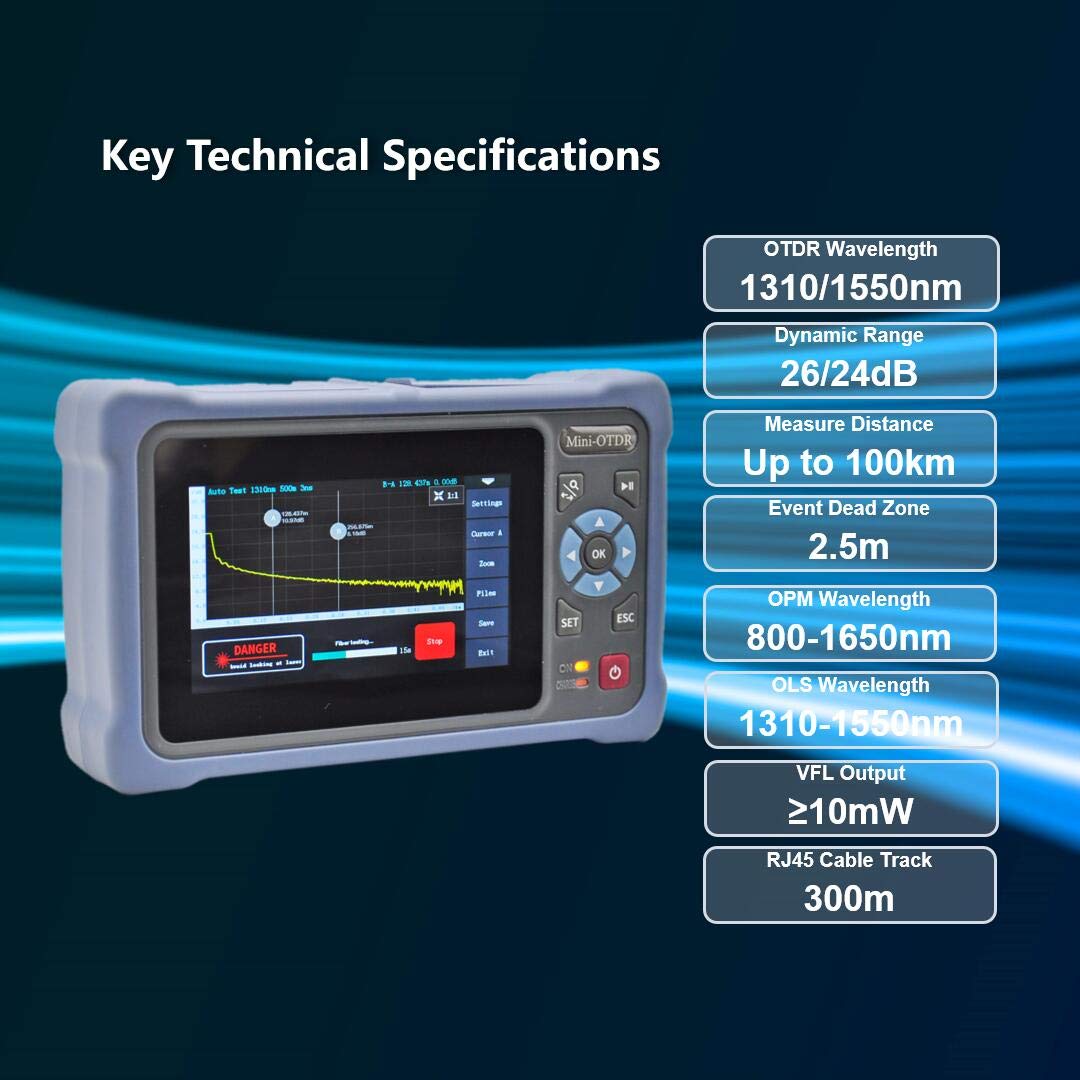

Professional OTDR Tester 1310/1550nm 26/24dB 100km with 4.3" Touch Screen - Fiber Optic Cable Tester with VFL, OPM, OLS, Event Map & RJ45 Tracking for Telecom & Network Maintenance

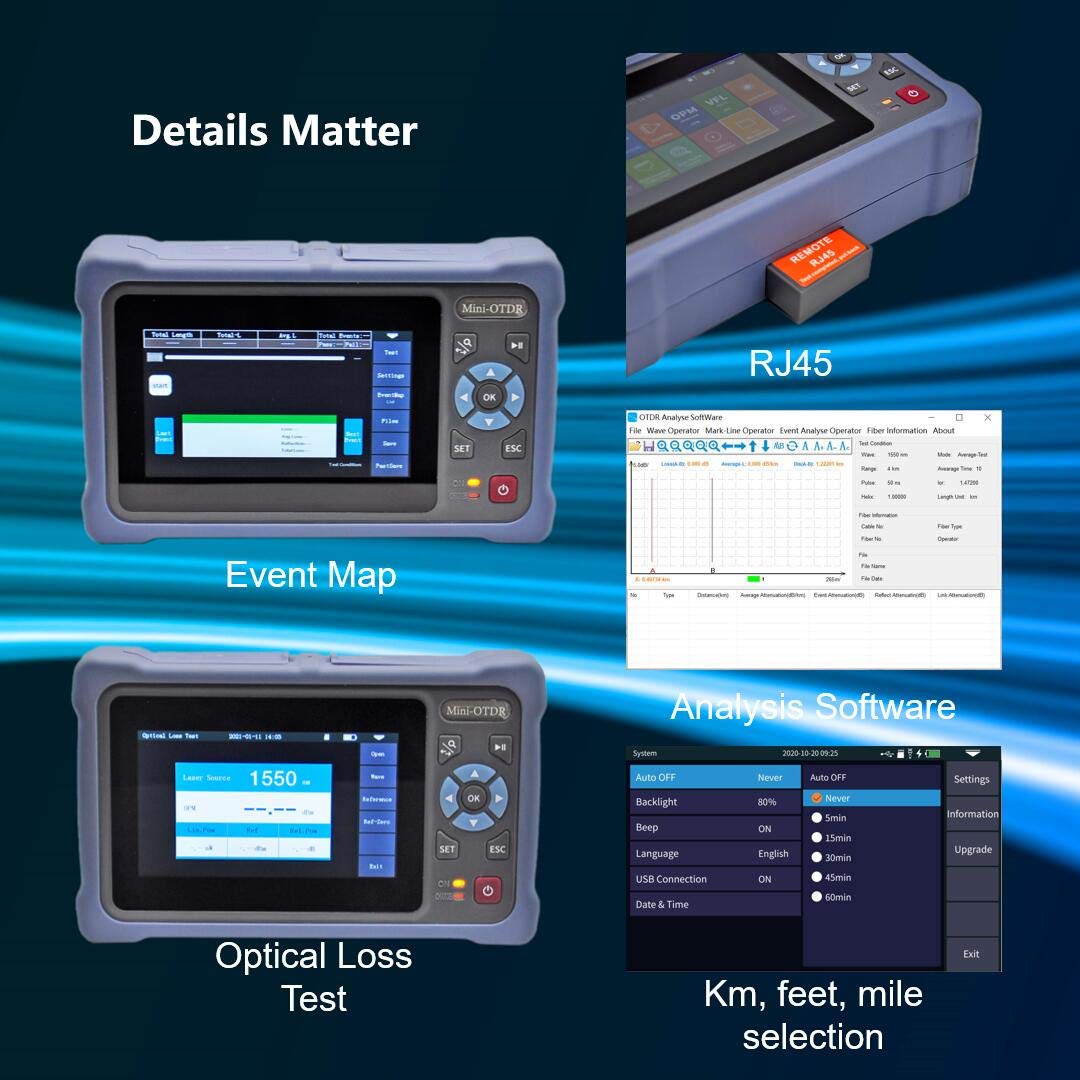

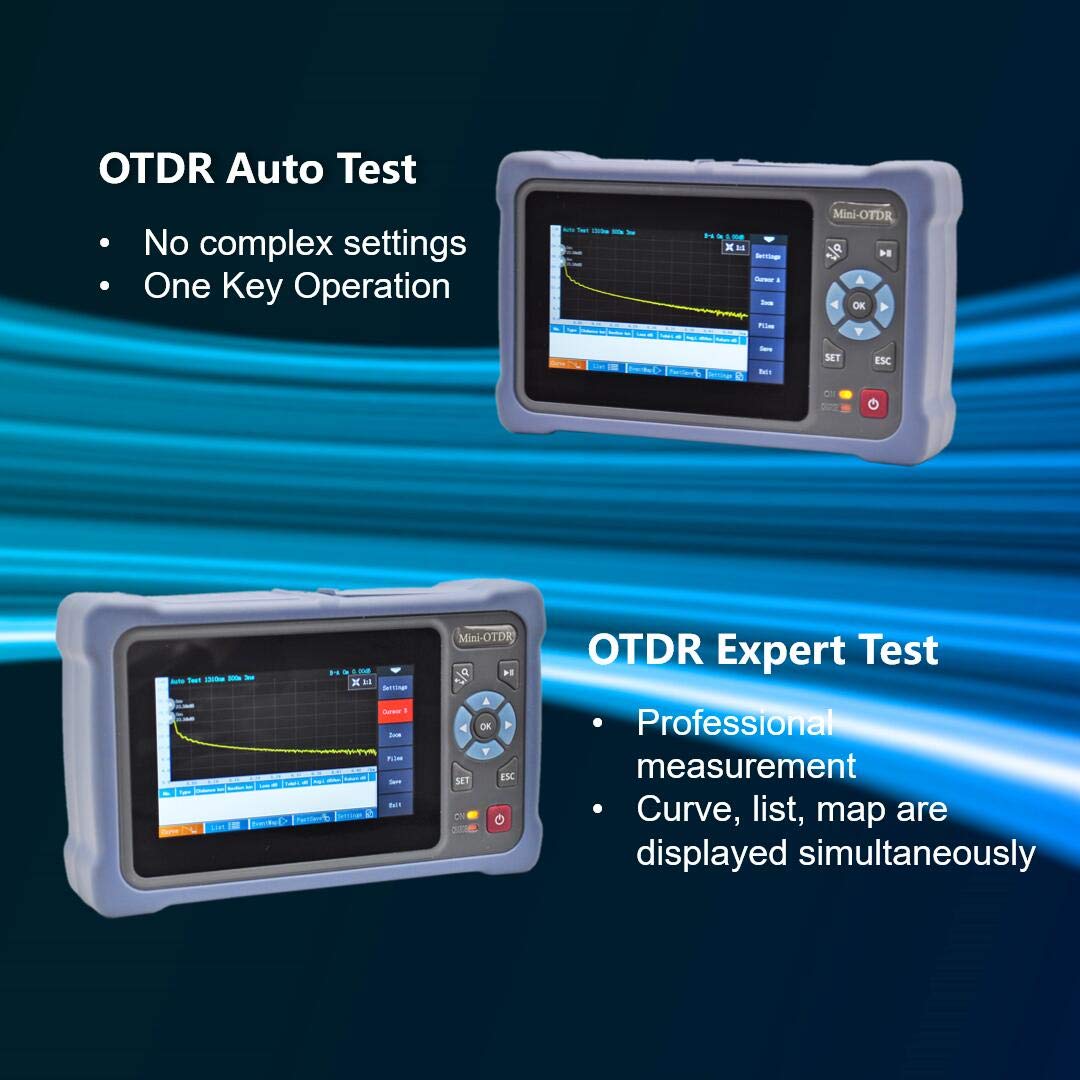

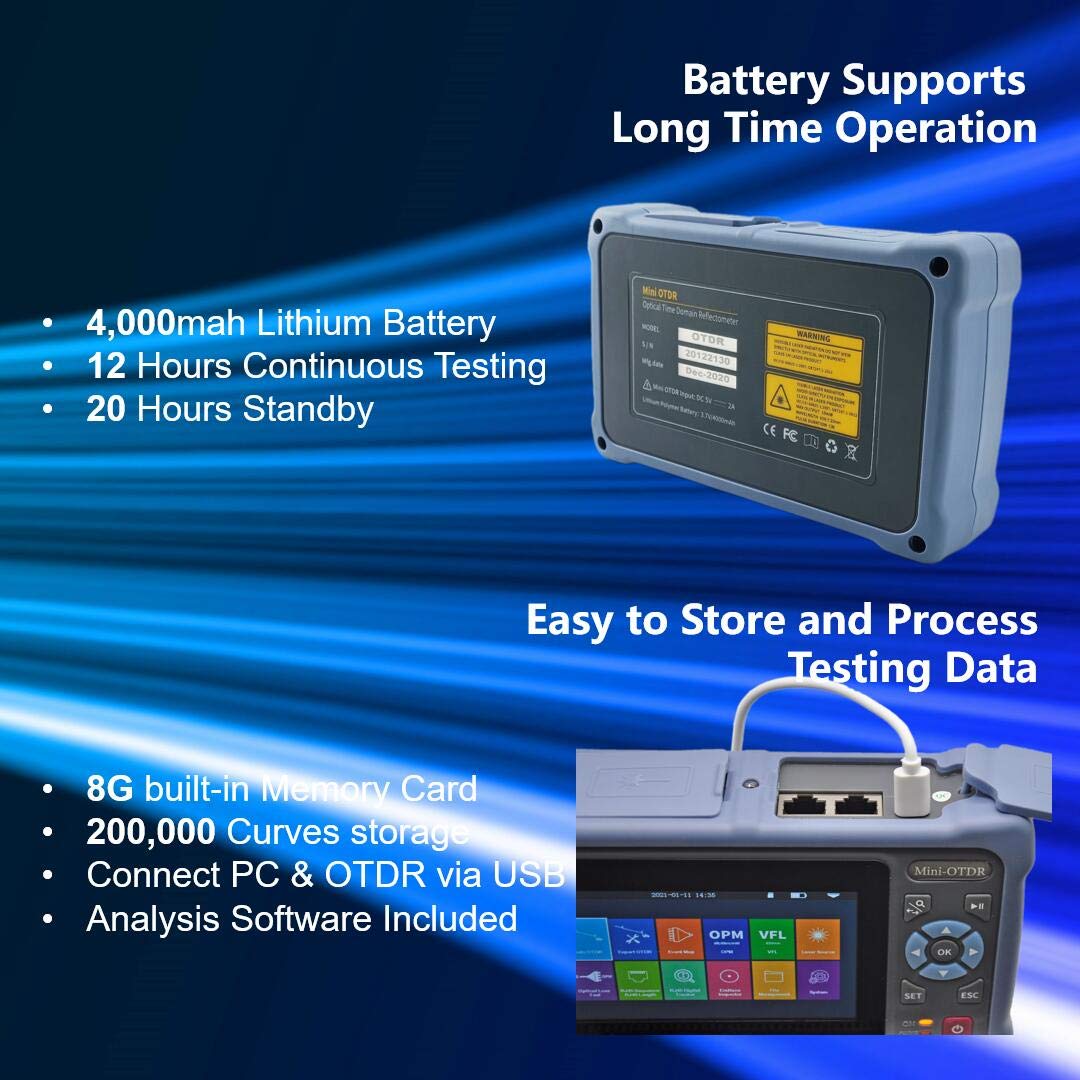

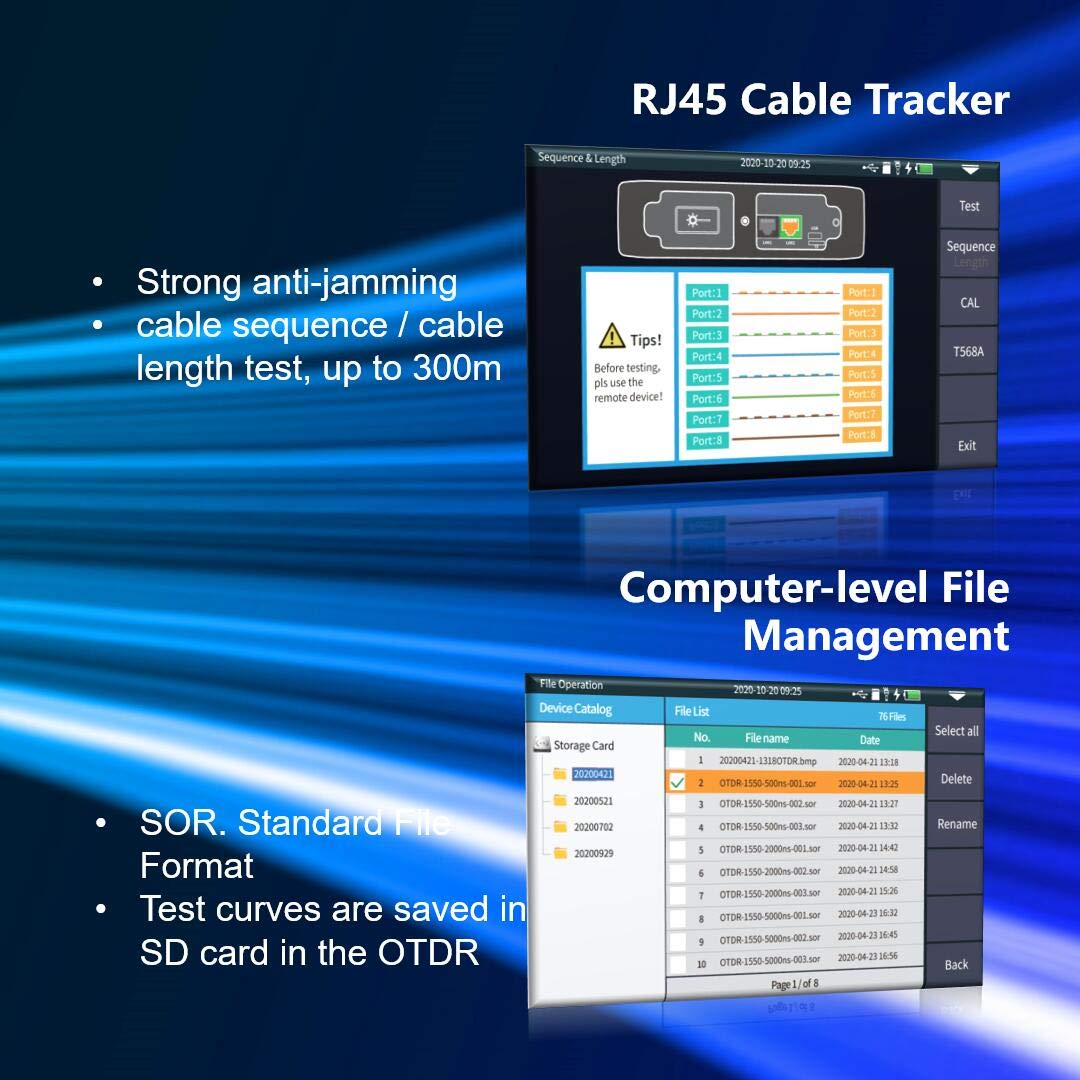

This Single Mode OTDR adopts 4.3-inch capacitive touch screen. It integrates over 10 functions, such as auto OTDR, expert OTDR, event map, OPM, RJ45 cable tracker, and “computer level” file management to meet various test requirements in different occasions. You can use this OTDR in the maintenance, construction and monitoring of optical cable lines. It can measure the length of optical fiber, transmission attenuation of optical fiber, attenuation of connector and fault location. Selected Key Features of this OTDR Tester OPM supports CW/270/330/1K/2KHZ frequency identificationVFL and OLS can run in the background, multi task can be operated simultaneouslyOLS supports CW/modulation mode output with adjustable output powerOnce click screen capture, easy to save the interfaceMulti-touch support gesture zoom in and out curveOptical loss test, Insertion loss test20 hours standby, ultra wide operation temperature QIIRUN Commitment As a growing brand, QIIRUN is committed to provide high quality products and services to our valued customers. Our service agents will spare no efforts to provide first class services and technical supports so as to exceed your satisfactions. We honor our commitments: Your every purchase is entitled to a 30 days return at no cost from date of purchase for any reasonYou can get lifetime technical supports / assistance if neededYour any questions will be addressed in a timely and professional manner Multi-Functional OTDR Tester OTDR Auto Test It only needs to set the wavelength and measurement time Other parameters are automatically selected by the instrument to complete the test No complex setting, one key operation OTDR Expert Test Parameters such as wavelength, test range and pulse width shall be set The test results are more accurate by selecting the appropriate measurement parameters in the expert mode You can zoom in on the curve to see the details of each event. Event Map The function is fully one key automatic test Information such as the length of the optical fiber link to be measured, the type of the joint and the position of the breakpoint are displayed graphically The results are clear and easy to understand Analysis Software Analysis Software is included in the built-in 8G TF card within the OTDR. Data format is standard SOR. format. Simply connect the OTDR tester and computer via USB cableOpen fold named "OtdrAnaEng"Open file named "Analyse_OTDR" and install it. Optical Power Meter It is used for signal power test and insertion loss test of various equipment and photoelectric components. It can identify and measure the power of 270/ 330/1k/2kHz frequency Calibration Wave: 850/980/1300/1310/1490/1550/1625/1650nmTest Range: -70-+10dBmResolution: 0.01DbUncertainty:±5% Visual Fault Locator It is suitable for the detection of bare optical fiber, optical fiber jumper and other optical fiber which can leak red light Open: turn on the VFL and output in continuous mode 1Hz: VFL flashes at 1Hz 2Hz: VFL flashes at 2Hz frequency Close: turn off VFL Wavelength: 650nm±20nmOutput Power：≥10kmMode: CW/1HZ/2HZ Optical Light Source It can output with the same wavelength as OTDR function, which can be used to test the parameters of telecommunication, CATV and LAN optical cables, test the insertion loss, isolation, etc. There are 5 working modes : CW, 270Hz, 330hz, 1kHz and 2kHz Other Information You Need 4.3-inch 800*480 IPS TFT-LCD Touch Screen3.7v, 4000mah Lithium batterycontinuous test ＞12 hoursInternal storage 8GB, ≥ 20000 curvesWorking Temperature: -10℃-+50℃Weight: 488g (include battery)Size: 173*109*45mm Endface Inspector function is NOT available in this tester. It is sold separately. RJ45 Cable Tracking and Sequence/Length Test RJ45 Cable Tracking (LAN 1 Port) Turn on RJ45 cable tracking function. The line finding mode of this machine is digital radar type, which has strong anti-jamming ability. Test Distance is up to 300m. RJ45 Sequence / Length Test (LAN 2 Port) When testing, please connect to the remote module at the bottom of the instrument. There are two kinds of wires for RJ45 connector: straight line and interleaved line. ATTENTION Please connect LAN 1 or LAN 2 correctly, or it may cause damage to the OTDR. Selected OTDR Specification Type Single Mode (G.652 SM) Wavelength 1310/1550nm Dynamic Range 26/24dB Event Dead Zone 2.5m ATT Dead Zone 8m Test Range 500m/1km/2km/4km/8km/16km/32km/64km/100km Pulse Width 3ns, 5ns, 10ns, 20ns, 30ns, 50ns, 80ns, 160ns, 320ns, 500ns, 800ns, 1μs, 2μs, 3μs, 5μs, 8μs, 10μs, 20μs Ranging Accuracy ±(1m+Sample Interval+0.005% X Test Distance) Linearity ≤0.05dB Sample Resolution 0.05m-8m
