Rsrteng OTDR Fiber Optic Tester 1310/1550nm 26/24dB with 4.3" Touch Screen - 500m to 100Km Test Range, OPM, VFL, LS, OLS, RJ45 Testing - Includes 8GB TF Card & PC Analysis Software (UPC/FC/SC/LC/ST) - Perfect for Network Installation, Maintenance & Fiber Optic Cable Testing

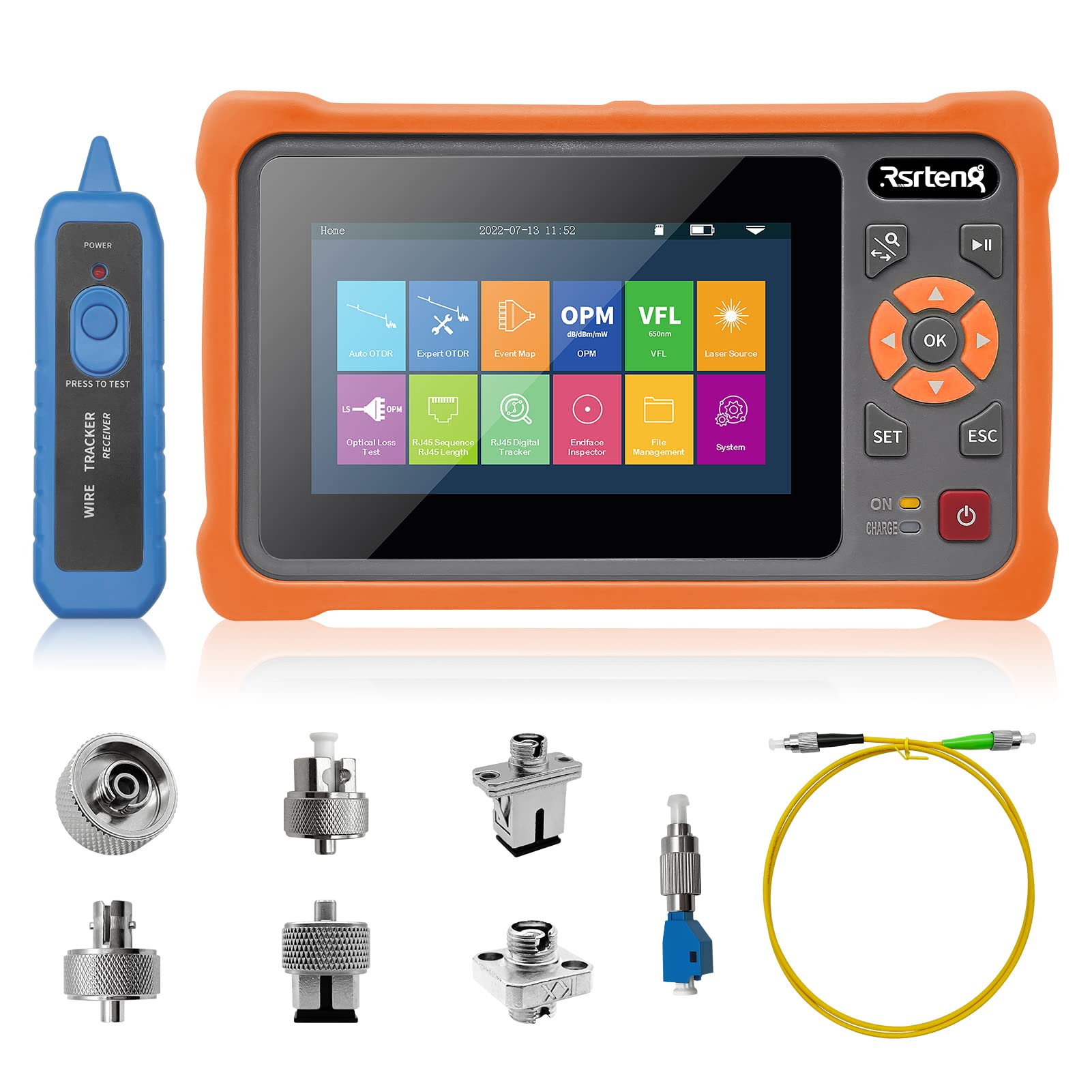

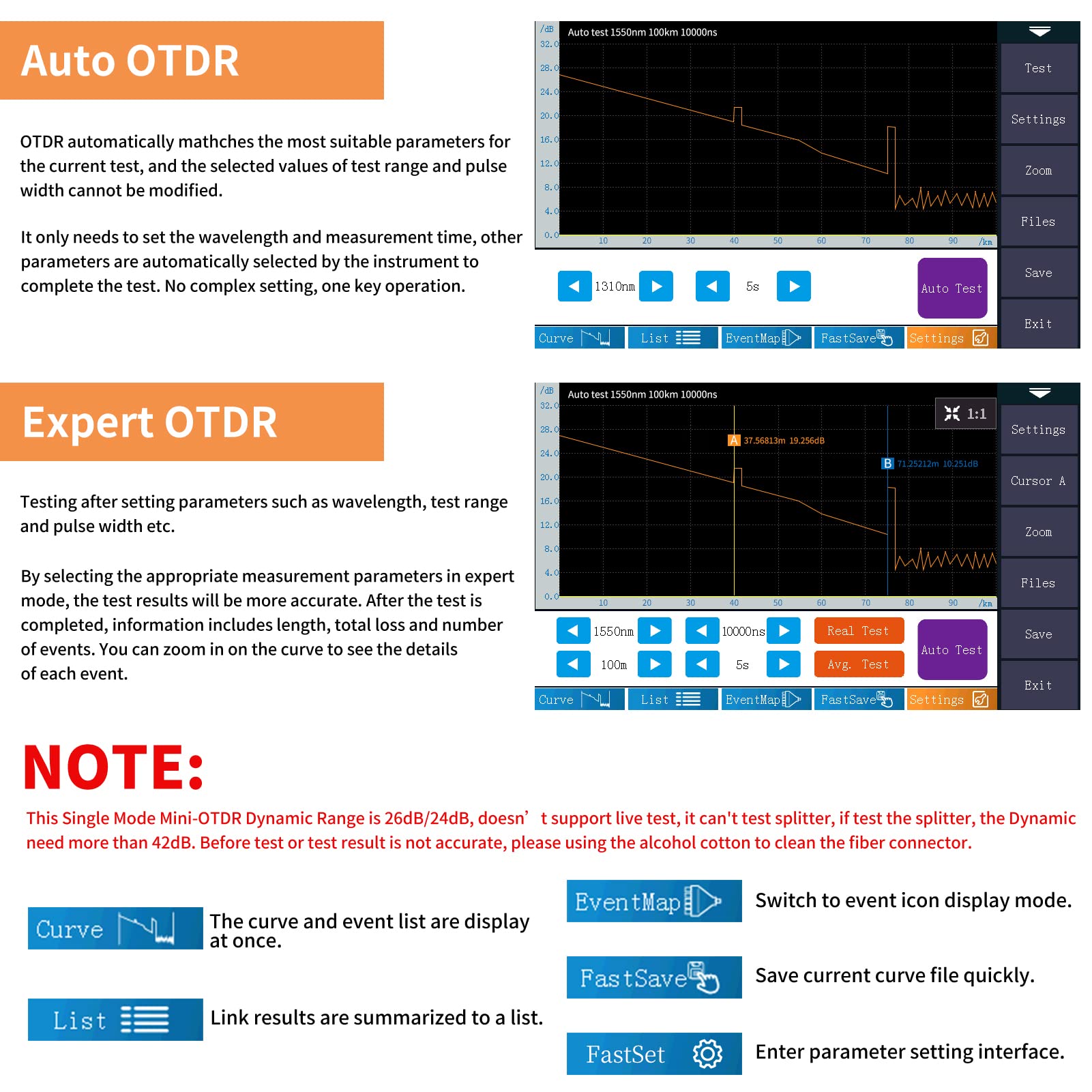

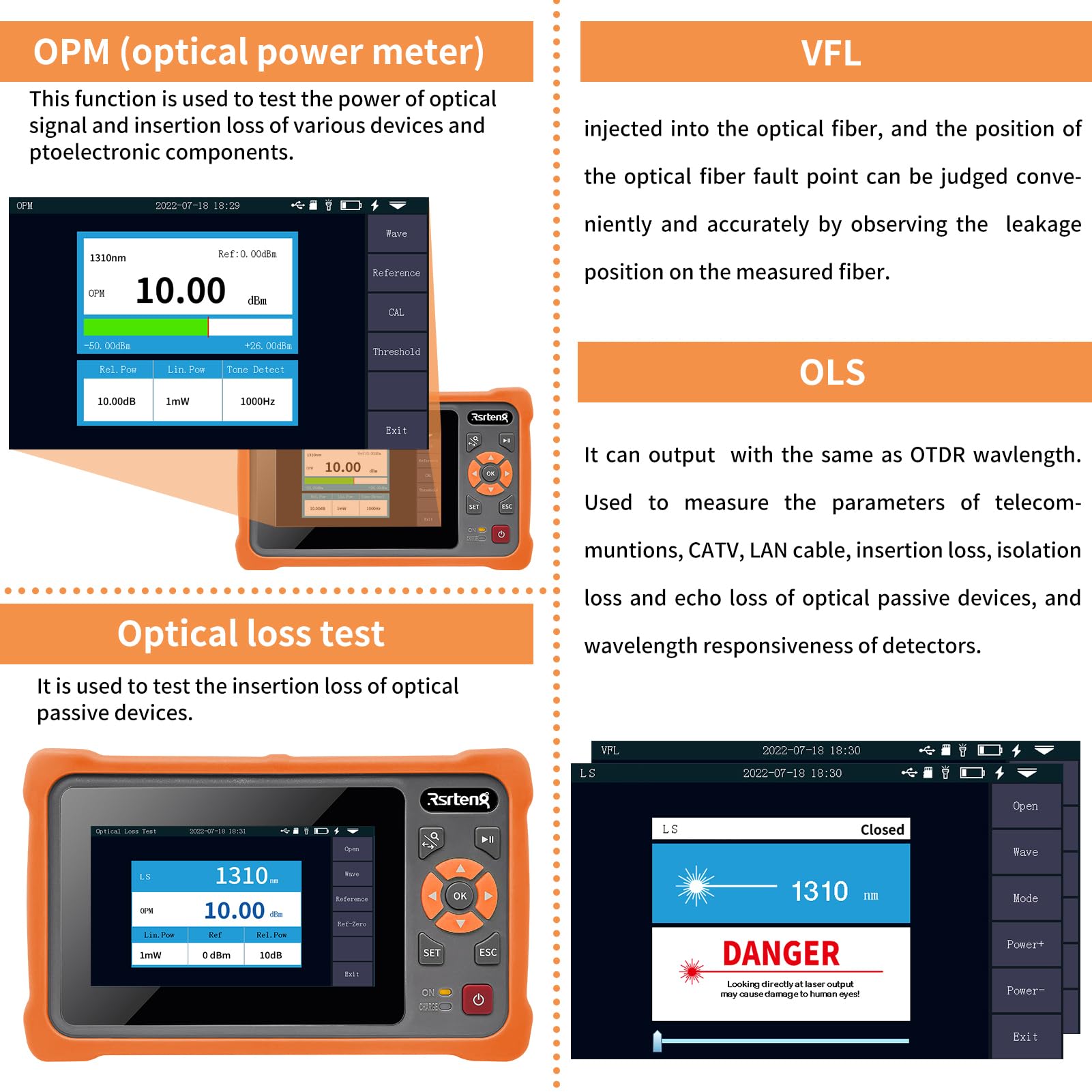

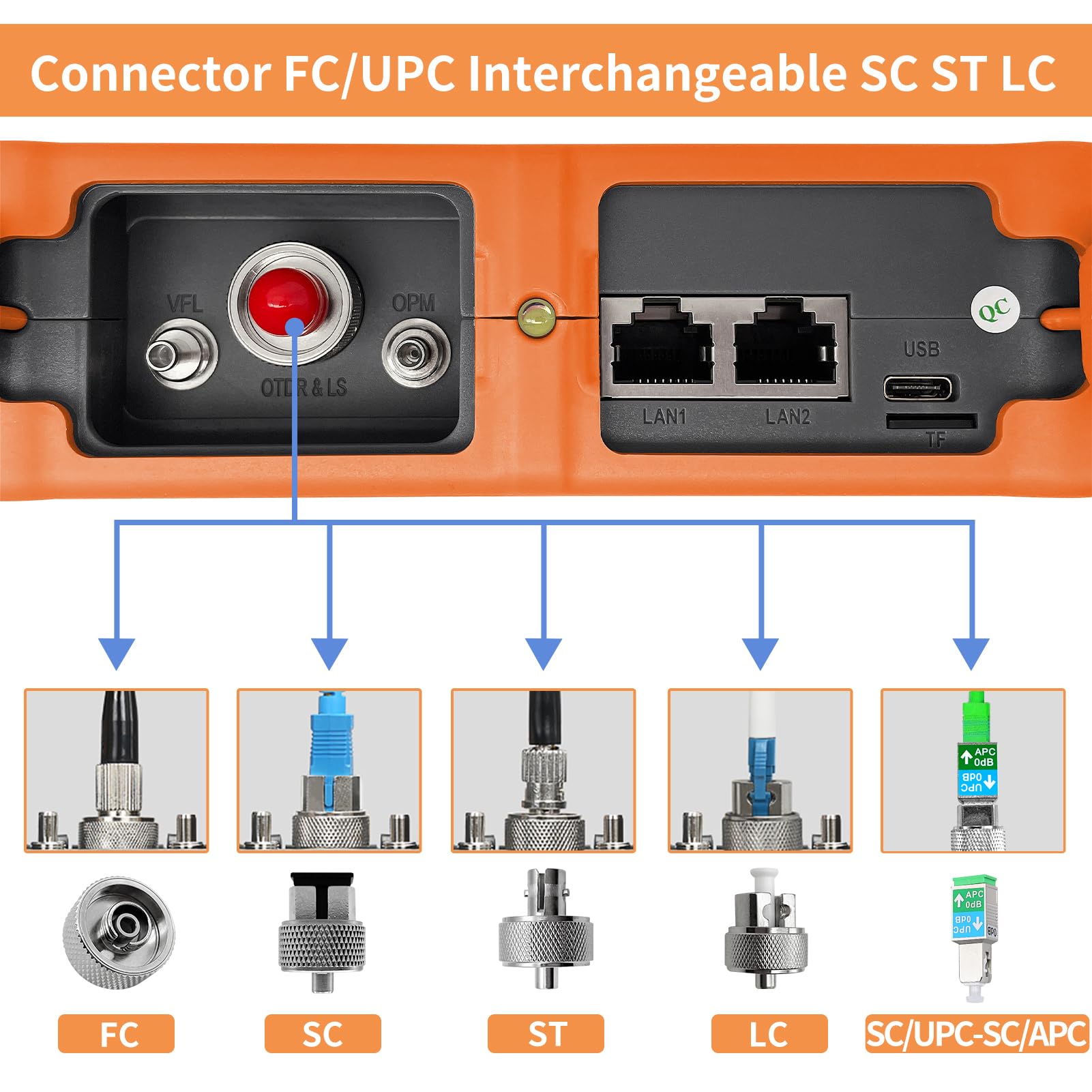

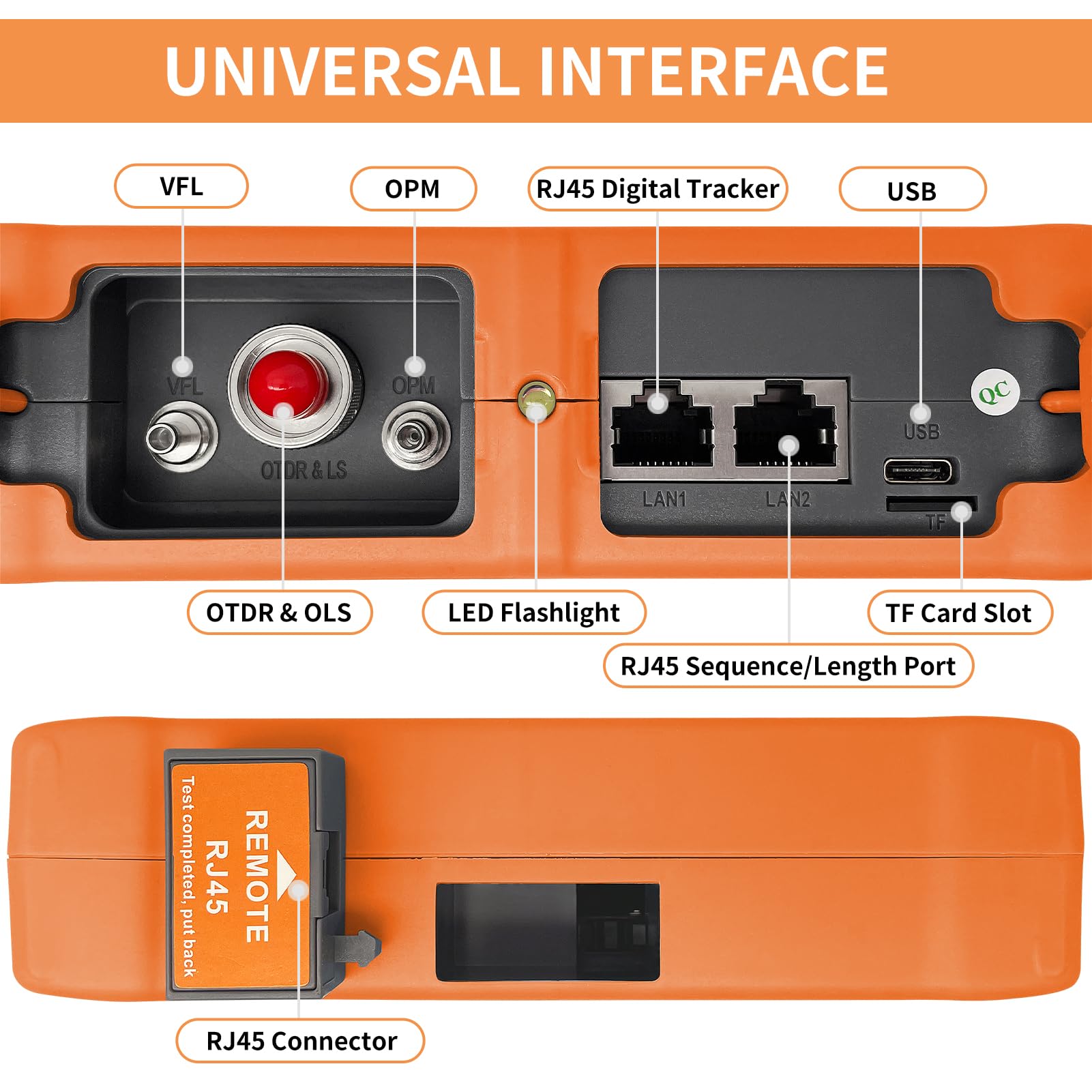

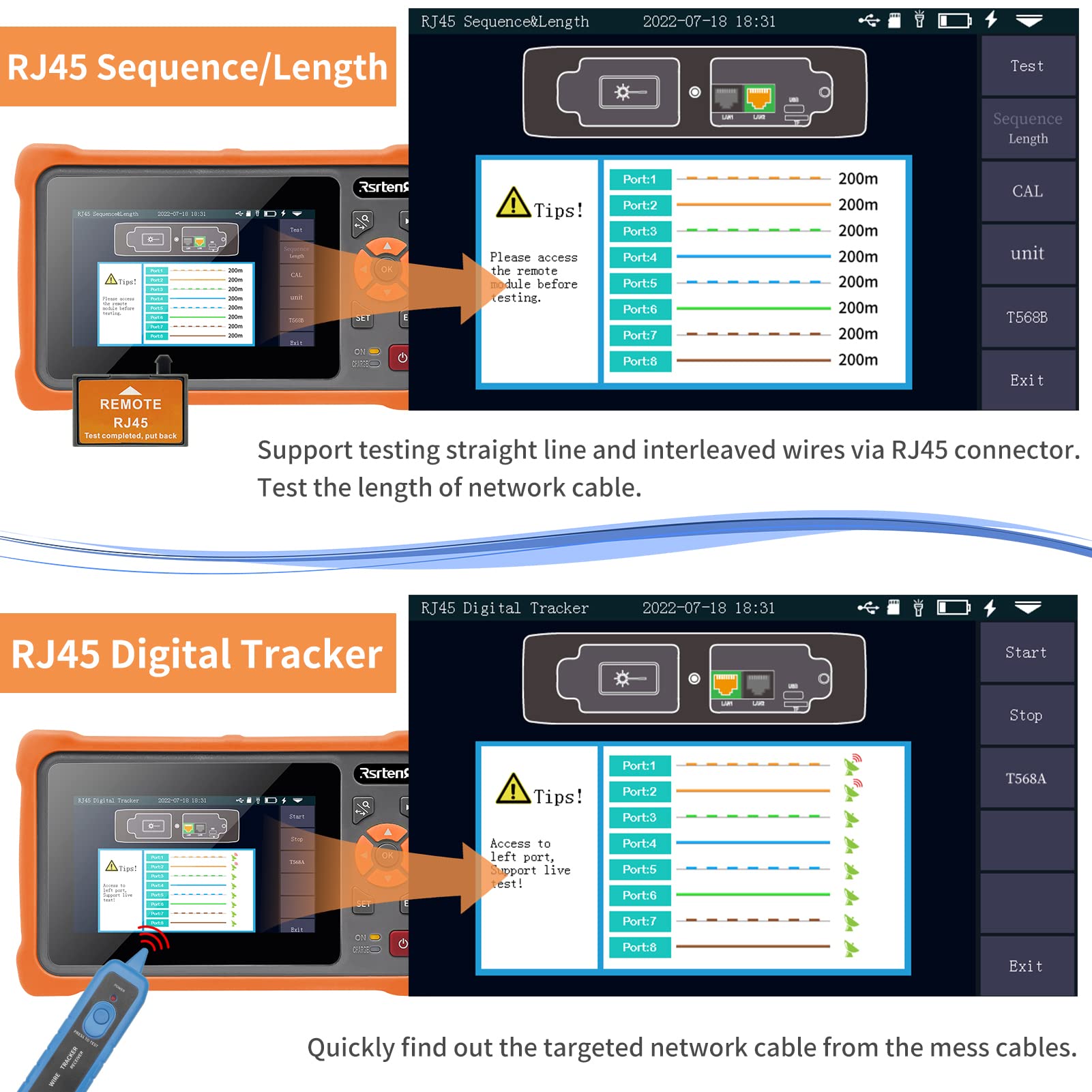

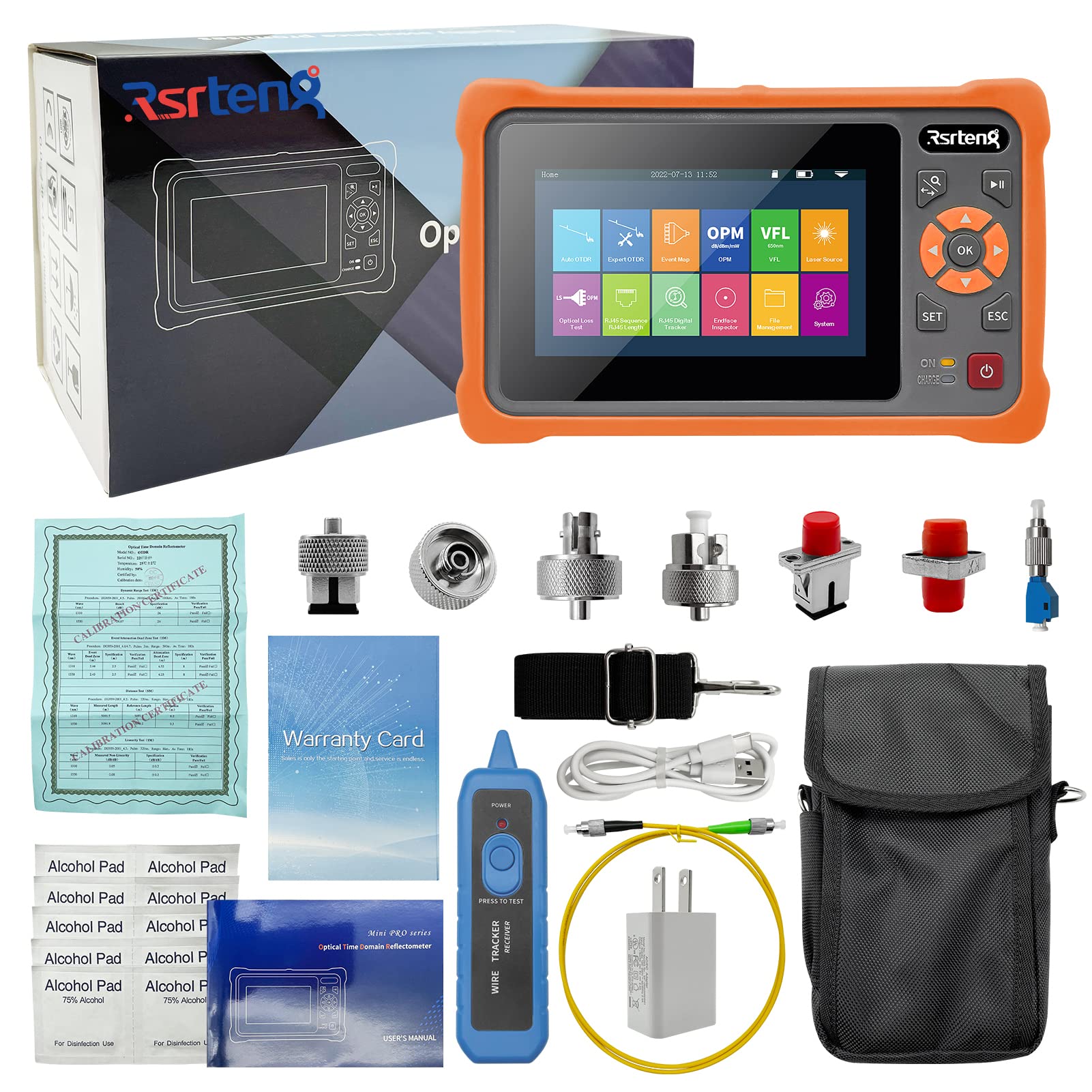

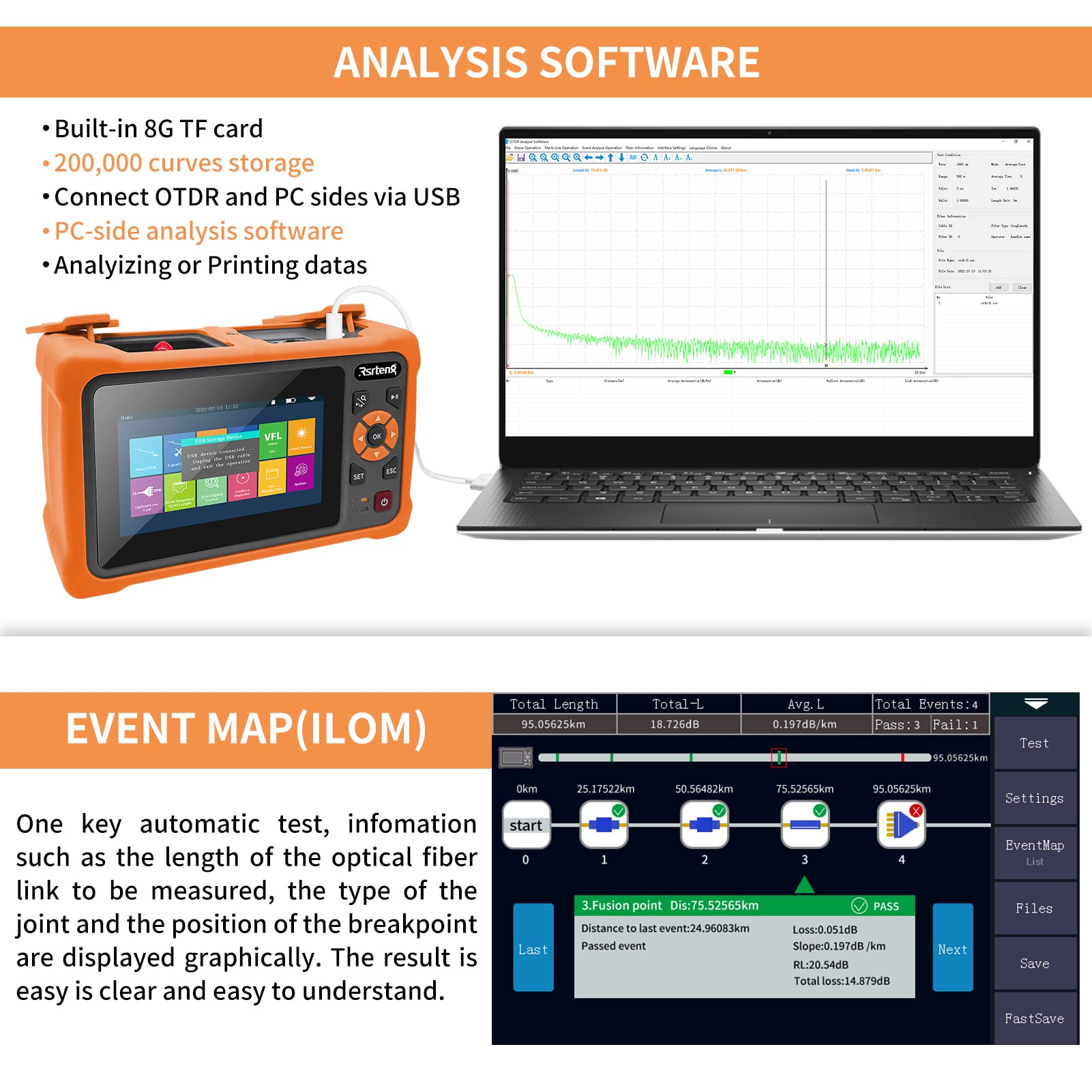

Rsrteng RSO-4000D SM OTDR Fiber Optical Tester Support OPM VFL OLS Optical Loss Test Event Map RJ45 Test 8GB TF Card PC-sides Analysis Software The multifunctional Single Mode OTDR is used for FTTX, optical network engineering construction, fiber optic cable manufacturer. OTDR function support test wavelength 1310/1550nm, Dynamic Range 26dB/24dB. Measurement distance is 5m~100km. Build in others measuring tools, such as Event map, OPM, VFL, OLS, Optical Loss Test, RJ45 cable sequence/length test and tracking, analysis software. 8G TF card memory. Equipped with 3.7V/4000mAh high-density polymer lithium battery. Using this OTDR optical fiber Tester makes working conditions easy and increasing productivity. Included Connector: SC/UPC, FC, ST, LC, FC male to FC female adapter, FC male to SC female adapter, FC/UPC(Male)-LC/UPC(Female), FC/UPC-FC/APC Cable. NOTE: This Single Mode Mini-OTDR Dynamic Range is 26dB/24dB, doesn’t support live test, it can't test splitter, if test the splitter, the Dynamic need more than 42dB. Before test or test result is not accurate, please using the alcohol cotton to clean the fiber connector. This OTDR Tester uses a FC/UPC connector, doesn’t support APC connector. Auto OTDR It only needs to set the wavelength and measurement time, other parameters are automatically selected by the instrument to complete the test. No complex setting, one key operation Expert OTDR Testing after setting parameters such as wavelength, test range and pulse width etc. By selecting the appropriate measurement parameters in expert mode, the test results will be more accurate. After the test is completed, information includes length, total loss and number of events. You can zoom in on the curve to see the details of each event. The curve obtained by manual test more satisfies your actual requirements. Event Map(ILOM) One key automatic test, information such as the length of the optical fiber link to be measured, the type of the joint and the position of the breakpoint are displayed graphically. The result is easy is clear and easy to understand. Expert OTDR test settings Main Interface Display each 11 functional module, which can be operated by touch or key enter the corresponding function interface. Please note: Fiber endface inspector does not support testing. OPM This function is used to test the power of optical signal and insertion loss of various devices and optoelectronic components. VFL (650 nm) is injected into the optical fiber, and the position of the optical fiber fault point can be judged conveniently and accurately by observing the leakage position on the measured fiber. LS Test the parameters of telecommunication, CATV and LAN optical cables, test the insertion loss, isolation and return loss of optical passive components, and test the wavelength responsivity of detector. Optical loss test It is used to test insertion loss of optical passive devices. Wavelength:1310nm/1550nm RJ45 Cable Sequence/Length Test(LAN 2 Port) & RJ45 Cable Tracking(LAN 1 Port) Cable sequence: When testing, please connect to the remote module at the bottom of the instrument. Two kinds of wires for RJ45 connector: straight line and interleaved line. The line finding mode of this machine is digital redar type, which has strong anti-jamming ability. According to the target distance and proximity, the frequency of prompt tone is different. System setting Automatic shutdown:5/15/30/40/60 minutes/never Support backlight brightness/sound/time & date adjustment/restore factory settings/native software update. Language：8 language modes, displays the native language type. Support English, Russian, Spanish, French, Portuguese, Vietnamese, Hindi, Arabic. PC-sides Analysis Software(Data Analysis and Processing) Analysis Software is included in the built-in 8G TF card, which can store more than 200,000 curves; You can further analyizing or printing datas.Data format is standard SOR format. You can connect OTDR Tester and computer by USB cable，Find "OTDR Analyse & Print software" and install it. What's in the package? 1x OTDR Host 1x Adapter 1x Wire tracker 1x USB cable 1xFC/APC-FC/UPC 1x FC adapter (install on the OTDR) 1x SC adapter 1x LC adapter 1x ST adapter 1x FC male to LC female adapter 1x FC male to FC female adapter 1x FC male to SC female adapter 1x 8G TF card 1x User Manual in English 1x Calibration Certificate 10x Clean Cotton Slices 1x Shoulder strap 1x Backpack Multifunction Mini OTDR Fiber Optical Tester 4.3 inch 800x480 IPS TFT-LCD multi touch capacitive touch screenExpert OTDR: Professional measurement, curve/list/ map are displayed simultaneouslyAuto OTDR: no complex settings, one key testOPM supports CW/270/330/1kHz/2kHz it frequency identification Contains PC-side analysis software, and the analysis software installed on the PC-side is used for further data analysis and processing and print test results.RJ45 cable tracker of digital radar, stronger anti-jamming ability. Support RJ45 cable sequence/ cable length test, up to 300m (984fts)One click screen capture to save the interface Parameters Rsrteng provide 24-hour service, if you have any questions while using the OTDR Tester, please feel free to co-n-tra-ct us.
