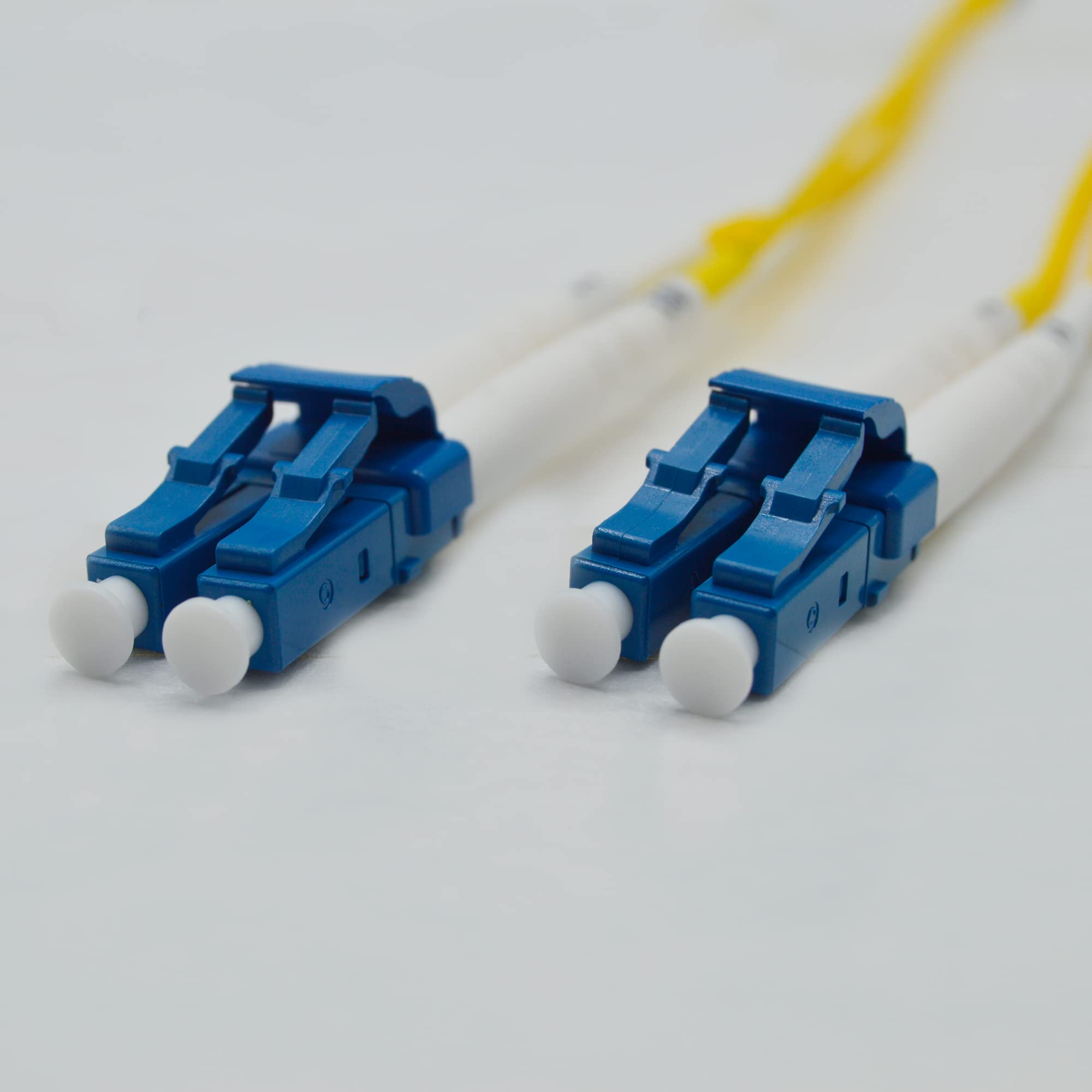

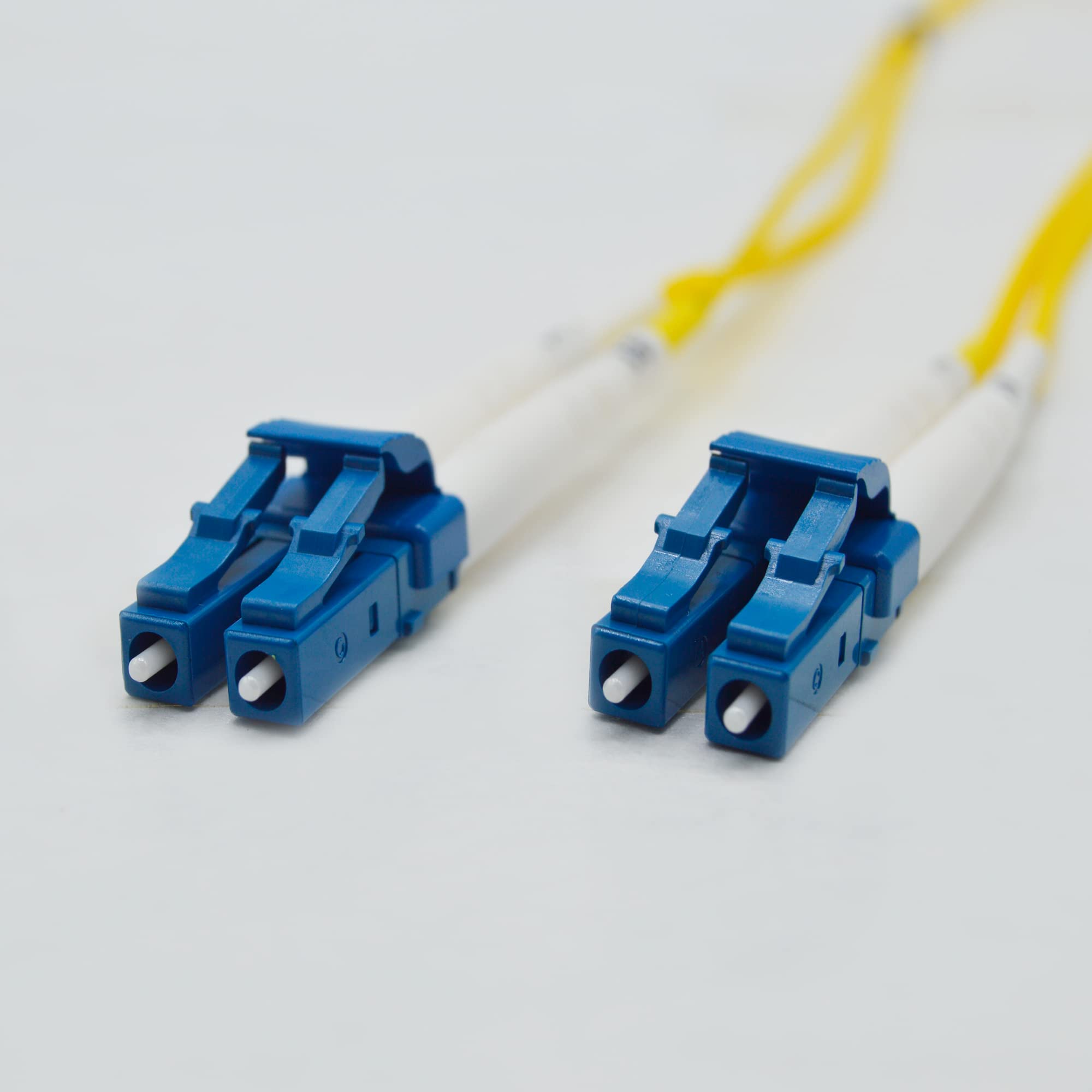

OS2 LC to LC Fiber Patch Cable 10Gig Duplex Single Mode fiber optic cable, 9/125 Corning optical fiber, yellow, OFNR (riser rated), 2.0mm outer diameter, zip-cord reinforced, PVC jacket. Education, Corporate, Military/Defense, Government, Healthcare, Finance, General Commercial, Computer Networking Applications. Fiber Patch Cable Details: Duplex (2 fiber strands)2.0mm outer diameterZip-cord reinforcedLC to LC terminated (Max Connector Loss: 0.50 dB, Typical Connector Loss: 0.30 dB, Typical Return Loss -55 dB)Singlemode Fiber (SMF) Optical Patch Cable / Jumper Cord. Core / Cladding: Corning 9 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter). The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection) causing the fiber within the patch cord assembly to act as a wave-guide. Light travels through the fiber bouncing off the boundary between core & cladding.
Fiber Cable Description OS2 LC to LC Fiber Patch Cable 250 Meter | 10Gig Duplex Single Mode fiber optic cable, 9/125 Corning optical fiber, yellow, OFNR (riser rated), 2.0mm outer diameter, zip-cord reinforced, PVC jacket. | Education, Corporate, Military/Defense, Government, Healthcare, Finance, General Commercial, Computer Networking Applications.
Fiber Cable Description OS2 LC to LC Fiber Patch Cable 250 Meter | 10Gig Duplex Single Mode fiber optic cable, 9/125 Corning optical fiber, yellow, OFNR (riser rated), 2.0mm outer diameter, zip-cord reinforced, PVC jacket. | Education, Corporate, Military/Defense, Government, Healthcare, Finance, General Commercial, Computer Networking Applications.
Fiber Patch Cable Details 250 Meter (820.21 feet), duplex (2 fiber strands), 2.0mm outer diameter, zip-cord reinforced, LC to LC terminated (Max Connector Loss 0.50 dB, Typical Connector Loss 0.30 dB, Typical Return Loss -55 dB), Singlemode Fiber (SMF) Optical Patch Cable / Jumper Cord.
Core / Cladding Corning 9 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter). The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection) causing the fiber within the patch cord assembly to act as a wave-guide. Light travels through the fiber bouncing off the boundary between core & cladding.
Optical Mode Type OS2 (9/125 Singlemode) - 10 Gigabit speed from 5-10km at 1310nm (10Gbase-L) and 30-40km at 1550nm (10Gbase-E) with 0.4 dB/km maximum attenuation, atm applications. Audio, video, sfp data services supported. ISO / IEC 24702
Durable Commercial Grade Construction, Cost Effective and Built to Last | 100% Lifetime Warranty On All Products Purchased From Fiber Cables Direct.
