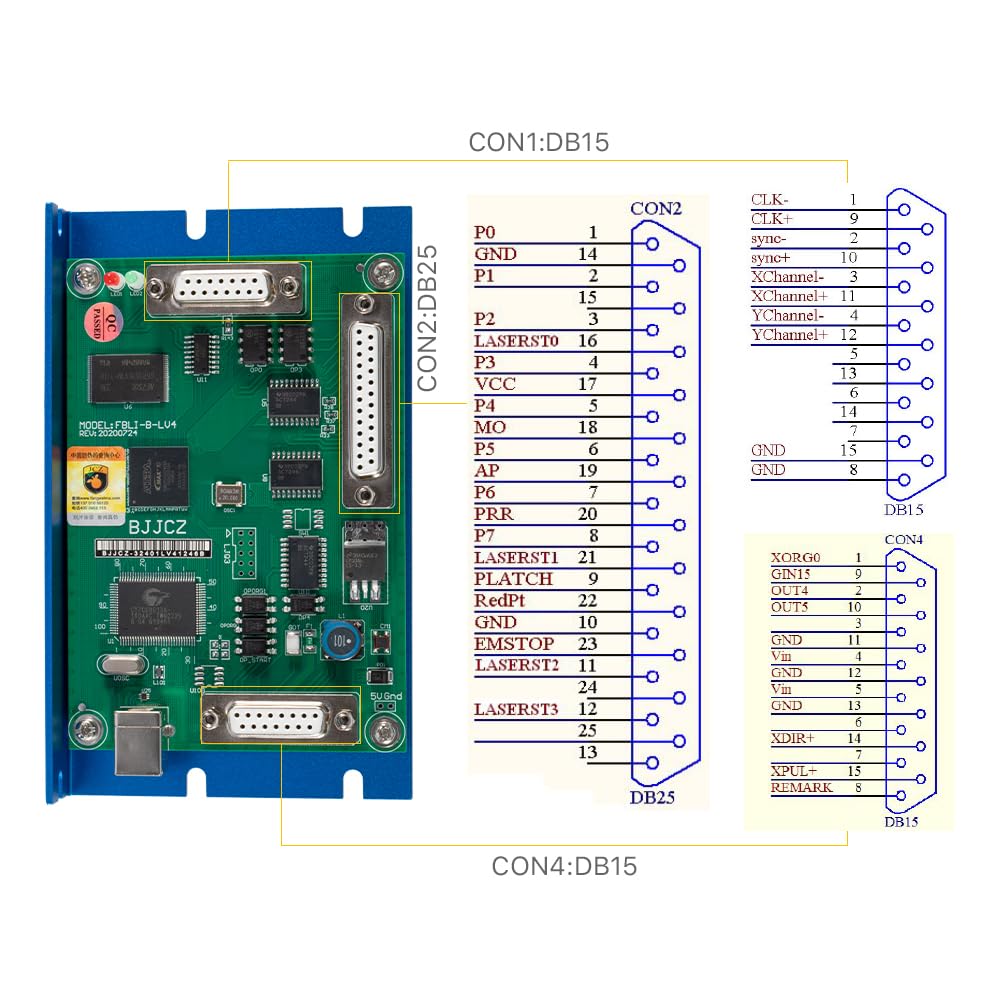

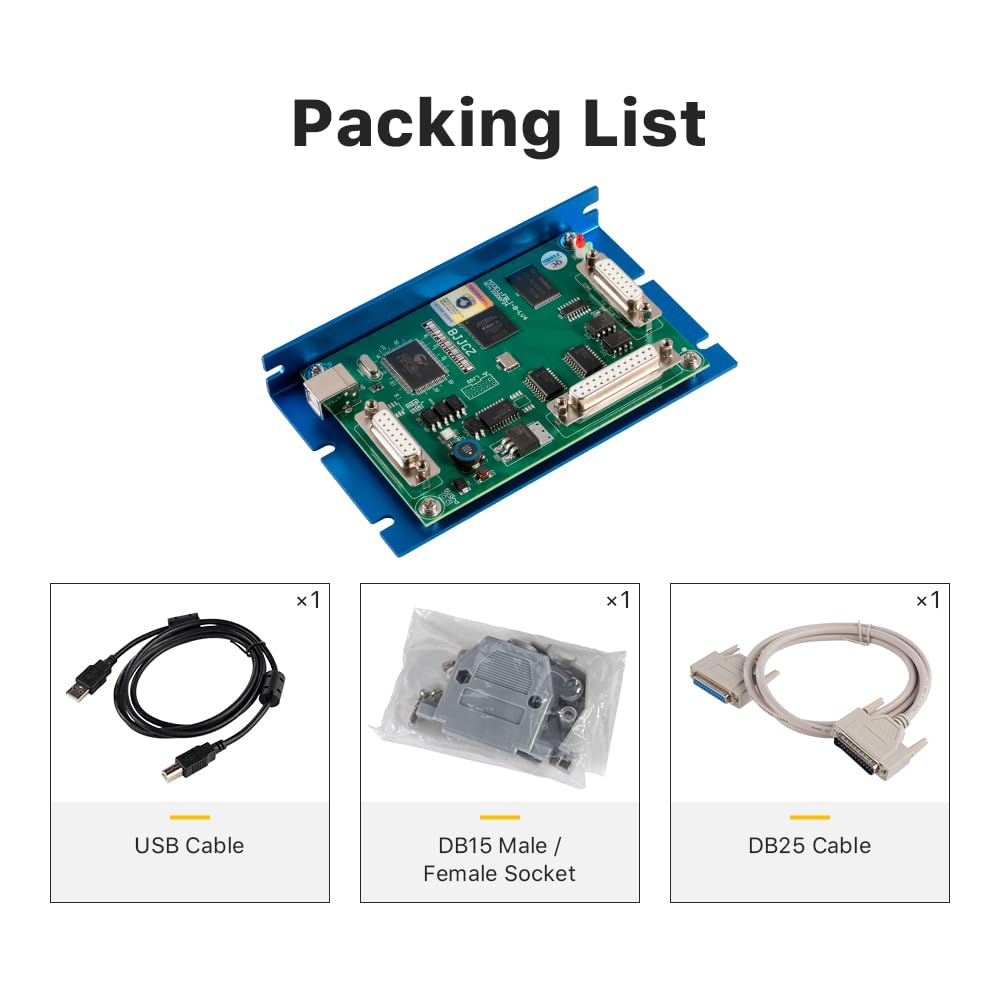

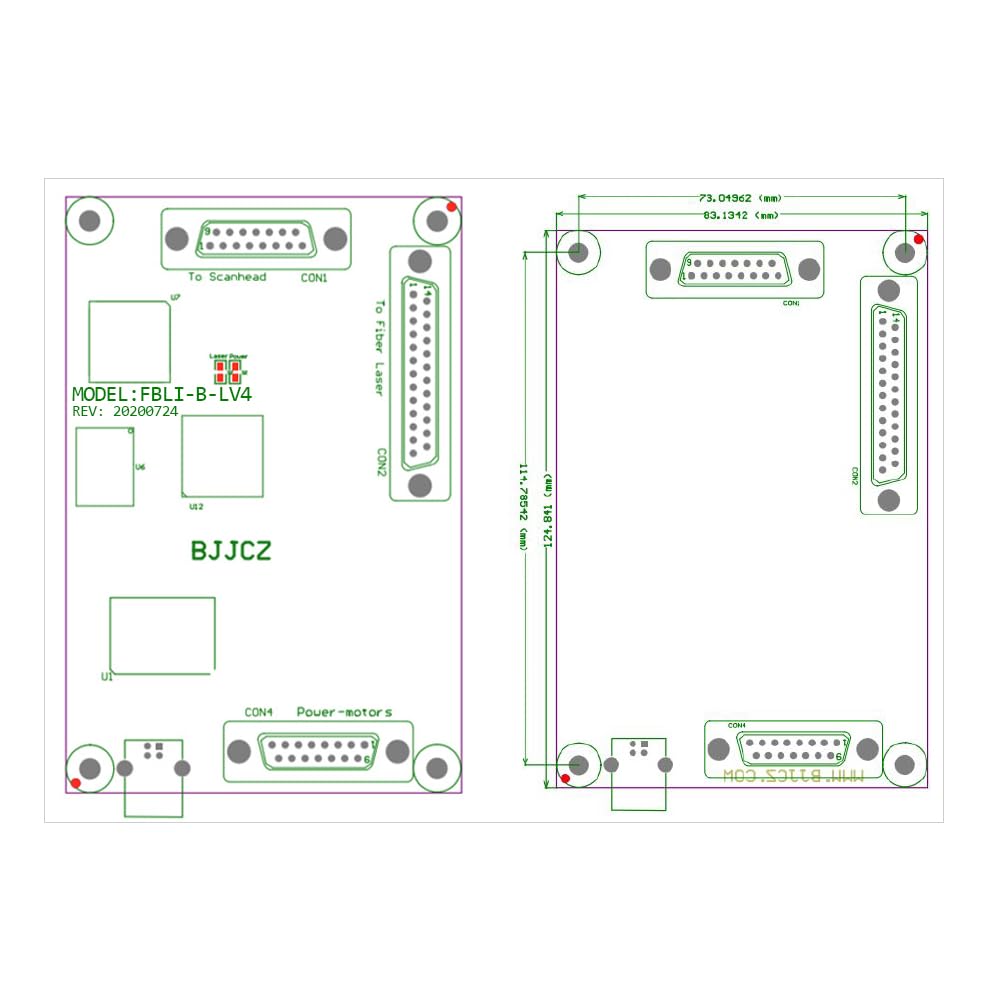

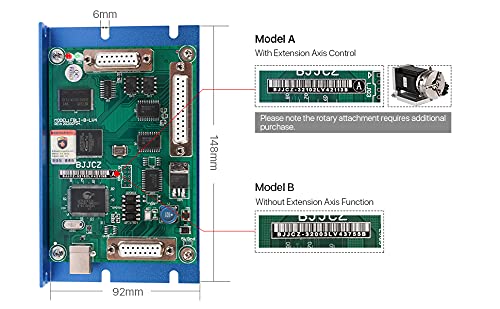

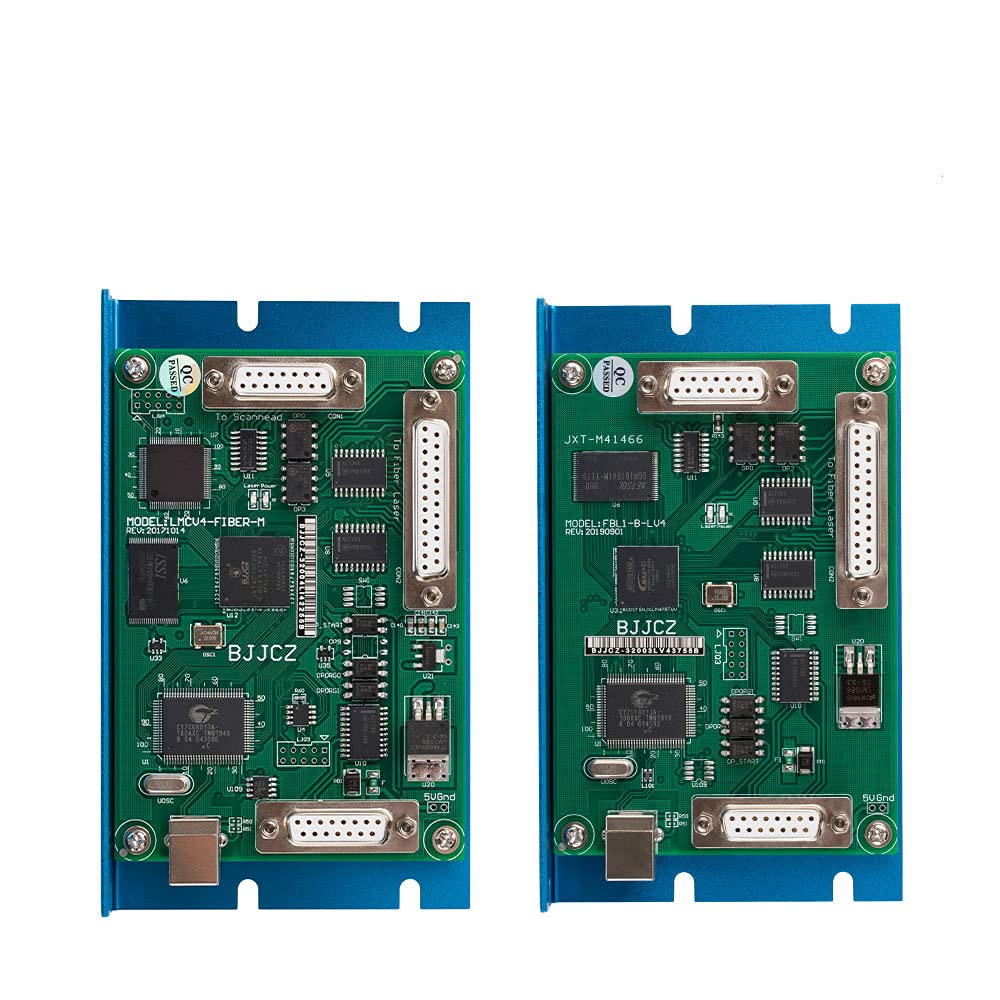

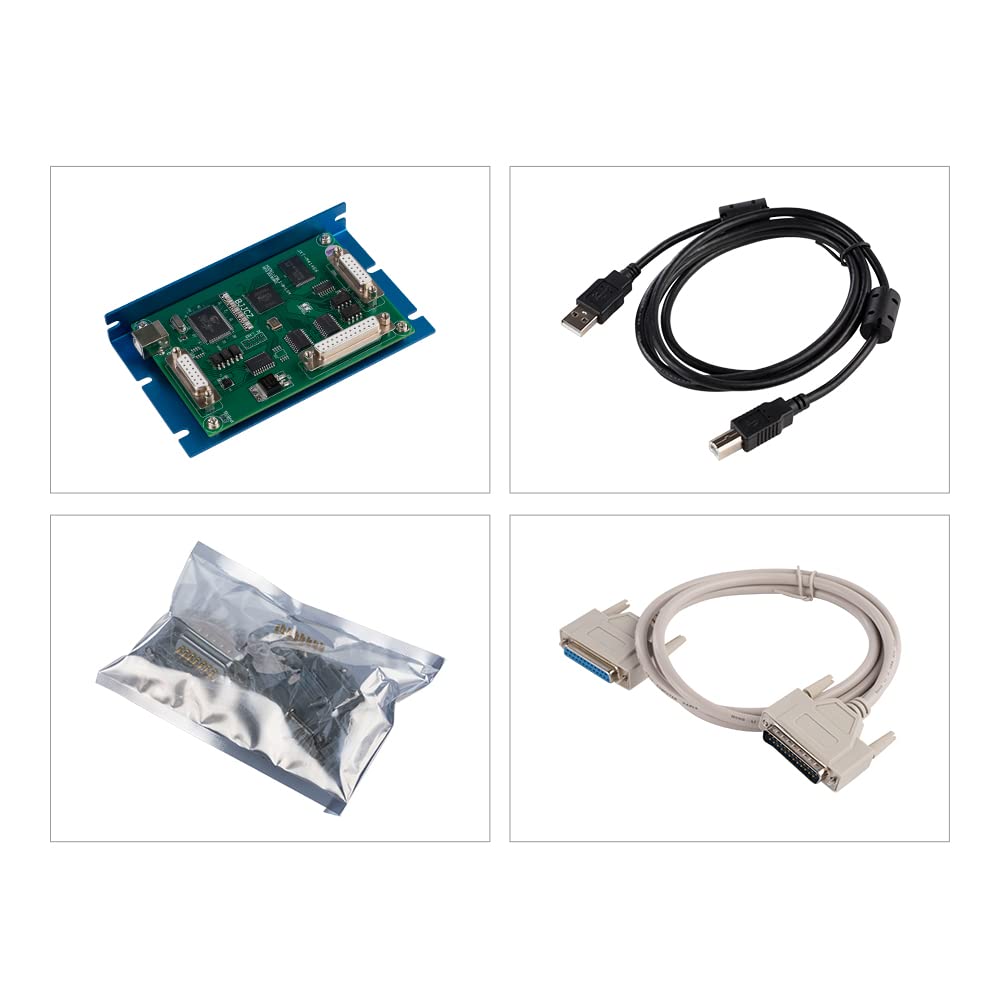

Features Standard DB25 connector, can be wire to IPG laser directly.Galvo control signal is digital, which can be connect to most scanhead directly.On-the-fly marking feature. A encoder can be used to surveillance the pipeline speed real-timely.Multiple boards on 1 computer: One computer can control up to 8 control board to mark different pattern simultaneouslyExtension axis(step motor or sever motor): two set of direction/pulse signal can be used to control 2 step(server) motors.6 general input signals(TTL campatible): In0-In3, XORG0(IN14), IN15.2 general output signals(TTL campatible): OUT4-OUT5 coming out of Con4.Remark function: this function is used to remark what ever is in the memory of the board, especially convenient for high speed marking of a same pattern.Compatible with USB2.0 specifications. Dimension Note JCZ Fiber lite marking control card has 2 models: with extension axis control and without extension axis controlPlease choose the variants you need Main Technical specifications JCZ Fiber Lite (With Extension Axis Control ) CON1 : DB15 Scanhead Control CON4 : DB15 Power Supply,Extension Axis Control and IO Packing List
On-the -fly marking feature. A encoder can be used to surveillance the pipeline speed real-timely.
Standard DB25 connector, can be wire to IPG laser directly，Galvo control signal is digital, which can be connect to most scanhead directly.
Remark function this function is used to remark what ever is in the memory of the board, especially convenient for high speed marking of a same pattern
Compatible with USB2.0 specifications，Support operating system XP, WIN7, WIN8, WIN10, 32/64 bit system.
Suitable for Suitable for engraving, handicraft carving, cutting, metallic coding. Suitable for engraving machine and laser engraving machining.
