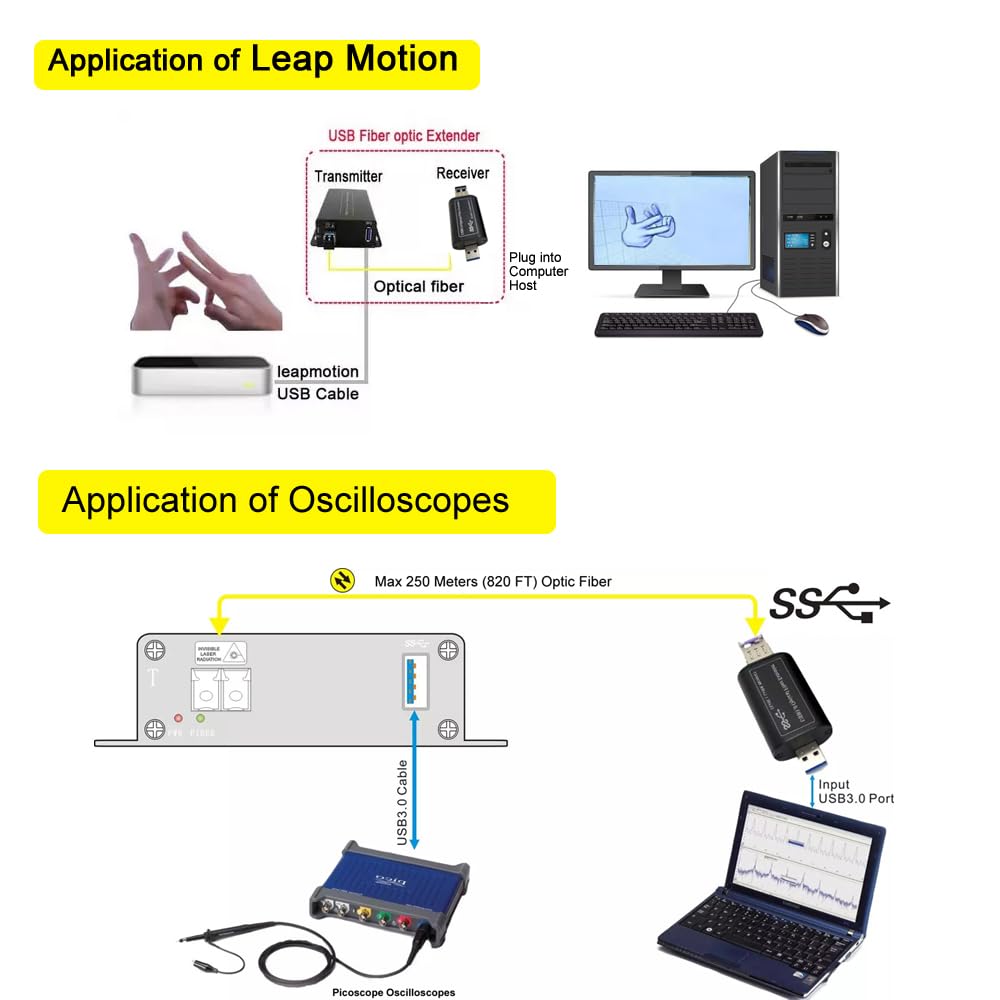

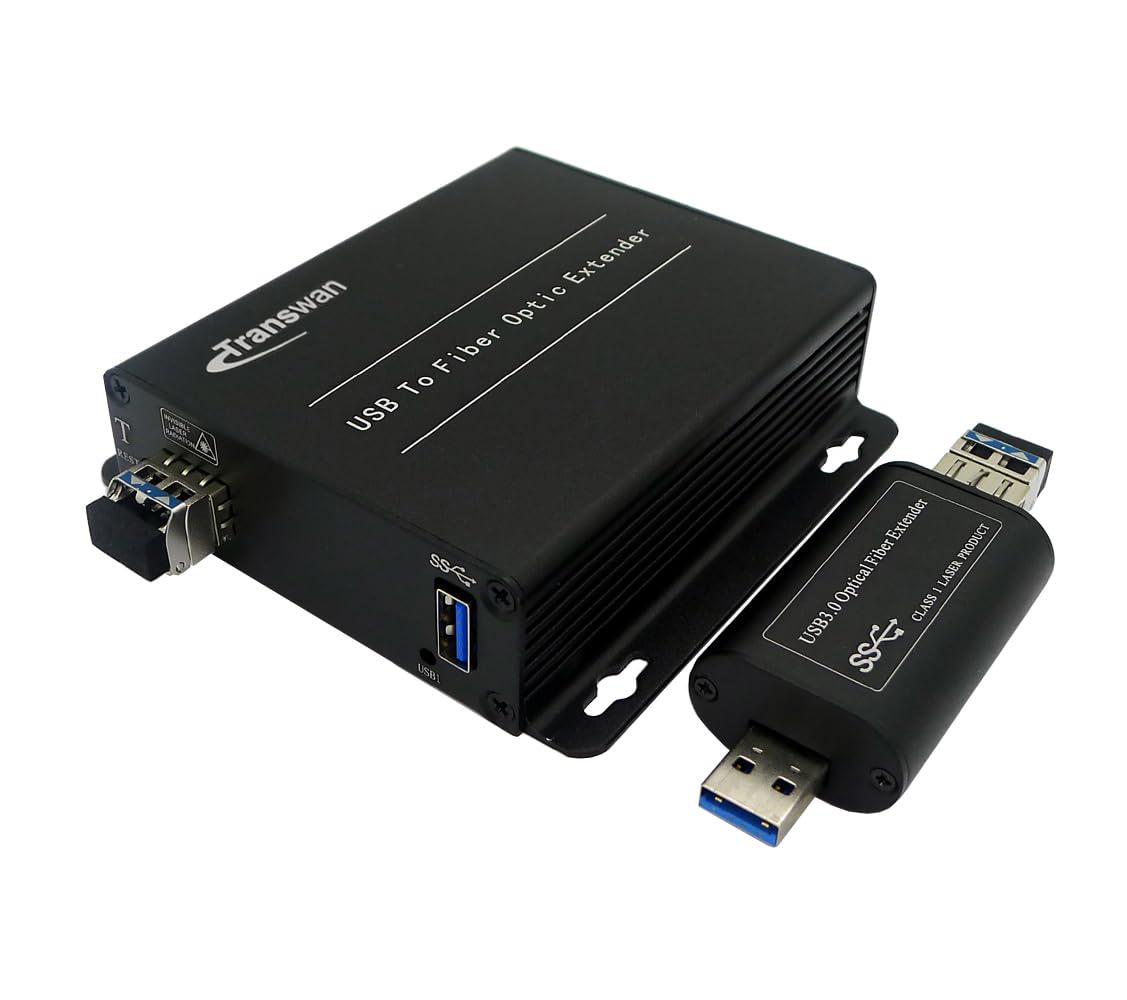

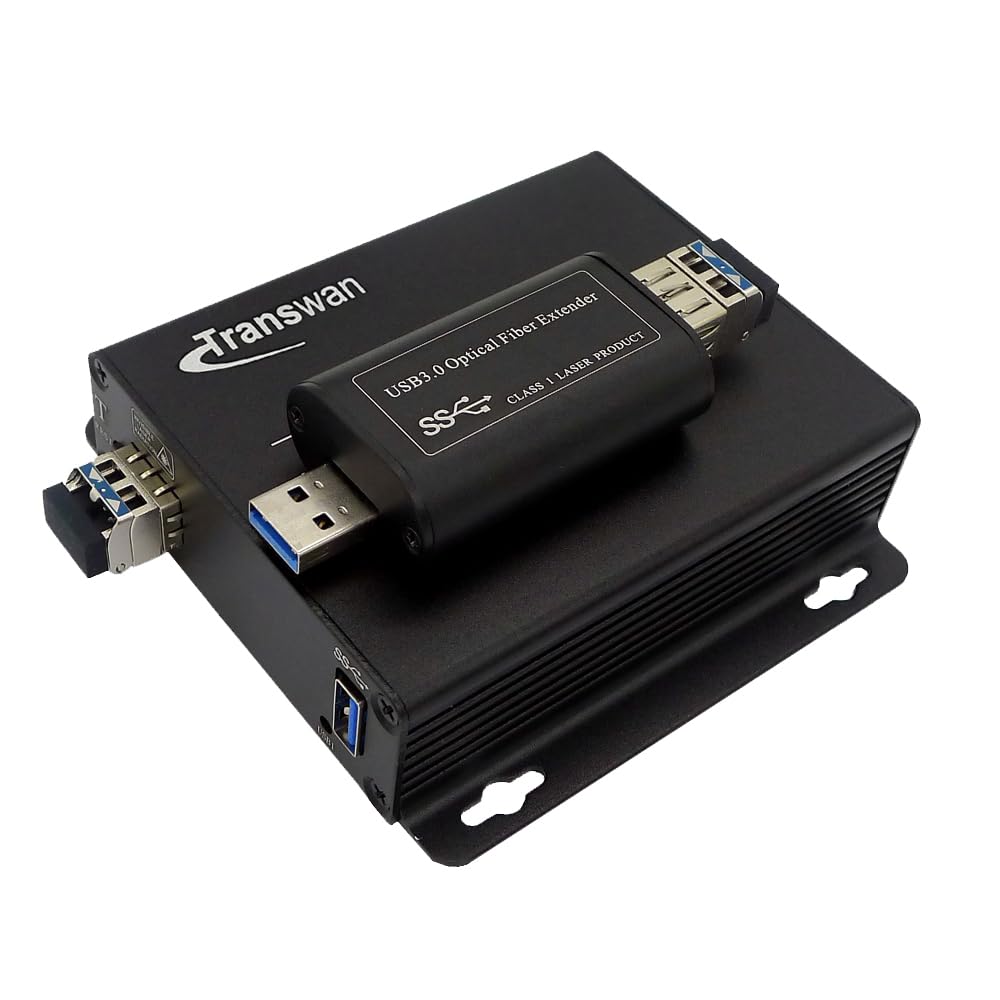

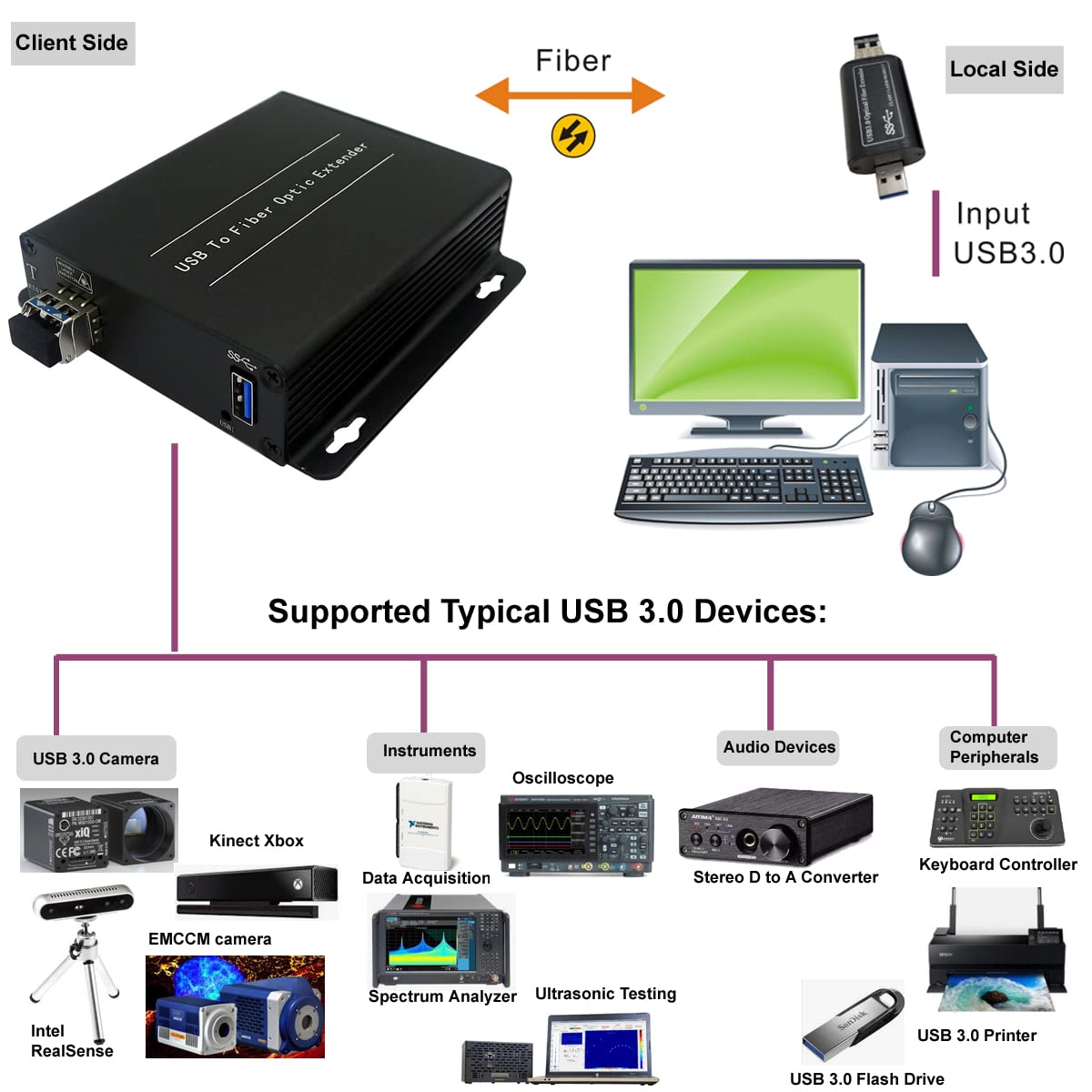

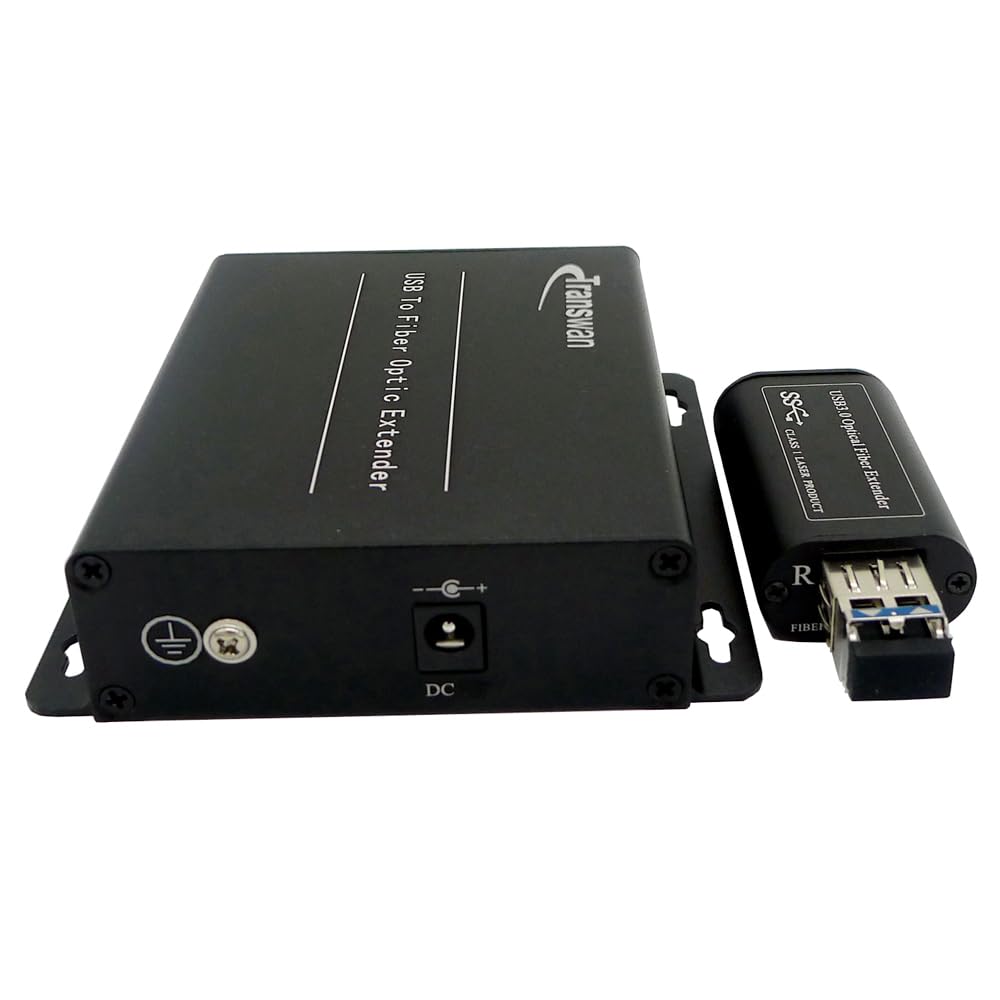

Description: BY-USB-396DF includes a transmitter (client-side) and a receiver (host-side), which can extend the Super-speed USB 3.0 port to a remote location over 2 core Single-mode fiber cable, Max distance 250 Meters. Supported Typical USB 3.0 Devices (the last image):1). USB 3.0 Camera:RealSense, XiQ USB 3.0 Camera, Kinect Devices, EMCCM camera etc2). Instruments:Data Acquisition, Spectrum Analyzer, Oscilloscope, Ultrasonic Testing etc3). Aduio Device:Stereo D to A Converter etc4). Computer Peripherals:Keyboard Controller, USB 3.0 Printer, USB 3.0 Flash Drive etc5.) OthersApplication: 1.Industrial video transmission 2.USB 3.0 Vision cameras 3.HD video surveillance system. 4.High - speed data acquisition system 5.Remote storage. 6.Digital signage and TV wall. 7.Industrial printer system. 8. VA/VR systems. Note：Not backwards compatible with USB 2.0 and USB 1.1 devices. For Example, Touch Monitor, Videobar etc, these devices need the USB 3.0 backward compatible, BY-USB-396DF does not support. But for this application, our backwards compatible BY-USB-126DF (ASIN: B07Q38J3MF) is the best solution. SPECS: Optical: Connector:Duplex LC Wavelength: 1310nm Support Fiber types: 9/125μ Physical: Size (L× W ×H): 1) Transmitter: 104 x 104 x 28 mm ; 2) Receiver: 51 x 33 x 17.5 mm Case Material:Aluminum Color:Black N.W.:0.55Kg Power Voltage: 5V DC Sender power consumption:<10W Receiver power consumption:<5W Environment: Working temperature:0℃-50℃ Storage temperature:-40-85℃ Humidity: 0-95% (non-condensing) Package: 1. 1 x transmitter (client side) 2. 1 x receiver (host side) 3. 1 x Power Adapter DC 5~12V with US plug. 4. 1 x Manual.
Support USB 3.0 Super Speed up to 5 Gbps, but Not backwards compatible with USB 2.0 and USB 1.1, so it does not support Keyboard & Mouse etc 2.0/1.1 devices;
Max extension distance 250 Meters (820 FT) over optical fiber cable for USB 3.0 flash drive; but For real-time live transmission like High Speed USB 3.0 Camera , the Max distance is 150 Meters over Single-mode Fiber; If require over Multi-mode Fiber, please search by ASIN B08YY2Q4FH
Compatible with Windows 8, Windows 8.1, Windows 10, Windows 11, full version of the LINUX, UNIX or Mac OS operation systems; USB 3.0 Type A Receptacle; Supports Full Duplex.
Duplex LC fiber connector, pure hardware design, NO driver needed, support plug and play
Power-up sequence Because of USB status (Suspend and Resume), Both the the computer and the USB device it's being connected to should be shut down completely BEFORE making all the connections. The USB devices and the transmitter module it's connected to must both be powered up and running BEFORE the computer is booted up. Otherwise, the USB device's driver in the computer will not be loaded, and the devices will not connect. In case the USB device's driver shows can not Identify the Device or shows "Unknown Device", please unplug and plug the receiver module.
