48075376

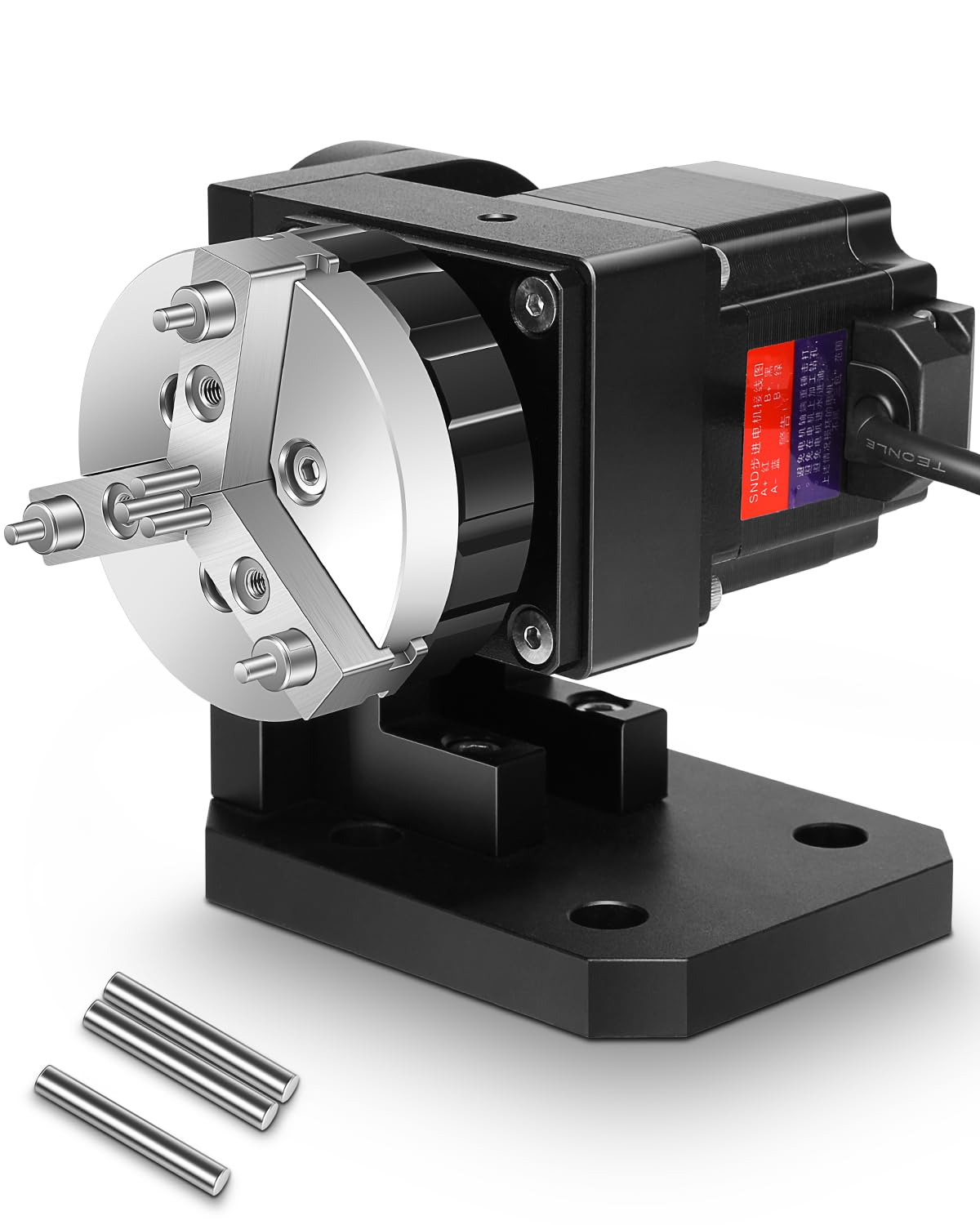

Usage 1. First install the screws into the screw holes li, and then pull out the 2. Then turn the spring counterclockwise. 3. Counterclockwise rotation to install the screws into the upper holes. 4. After fixing the screws, the bayonet can be expanded and contracted and operated in the opposite direction. Rotary Fixture Parameters Drive: DM756 Axis Height: 50MM (can be elevated angle of 90 °) External Dimensions: 130 * 90 * 90MM Mounting Hole Size: 50 * 50MM (M6 screws) The Inner Clip Application Range: for products with an outside diameter of 2-83mm The Outer Support Application Range: for products with an inner diameter of 11-91mm Mainly used for ： Laser Marking Machine, Laser Engraving Machine, Laser Welding Machine Marking: pens, bearings, cups, jewelry and other cylindrical items FAHKNS D69 Rotating Fixture for Laser Marking Machine 1.Multi-angle adjustment system Support 90°rotation positioning, can be adjusted to the desired angle according to your marking needs 2.Stable rotation and precise positioning The chuck is made of high-quality alloy material, which keeps the rotation of the fixture stable, accurate positioning, smooth travel, low friction coefficient, and high accuracy the chuck Powerful and Low Noise Rotary axis adopts 57 stepper motor The output power is strong and the noise is low. Multi-angle Adjustment System Support 90 ° rotation positioning, arbitrary adjustment, stable positioning, support manual locking. Precision Chuck High Efficiency Precise chuck, clamping force is greater, which can effectively prevent the marking parts from loosening and slipping, and improve work efficiency.

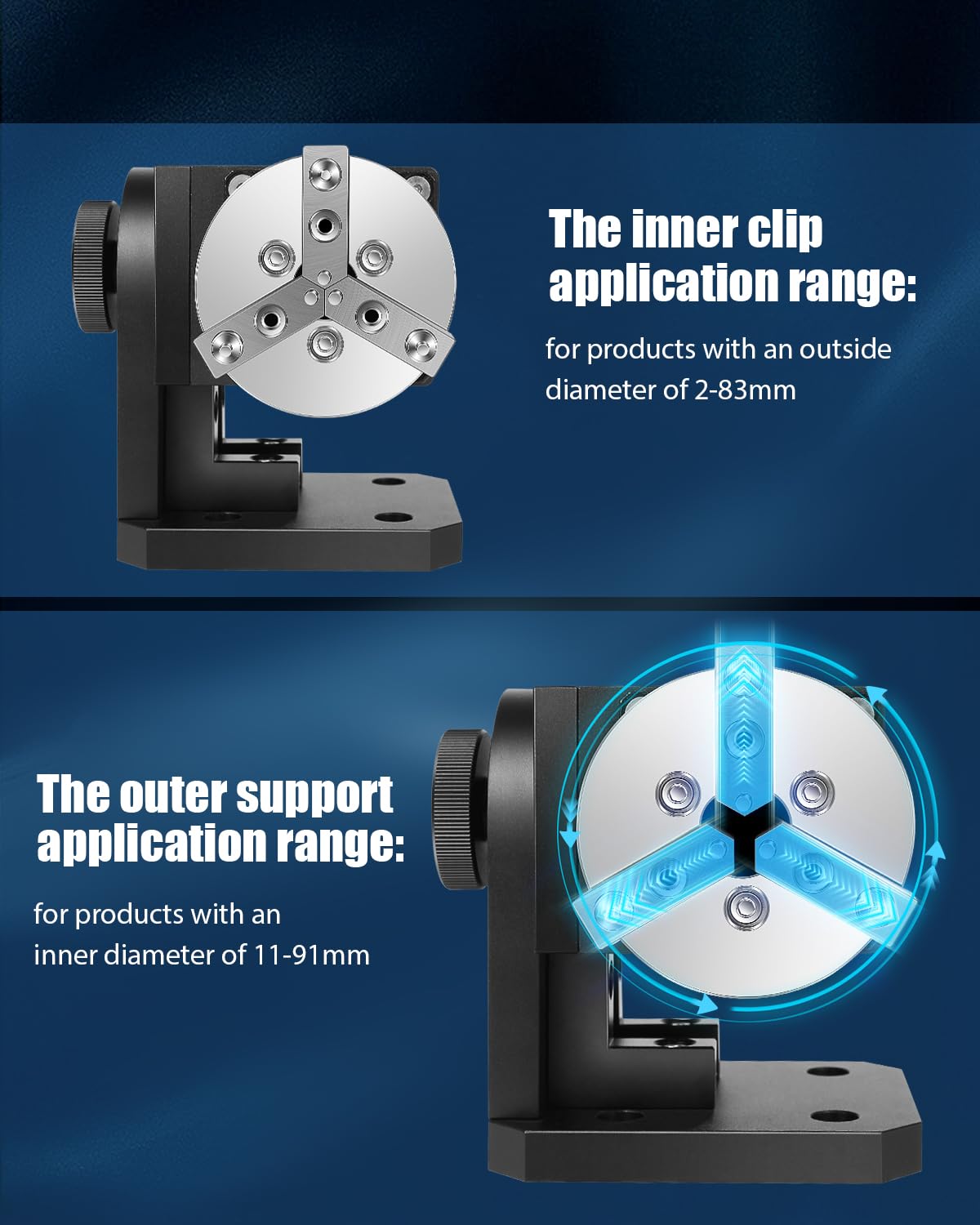

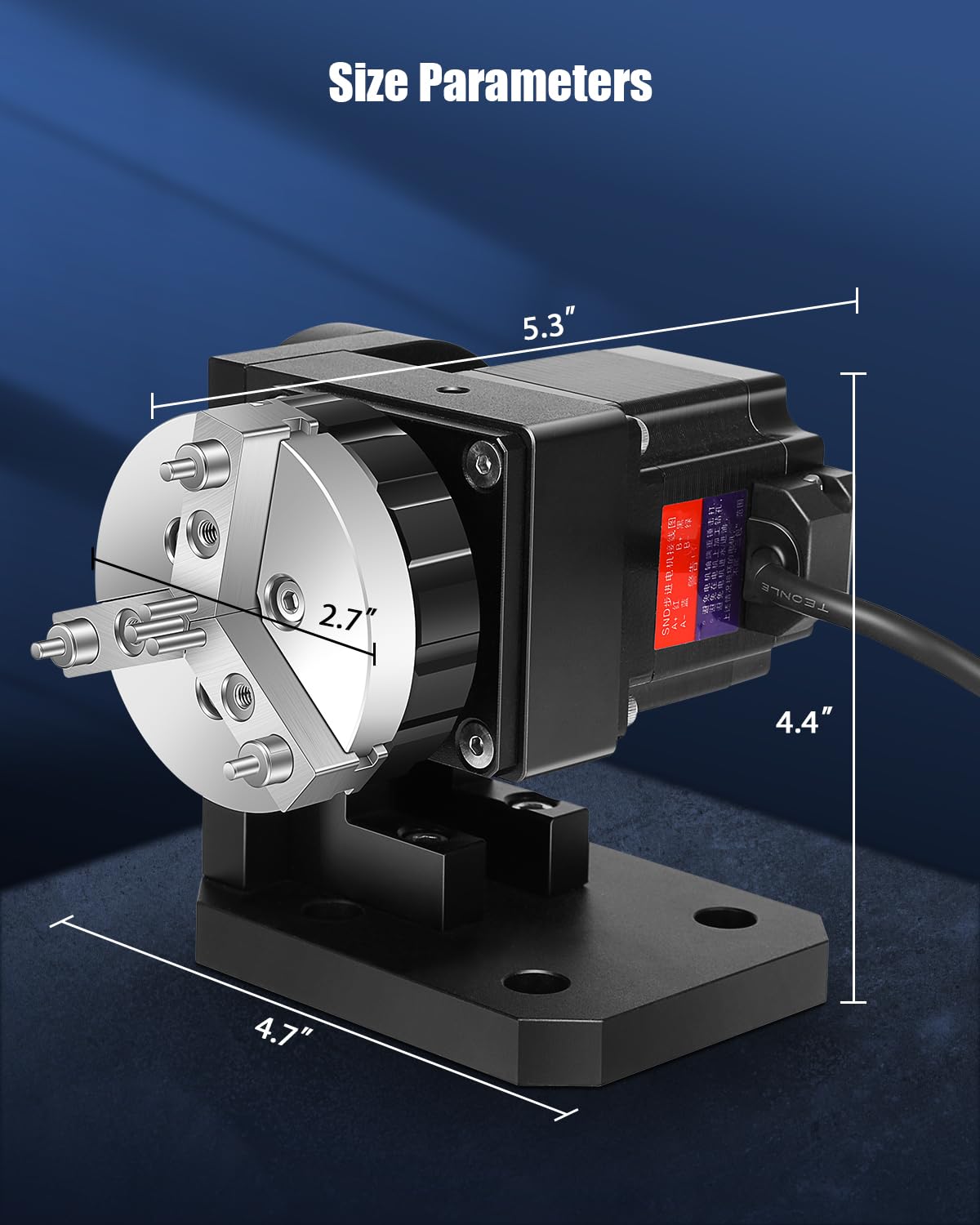

【Rotary Fixture Parameters】Axis height 50MM (can be elevated angle of 90 °), external dimensions 130 * 90 * 90MM, mounting hole size 50 * 50MM (M6 screws), the inner clip application range for products with an outside diameter of 2-83mm, the outer support application range for products with an inner diameter of 11-91mm
【Stable Rotation, Accurate Positioning】The chuck is made of high-quality alloy material to keep the fixture rotating and stable, accurate collet, clamping force, can effectively prevent the marking parts loose, slippage, and improve work efficiency.
【Strong Power, Low Noise】The rotary axis adopts NEMA, 57 stepping motor output power, low noise.

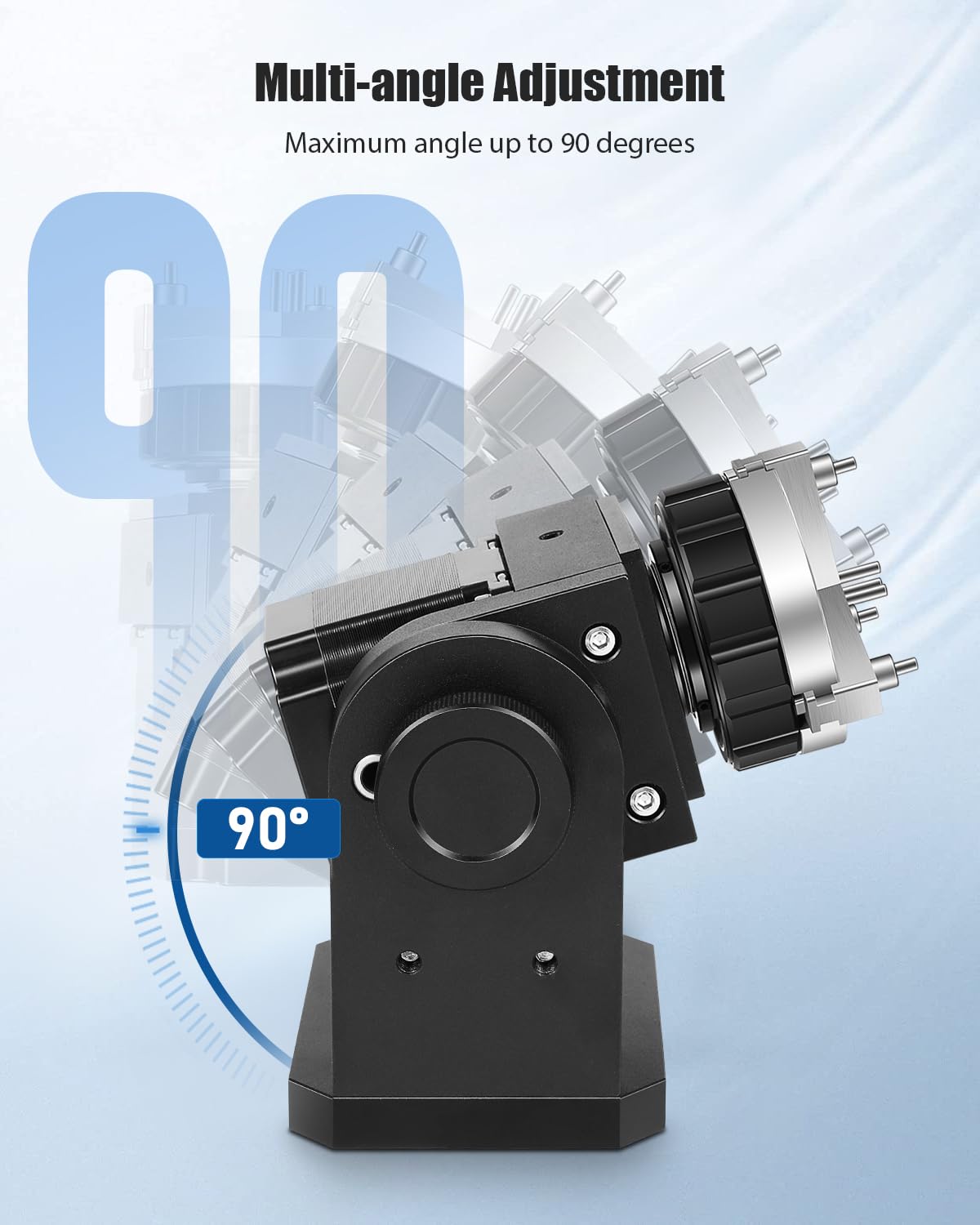

【Multi-Angle Adjustment System】Support 90 ° rotary positioning, arbitrary adjustment, support for manual locking, positioning stability

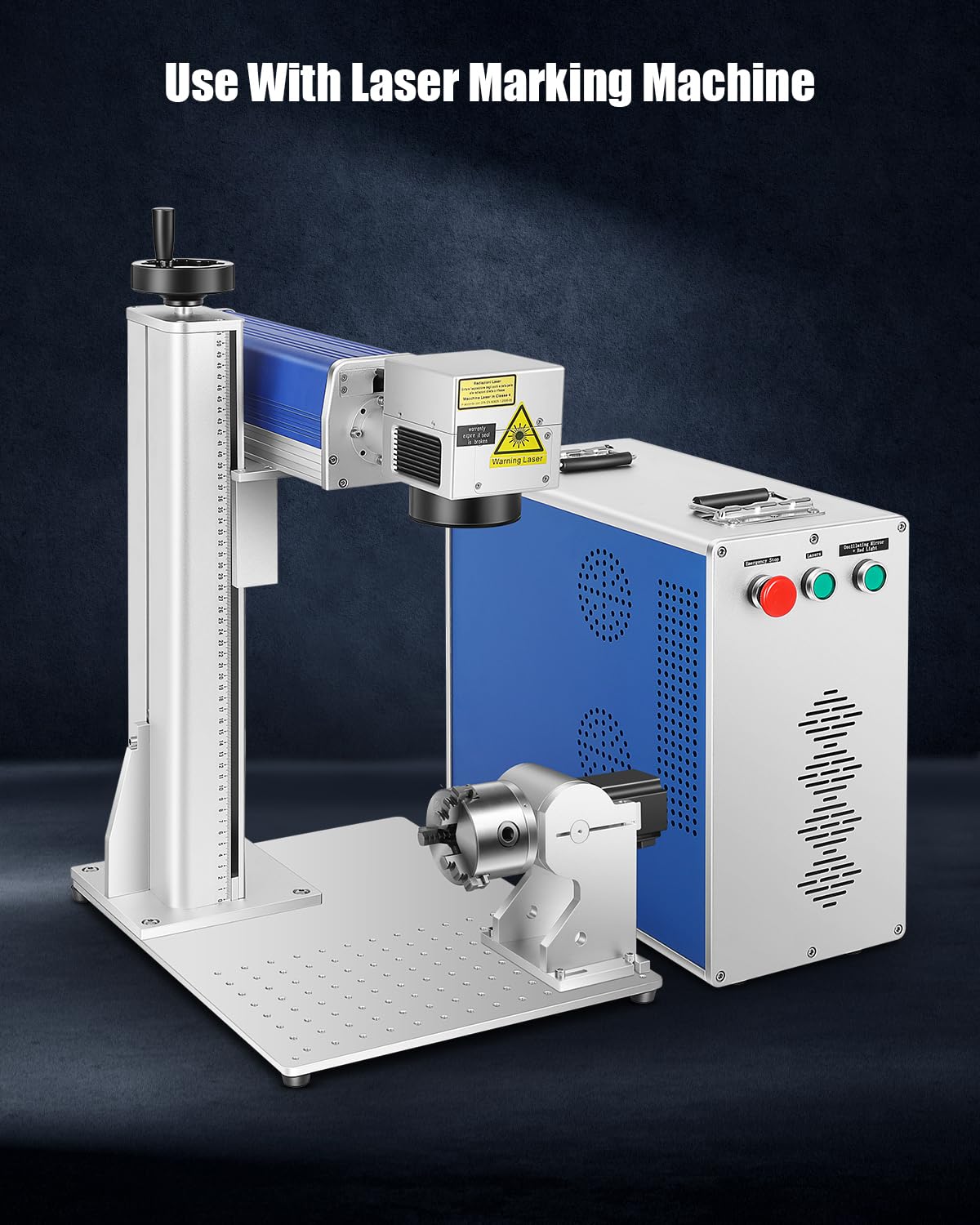

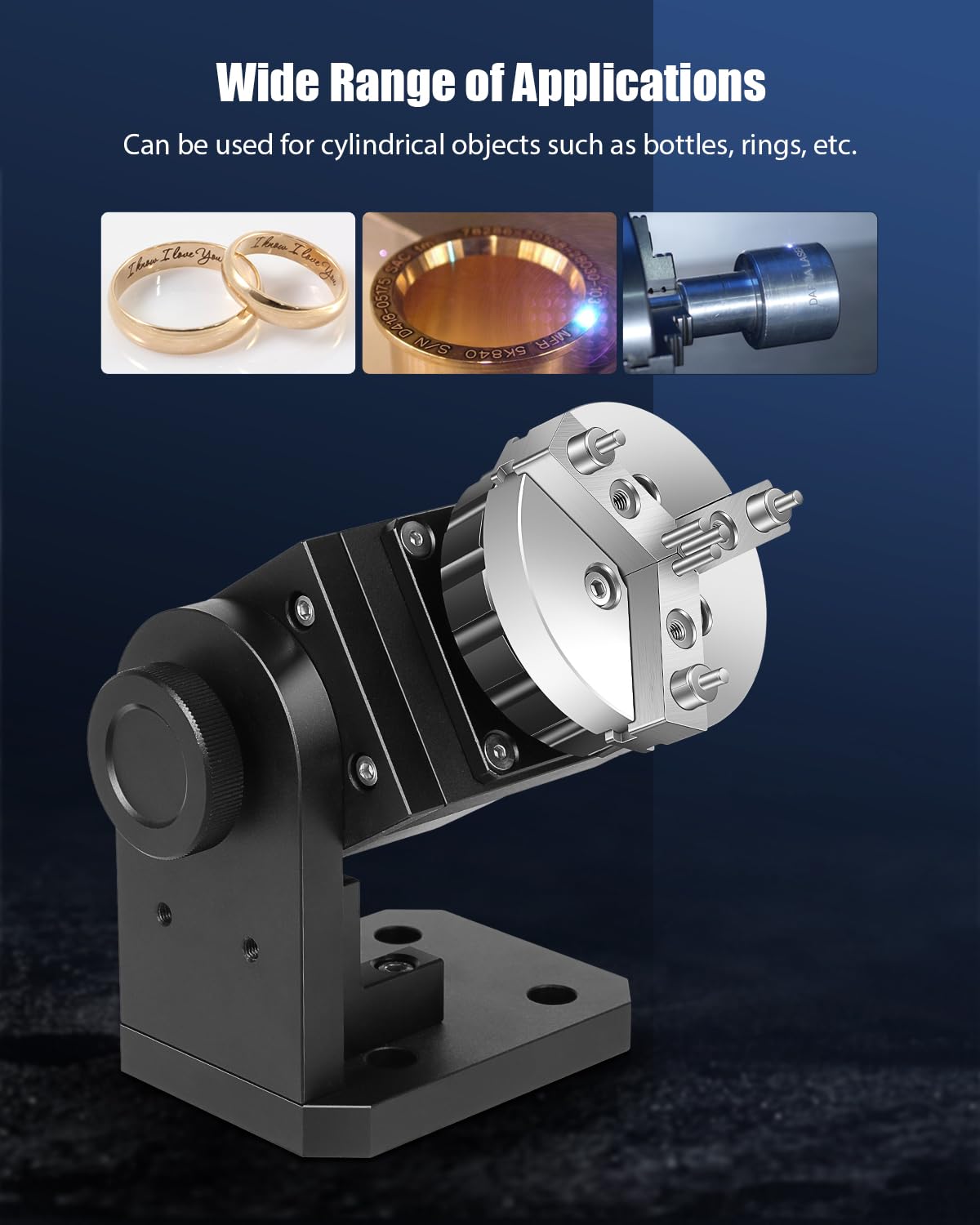

【Widely Applications】 The rotary axis has a wide range of applications and can be used in laser marking machines, laser welding machines, laser engraving machines, easily clamping pens, bearings, cups, rings, jewelry and most other items.
