Fiber Laser Marking Machine Parameters Marking Area A Type.110×110mm(4.3×4.3in) B Type. 150×150mm(5.9×5.9in) C Type.175×175mm (6.9×6.9in) Max. Material Thickness 300mm(11.8in) by 110×110mm lens 250mm(9.8in) by 150 ×150mm lens 206mm(8.1in)by 175×175mm lens Laster Type LP E-20W/30W/50W Laser Source Repetition Rate(Frequency) 1-600kHz Pulse Duration 200ns Control Board BJ JCZ Board(Original) Soft Program EZCAD 2 (Compatible with Lightburn Windows XP/Vista/7/8/10) Output Poweradjustment Range 10%-100% Laser Wavelength 1064nm Marking Speed ≤7000mm/s(275.6in/s) Laser Power 20W(Power consumption: 500W) 30W (Power consumption: 800W) 50W (Power consumption: 1000W) Engraving Depth 20W----- ≤0.2mm(0.008in) 30W------ ≤0.4mm(0.016in) 50W------- ≤1mm(0.039in) Connection USB Connection. Electrical Requirements 110V-240V/50Hz-60Hz(According to local electricity supply). Packing Size 785*505*775mm Wooden Case JPT Fiber Laser Engraver Advantages - Metal Deep Engraving- Metal Surface Processing- High Frequency Line ProcessingF-theta Scan Lens.typically Distortion Less Than 1%, Air-spaced Design and High Efficiency Ar Coatings Excellent Throughput and Durability.EZCAD 2 Stable Performance and High Reliability,ensuring Higher Stability and Shield-utilizing Part of Complex Functions. Compatible with Windows XP/Vista/7/8/10.Quickly Find the Focal Length Without Using a Ruler, Just to See if the Red Dots and Red Lines Overlap on the Surface of the Product Which You Want to Mark.Customer and Technical Support. Easy Operation, English User Manual and Video. The Function of Marking Software is Powerful. The Machine Can Be Compatible with Software Files Such As Coreldraw, Autocad, Photoshop;plt, Pcx, Dxf, Bmp,etc Supported.the Machine Can Directly Use Shx,itf Fonts; Automatic Encoding, Printing Serial Number, Batch Number, Date, Barcode or Code, Automatic Jump Number, Etc,supported. Applicable Material. Aluminum,stainless Steel, Brass, Copper Etc.also Some of Nonmetal Such As Nylon ,Light button, ABS,PVC,PES etc. Applicable Industry: Hardware Industry,Wrenches,Measuring Tools,Jewelry,Stainlsee Steel,Luggagegifts,Table Bottom, Glasses Frames. JPT Laser Source Compared with Q-switching technology, JPT LP Series Fiber Laser is More Flexible, Supporting Wider Range of Frequency Adjustment and Higher Precise Control. Galvanometer Sino-galvo Galvanometer Scanner (optional)) Lens Wavelength/Jollystar (optional) Batch Marking Rotary Chuck Size Options: 69mm(2.7in) for Rings.80mm (3.15 in)100mm (3.94 in)125mm (4.92 in)160mm (6.3 in)200mm (7.87 in)300mm (11.81 in) Three-Jaw Rotary Chuck Optional Stainless Steel Chuck; Quick Clamping. D80mm Rotary Axis --80mm (3.15in) Three-jaw Rotary Axis + Drive.-- Internal Clamping Range:2-22mm. External Clamping Range:22-63mm--This rotary fixture is mainly for small hardware such as bracelets,Cigarette holder, Pen, Bearinge,tc.-- Rotary spring clamping, fast mounting and dismounting to improve work efficiencyAccurate Position.180°Rotary Positioning.Stable Positioning.-- Industrial Standard Interface. Use Aviation Plug Fits Various Board Card UV Laser Engarver Laser Rust Remover Machine Enclosure Fiber Laser Engraver Sino-Galvo AF2206S-600 Auto Focus Fiber Laser Engraver Handheld Fiber Laser Engraver 60W/100W/130W/150W/180W Reci CO2 Laser Engraver See Details Add to Cart Add to Cart See Details Add to Cart Add to Cart Customer Reviews 5.0 out of 5 stars 1 — — — — 5.0 out of 5 stars 2 Price — $9,999.00$9,999.00 $7,099.00$7,099.00 — $5,549.00$5,549.00 $9,599.00$9,599.00 Advantages Suitable for the High-end Market of Ultra-fine Processing. Fiber Laser Cleaning Machine Has a Good Cleaning Effect on Iron, Carbon Steel Plate, Stainless Steel Plate, Mold Steel Gear, Aluminum Plate, Paint Layer and Other Materials Better to Protect Operator.fit Ring and Other Small Workpiece. Auto Focus,with Electric Z Axis,Calibration Module and Motor Controller Good at Marking on Large and Heavy-duty Equipment Applicable Materials---Wood Products, Paper, Plastic, Rubber, Acrylic, Bamboo, Marble, Double-color Sheets, Glass, Wine Bottles, Resin, Abs, Lamp Shade and Other Non-metal Materials

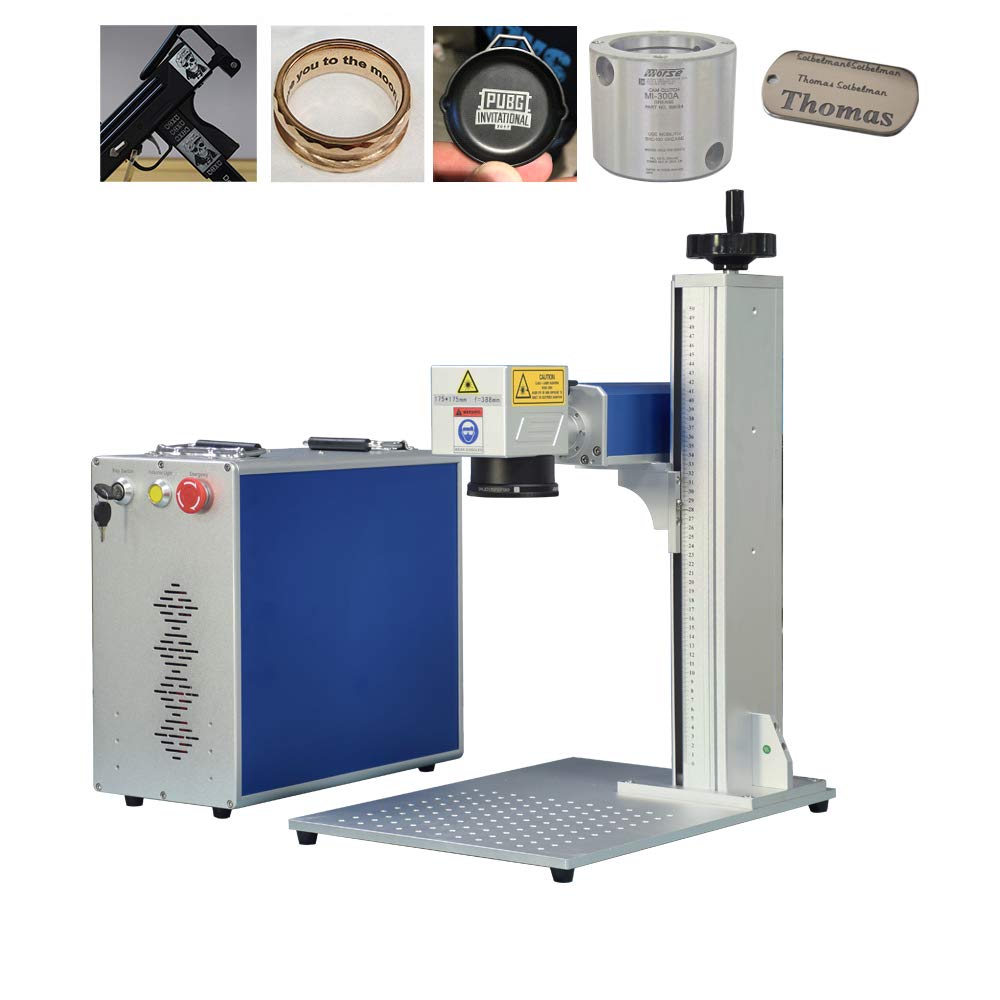

20W Fiber Laser Marking Machine Equipped JPT Laser Source
Laser Power 20W. Marking Area 110*110mm Engraving Depth≤0.2mm(0.008in)
Laser Type JPT LP+ Series Lasers.Repetition Rate1-600kHZ.Control board BJ JCZ board(Original) Program EZCAD Stable performance and high reliability. Compatible with Windows XP/Vista/7/8/10.
Stable performance and high reliability. More than 90% laser marking machine are using EZcad controller, ensuring higher stability and shield-utilizing part of complex functions.
