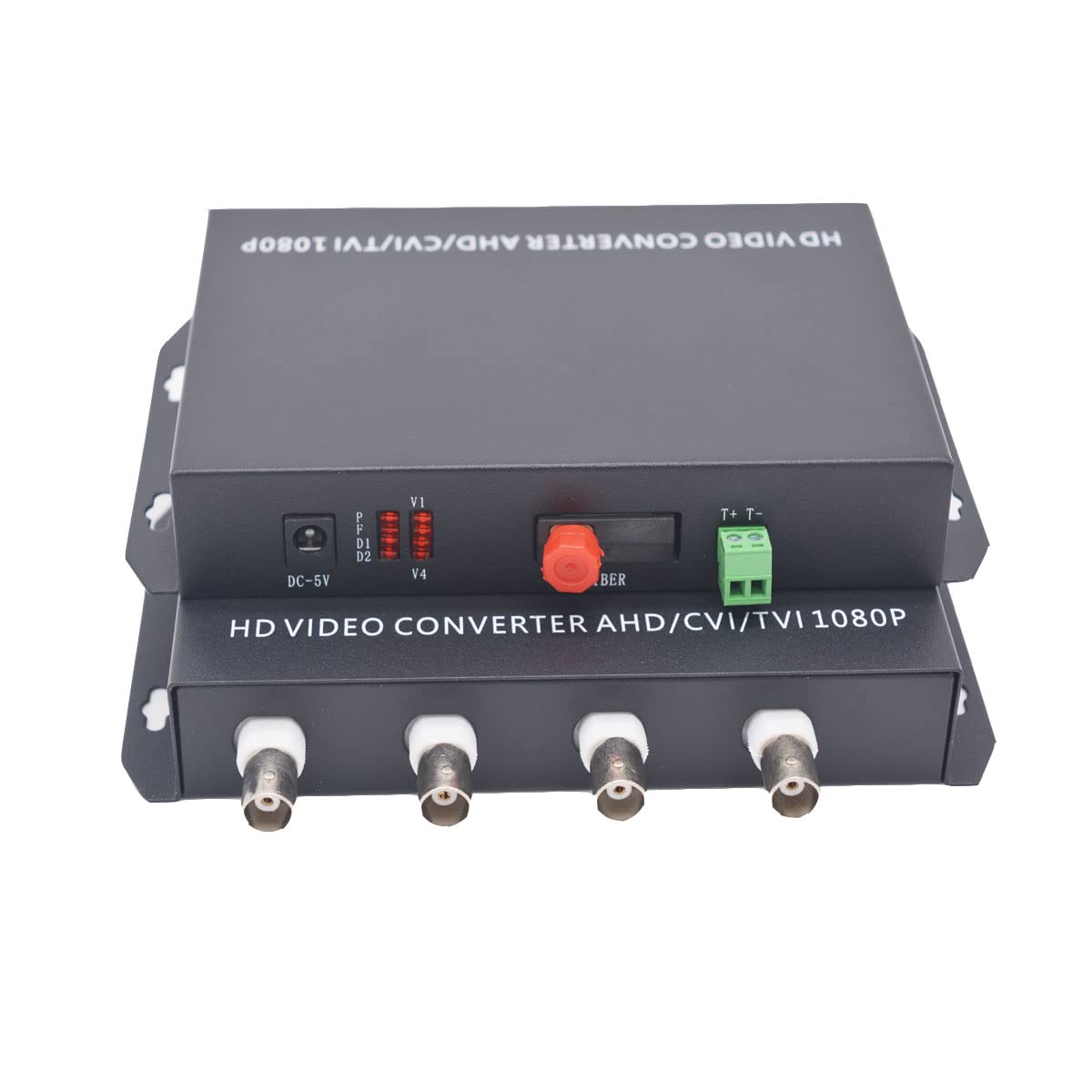

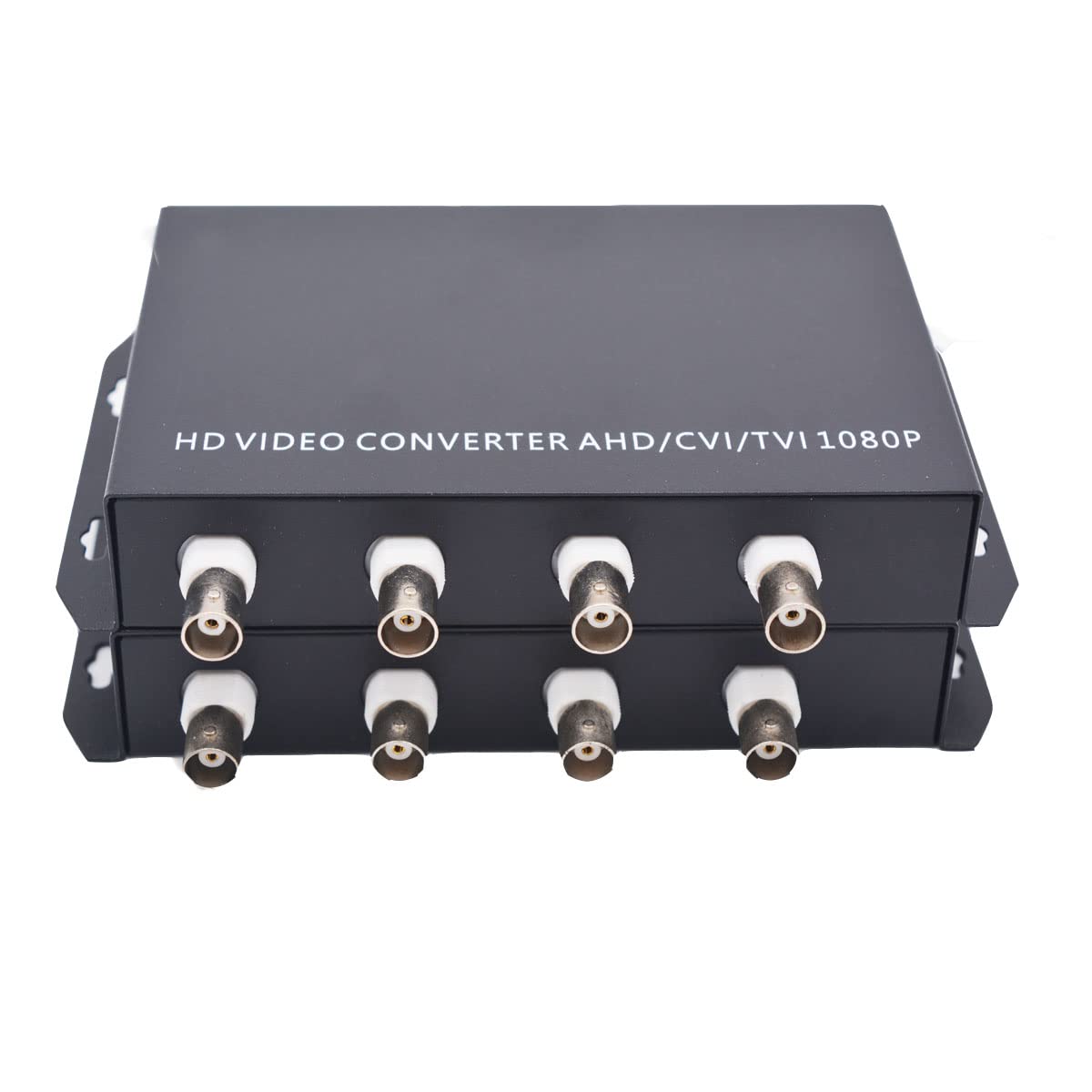

2MP HD Video Over Fiber Optic Converter - 4 Channel with FC Port & RS-485 Data | Supports 1080p/960p/720p for CVI/TVI/AHD Cameras | Ideal for Security Surveillance & Long-Distance Video Transmission

Support Cameras: TVI: 1080P (1920×1080), 960P (1280×960), 720P (1280×720) CVI :1080P (1920×1080), 960P (1280×960), 720P (1280×720) AHD :1080P (1920×1080), 960P (1280×960), 720P (1280×720) For the environment: 1. Security Systems 2. Radio and television transmission 3. HD Video monitoring 4. Building control systems 5. Train/High speed road monitoring 6. Intelligent Traffic Monitoring System (ITS) 7. Remote multimedia teaching / campus monitoring 8. Long-distance radio and television transmission system Optical index: 1.Optical Interface : FC (SC optional) 2.Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm 3.Wavelength: 1310/1550μm 4.Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~300meters Video Index: 1.Video : 1/2/4/8/16 channels optional 2.Video Interface: BNC 3.Support 1280×720, 1280×960,1920×1080 @25Hz, @30Hz,@50Hz,@60HZ 4.Coaxial cable transmission length: 1080p up to 300meters.720p up to 500meters 5.Video Input / Output Impedance : 75ohm ( unbalanced ) ; 6.Video Bandwidth 100MHz; 7.Video format compatible PAL, NTSC, SECAM; Data index: RS-485 reverse direction, remote control PTZ. Connector: terminal block, 2 wires. Package Include: 1 x Video Transmitter 1 x Video Receiver 1 x 3m FC/FC singlemode fiber patch cord 2 x Power supply adapters (default US, EU/UK/AU optional) 1 x User manual
