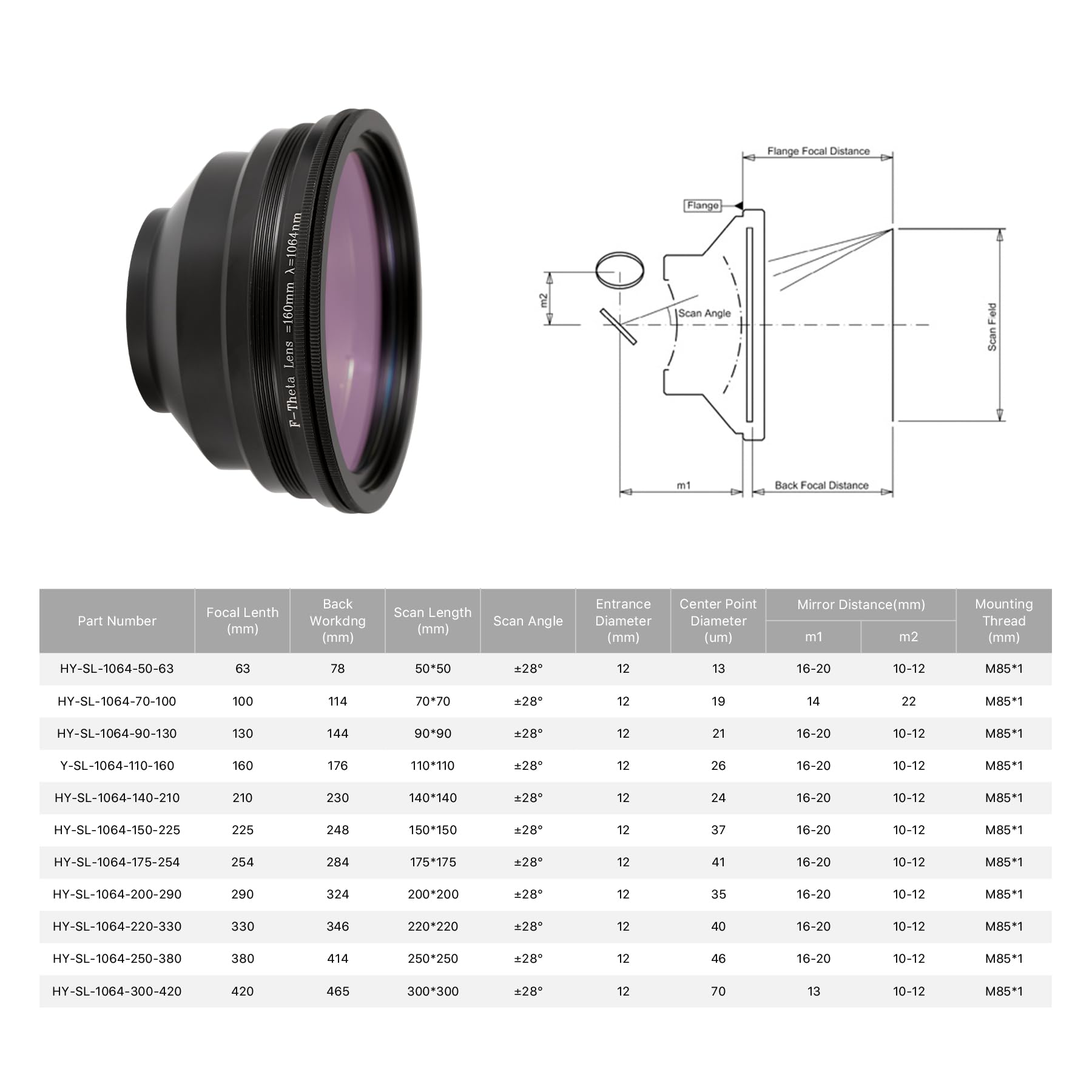

SCAN LENS GALVANOMETER The standard M85x1 threading ensures easy installation, quickly replacing or upgrading the old lens in most laser marking machines on the market. Note: Please adjust the focal length when change the lens size. F-THETA LENS CLOUDRAY FIBER LASER LENS CLoudray powerful F-theta lens is ideal for ultra-fine laser marking, engraving, image transfer, material processing, and cutting systems, flawlessly completes even your most complicated designs. With the characteristics of wear resistance and high temperature resistance, it can withstand high power lasers, has better thermal stability, and reduces thermal focus shift. F-THETA LENS SIZE RECOMMENDED PRODUCT Universal Fiber Lens OPEX Fiber Lens K9 Fiber Lens Wavelength 1064nm Wavelength 1064nm Wavelength 1064nm Mounting Thread M85 Mounting Thread M85 Mounting Thread M55 & M39 SPECIFICATION 70 Buying Options 110 Add to Cart 150 Add to Cart 175 Buying Options 220 Add to Cart 250 Buying Options 300 Add to Cart Customer Reviews 4.5 out of 5 stars 8 4.8 out of 5 stars 36 4.6 out of 5 stars 96 4.6 out of 5 stars 96 4.6 out of 5 stars 96 4.6 out of 5 stars 96 4.6 out of 5 stars 96 Price — $99.99$99.99 $89.29$89.29 $86.39$86.39 $99.99$99.99 $89.90$89.90 $99.90$99.90 Focal Length 100mm 160mm 225mm 254mm 330mm 380mm 420mm Working Area 70*70mm 110*110mm 150*150mm 175*175mm 220*220mm 250*250mm 300*300mm Scan Angle ±28° ±28° ±28° ±28° ±28° ±28° ±28° Entrance Diameter 12mm 12mm 12mm 12mm 12mm 12mm 12mm Center Point Diameter 19um 26um 37um 41um 40um 46um 70um Mirror Distance M1 14mm 16-20mm 16-20mm 16-20mm 16-20mm 16-20mm 13mm Mirror Distance M2 22mm 10-12mm 10-12mm 10-12mm 10-12mm 10-12mm 10-12mm Mounting Thread M85 M85 M85 M85 M85 M85 M85
Superior Performance Cloudray f-theta lens for ultra-fine laser marking, f theta lens play a major role in many of today'sleading-edge laser applications.Cloudray manufac-tures scan lenses for laser systems that are used formarking, engraving, via hole drilling, and more.

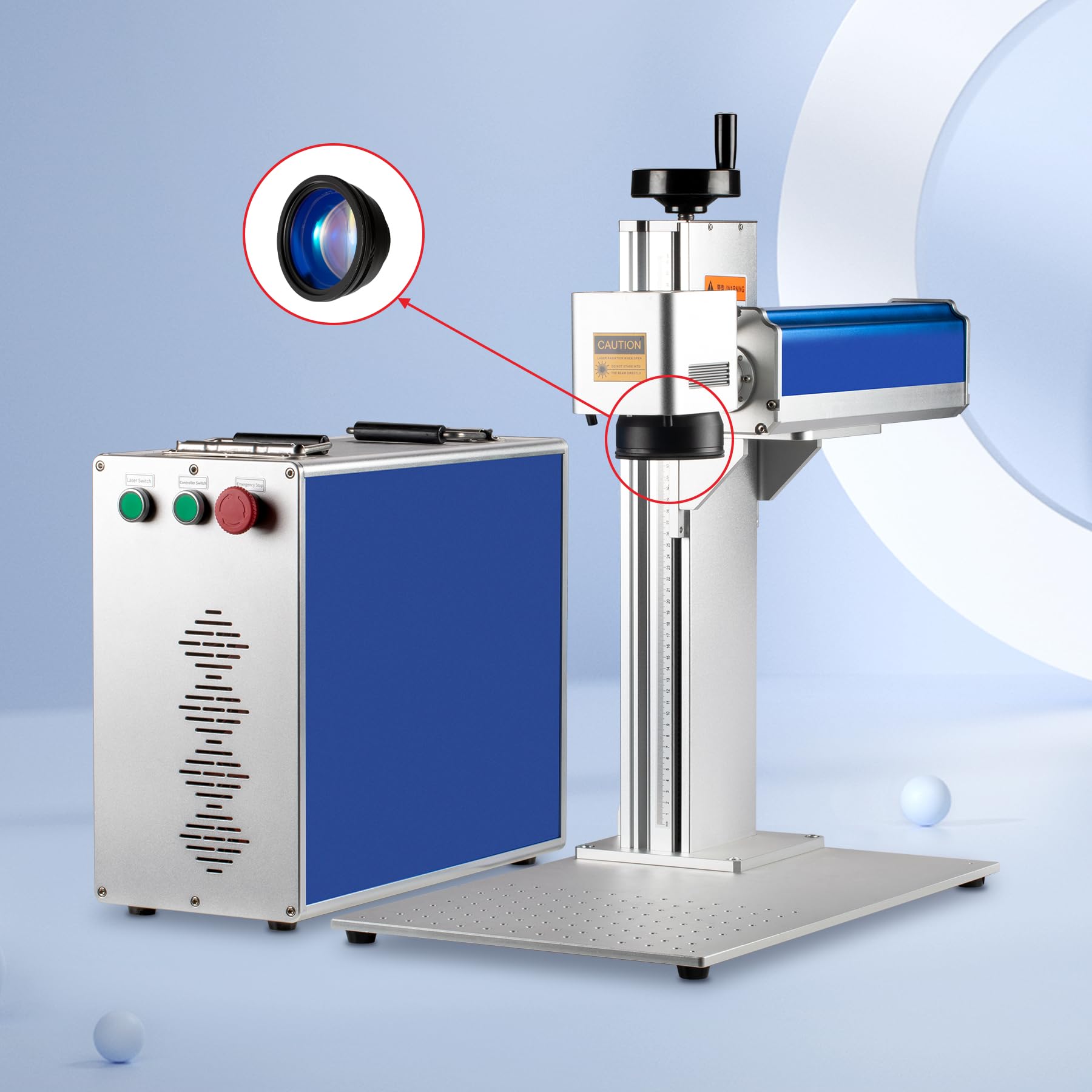

High Stability With the characteristics of wear resistance and high temperature resistance, it's a stand jpt fiber laser lens and mopa fiber laser lens,also work with Raycus fiber laser,it has better thermal stability, and reduces thermal focus shift,In a typicalfiber laser lens configuration, the F- lens isused with one or two axis galvo mirrors that enablefast positioning and precision focusing of the laserbeam.

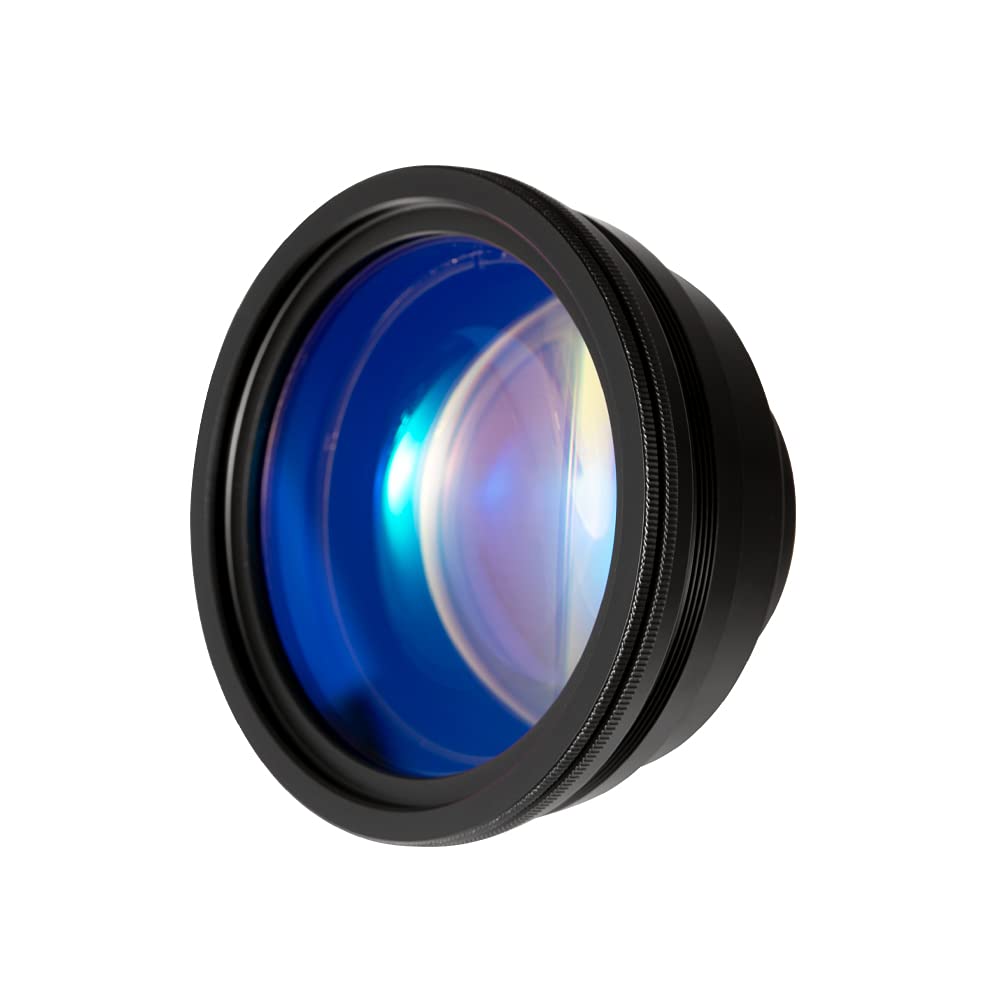

175x175mm f-theta lens 1064nm Cloudray lens provides fast positioning and precision focusing so you'll be able to mark steel, aluminum, gold, and more with a consistently exact spot anywhere in the lens's 6.9x6.9" field.
Optical Fiber Laser Parts F254 cloudray lens for 1064nm wavelength lasers offers up to 97% transmittance with minimal distortion and antireflective coatings that ensure both excellent engraving and a long service life.

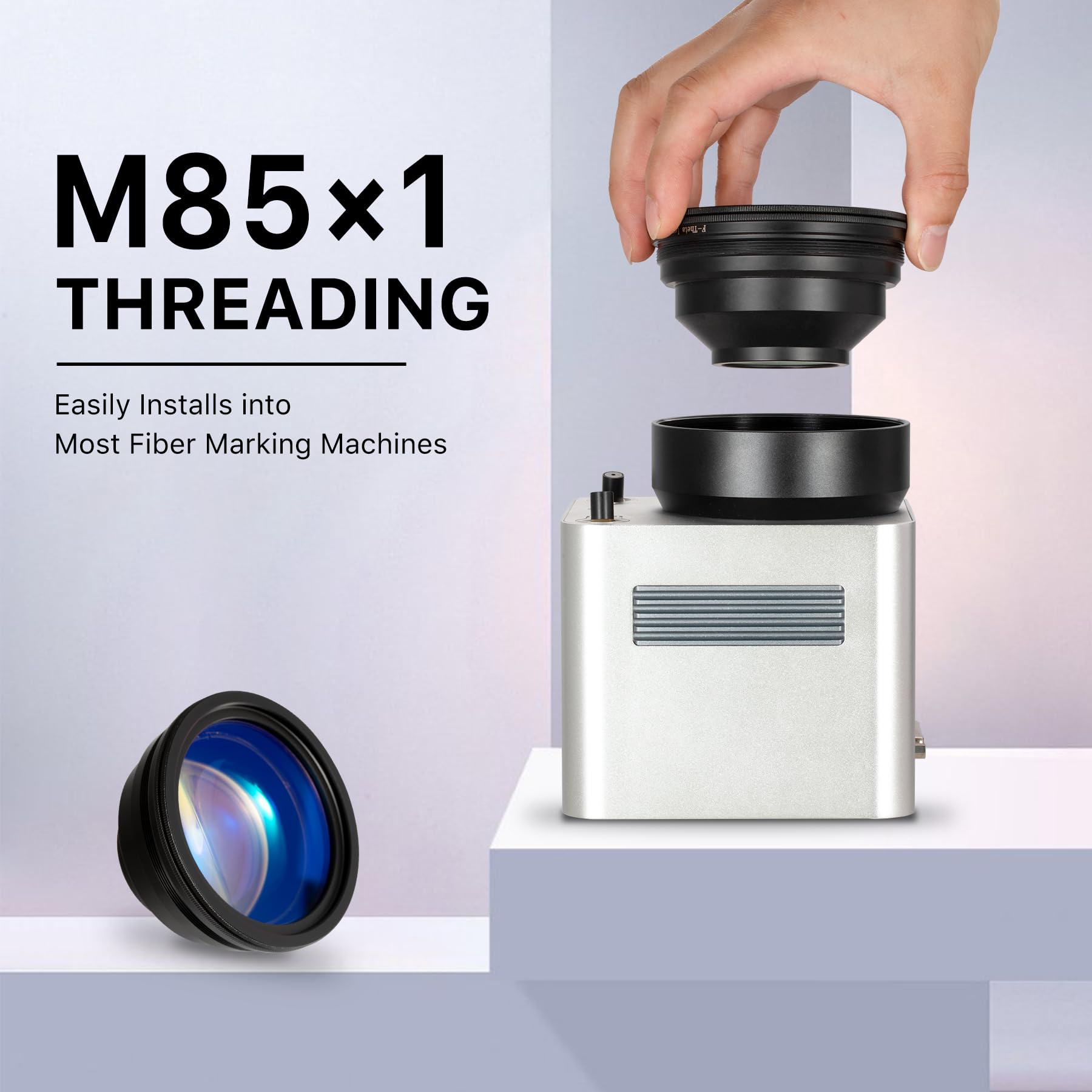

Easy Installation The standard M85x1 threading ensures easy installation, quickly replacing or upgrading the old lens in most laser marking machines on the market. Note Please adjust the focal length when change the F-Theta lens size.
