59620785

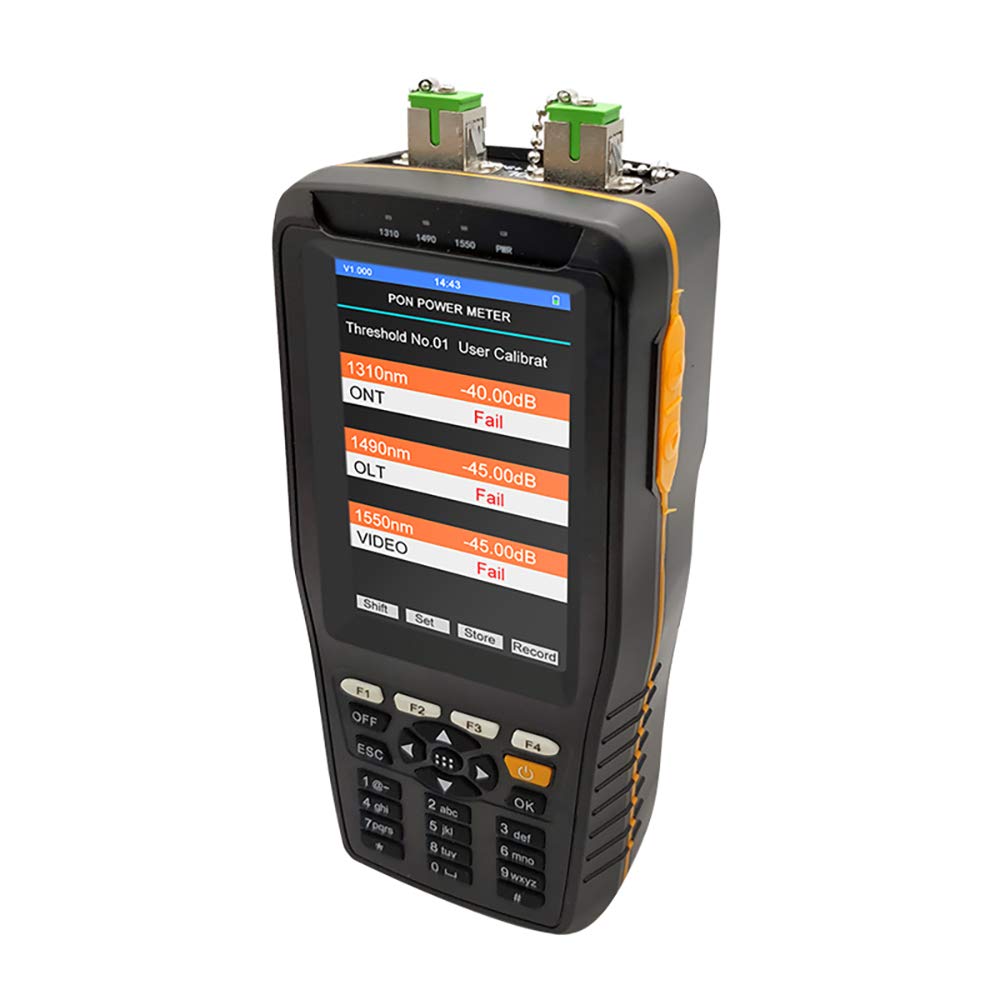

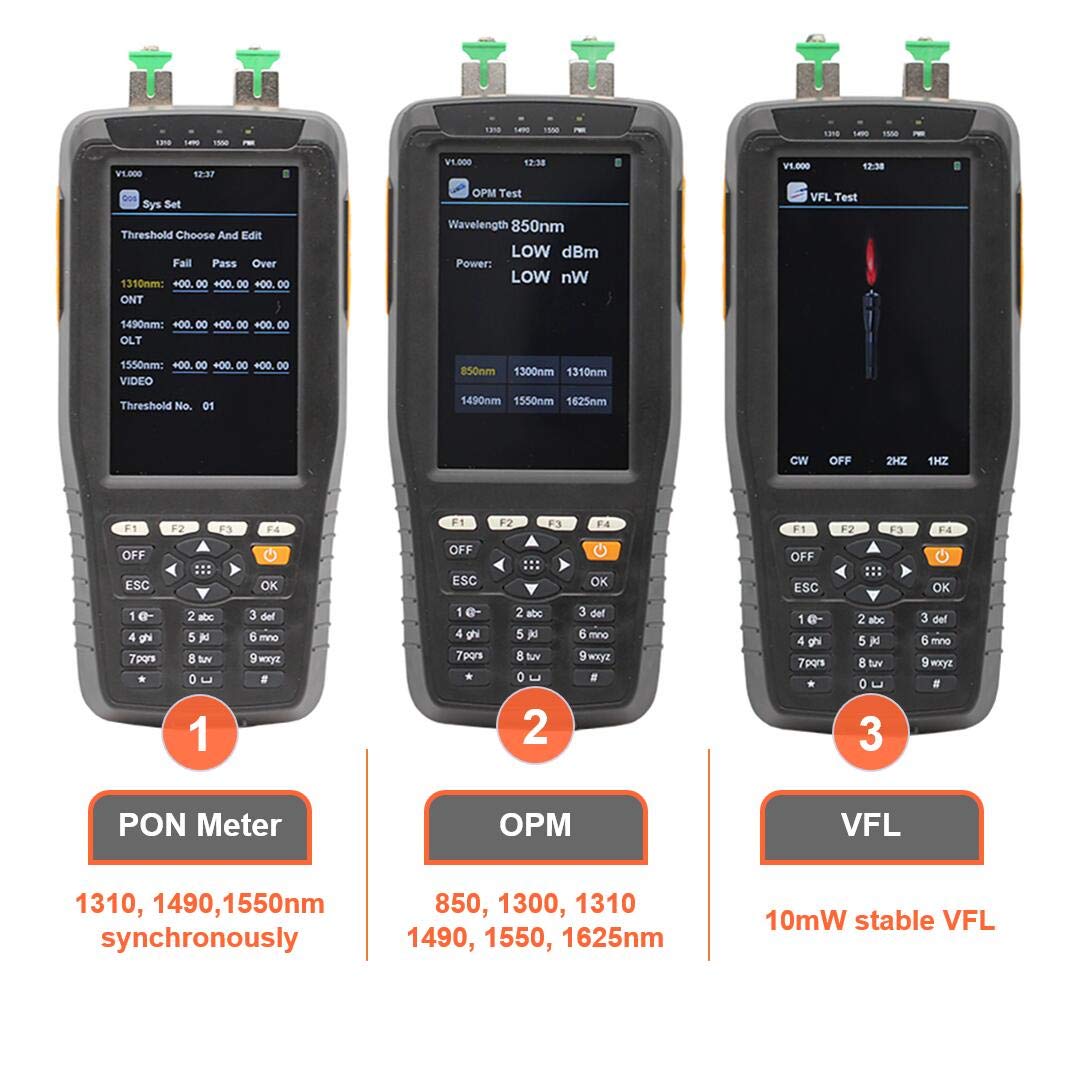

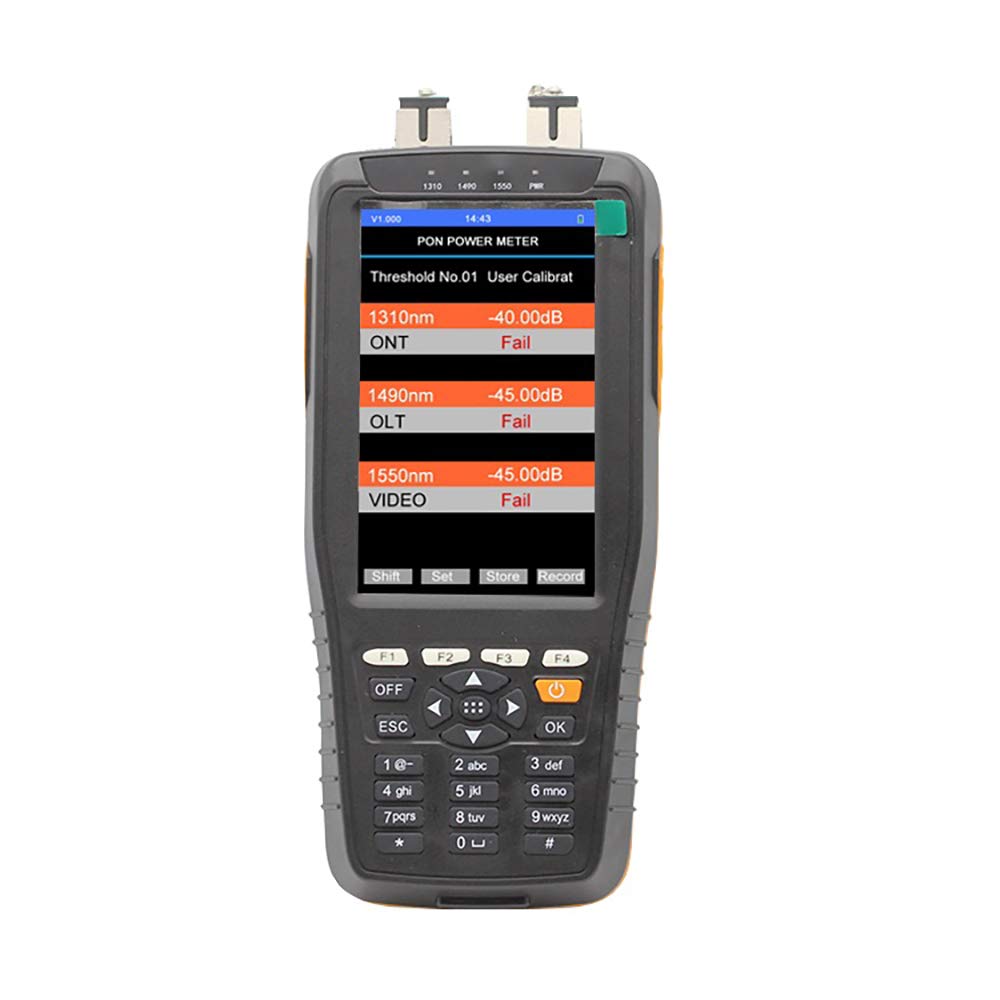

This 3 in 1 multi-function PON Power Meter (pon test instrument) is specially designed for PON network construction and maintenance which can be connected between OLT and ONT. The voice, data, video signal(1310/1490/1550) online can be measured synchronously and optical power value(1310/1490/1550) can be displayed with this meter. It’s a useful site test tool for the engineers of PON network and maintenance operators.Key FeaturesHandheld, easy to operate Can test 3 wavelengths’ power of PON system synchronously: 1310nm, 1490nm, 1550nmCan test the burst mode signal of 1310nm480*800, true color touch screen Friendly operation interface, human message management and operation functionSupply 10 groups of threshold values for operator’s choice, analyze and display pass and fail statusRelative value choice and edit functionCan set the threshold value, upload data, and calibrate wavelength through management softwareAuto shut off and Auto backlight off function (according to set value)6600mAh Lithium battery with power saving design (Low voltage self-check and power off)Real-time clock displayIntegrated with Optical Power Meter and red light Fault Locator functions Working temperature: -10~60°CStorage Temperature: -25~70°CDimensions(mm): 185*80*50Package IncludesPON Power MeterCarry CaseBattery Charger Management Software CDUSB CableFactory Test Report
3 in 1 Fiber Optic Tester -- Specially designed for PON network construction and maintenance, can be connected between OLT and ONT. The voice, data, video signal (1310/1490/1550) online can be measured synchronously
Wide Testing Capability -- Can test 3 wavelengths’ power of PON system synchronously 1490, 1550, 1310nm; also can test the burst mode upstream wavelength signal of 1310nm
Powerful Management Software -- Supply 10 groups of threshold values for operator’s choice; analyze and display pass and fail status. Can save 1000 records and upload them via USB, set the threshold value, upload data, and calibrate wavelength through software

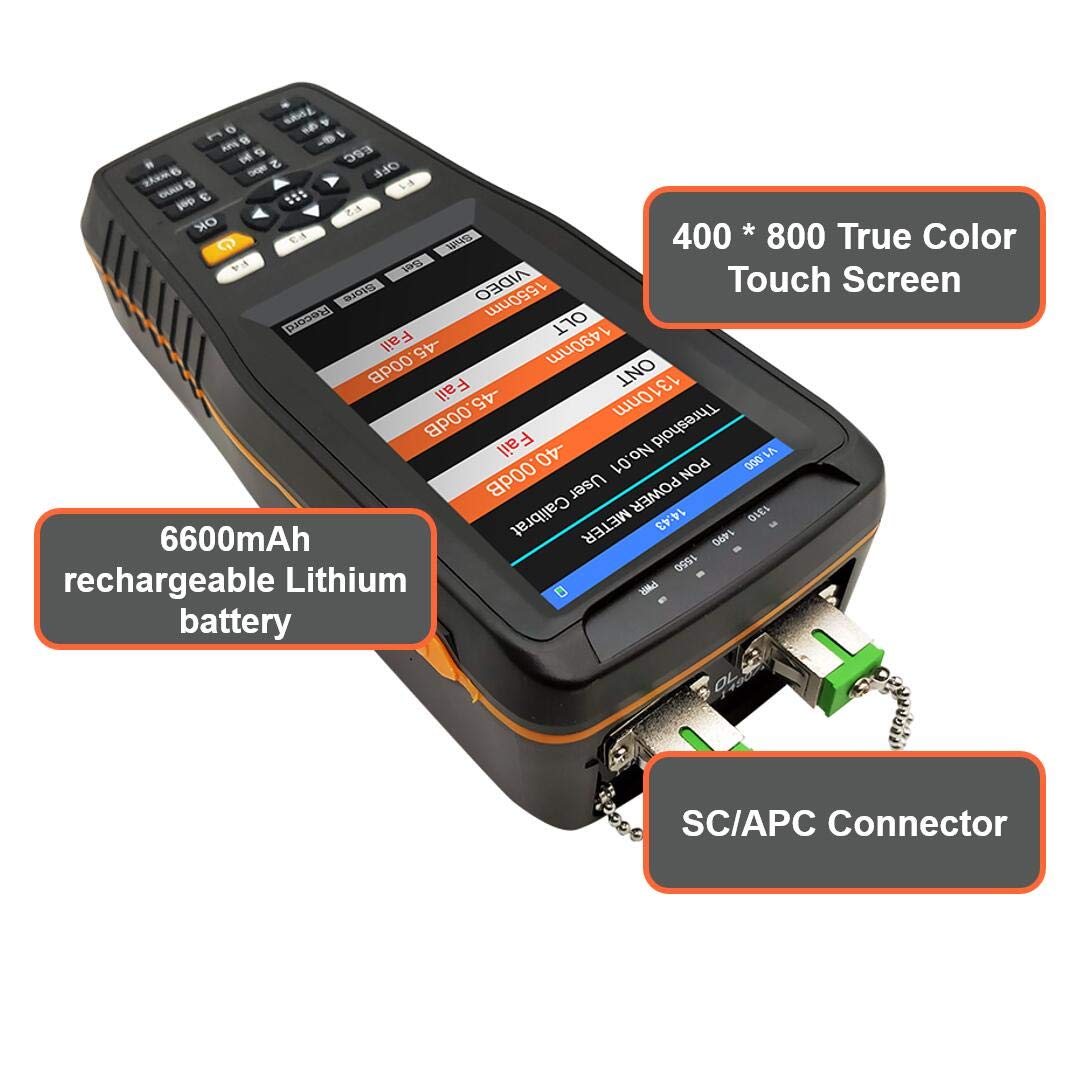

Handheld, Easy to Use -- User-friendly and Easy operational interface; 480*800 pixels true color touch screen, more convenient for field work
Large Battery Capacity -- 6600mAh Rechargeable Lithium Battery with Auto Shut Off and Auto Backlight Off Functions, ensuring longer working time
