TRENDnet 1000Base-T to 1000Base-LX Gigabit Ethernet Fiber Media Converter - Single Mode SC Fiber to RJ45 Converter (10km/6.2 Miles) with Lifetime Warranty - Ideal for Data Centers, Enterprise Networks & Long-Distance Ethernet Connections
TRENDnet 1000Base-T to 1000Base-LX Gigabit Ethernet Fiber Media Converter - Single Mode SC Fiber to RJ45 Converter (10km/6.2 Miles) with Lifetime Warranty - Ideal for Data Centers, Enterprise Networks & Long-Distance Ethernet Connections
TRENDnet 1000Base-T to 1000Base-LX Gigabit Ethernet Fiber Media Converter - Single Mode SC Fiber to RJ45 Converter (10km/6.2 Miles) with Lifetime Warranty - Ideal for Data Centers, Enterprise Networks & Long-Distance Ethernet Connections
TRENDnet 1000Base-T to 1000Base-LX Gigabit Ethernet Fiber Media Converter - Single Mode SC Fiber to RJ45 Converter (10km/6.2 Miles) with Lifetime Warranty - Ideal for Data Centers, Enterprise Networks & Long-Distance Ethernet Connections
TRENDnet 1000Base-T to 1000Base-LX Gigabit Ethernet Fiber Media Converter - Single Mode SC Fiber to RJ45 Converter (10km/6.2 Miles) with Lifetime Warranty - Ideal for Data Centers, Enterprise Networks & Long-Distance Ethernet Connections
TRENDnet 1000Base-T to 1000Base-LX Gigabit Ethernet Fiber Media Converter - Single Mode SC Fiber to RJ45 Converter (10km/6.2 Miles) with Lifetime Warranty - Ideal for Data Centers, Enterprise Networks & Long-Distance Ethernet Connections

TRENDnet 1000Base-T to 1000Base-LX Gigabit Ethernet Fiber Media Converter - Single Mode SC Fiber to RJ45 Converter (10km/6.2 Miles) with Lifetime Warranty - Ideal for Data Centers, Enterprise Networks & Long-Distance Ethernet Connections

$137.49 $249.99 -45% OFF

Free shipping on all orders over $50

7-15 days international

28 people viewing this product right now!

30-day free returns

Secure checkout

61569869

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

Description

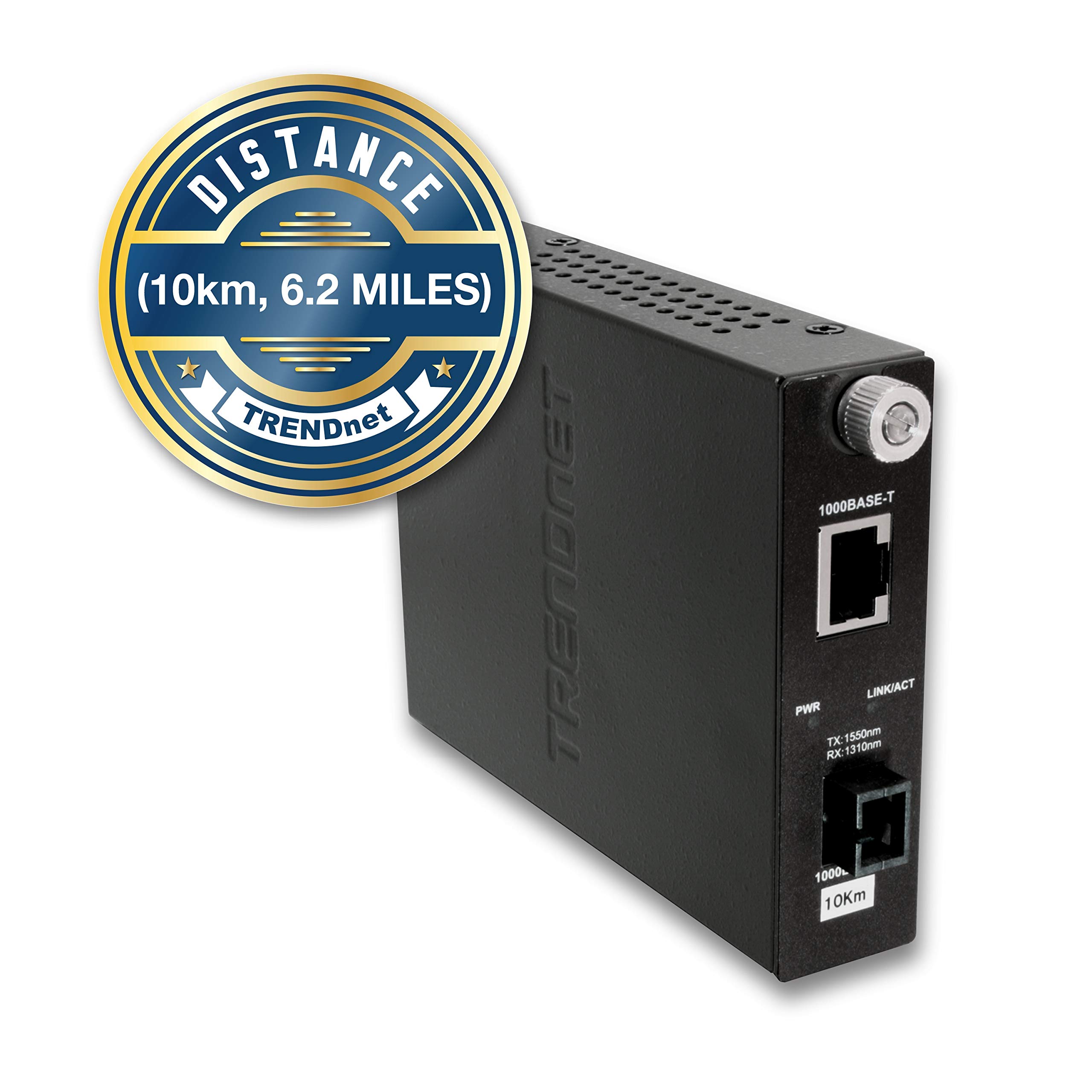

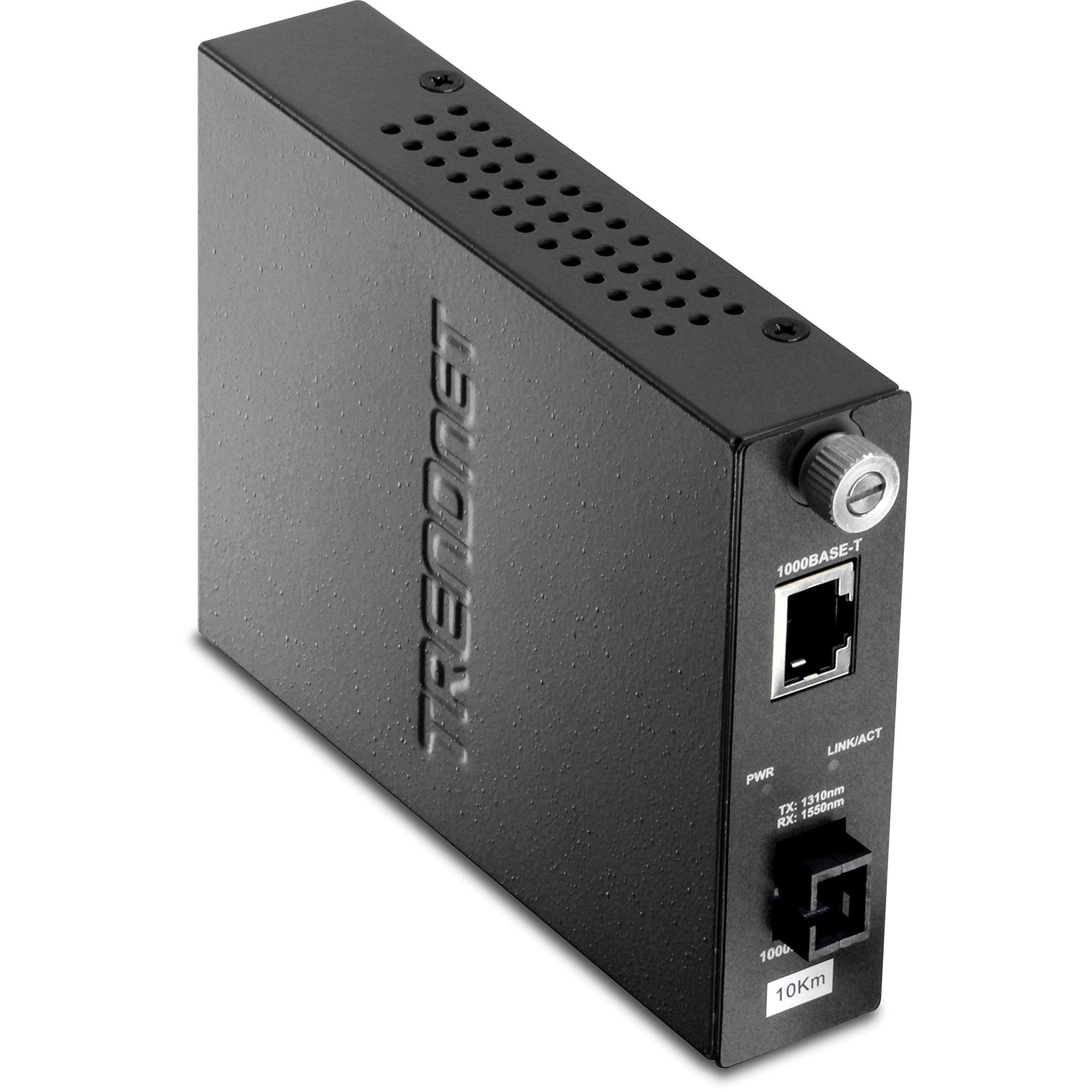

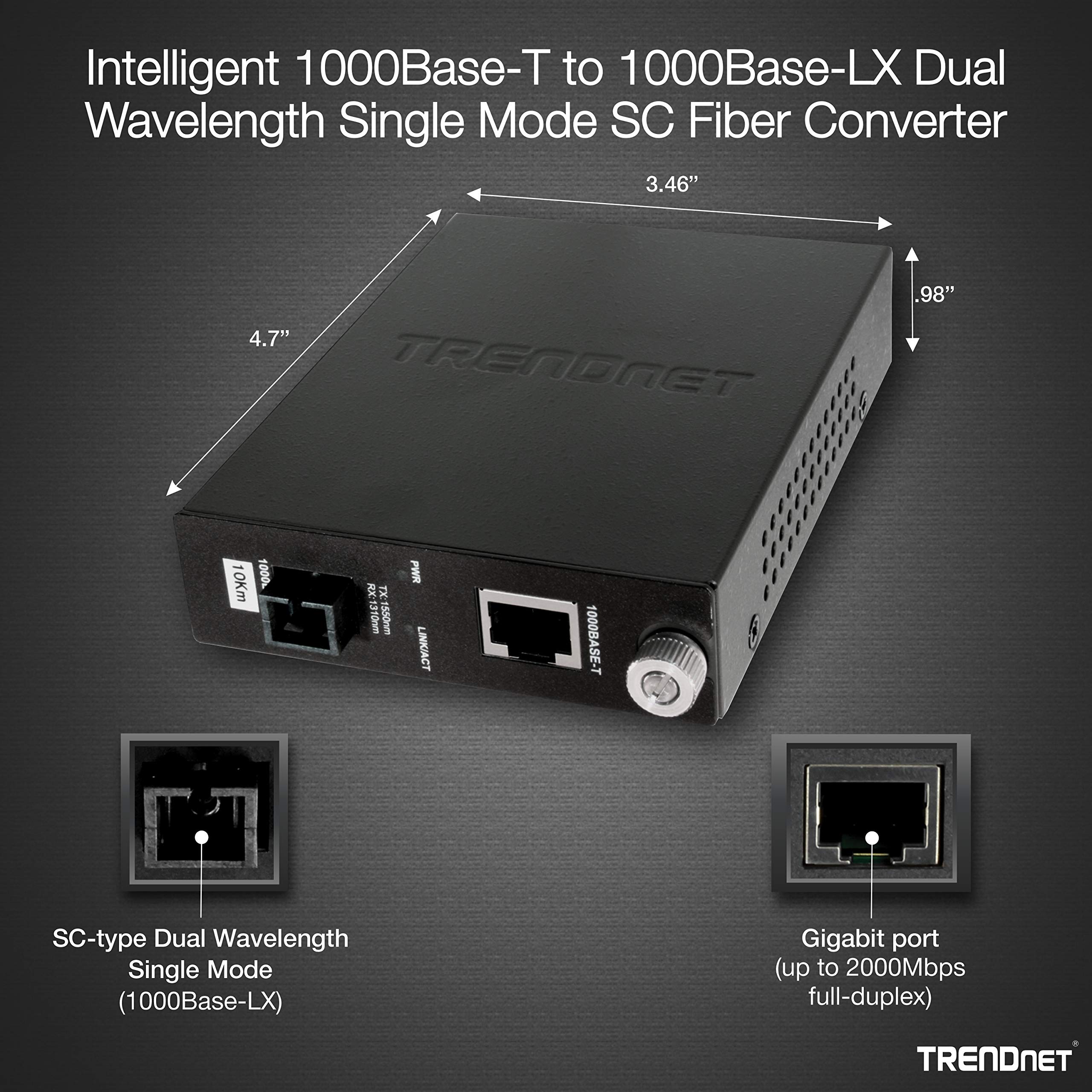

Product Description The TFC-1000S10D3 Bi-Directional Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that supports port-based SNMP reporting and spans distances up to 10km (6.2 miles). This module must be used with the TFC-1000S10D5 module. Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC Simplex Type) port.• Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards• 1 x 1000Base-T RJ-45 port• 1 x 1000Base-LX single-mode bi-directional simplex-SC type fiber port• Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)• Support LLCF (Link Loss Carry Forward, Link Pass Through)• Support LLR (link Loss Return) for Fiber port• Monitor and configure Ethernet or Fiber’s duplex mode, LLR, port on/off and receive link down information via management module TFC-1600MM and chassis TFC-1600• Status LED indicators for Power and Link/Activity• Wall mountable• Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters• Lifetime TRENDnet Manufacturer’s WarrantyPACKAGE CONTENTS• TFC-1000S10D3• Multi-Language Quick Installation Guide• Power Adapter (5V, 1A) Amazon.com

Features

    Must use with TFC-1000S10D5

    SC-type dual-wavelength single-mode fiber port connects over distances of up to 10km(6.2miles)

    1000Base-T Gigabit copper port supports Full-Duplex mode

    Supports port level SNMP management

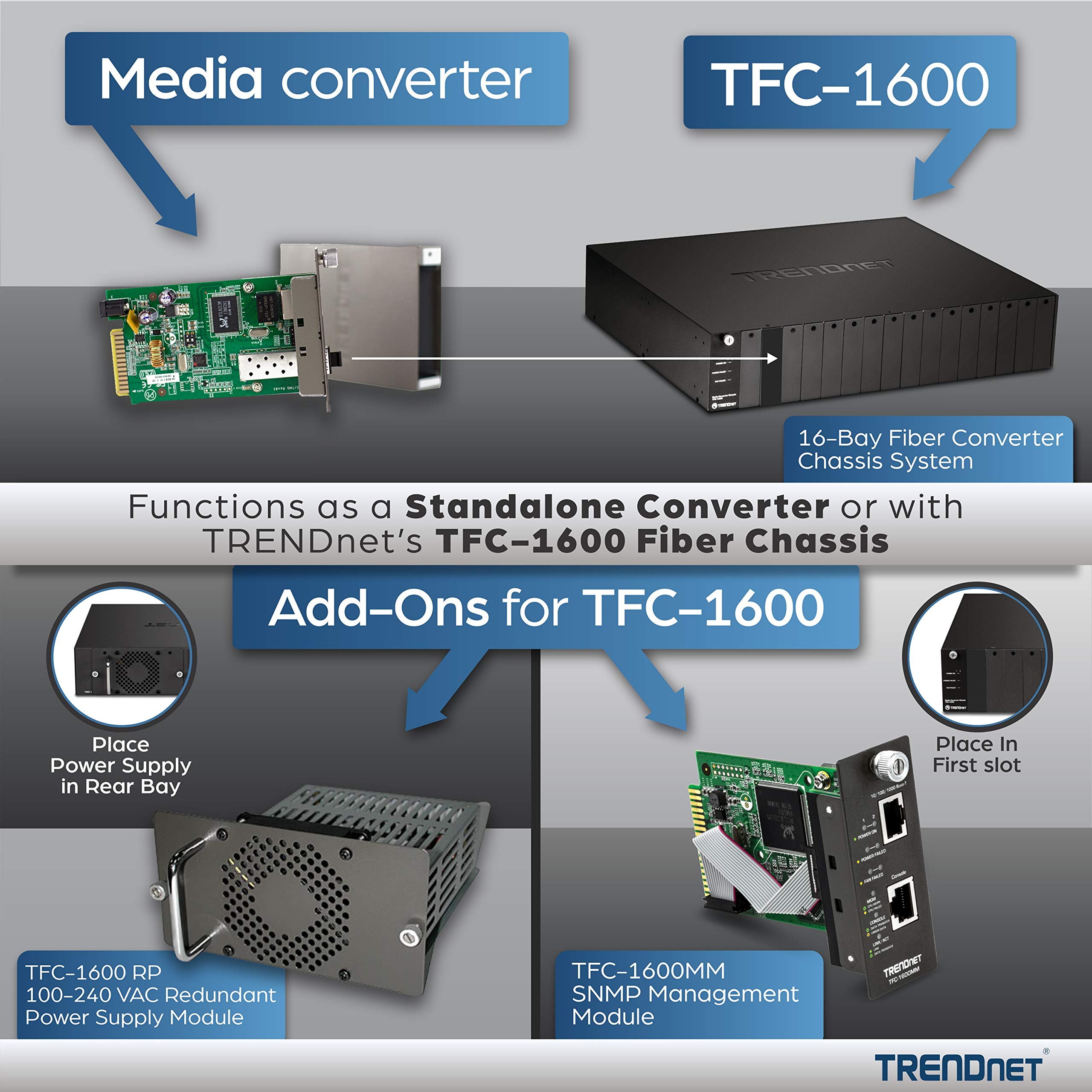

    Functions as a stand alone converter or with the TFC-1600 fiber chassis

Reviews

******
- Verified Buyer
*I'm posting the same review for the companion pice, the TFC-1000S10D5*We are using this to get video from a leased access studio to a cable headend. The channel used MPEG over IP using cable modems to get their channel to the headend, but had problems with the signal dropping out from time to time. It was decided to move them over to a dedicated fiber. This (and the companion TFC-1000S10D3) offered a single fiber solution, since it is able to transmit on 1550nm and receive on 1310nm. Make sure when you order you get the right devices.There's very little documentation that comes with the unit, and they don't offer much in the way of diagnostic functions. There are 2 LEDs, POWER and LINK on the front of the unit. The power LED obviously comes on when you apply power, but the link LED doesn't come on until you have a proper Ethernet device attached. There's no indicator that the unit is seeing light from the other unit at all. However there is a dip switch setting that will drop the link LED if there's no light received. But again, if you don't have anything connected to the Ethernet port the link LED will never come on. The link also expects one side to be MDI and the other to be MDIx. In other words, if you are connecting a remote device to a switch you will use all straight Ethernet cables, but connecting 2 switches or 2 devices together will require a crossover cable.The units we bought are designed for up to a 10KM link. We running it over a 1.6KM link. The spec sheet states it outputs -9dBm and wants to work between -7(?) and -22dBm, so I thought I might have to pad down the light. But I measured a -13dBm on the 1310 transmitter, so I left off the pad. The -13dBm light reading was taken with a fairly new JDSU light meter, so if you're going to be close to 10KM on your link you might consider going with the higher powered versions.Once you get everything cabled together it works like a champ. We haven't measured raw throughput, but we haven't seen any issues with the channel since moving to this solution, for a little over a week.
