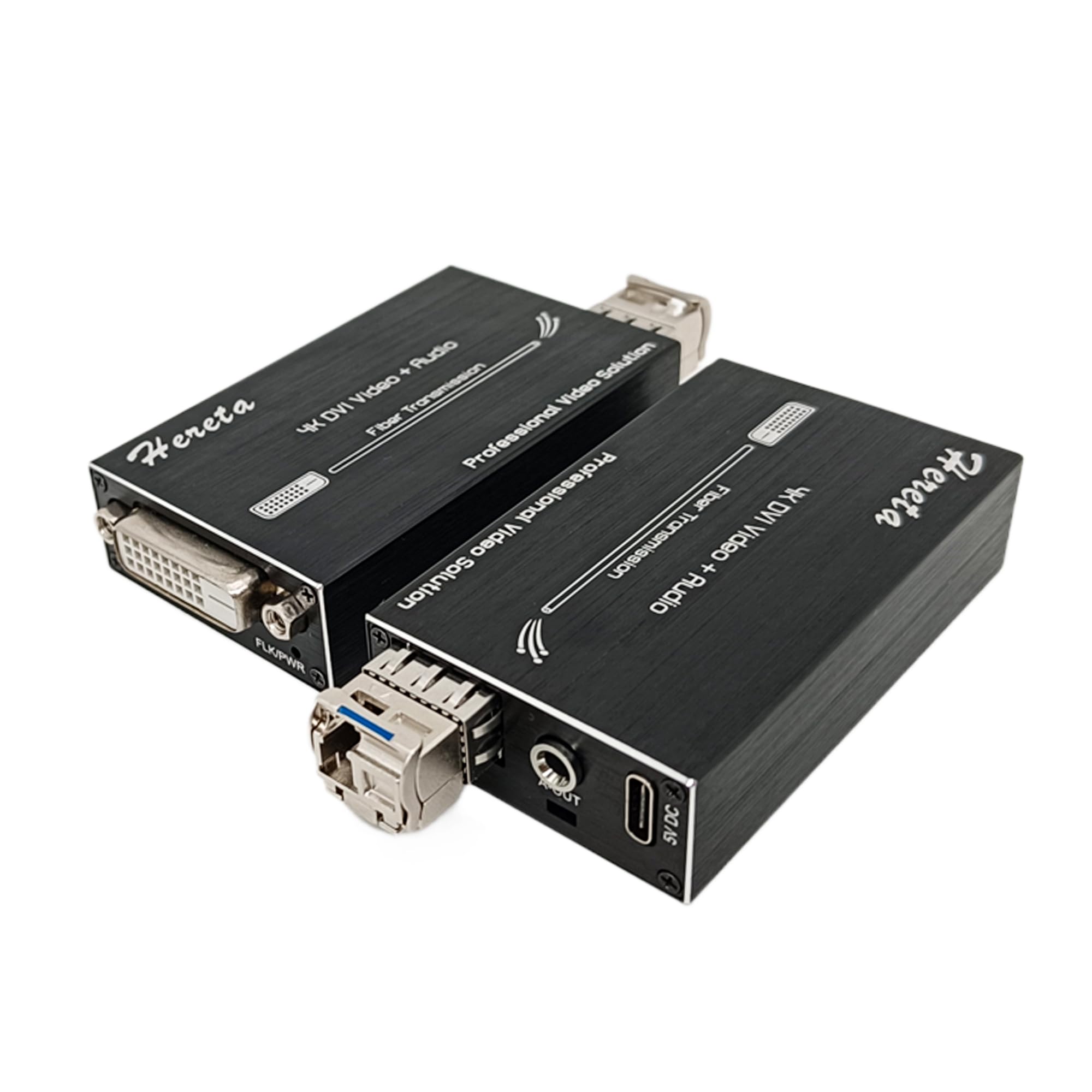

4K HD Mini DVI to Fiber Optic Extender - 20km Single-Mode Video Converter with External Stereo Audio | Ideal for Long-Distance CCTV, Broadcast & Conference Room AV Systems

The LNK-MDA4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and audio signal over optical fiber up to distances of 20km, at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0. The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers are lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal. Features: ► DVI 1.0 and HDCP1.2 Support ► Uncompressed transmission, No delay, No losses ► DDC HPDT Signal Support ► Data rate up to 10.2Gbps ► Transmission distance up to 20km over fiber cable ► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0 ► Support 3.5mm External Stereo Audio ► Hot-Pluggable, EMI/RFI Resistant ► Miniature form factor for ease of use and installation ► Operating Temperature: -10~50°C 4K Video Transmission Transmission of high resolution video with high quality by its good stability and powerful security, Max 3840*2160@60Hz (4:2:0) Max 3840*2160@30Hz (4:4:4, 4:2:2) 10G Optic Module The products with the 10G optical module, LC port, support transmission DVI and audio signal over single fiber single mode optical fiber cable up to distances of 20km Aluminum Alloy Shell Adopt industrial-graded compact and hardened aluminum shell, Resistance to pressure and corrosion, It is the transceiver of choice for harsh environments. Compact panel SFP optical module port With the external audio port Type-C USB power supply USB-C Power Supply Use more popular and convenient Type-C power ports, More stable power supply. Package: DVI fiber transmitter *1DVI fiber receiver *1 SFP module *2Power adapter *2User manual**1 This product is ideal for large-screen display, Outdoor advertising, Conferencing systems, Home entertainment, Business office, Security monitoring, Exhibition hall and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
