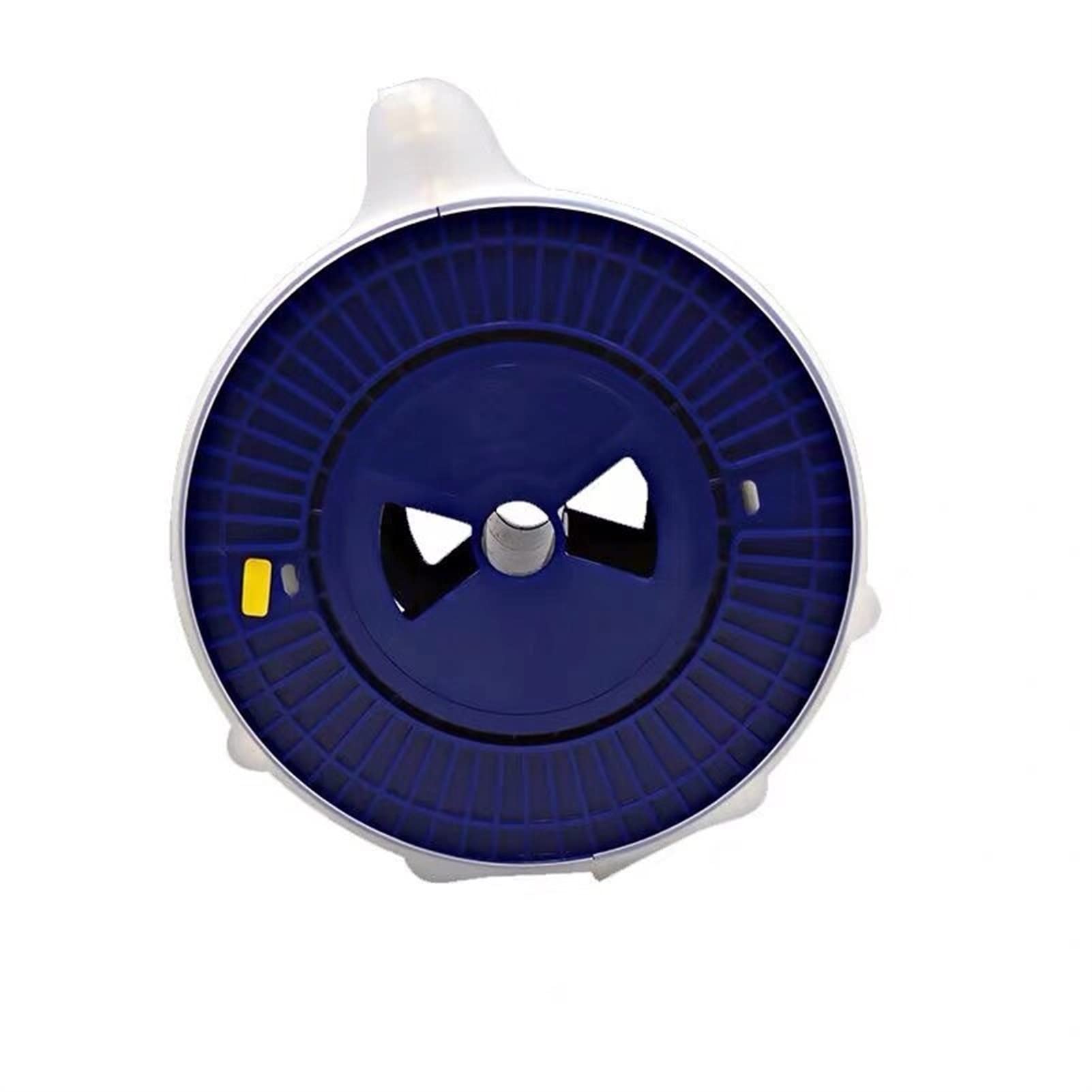

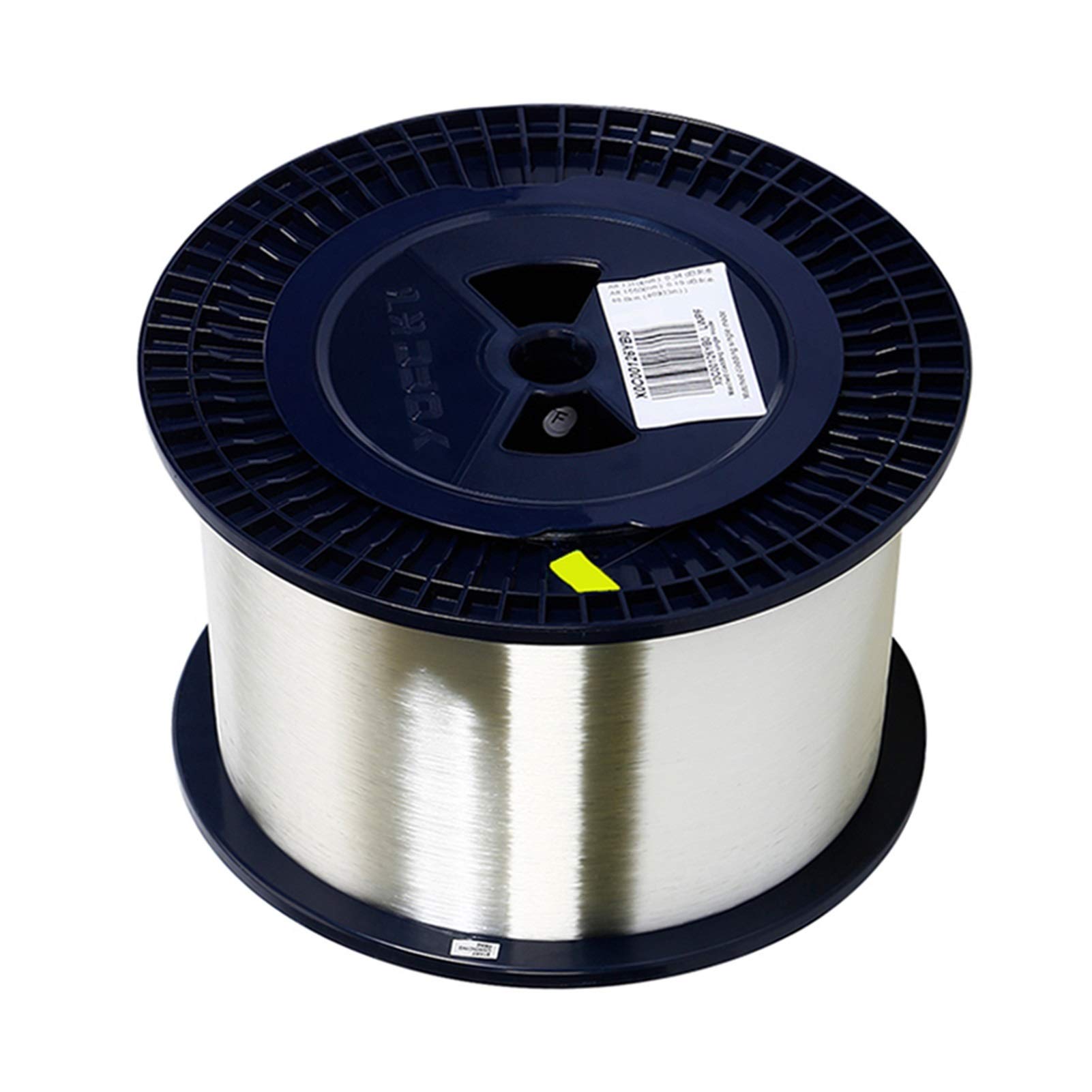

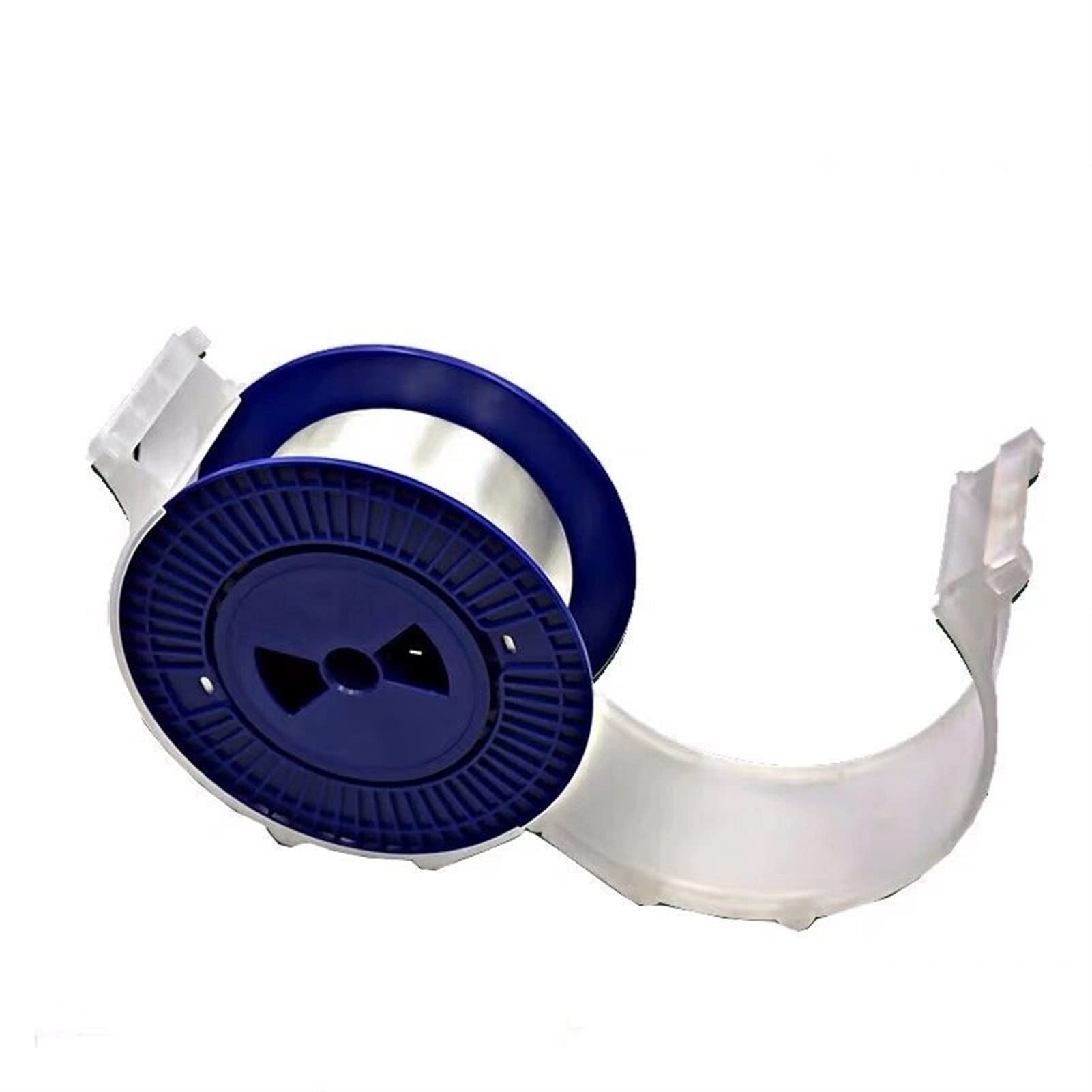

We provides bare fiber reel for testing project. Both G.652 and G.657A type bare fiber are available. The bare fiber reel delivers a good macrobending performance in the industry while maintaining compatibility with current optical fibers, equipment, practices and procedures. This full-spectrum single-mode optical fiber reel when subjected to smaller radii bends experiences virtually no signal loss. It is your best assistant in testing project.SpecificationsPhysical parametersFiber typeSingle modeDiameter of coated fiber250umDiameter of bare fiber125umMin macrobending radii33mm(G.652D) / 15mm(G.657A)Typical attenuation value1310nm working wavelength0.33~0.35dB/km1490nm working wavelength0.21~0.24dB/km1550nm working wavelength0.19~0.20dB/km1625nm working wavelength0.21~0.23dB/kmIf you need more models or more quantity, please contact us, we will reply you as soon as possible
Full-spectrum single-mode fiber
Macro bending radius is small, in line with G.657A or G.652D standard
Attenuation value is small
Suitable for any optical test environment
