70271832

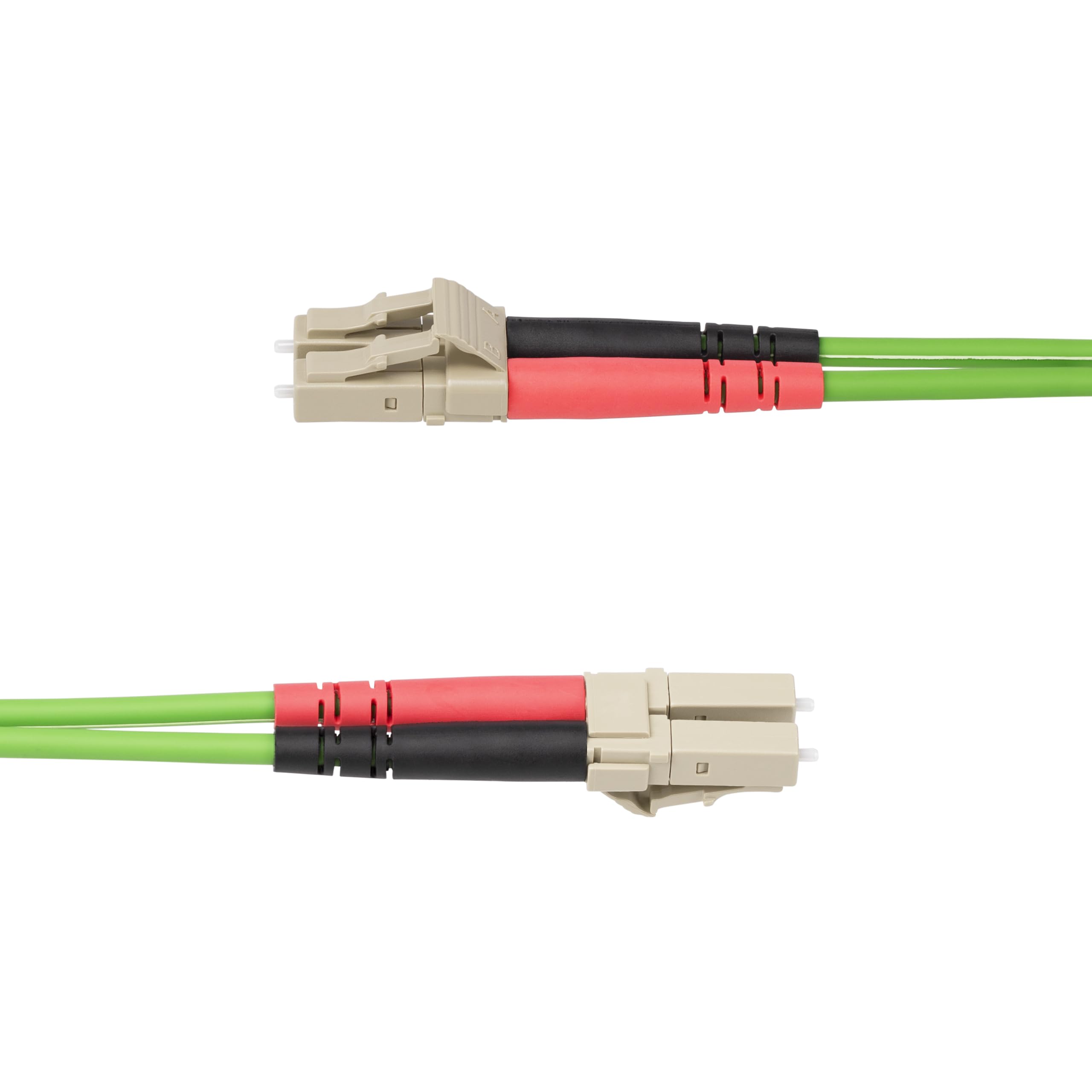

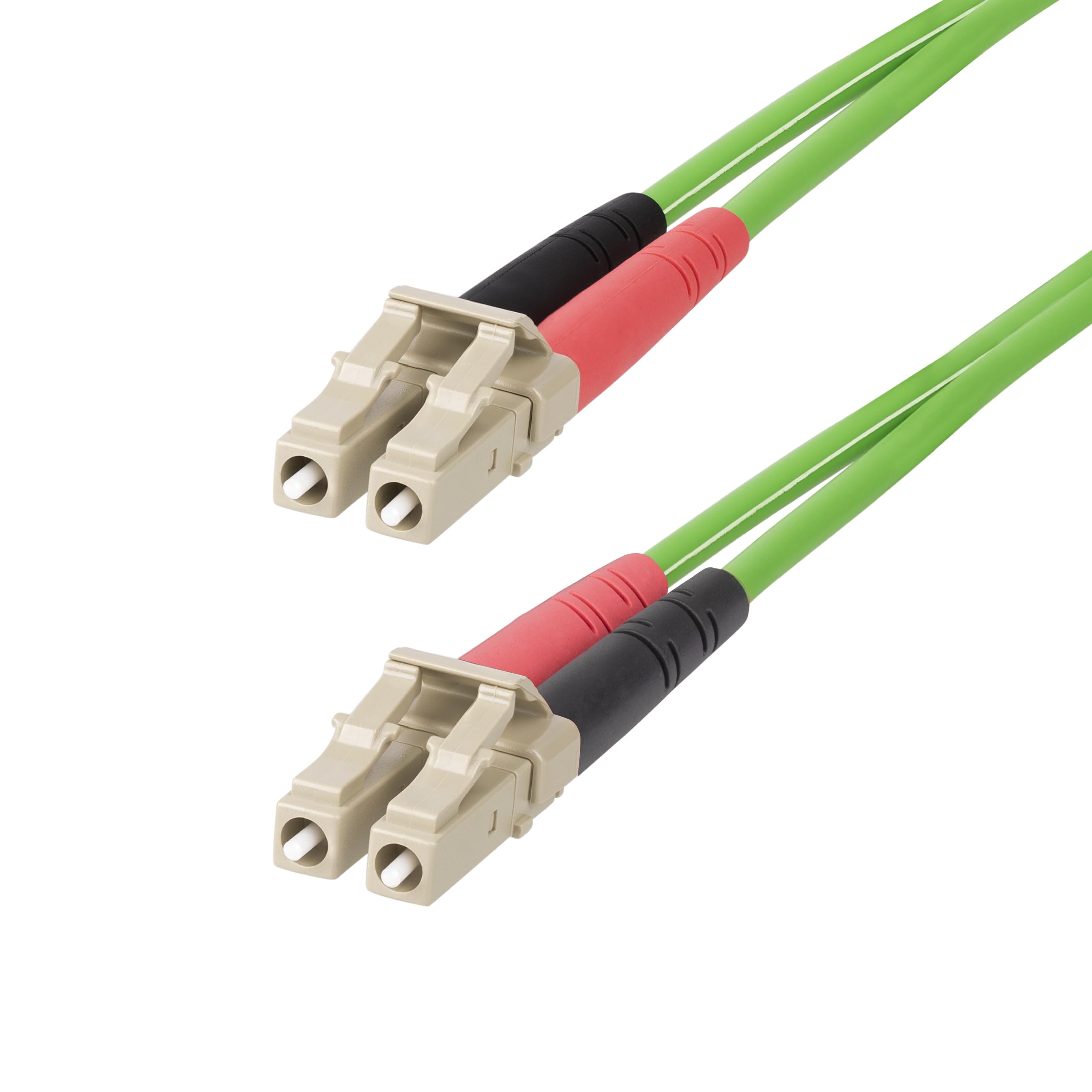

OM5 LC/LC Multimode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 40 and 100G networks. It supports SWDM (Shortwave Wavelength Division Multiplexing) across an extended wavelength range of 850-953nm VCSEL, enhancing signal quality and performance capacity over OM4 cables. The bend-insensitive fiber and molded strain reliefs support cable runs requiring micro/macro bends while maintaining low attenuation. The OM5 patch cable is ideal for 850-953nm VCSEL and 1300nm LED sources. Backward compatible with 50/125 fiber equipment, ensuring a reliable connection with legacy LANs. Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this MM fiber optic cable ensures minimal smoke, toxicity, and corrosion when exposed to extreme sources of heat or in the event of a fire. Capable of operating in a wide range of environments, including industrial settings, central offices, and schools, as well as residential settings where building codes are a consideration. Each OM5 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability. This OM5 Fiber Patch Cable is backed for life, including free lifetime multi-lingual technical assistance.
OM5 FIBER CABLE OM5 LOMMF Cable is optimized for advanced 40/100Gbps fiber networks; Extended 850-953nm wavelength support enables SWDM (short wavelength division multiplexing) for greater channel isolation, enhancing performance capacity beyond OM4 cables

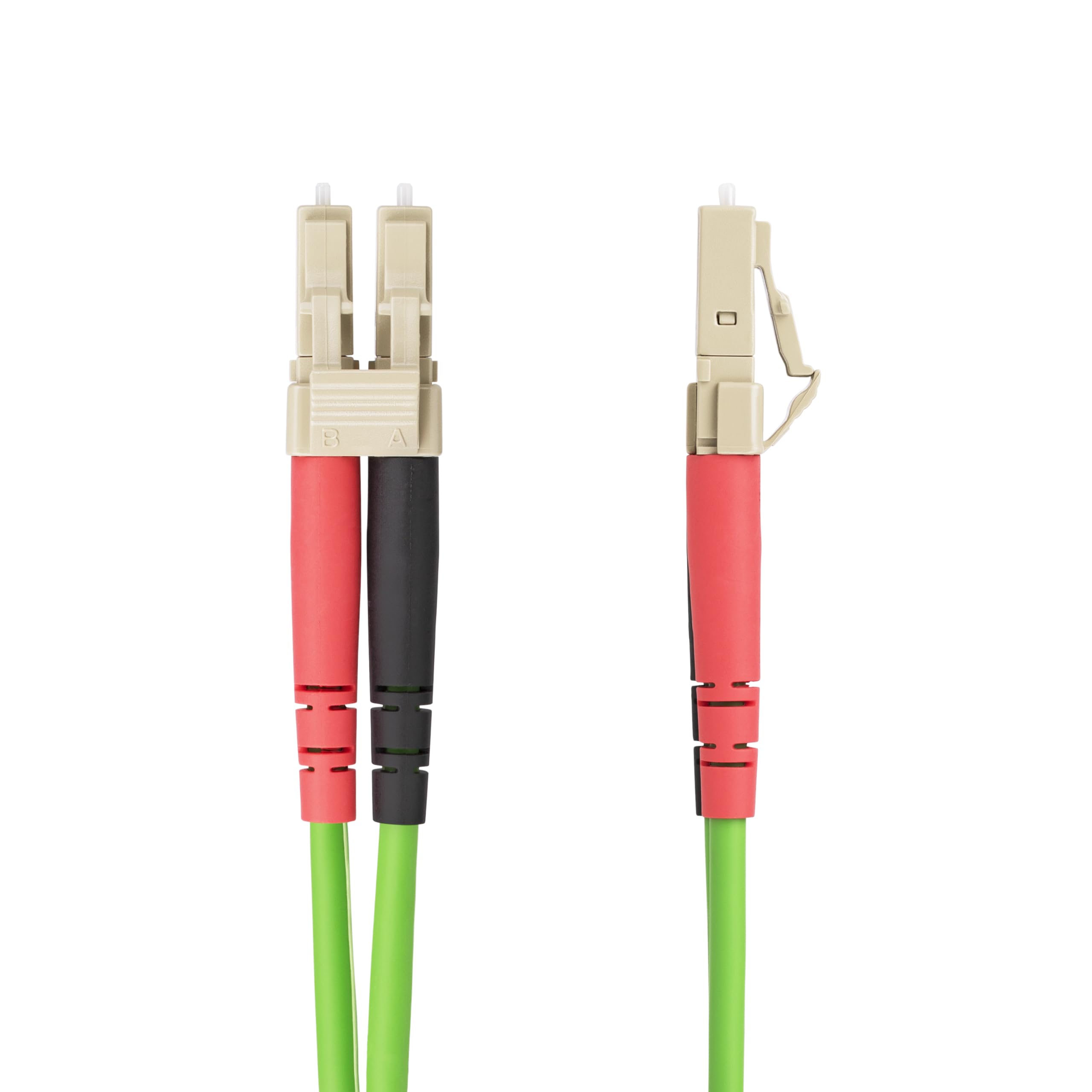

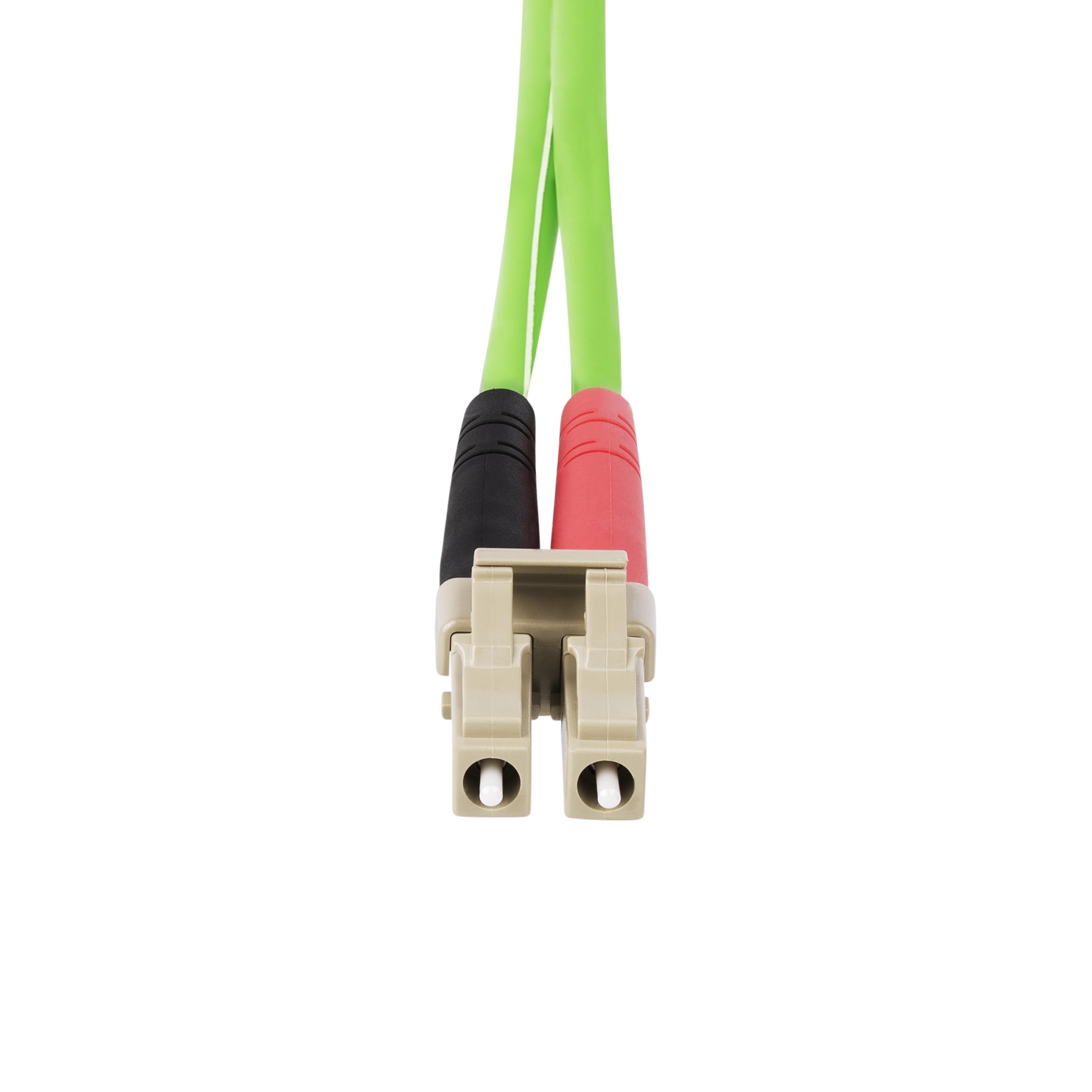

QUALITY CONSTRUCTION LC/LC-UPC ends for improved return loss over PC polish; Zipcord design, color-coded connectors for polarity; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 6cm and 3cm when unloaded
SAFETY AND RELIABILITY Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 2.4dB/km meets or exceeds industry standards
WIDE COMPATIBILITY OM5 multimode cable supports 10/40/100G networks; Backward compatible with OM4/OM3; High micro-bending resistance facilitates tight bends in intricate installations, ideal for fiber switches/servers, SANs, and SFP+/QSFP+/QSFP28 modules
SPECS 25m (82ft); OM5; LC/LC (UPC); 50/125µm; 850-953nm VCSEL/1300nm LED; Modal Bandwidth 4700MHz.km (850nm), 2470MHz.km (953nm); Insertion Loss ≤0.3dB; Return Loss ≥30dB; Cable OD 2.9mm; Bend Radius 6cm/2.4in (loaded), 3cm/1.2in (unloaded)
