73014815
Specification: Optical connector: SC Suitable fiber: universal singlemode 1310/1550μm (9/125μm) and mulimode 850μm (50/125μm), 1310μm (62.5/125μm). Power supply: AC 100V~240V,DC5V2A. Package contents: 1x Transmitter 1x Receiver 1x 3m SC/SC singlemode fiber patch cord 2 x Power adapter (default US,EU/UK/AU standard is optional) 1 x User manual

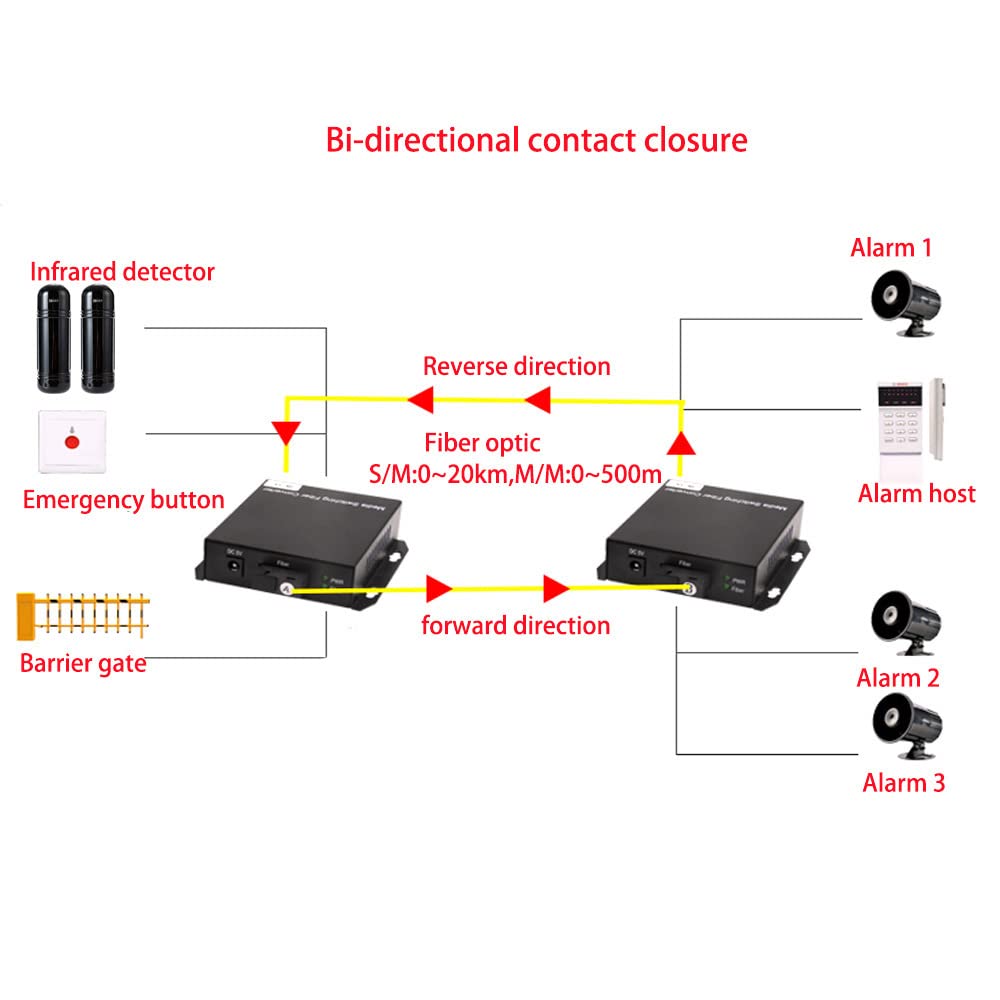

Support 1 channel of Bi-directional (two way) contact closure over one optical cable,Universal for Fiber Types Same extender supports Multimode Fiber with distance 500m (0.31miles) and Single Mode Fiber with distance up to 20 km (11.42 miles).
Uncompressed transmission,Support Point-to-Point or Daisy-Chain connection.LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system.

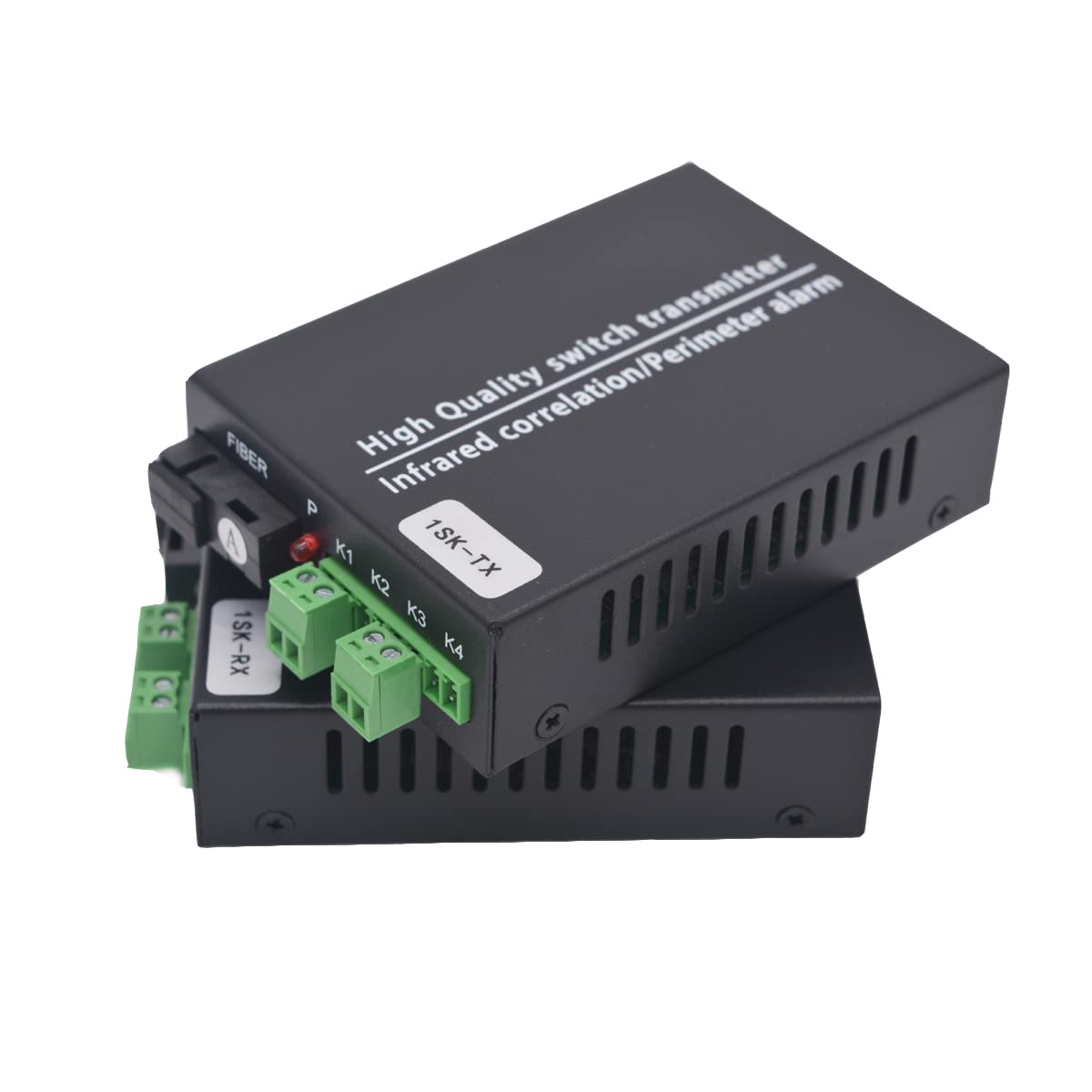

Full Set Includes Transmitter, Receiver & AC Power Supply, User Manual, and FREE 3M FC/FC singlemode fiber patch cord. SC connector for Fiber Optical Port,Green terminal block for Contact closure Port.
Applicable for Access Control System, Fire & Alarm Systems, Alarm Event Triggering, Building Automation and Environmental Control Systems, PIR signal Transmission, Traffic Signal Control Equipment, etc
Plug and Play, No Setup or Configuration is needed
