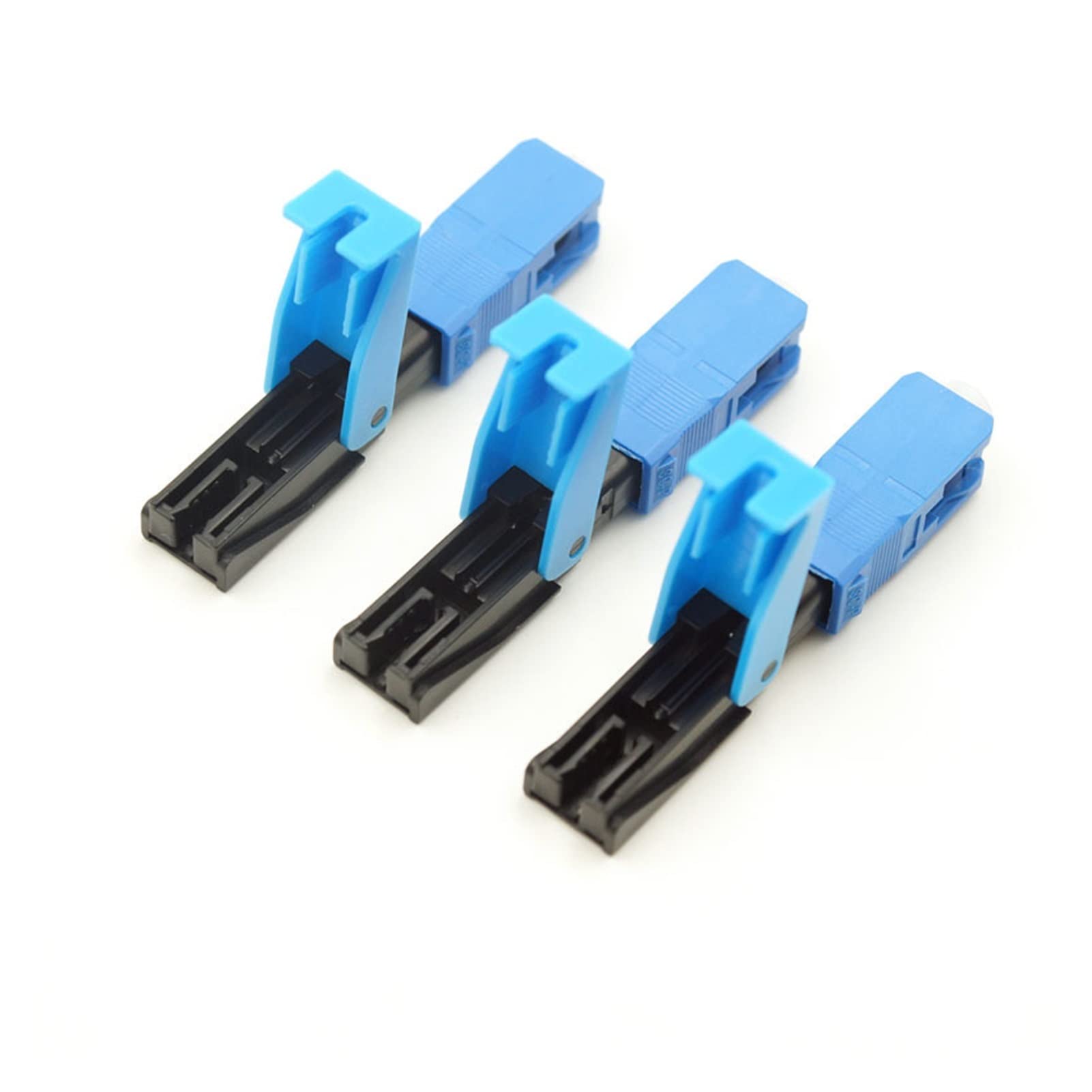

100PCS FTTH SC UPC Fiber Optic Fast Connectors - Quick & Easy Installation for Home & Office Network Setup - Perfect for FTTH, Broadband & Telecom Projects

100PCS FTTH SC UPC Optical fiber covered wire SC UPC quick connector FTTH Fiber Optic Fast Connector SC Connector Product AttributesSupply pre-embedded FTTH SC/UPC fiber optic quick connector Features: 1. FTTH project usable 2. Field installable 3. Insert loss less than 0.15dB 4. Metal V-shape cavity work well in high and low temperature 5. Installation less than 1 minutes 6. Reliable and superior optical performance Application: 1. Distribution frames 2. Maintenance or emergency restoration of fiber networks 3. Patch panels 4. FTTH Outlets 5. Field word ITEM Technical Parameters Applicable for Drop cable / Indoor cable 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable Optical fiber diameter SM(9/125), MM(50/125, 62.5/125) 125μm ( 657A & 657B Tight buffer diameter 250μmFiber mode Single mode Operation time About 100sno fiber cut Insert loss 03dB1310nm 1550nm Return loss 50dbPC 55dbUPC, > 65db(APC) Fastening strength of naked fiber >5 N Fastening strength of naked fiber holder >10 N Tensile strength >50 N Using temperature -40~+75°C On-line tensile strength (20 N) IL ≤ 0.5dB RL ≤ 5dB Mechanical durability (500 times) IL ≤ 0.5dB RL ≤ 5dB Drop-off test (drop-off height 4m,once per direction, totally 3 times) IL ≤ 0."**Purchase Notes***Because it is manual measurement, please allow 1-3% error and make sure not to mind ordering.*Product photos are taken in kind, because the light is different from the display, so the color may be different. The product will be subject to the actual product received.Shipping policy:1. The standard logistics services are small postal parcels, logistics lines and air mail. The transportation time takes 20 to 40 days (except for special holidays).
