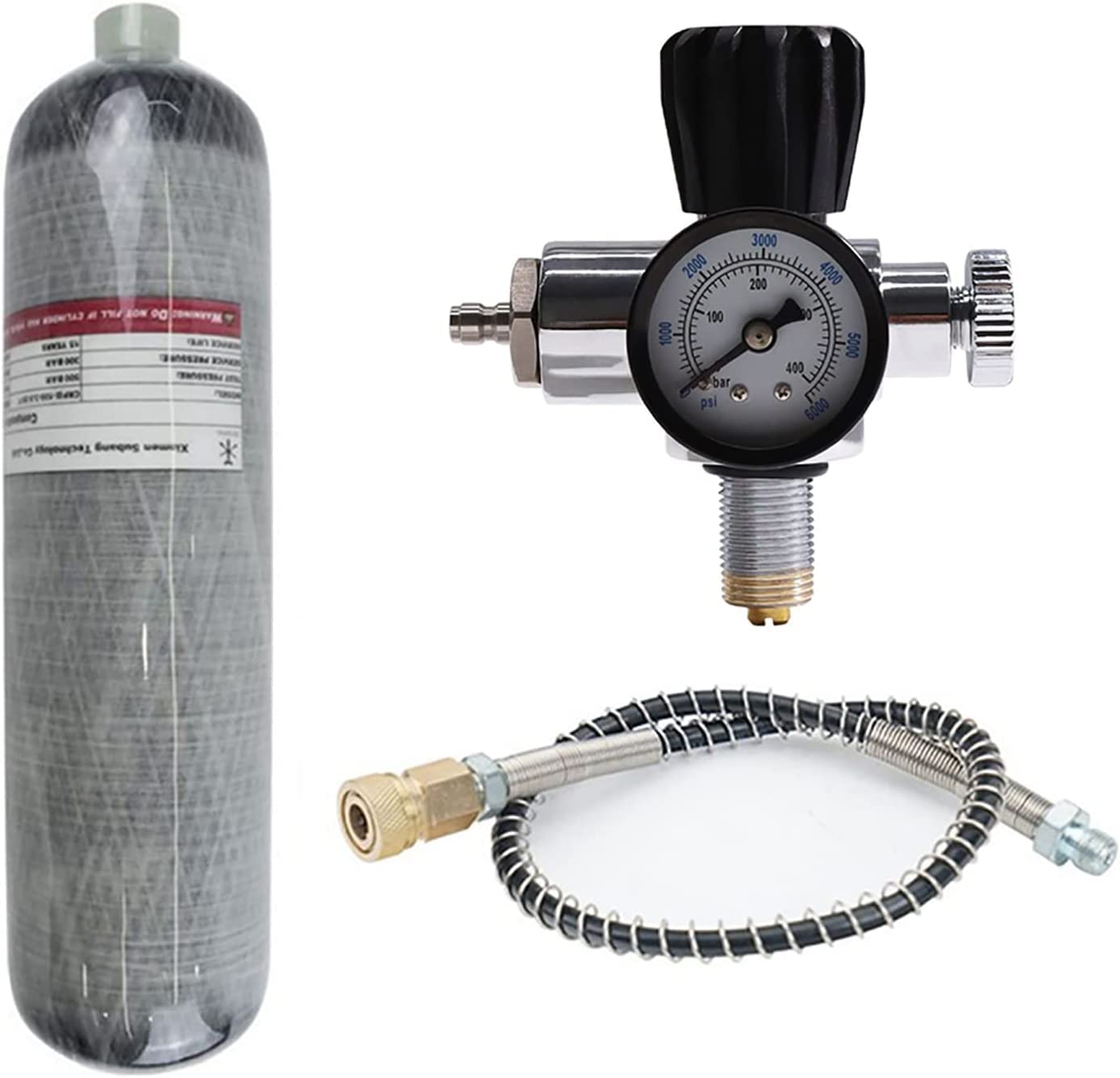

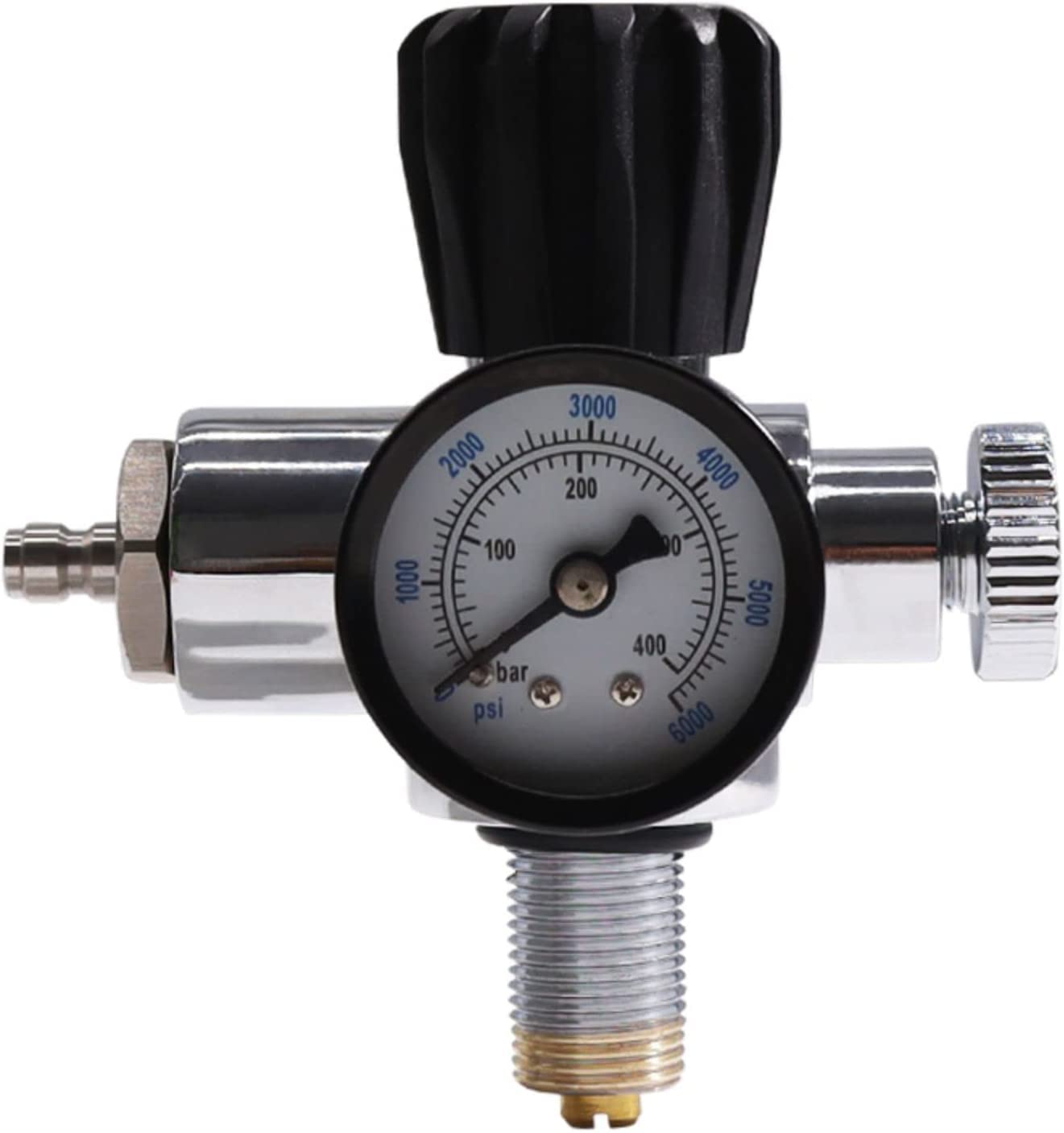

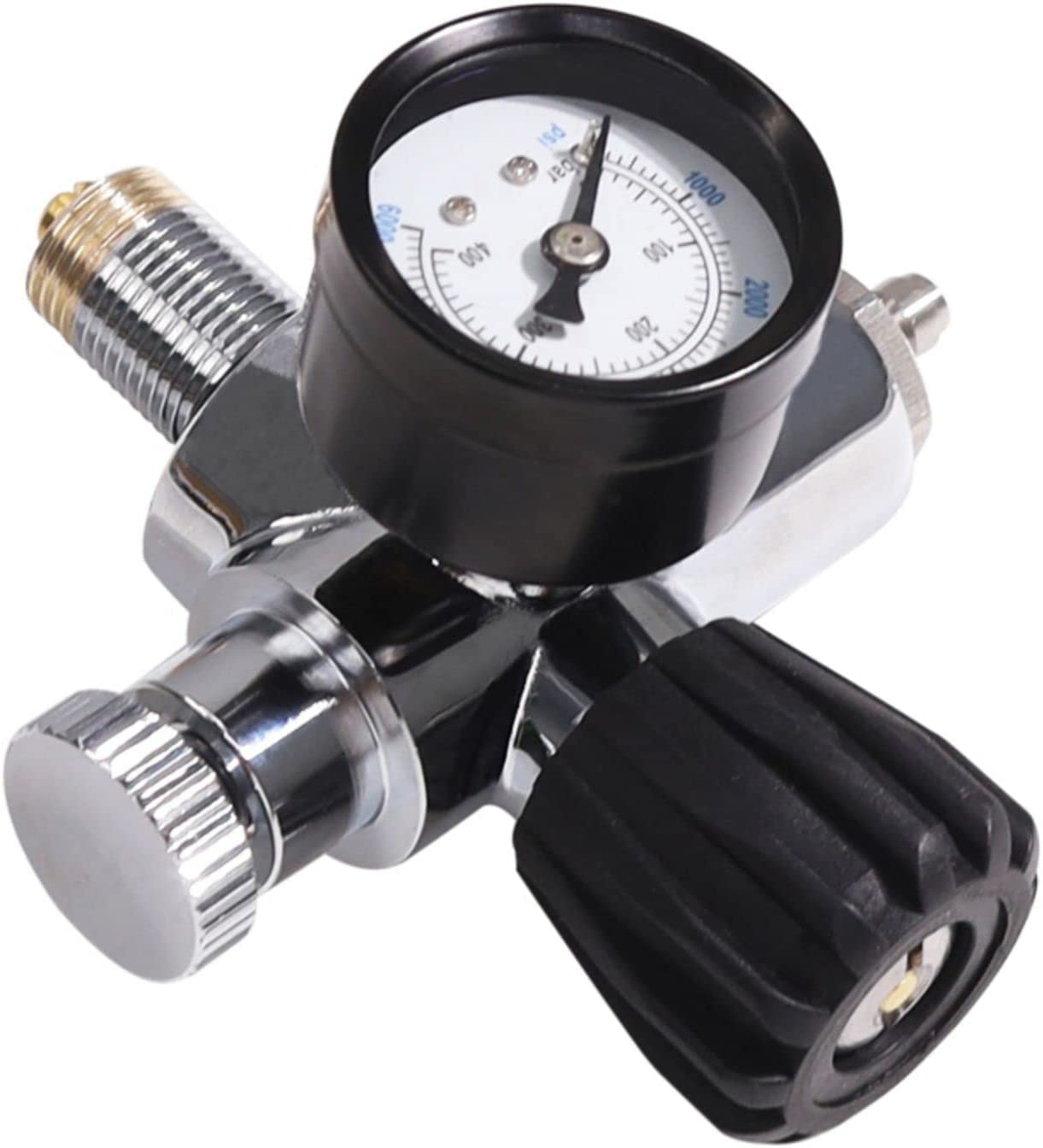

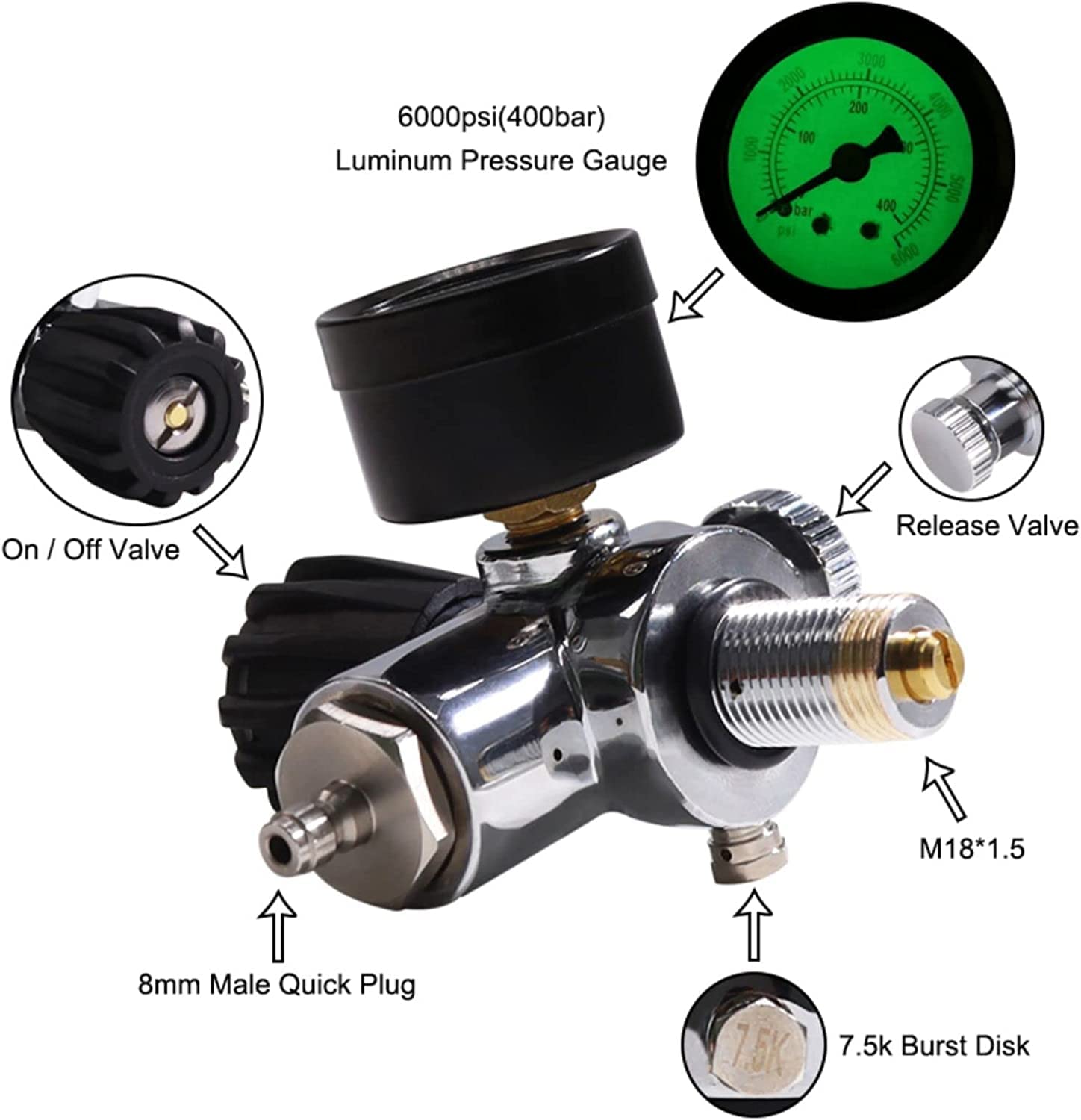

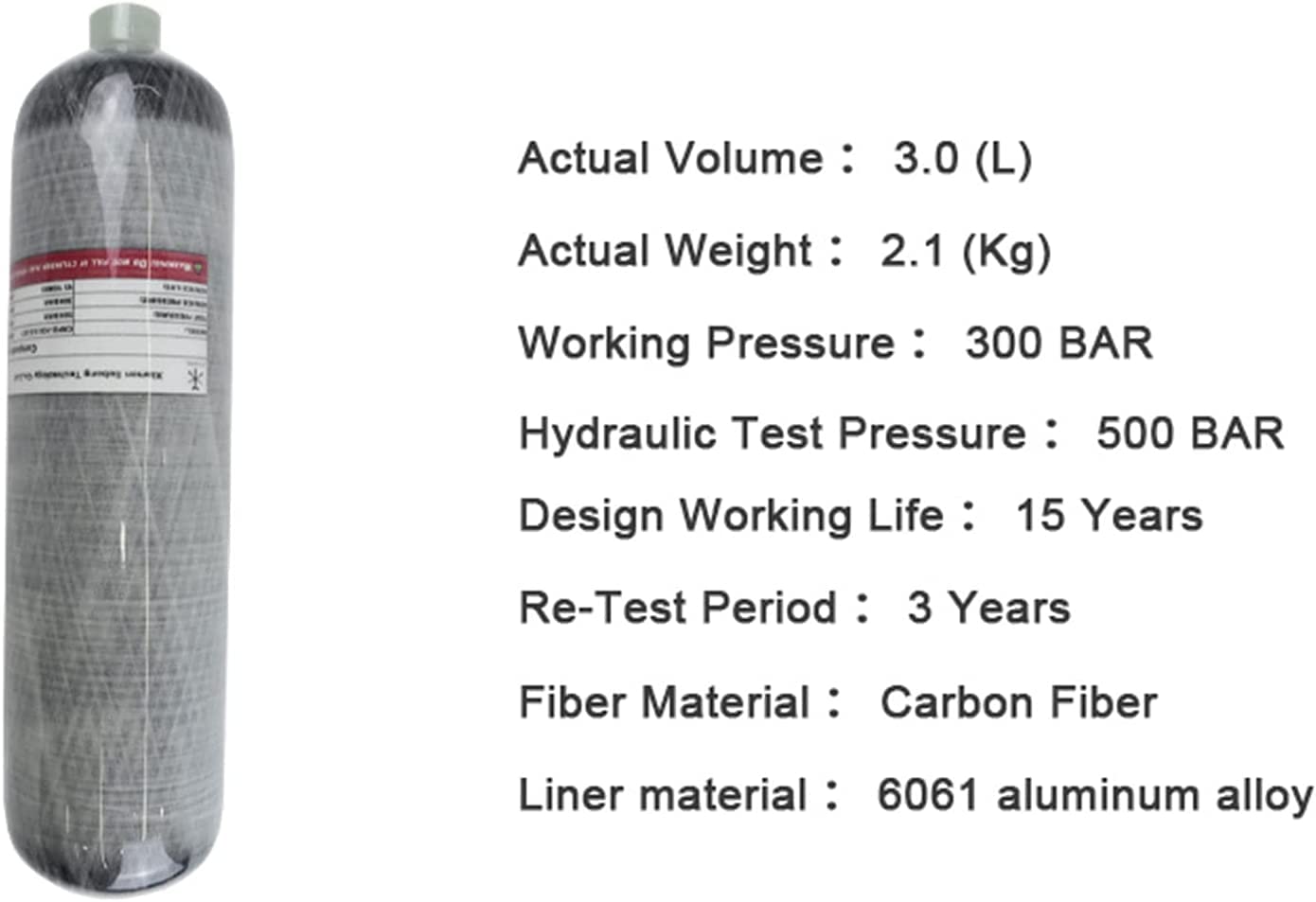

Introduction Tuxing brand, the characters in the mark transliterate to "TU"and "XING" and this means"hiking on foot"in Chinese. So the English translation of the word "TUXING" in the mark is "hiking on foot" Tuxing aims at to provide outdoor products for hunting and diving field products. The mark consists of two tools that are crossed on the top of a perpendicular bar with an angle on the end above the word "TUXING" make it more stable. Like the anchor to protect the outdoor acitivies safer and practicality wherever the environment you are. Tuxing, make your outdoor activities easier. Specification Volume:3 (L)Actual Weight:2.8 (KG)Straight Thread Bottle Mouth:M18*1.5Working Pressure:300 BARHydraulic Test Pressure:500 BARDesign Working Life:15 YearsRe-Test Period:3 YearsFiber Material:Carbon FiberLiner Material:6061 Aliuminum AlloyThis valve fit for Carbon fiber tank to vial standard adapter system, 8mm quick disconnect male output directly into air cylinder, with standard high pressure port and quick refilling. Connecting air compressor compressor charging cylinder system Product Analysis Carbon fiber tank made of straight thread bottle mouth , Aluminum alloy liner , High-strength carbon fiber layer , Glass fiber protective layer Wide application Loading gas, Emergency escape, Fire breathing, Underwater breathing, Lifesaving of ships, Clean energy, Snorkeling diving breathing, PCP rifle and Paintball filling, Medical care and Mine emergency etc. Widely for fire-fighting, chemical industry, shipping, laboratory, mine, pertroleum, warehouse, factory and metallurgy, it can be used in various positive pressure breathing apparatus. 3L with PCP Paintball Fill Station HPA CO2 Tank Air Compressed Charging System DIN valve male thread size is M18*1.5-6H, Working pressure: 20-30Mpa / 200-300Bar / 3000-4500psi.High Pressure Hose: 57mm length stainless steel spring protector hose, 8mm female foster quick disconnect fittings.Carbon fiber tank to vial standard adapter system, 8mm quick disconnect male output directly into air cylinder, with standard high pressure port and quick refilling.Material: Stainless steel, Style: High pressure output regulator valve with pressure gauge, can be used with DIN connector.Need to compatible with threads of valves, using for high pressure air cylinder, SCBA cylinder, SCUBA diving steel cylinder or PCP tanks,easy to assemble and install for Air / CO2 filling. 3L with SCBA Fill Station Charging Adapter Regulator Valve Manual switch: After the cylinder valve is locked, the cylinder valve needs to be opened and closed manually.Thread design: The carbon fiber air tank & fill station easy to install, not easy to fall off.Bottle valve with meter: The valve fill station is equipped with pressure gauge, can check the cylinder pressure in time.Self locking function with meter: This self-locking bottle valve with a watch will lock automatically after opening to prevent the hidden trouble caused by accidental closing of the bottle valve.High stability:The scba valve regulator with reliable material, good comprehensive accuracy and long service life. 3L with Paintball CO2 Tank Compressed Air DIN Valve Gauge & Fill Station Integrated DIN valve male thread size is M18x1.5-6H, Working pressure: 20-30 Mpa / 200-300 Bar / 3000-4500 PSI.High Pressure Hose: 57mm lenght stainless steel spring protector hose, 8mm dual quick-disconnect female converter.Carbon fiber tank to vial standard adapter system, 8mm quick disconnect male output directly into air cylinder, with standard high pressure port and quick refilling.Material: Stainless steel, Style: High pressure output valve with pressure gauge, can be used with DIN connector.Need to compatible with threads of valves, using for high pressure air cylinder, SCBA cylinder, SCUBA diving steel cylinder or PCP tanks,easy to assemble and install for Air / CO2 filling. Application It can be used in Loading gas, Emergency escape, Fire breathing, Underwater breathing, Lifesaving of ships, Clean energy, Snorkeling diving breathing, PCP rifle and Paintball filling, Medical care and Mine emergency.Widely for fire-fighting, chemical industry, shipping, laboratory, mine, pertroleum, warehouse, factory and metallurgy.Buyer Attention: Products are export-only merchandise and cannot be used, resold or re-entered into the commerce of the territory of the People’s Republic of China, whether directly or indirectly. TXEDT032 Built-in water cooling and filtration system TXEDM042 Built-in two stage filtration filter TXED012 Double cylidner adjustable pressure function TXES031 Single cylinder adjustable pressure function TXEDM041 pcp air compressor Diving compressor Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 3.7 out of 5 stars 174 3.6 out of 5 stars 13 3.7 out of 5 stars 174 3.2 out of 5 stars 6 3.7 out of 5 stars 174 3.4 out of 5 stars 24 Price $719.10$719.10 $502.55$502.55 $417.05$417.05 $287.99$287.99 $550.05$550.05 $1,529.10$1,529.10 Working pressure 4500Psi/30Mpa/300Bar 4500Psi/30Mpa/300Bar 4500Psi/30Mpa/300Bar 4500Psi/30Mpa/300Bar 4500Psi/30Mpa/300Bar 4500Psi/30Mpa/300Bar Function Shutoff the compressor automatically Shutoff the compressor automatically Shutoff the compressor automatically Shutoff the compressor manumatically Shutoff the compressor manumatically Shutoff the compressor automatically Cooling system Water and fan cooling Water and fan cooling Water and fan cooling Water and fan cooling Water and fan cooling Fan cooling Air flow 50L/min 40L/min 40L/min 35L/min 50L/min 100L/min
Product Capacity 3 liters / 30Cu ft capacity, Product Neck Thread M18x1.5-6H thread.
Product Pressure 30mpa / 300bar / 4500psi working pressure, 50Mpa hydrostatic test pressure, 102Mpa minimum burst pressure, Product Certification CE / EN approved (Not DOT), Inspection cycle 3Yr, Service life 15Yr.

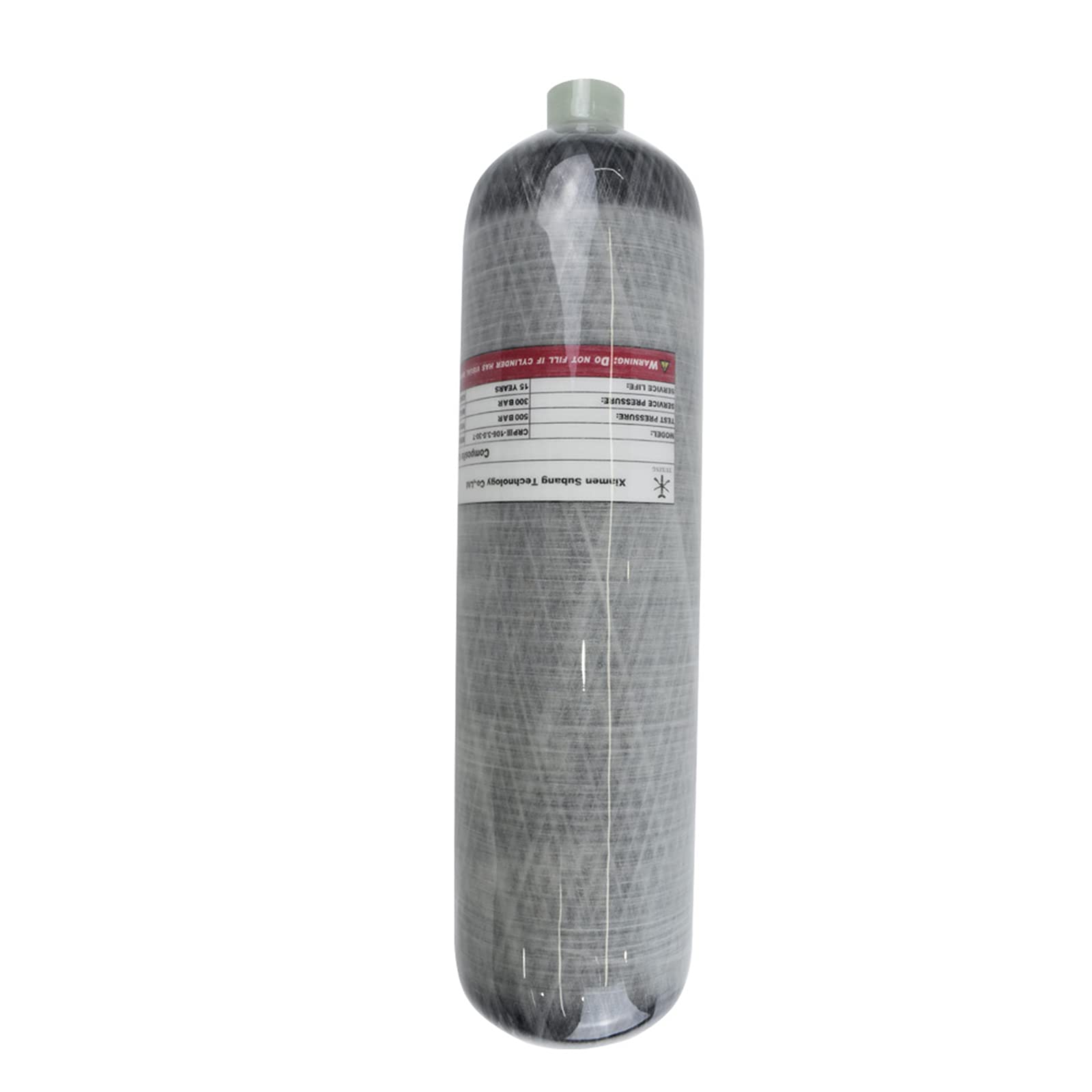

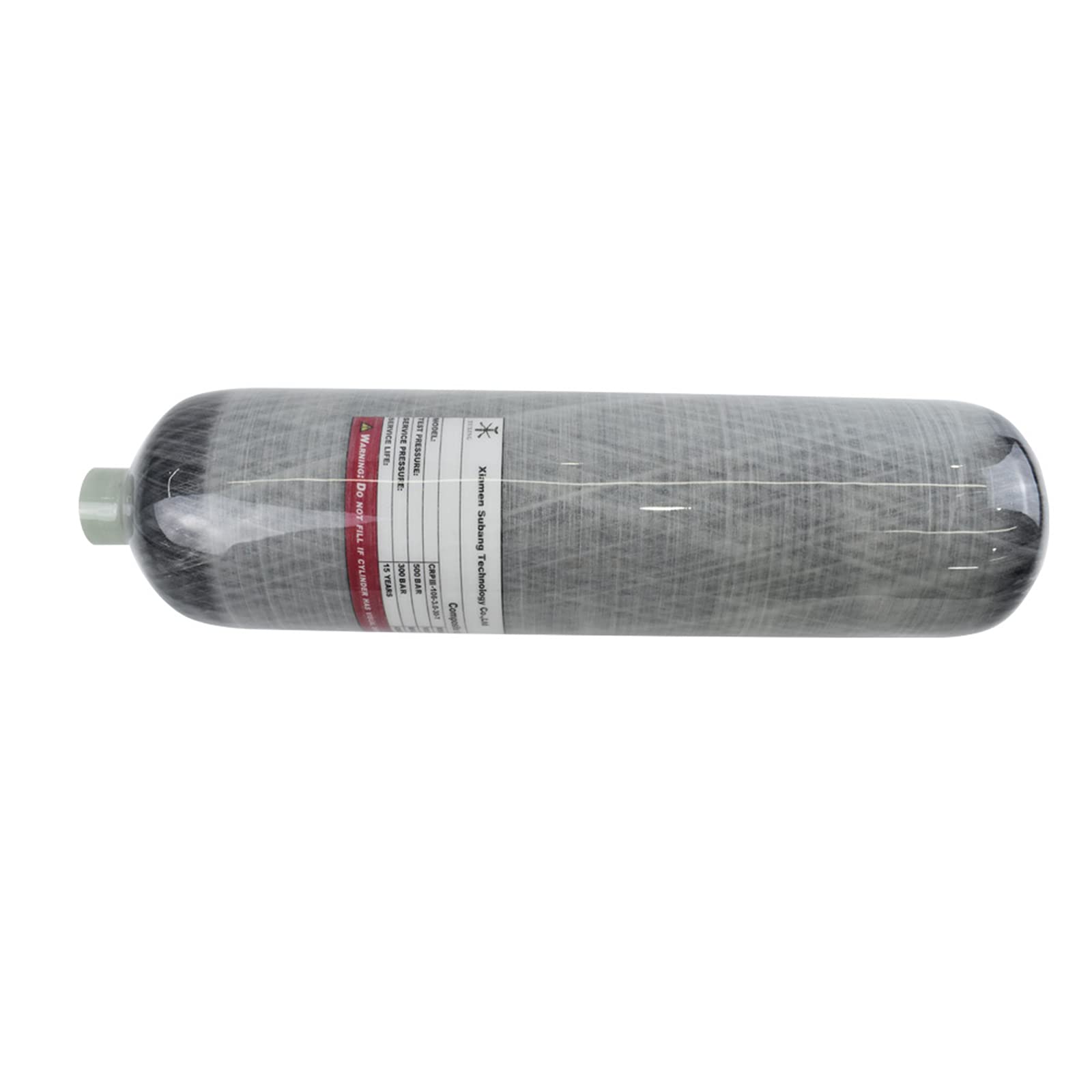

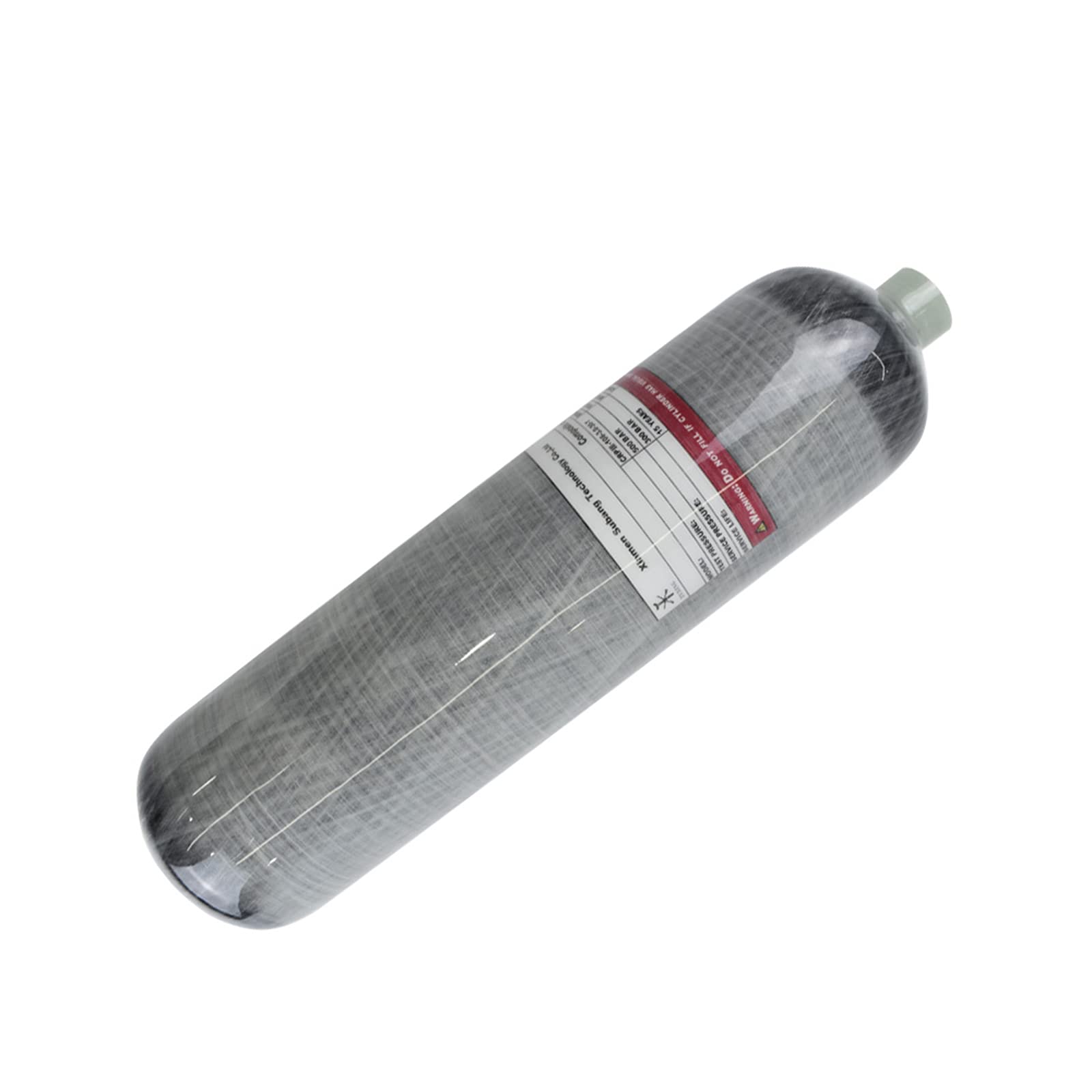

Product Structure Using high-quality raw material AL6061 aluminum alloy liner with full-wrapped carbon fiber and glass fiber winding, external surface treatment is epoxy coated, high strength features creep resistance, shock resistance and corrosion resistance.
Product Testing Performance One of the safety tests is the hydrostatic test pressure, for carbon fiber cylinders, it can reach 50Mpa. The other is the minimum burst pressure, which can reach 102Mpa for carbon fiber cylinders, can hold more gas under the same volume conditions.
Product Advantage Carbon fiber composite air cylinder is a new material cylinder developed in recent years. Compared with the traditional steel cylinders, the weight is reduced by 70%, the corrosion resistance is strong, there is no magnetic property, the performance is stable, and the inner surface is specially treated to ensure that the holding gas is clean and has no odor, long service life (The service life is 15 years).
