4K HDMI Fiber Optic Extender - 20km Long Range with RS232 & Stereo Audio Support for Home Theater, Conference Rooms & Digital Signage

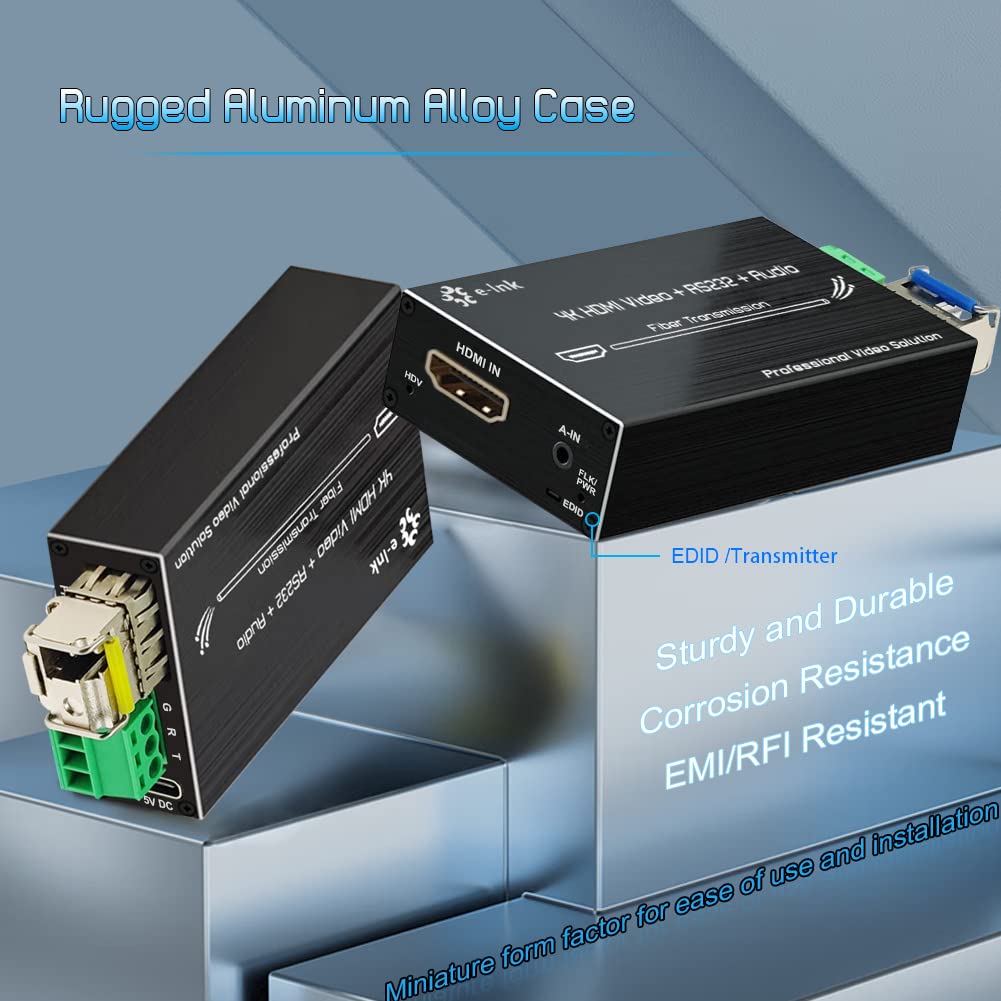

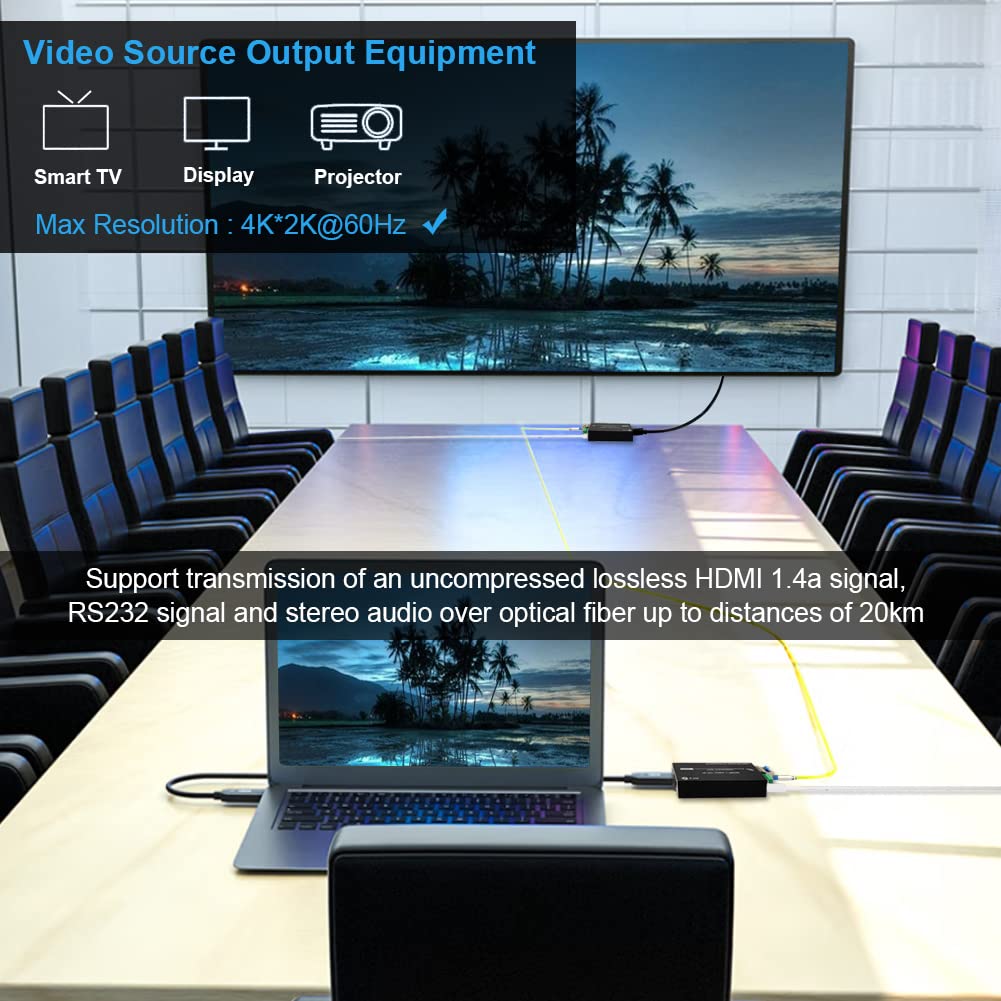

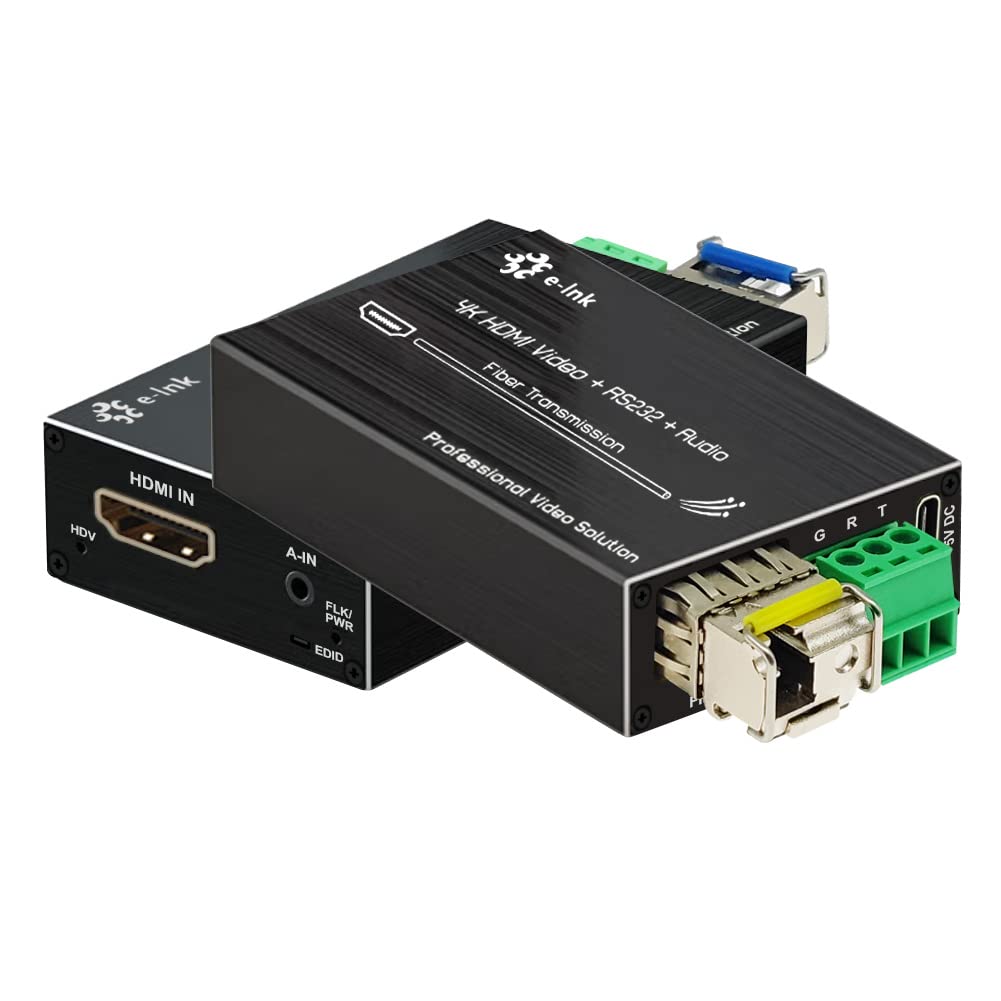

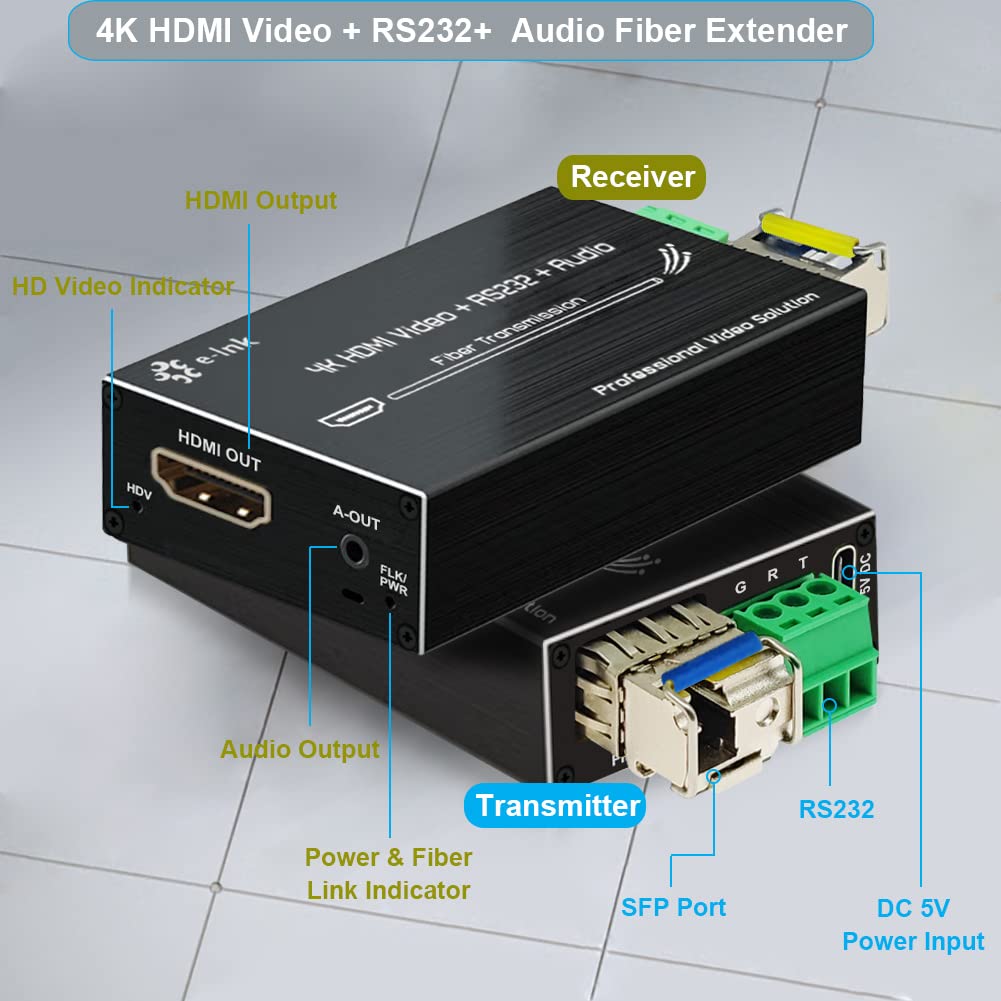

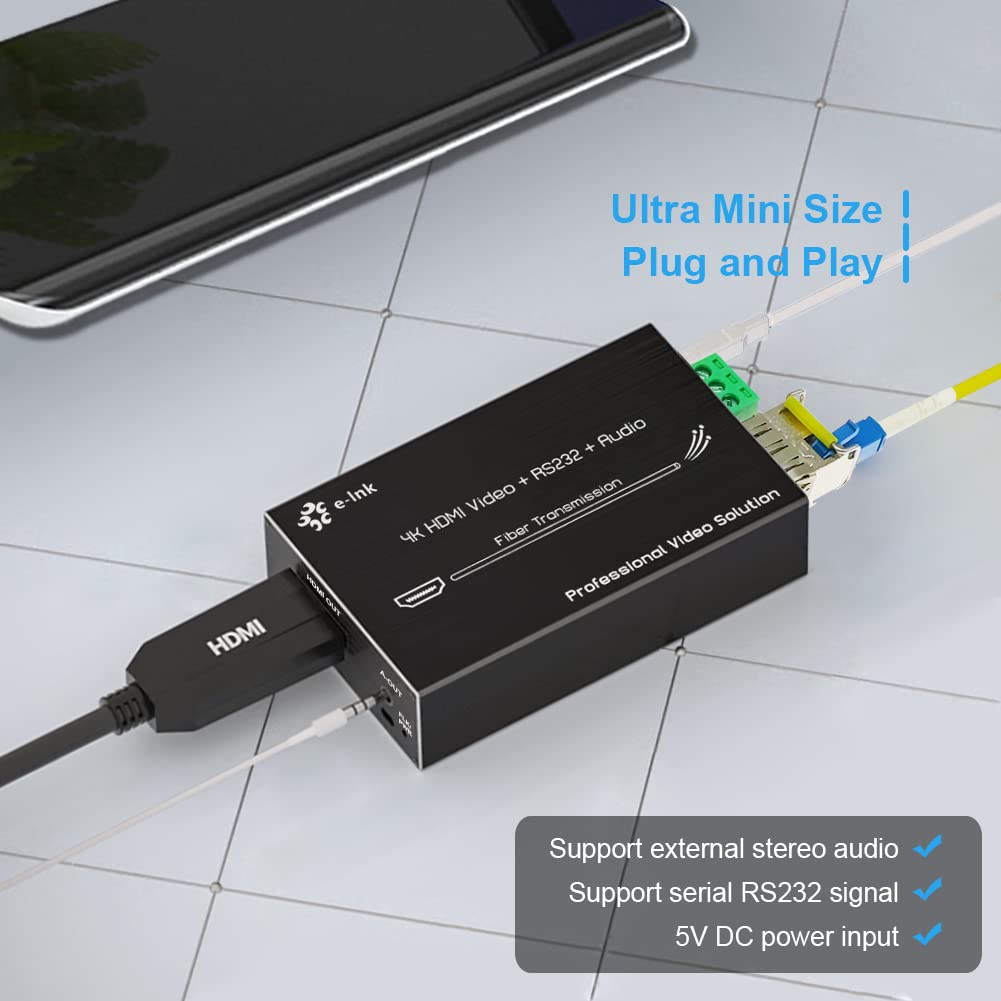

Overview:The Mini-Type HDMI Fiber optic extender provides extension of HDMI signals, audio and RS232 via single fiber optic cable, high resolution up to 4k*2k@60Hz, which can be used for a wide range of applications requiring long distance stable transmission of high resolution real time video.Features:-- Transmits HDMI video signals, audio and RS232 up to 20km over a single fiber optic cable-- Uncompressed transmission, no delay, no losses-- Support external stereo audio and serial RS232 signal transmission-- Support video resolution up to 4k*2k@60Hz, YUV 4:2:0-- Hot-Pluggable, EMI/RFI Resistant-- Compliance with HDMI 1.4a and HDCP 1.2 standard-- High compatibility, can auto-match source and display device-- Support EDID, DDC and HPDT signalSpecifications:Connector: Female HDMI type AAudio Interface: 3.5MM external stereo audioFiber Connector: SFP/LCRS232: 3 Pin terminal, Baud rate ≤ 38400Power Input: 5V DC, USB Type-CBandwidth: 10.2GbpsHDMI Cable Range: <5 MetersTransmission Distance: Up to 20km (Over Single-mode Fiber)Power Dissipation: <5WSignal Support: HDMI 1.4a HDMI format standard and HDCP compliantAudio Support: Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)Video Support: Up to 720P/960P/1080p@60Hz, 4K*2K@60HzChroma Subsampling: Max 3840*2160@60Hz (4:2:0)Max 3840*2160@30Hz (4:4:4, 4:2:2)EDID: Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learnSingle-Directional (Forward) Transmission: Support EDID learning manuallyDimensions (LxWxH): 2.87 x 1.73 x 0.69in (73x44x17mm)Weight: 60g / 0.13 lbOperating Temperature: -10~50°C
