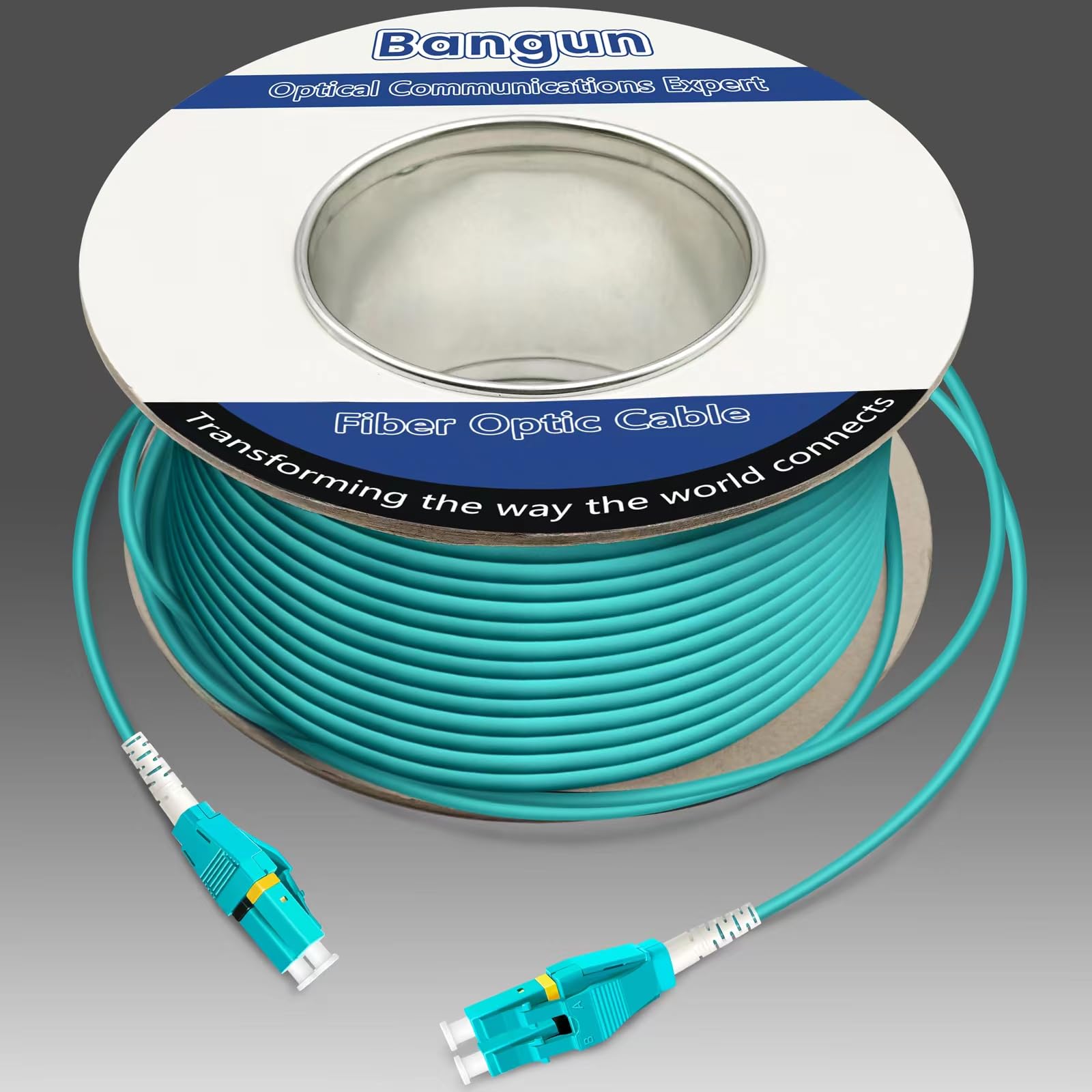

LC UPC to LC UPC Uniboot Duplex OM3 Multimode Fiber Patch Cable Specifications Connector Type LC UPC to LC UPC (Uniboot) Fiber Grade Corning BIF Fiber Mode OM3 50/125μm Durability 500 Cycles Insertion Loss 10-100m≤0.3dB, 100-200m≤0.6dB, 200-300m≤0.9dB Return Loss ≥55dB Fiber Count Duplex Cable Diameter 3.0mm Min. Bend Radius (Fiber Core) 7.5mm Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static) Tensile Strength 60/100N(Long Term / Short Term) Cable Jacket LSZH Operating Temperature -20~75°C Storage Temperature -20~75°C Suitable for SFP transceivers and media converters This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections. Unique end-face baking technology The unique end-face baking technology allows the jumper to maintain a dry end-face for an extended period in even the harshest climate conditions, preventing the formation of moisture that could affect data transmission. Compared with traditional PVC cable, LSZH Jacket is more healthy and safe. Bangun Fiber Optic Patch Cable adpoted 3.0mm LSZH Jacket that is environment flame retardant, anti-corrosion, pull-resistant, low-smoke, halogen-free and immune to electrical interference. Bangun products are extensively applicable to telecom operators, fiber optic engineering, CCTV, broadband networks, FTTH, data center in more than 80 countries worldwide. Uniboot LC to LC OS2 Uniboot LC to LC OS2 Armored LC to LC OM3 Simplex LC to LC OS2 Buying Options Buying Options Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 186 4.5 out of 5 stars 186 3.8 out of 5 stars 60 4.7 out of 5 stars 44 Price $89.99$89.99 — no data $129.00$129.00 $15.99$15.99 Fiber Count Duplex / 2 Fibers Duplex / 2 Fibers Duplex / 2 Fibers Simplex Fiber Type Corning G.657.A2 Corning G.657.A2 Corning OM3 Corning G.657.A2 Jacket Armored LSZH, Black Armored LSZH, White HDPE, Black Armored LSZH, Black Cable Diameter 3.0mm 3.0mm 3.0mm 3.0mm Insertion Loss ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB Low Friction Coating ✓ no data no data ✓ Length 1-10 Kilometers 1-30m 10-300m 10-30m LC UPC 12 Fibers Pigtail OS2 LC UPC 6 Fibers Pigtail OS2 LC UPC 6 Fibers Pigtail OM3 LC UPC 6 Fibers Pigtail OM3 LC UPC 12 Fibers Pigtail OM3 LC UPC 12 Fibers Pigtail OS2 Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 25 4.4 out of 5 stars 25 4.4 out of 5 stars 25 4.4 out of 5 stars 25 4.4 out of 5 stars 25 4.4 out of 5 stars 25 Price $18.99$18.99 $12.99$12.99 $49.99$49.99 $49.99$49.99 $99.99$99.99 $59.99$59.99 Fiber Count 12 6 6 6 12 12 Fiber Mode 9/125 μm 9/125 μm 50/125 μm 50/125 μm 50/125 μm 9/125 μm Cable Diameter 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm Minimum Bend Radius 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm Insertion Loss ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB Cable Types Color-Coded Color-Coded Color-Coded Bunch Bunch Bunch SC/APC to SC/APC SC/APC to SC/APC Armored SC/APC to SC/APC Armored SC/UPC to SC/UPC OS2 SC/UPC to SC/UPC OS2 SC/UPC to SC/APC OS2 Add to Cart Buying Options Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 1,427 4.7 out of 5 stars 1,427 4.7 out of 5 stars 1,427 4.2 out of 5 stars 47 4.2 out of 5 stars 47 4.5 out of 5 stars 62 Price $6.99$6.99 $7.19$7.19 $19.99$19.99 $8.99$8.99 $17.99$17.99 $10.99$10.99 Fiber Count Simplex Simplex Simplex Simplex Simplex Simplex Fiber Grade Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Jacket LSZH, Yellow Armored LSZH, White Armored LSZH, Black Armored LSZH, White Armored LSZH, Black Armored LSZH, White Cable Diameter 3.0mm 3.0mm 3.0mm 3.0mm 3.0mm 3.0mm Insertion Loss ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB Low Friction Coating no data no data ✓ no data ✓ no data Length 1-30m 1-30m 1-10 Kilometers 1-30m 10-100m 1-30m

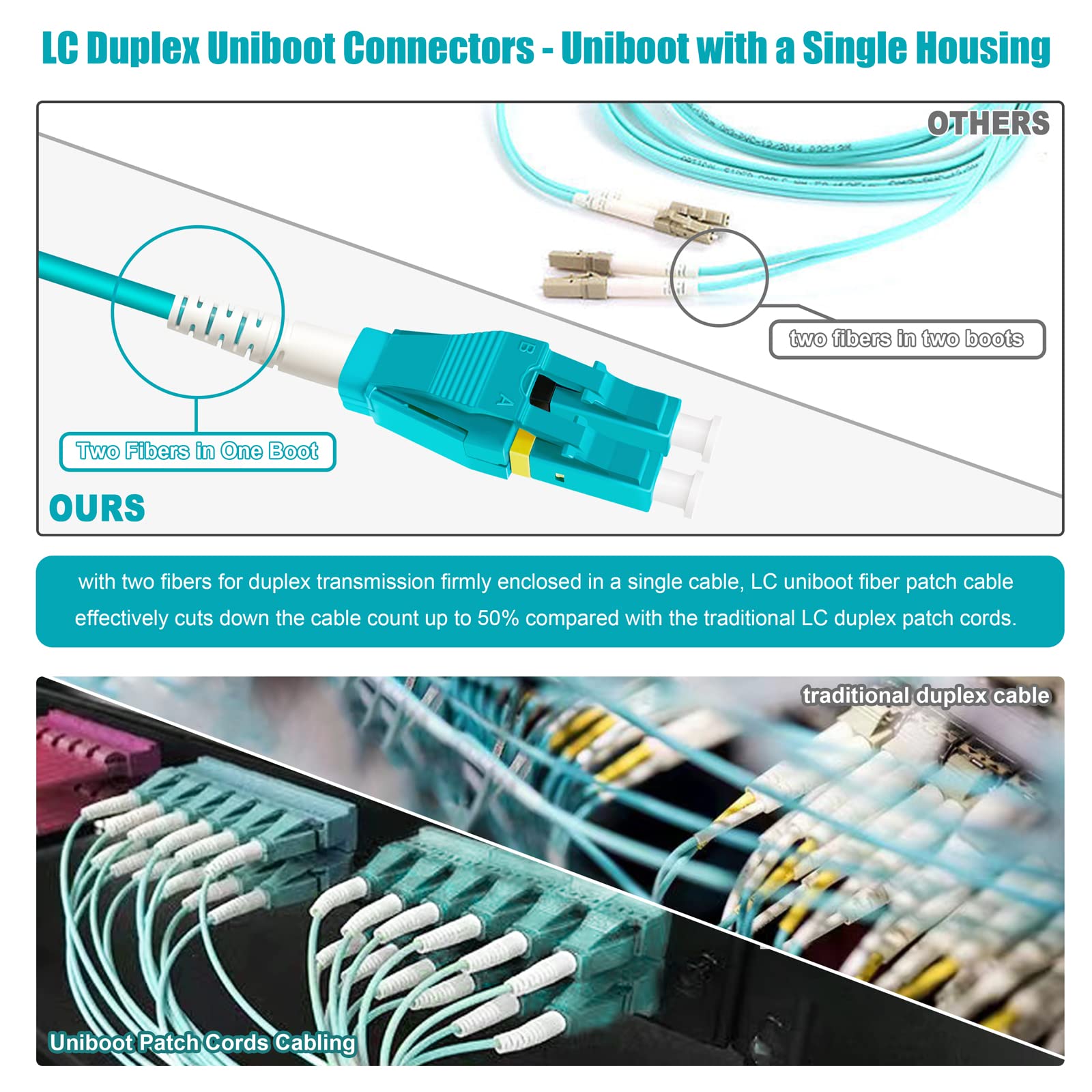

LC Uniboot Connectors - Space-saving LC duplex connector with uniboot is two LC connectors encased in a common housing with one boot, terminated on a single twin-fiber round cable. By using cable assemblies with LC Uniboot connectors, half of the space can be saved over traditional duplex cable. Uniboot single jacket patch cables make patch panel cable management becames considerably easier. Ideal for high-density cabling application.

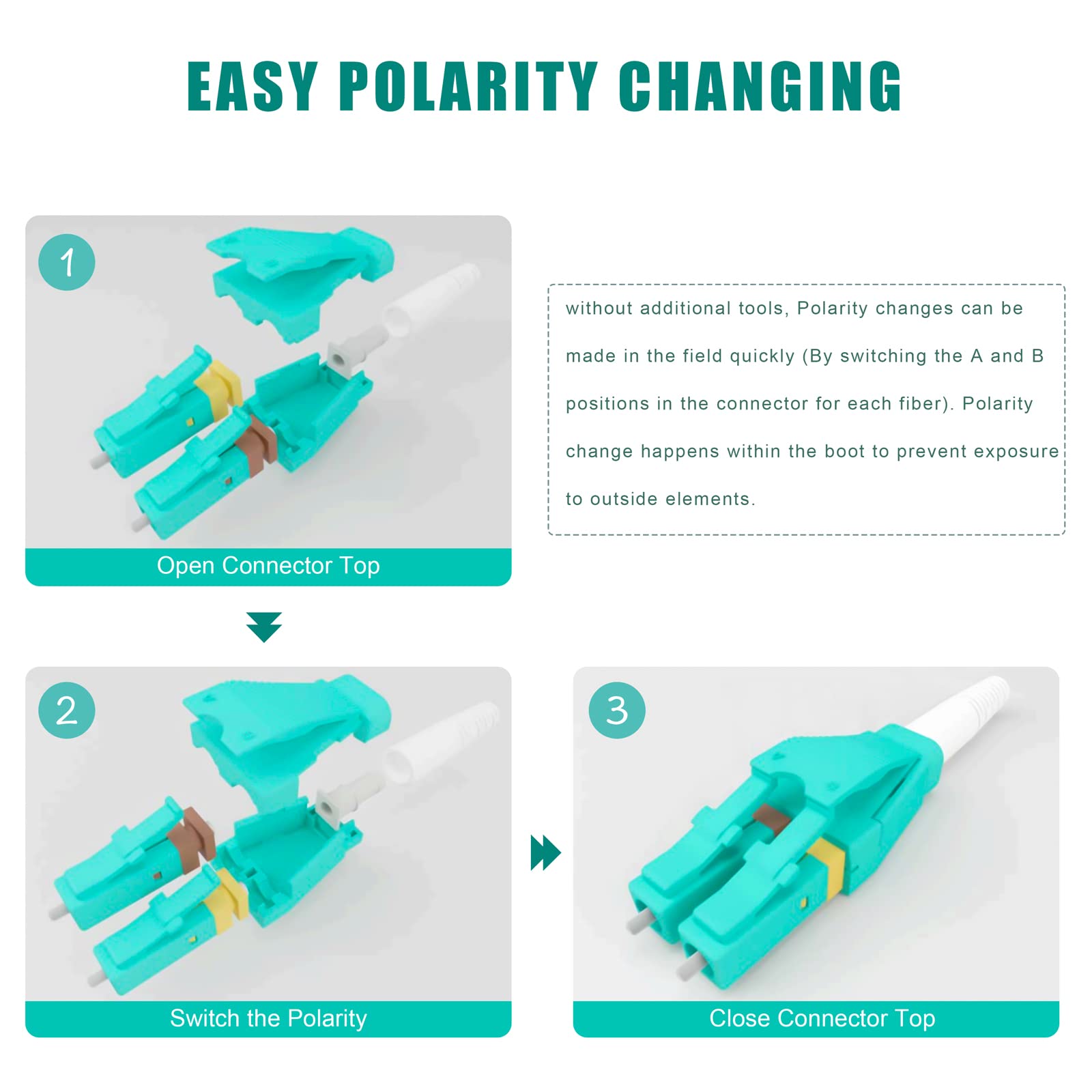

Reversible Polarity of Uniboot Connectors - easy polarity changing Unlike common LC patch cords, this switchable uniboot cable supports the polarity to be switched without connector re-termination. Polarity changes can be made in the field quickly (By switching the A and B positions in the connector for each fiber), without the use of tools, to the correct fiber mapping polarity. No damage to fiber.
Bangun OM3 Multimode lc fiber patch cable terminated with Foxconn precision ceramic ferrule LC/PC fiber patch cable connectors, insuring low insertion loss(less than 0.15 dB) for faster speed network performance.
WIDE APPLICATION LC LC Fiber Patch Cable (OM3) LOMMF connects to 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers for 10Gb networks. This LC LC OM3 Patch Cable works with all brands of multimode SFP transceivers and fiber optic networks.

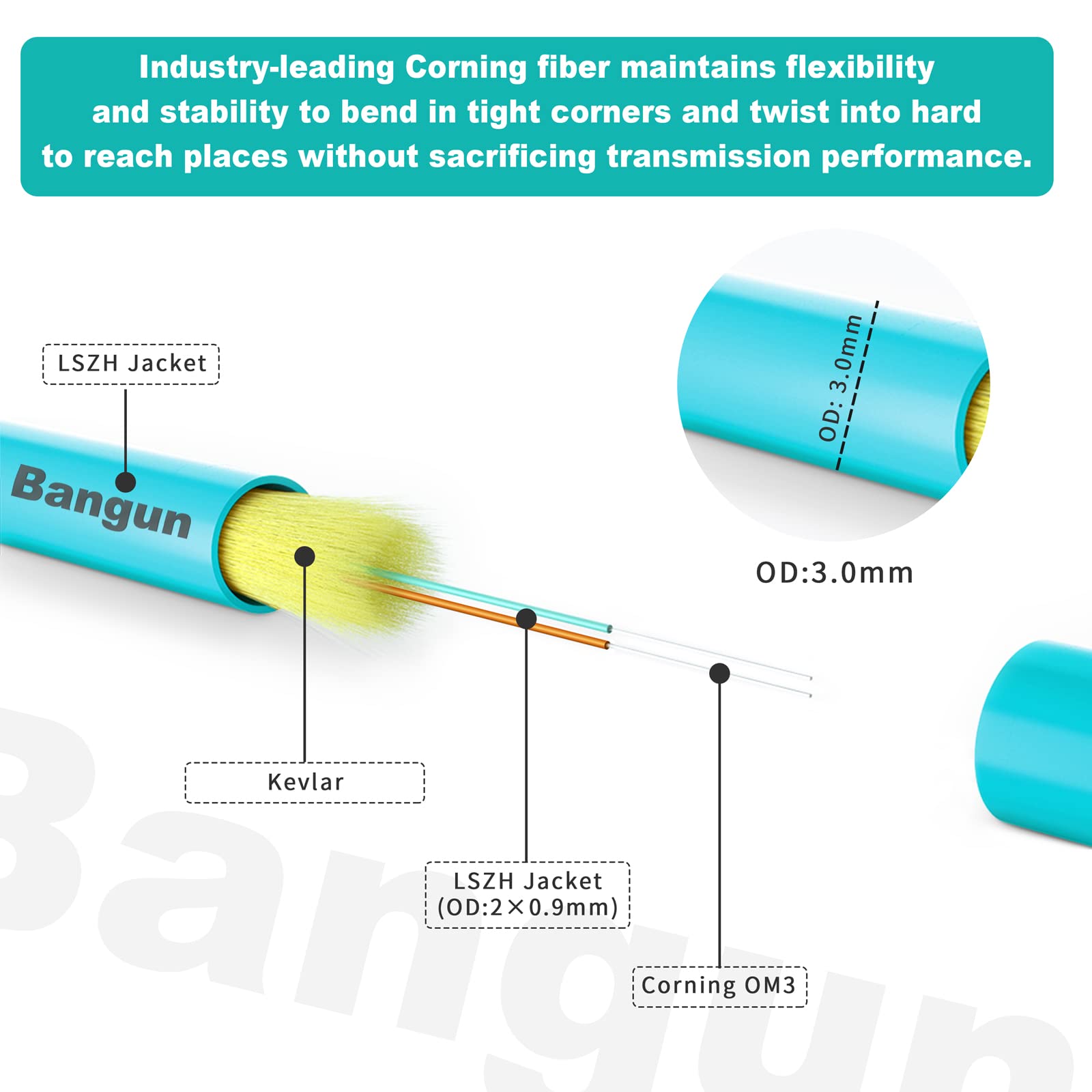

Product details LC/PC-LC/PC, Duplex, Multimode, OM3, 50/125. Jacket Material Low-Smoke, Zero Halogen (LSZH) jacket. Jacket Color Aqua. OD 3.0mm.
