Shenzhen SPEEDWOLF is a company specializing in the production of optical fiber fusion splicer, optical fiber cleaver, OTDR, light source, optical power meter, and optical fiber fixture, and other optical communication instrument high-tech enterprises. OFI36B-L Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present,the intermittently audible tone is activated. Parameter Type: OFI36B-LIdentified Wavelength Range: 800-1700 nmSignal Direction: Left & Right LED Identified Signal Type: CW, 270Hz±5%,1kHz±5%,2kHz±5%Detector Type: Ø1mm InGaAs 2pcsAdapter Type: Ø0.25,Ø0.9,Ø2.0, Ø3.0 Alkaline Battery(V): 9 Dimension (mm):196X30.5X27 Wight (g):200 High Quality Metal material KomShine OFI36B-L Optical Fiber Identifier with Four Adaptors The KomShine OFI36B-L Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated. The KomShine OFI36B-L optical fiber identifier also recognize the modulation like,270Hz,1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The WF3306B optical fiber identifier is powered by a 9V alkaline battery. Features Easy-to-use with “ONE KEY”operation.Efficiently identifies the traffic direction and frequency tonel (270Hz, 1KHz, 2KHz) with audible warning.Displays the relative core power.More accurate test with Sunshade.Easy-to-replace adaptors. Durable metal housing and quality construction.Lower power indication Identify Fiber Type The SPEEDWOLF OFI36B-L fiber identifier recognizes fiber types: Ø0.25, Ø0.9, Ø2.0 and Ø3.0, and can also recognize modulations such as 270Hz, 1kHz and 2kHz. Continuous audible tones are activated when they are used to detect frequencies. Portable Design Very Small size and light weight--only 196X30.5X27 mm /7.7x1.2x1.1in and Only 200g ; High strength portable straps design is convenient for hanging and operating. Wind, sand and dust prevention, waterproof, aseismatic design adapt to the outdoor environment Four Adapter Heads There are four adapter heads to choose from: Ø0.25, Ø0.9, Ø2. 0 and Ø3.0. JW3306B fiber identifier is powered by 9V alkaline battery Plentiful Accessories 1x OFI36B-L Optical Fiber Identifier,4x Adapter Heads, 1x Sunshade,1x Alkaline Battery, 1x Cotton Stick,1x Soft Carrying Case，1xBox
【800-1700nm Identified Range】-- The high-performance live fiber identifier OFI36B is a very easy-to-use tool that detects signal traffic at CW, 270Hz, 1kHz, and 2kHz frequencies. It can be used with single mode and Multimode fibers from 800nm to 1700nm.
【Non-destructive Fiber Identification】--By inserting the fiber into its adapter head, it can identify SM optical fibers without any damage by detecting the optical signals being transmitted through them so as to avoid the opening of the fiber at the splice point for identification and thus avoids the interruption of the service. In the presence of traffic, the intermittently audible tone is activated.

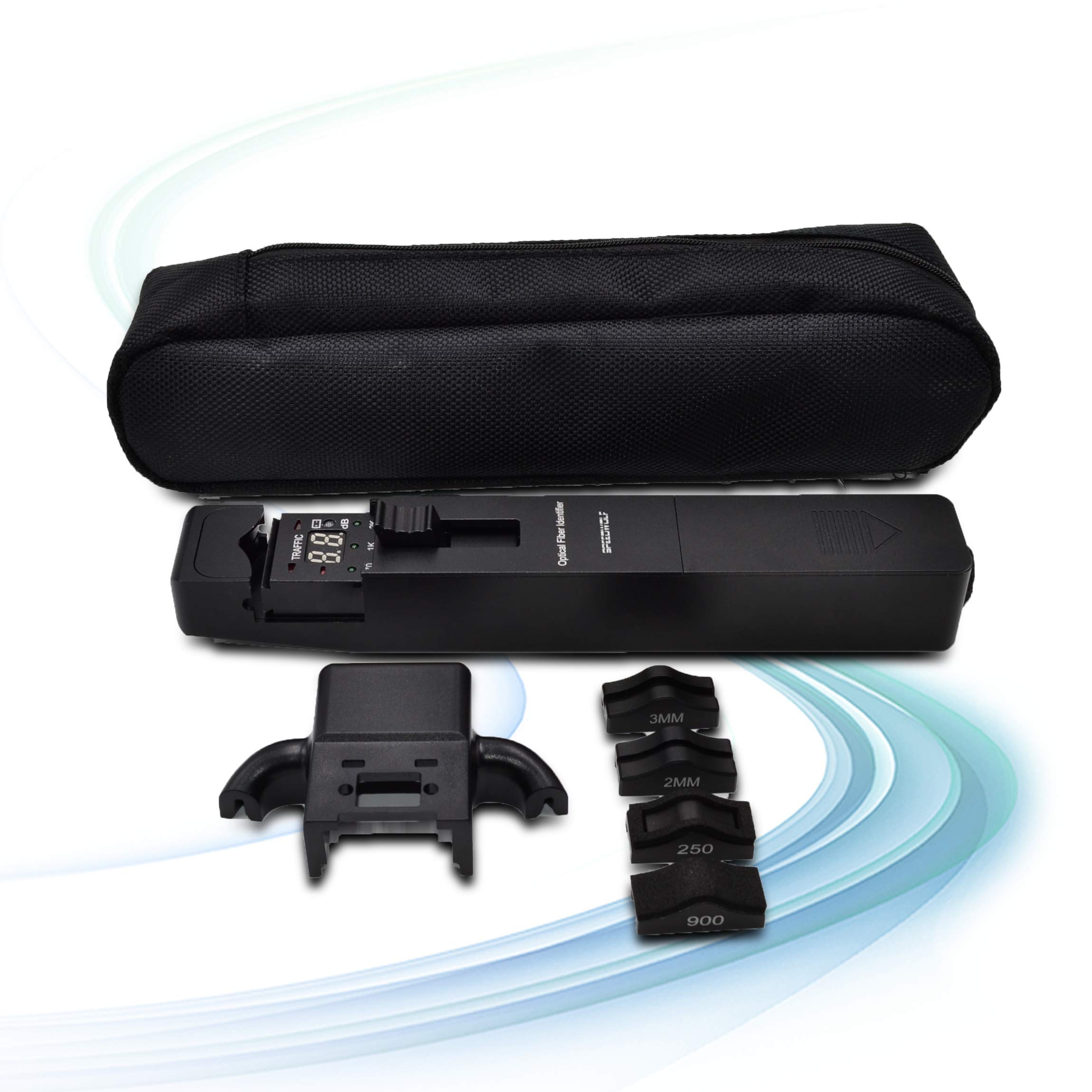

【Compatible with Multiple Fibers】-- SPEEDWOLF 800-1700nm Optical Fiber Traffic Identifier is equipped with 4pcs Interchangeable Adapter Heads-Ø250um, Ø900um, Ø2mm and Ø3mm, which can be compatible with Ø250um, Ø900um, Ø2mm and Ø3mm fiber jacket diameters.
【Core Power Display】-- SPEEDWOLF 800-1700nm Optical Fiber Traffic Identifier is equipped with an LED digital display and traffic indicators. Engineers can obtain the core power of the fiber (from -50 to + 10dBm) and the direction of the optical signal from the LED digital display. Compared with other more complex test equipment, it save a lot of time and money.
【Worry-free Warranty】--SPEEDWOLF has strict quality requirements. All our commitments, actions and products must be seen as a manifestation of quality. Our main quality criterion is customer satisfaction. At the same time, we provide a 60-day refund, free replacement of a new Optical Fiber Traffic Identifier if there is any problem within 3 years, and lifetime technical support.
