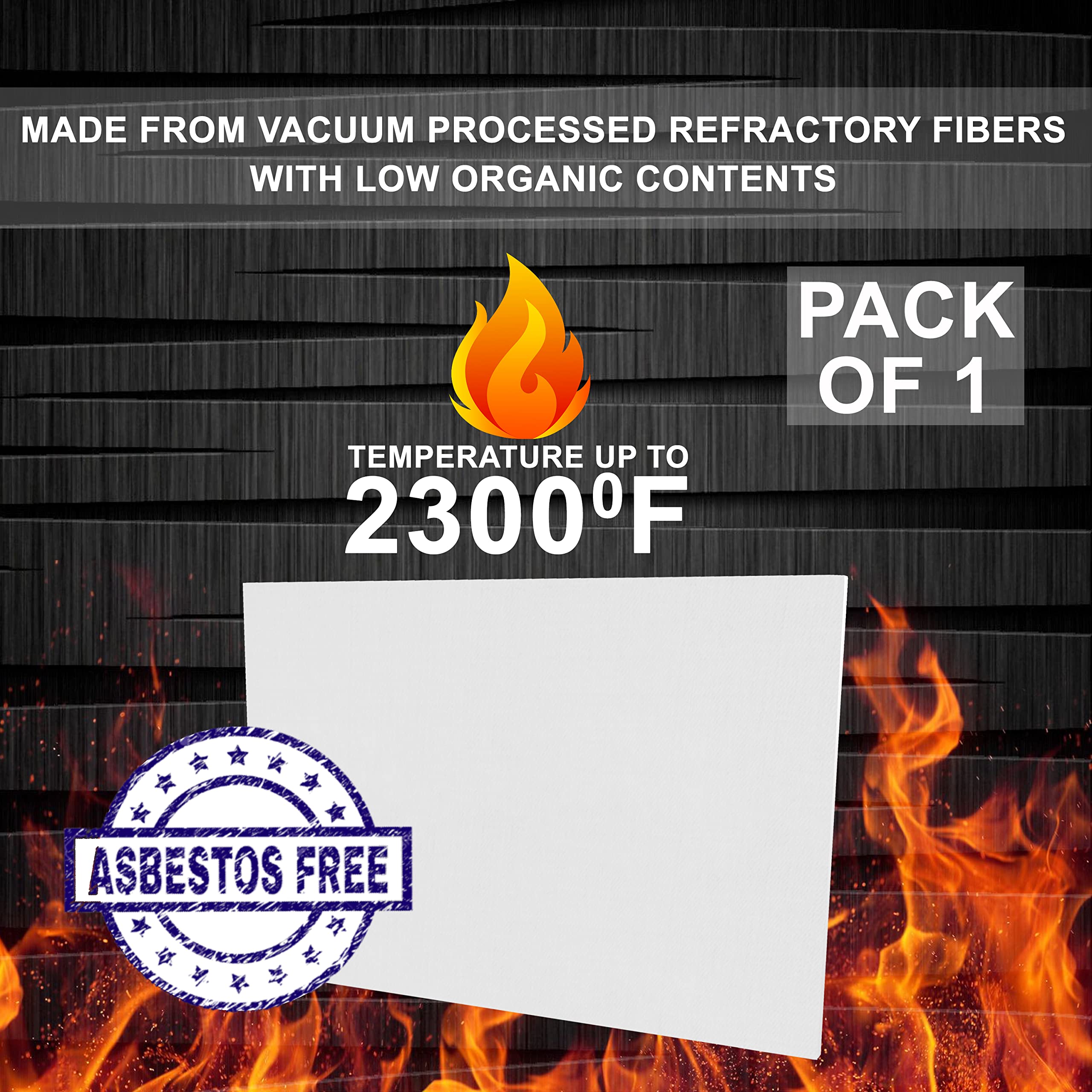

Know About us Simond Store is dedicated to providing customers with a convenient and comfortable experience. Quality and the fastest delivery are the key aspects of our business. Our goal is to conserve energy by supplying high-quality insulation products. Simond Store is a well-known brand that supply high-quality products for a variety of applications. We have extensive experience and expertise in refractory products. We've gained a large number of satisfied customers in the USA. Know More About Ceramic Fiber Board What is ceramic Fiber Board? Ceramic Fiber Board is made from refractory fibers and binders which have low organic content, the mixture is vacuum processed into boards that impart good mechanical strength even after heating. Boards are manufactured in various densities and temperature grades to suit application requirements. Ceramic Fiber Boards are a rigid and self-supporting insulating product of the ceramic fiber family that is intended for use in applications that require Higher insulating properties Increased strength and rigidity to resist gas erosive forces Fire resistance and direct heat resistance up to 2300°F High resistance to thermal shock (ability of a solid to withstand sudden changes in temperature either during heating or cooling) Product Specifications Classification Temperature (F) 2300 Colour White/Tan Density (Lbs/ft3) 20 - 24 Size (T x W x L) 1/2 inch x 23.6 inch x 35.4 inch Thickness Tolerance - 0.04 inch, + 0.08 inch Width Tolerance ± 0.12 inch Length Tolerance -0.12 inch, +0.2 inch Hardness (Shore A) 50 Minimum Moisture (%) 10 Maximum Modulus of Rapture (Kpa) 980 Minimum – For 1” Thick; 588 Minimum – For 2” Thick Permanent Linear Shrinkage (%) 3.5 Maximum (After 24 Hrs. shocking Heat at 2200°F) Compressive Strength (Kpa) 274.6 Minimum (10% deformation for 1” Thick) Compressive Strength (Kpa) 539.4 Minimum (25% deformation for 1” Thick) Al2O3 (%) 44-45 SiO2 (%) 55-58 LOI % at 1832°F 4 - 7 Key Product Features Ceramic Fiber Insulation Board is ideal for use in Wood Stoves, Fireplaces, Pizza Ovens, Kilns, Forges, Internal Baffle of Wood Stove, Pellet Stoves, Backup Insulation of Refractory Bricks, and Castable Linings, Furnace Hot Face Linings and Boiler Wall Insulation, Heat shields, Combustion Chambers and fire protection. Ceramic Fiber Insulation Board, (2300F) (0.5" x 19.7" x 39.4") - Pack of 1 Ceramic Fiber Insulation Board, (2300F) (0.47" x 12" x 12") - Pack of 1 Ceramic Fiber Insulation Board, (2300F) (0.47" x 18" x 24")- Pack of 1 Ceramic Fiber Insulation Board, (2300F) (1" x 12" x 24") - Pack of 1 Ceramic Fiber Insulation Board, (2300F) (1" x 23.6" x 35.4") - Pack of 1 Ceramic Fiber Insulation Board, (2600F) (1" x 19.7" x 39.4") - Pack of 1 Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Buying Options Customer Reviews 4.2 out of 5 stars 36 4.7 out of 5 stars 15 4.2 out of 5 stars 56 4.3 out of 5 stars 23 4.0 out of 5 stars 14 4.7 out of 5 stars 5 Price $68.99$68.99 $24.99$24.99 $51.99$51.99 $45.99$45.99 $119.99$119.99 — no data Temperature Grade (F) 2300 2300 2300 2300 2300 2600 Density (lb/ft³) 20-24 20-24 20-24 20-24 20-24 20-24 Size (T x W x L) 0.5" x 19.7" x 39.4" 0.47" x 12" x 12" 0.47" x 18" x 24" 1" x 12" x 24" 1" x 23.6" x 35.4" 1" x 19.7" x 39.4" Qty 1 1 1 1 1 1

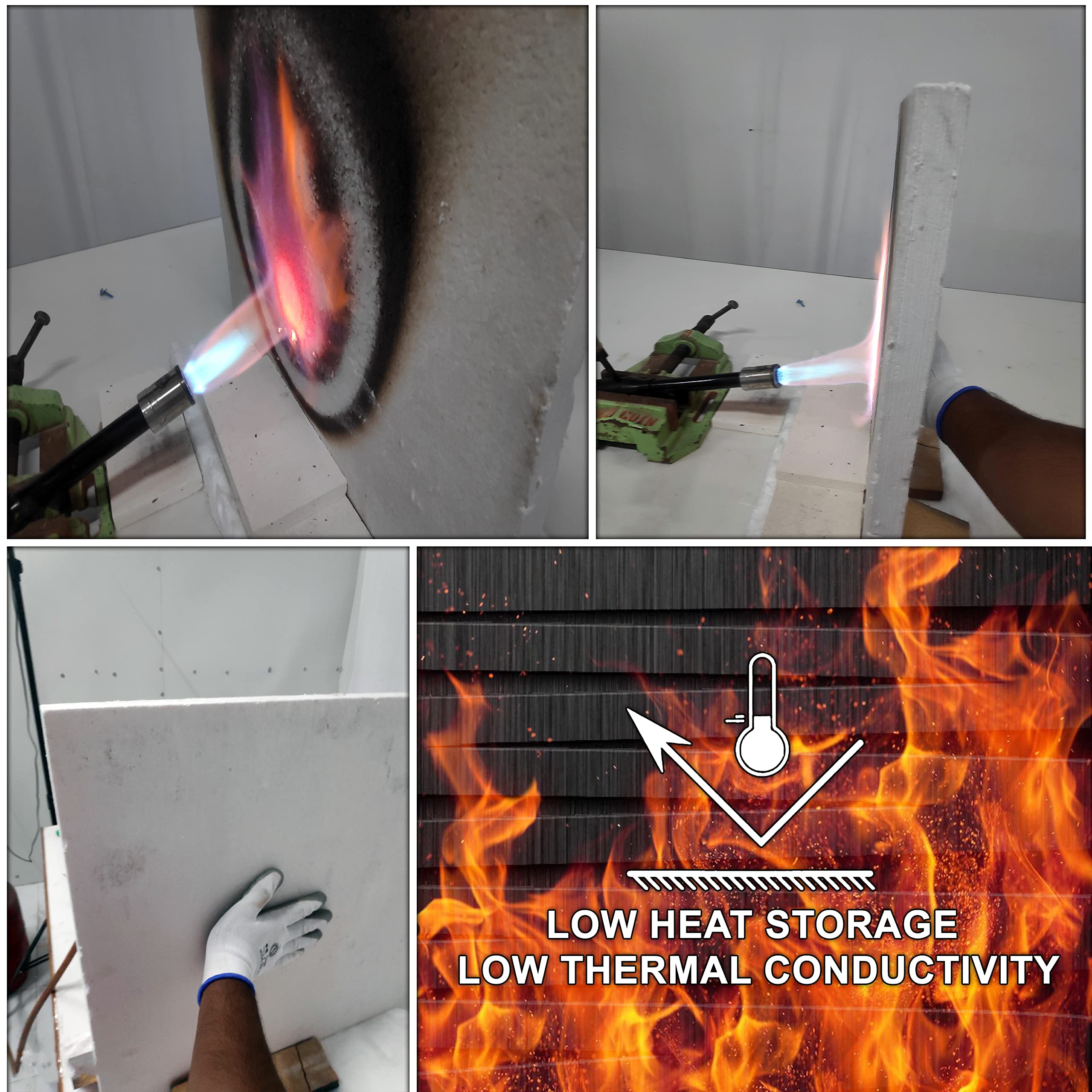

Maximum Use Temperature - Our fireproof insulation board has high heat resistance and can withstand temperatures up to 2300F (1260 C) | Density 20-24 lb/ft³

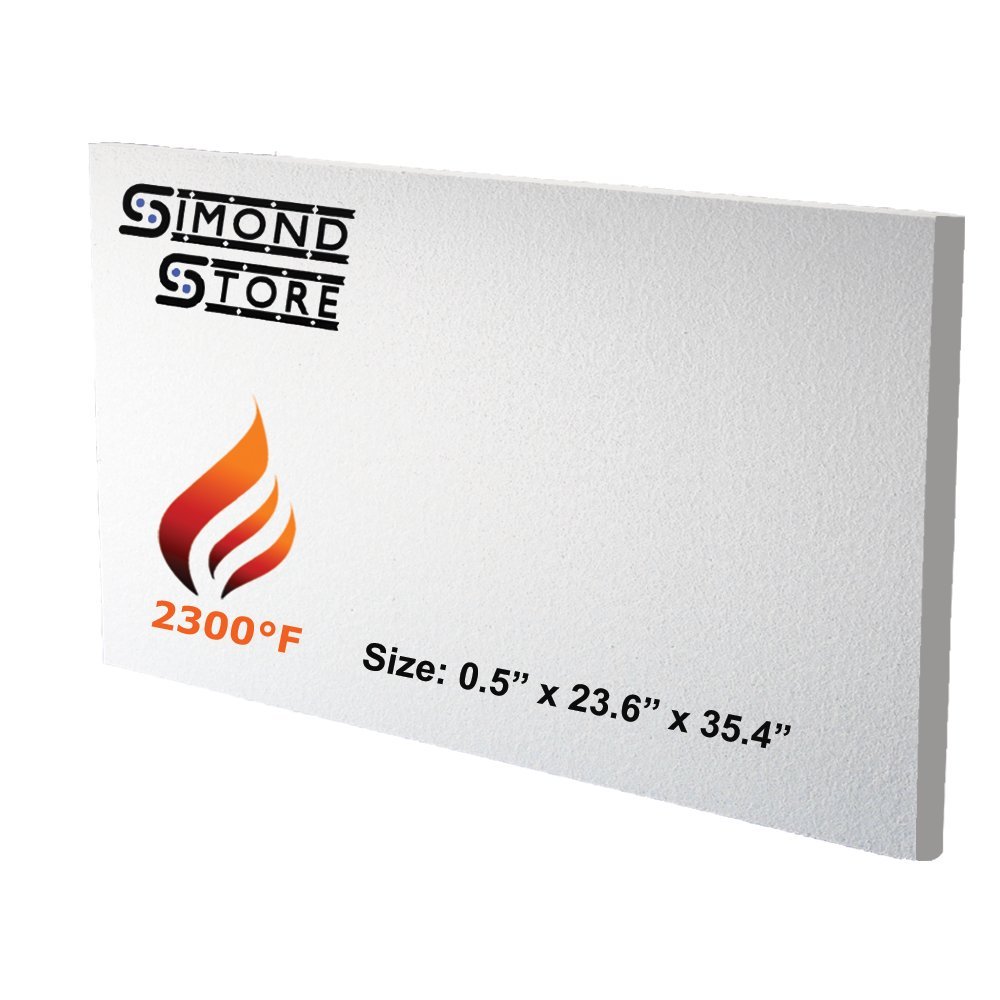

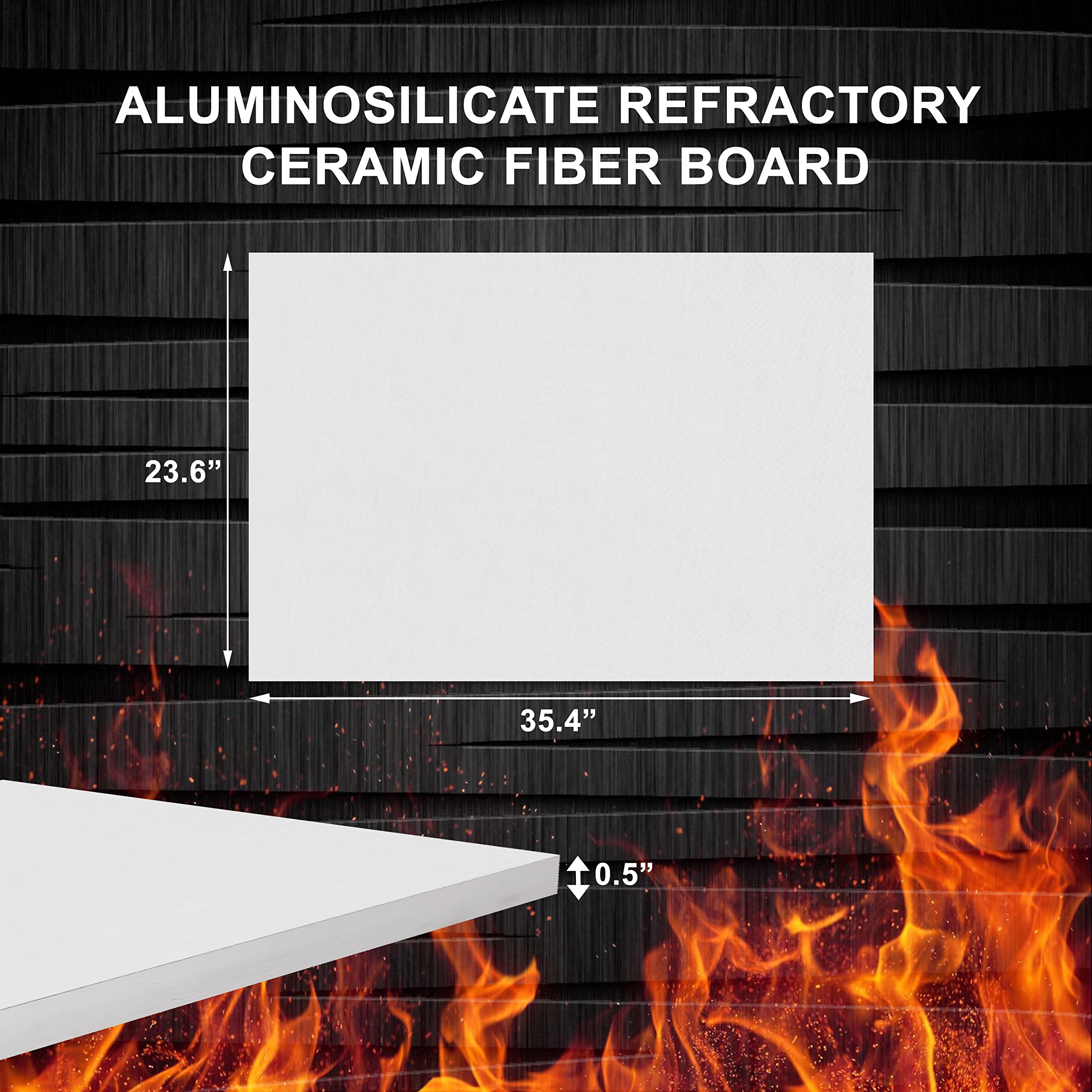

Dimensions - This aluminosilicate refractory ceramic fiber board measures 1/2” (T) x 23.6” (W) x 35.4” (L) in size

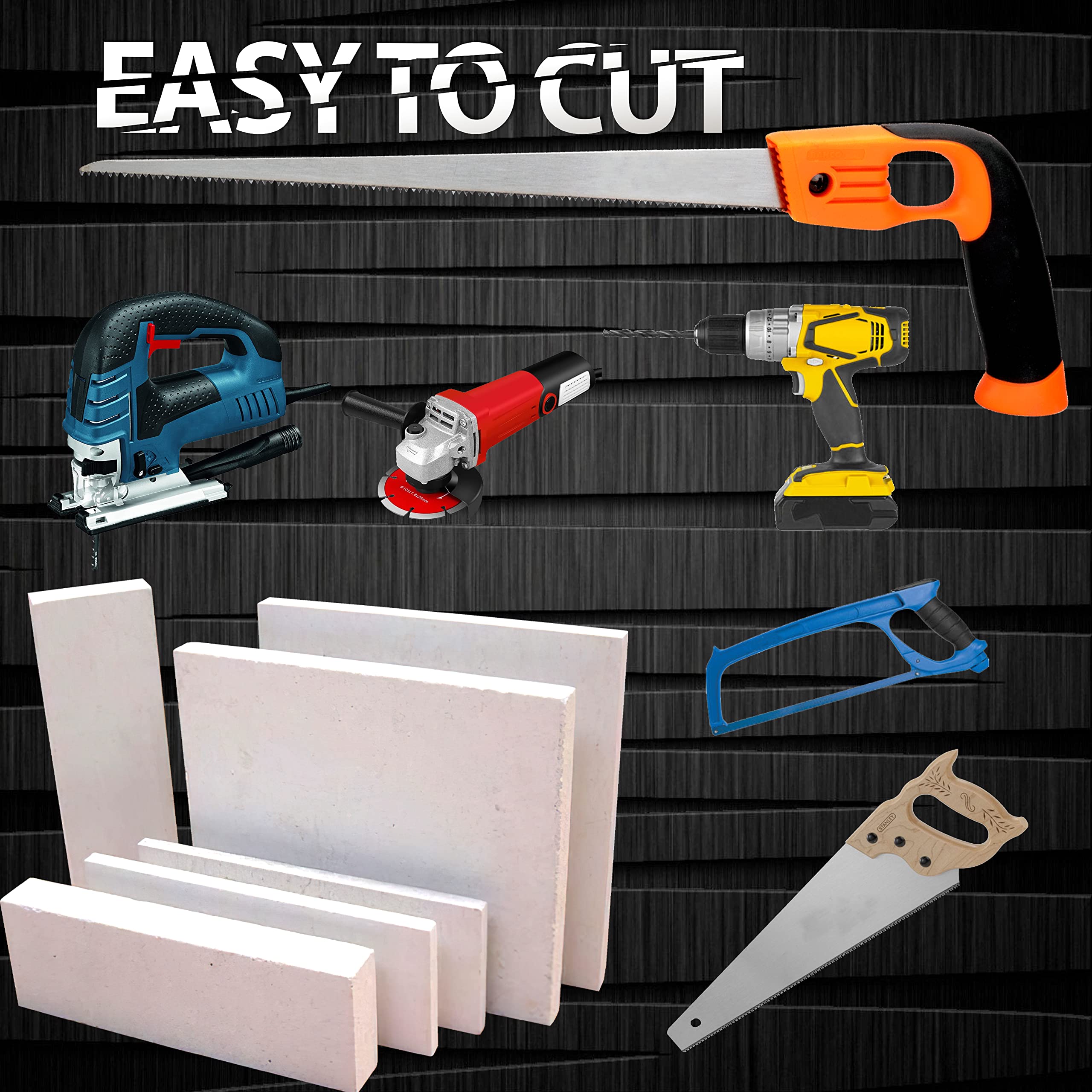

Easy to Cut - This ceramic board can be easily cut with a knife or hacksaw blade and can be drilled and machined. This fire board is not as strong as fire brick, it dents easily

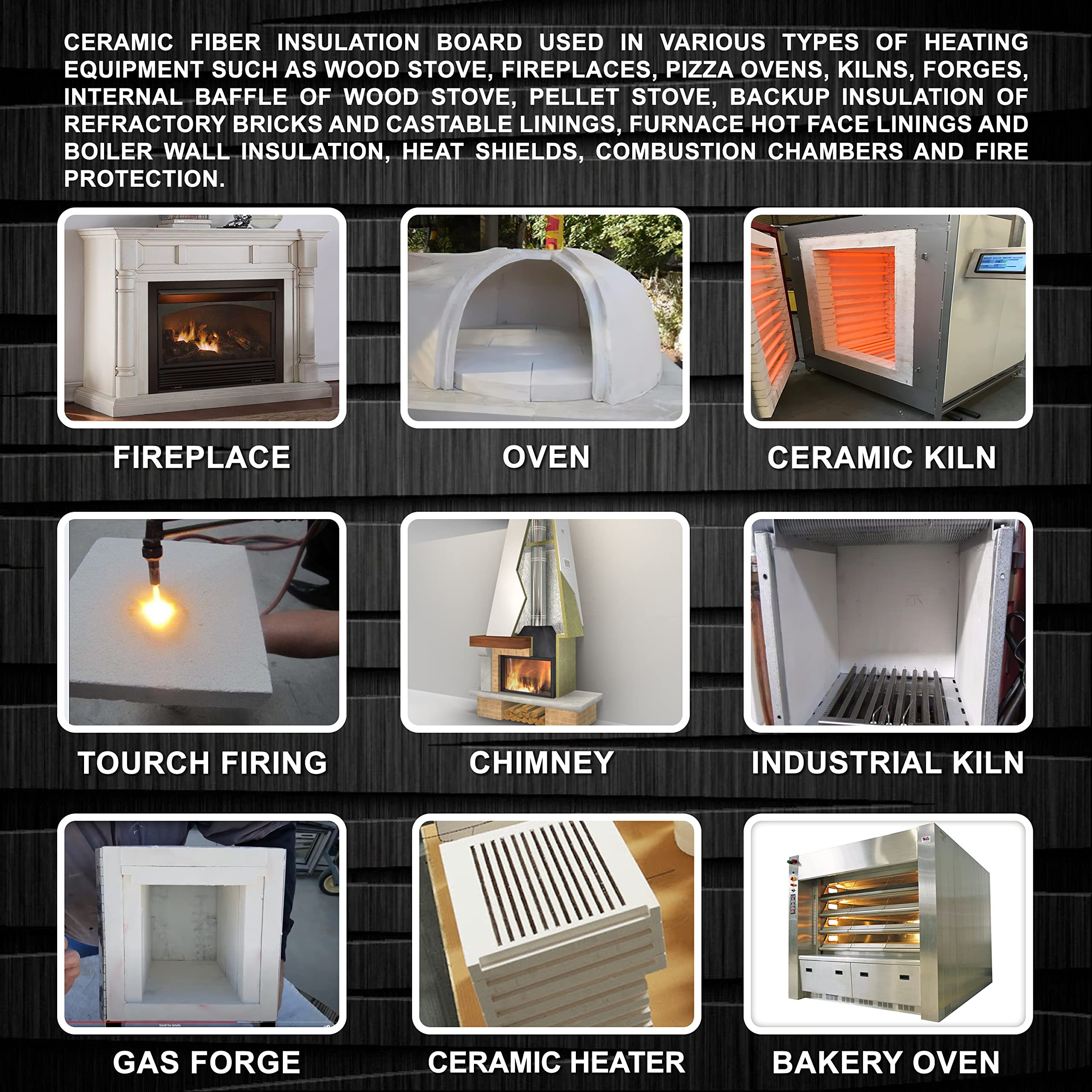

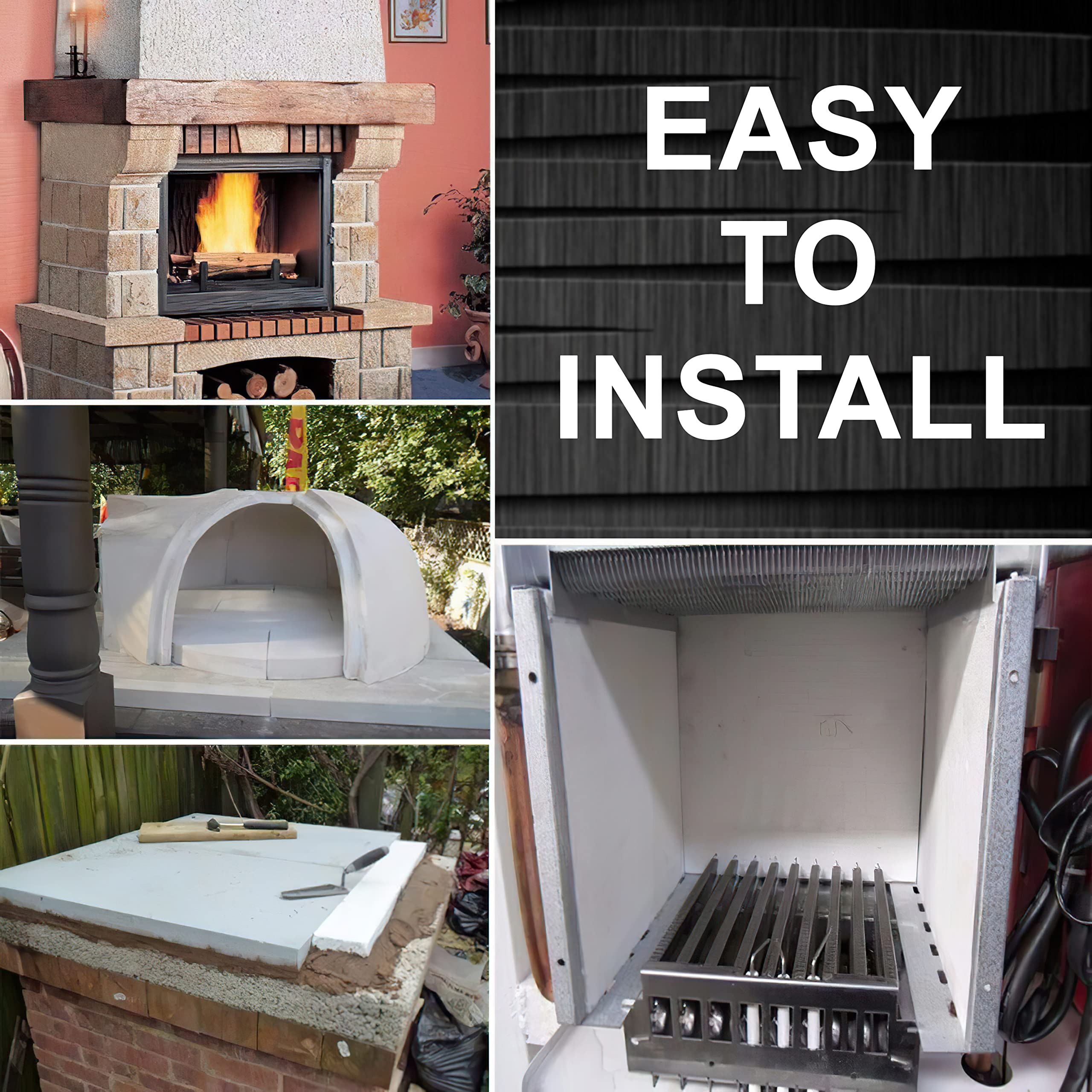

Various Uses - Fireproof board can be used to repair or build, Wood Stove, Fireplaces, Pizza Ovens, Kilns, Forges, Internal Baffle of Wood Stoves, Pellet Stoves, Backup Insulation of Refractory Bricks and Castable Linings, Furnace Hot Face Linings, and Boiler Wall Insulation, heat shields, combustion chambers and fire protection. Commonly used to make target walls, front plates, and floor insulation

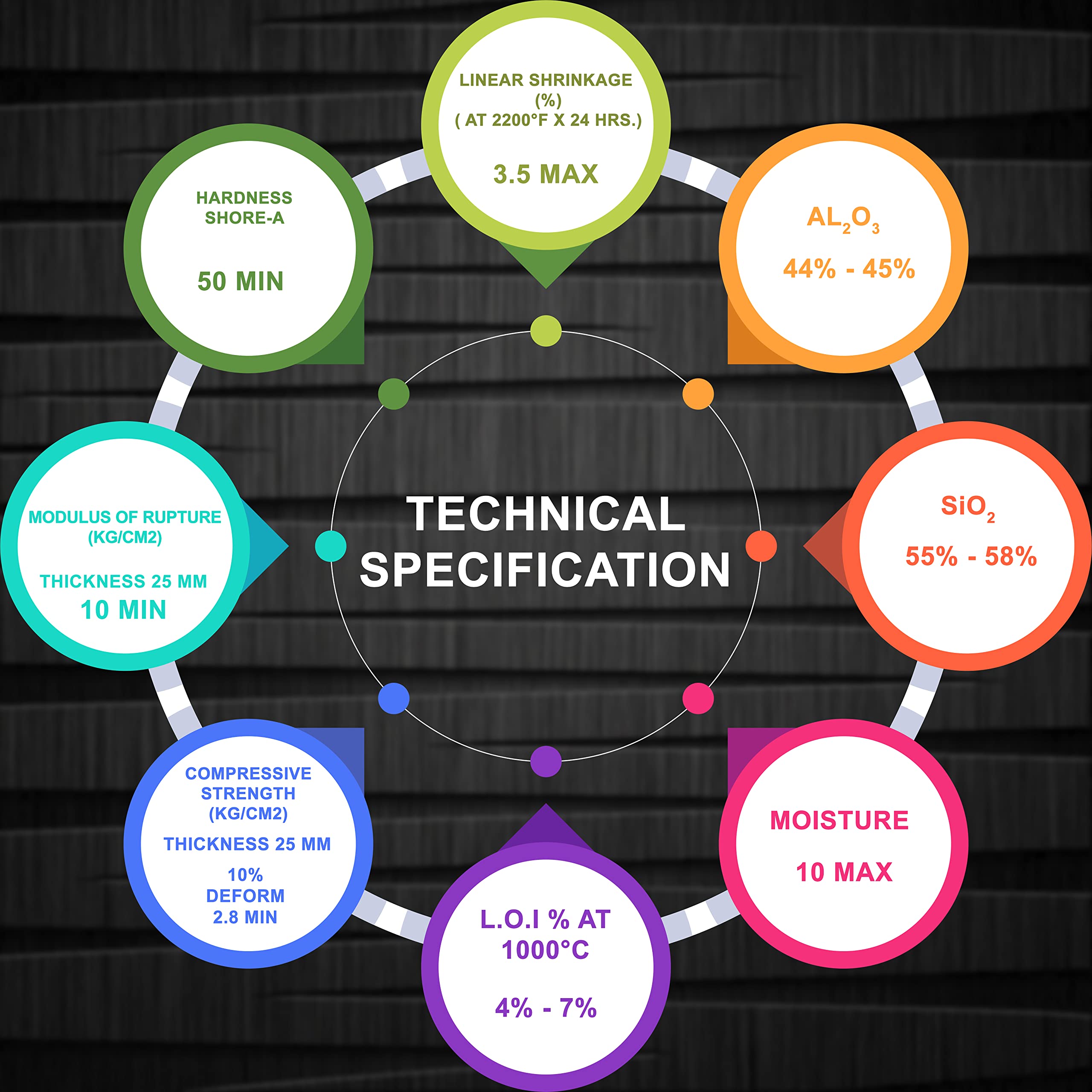

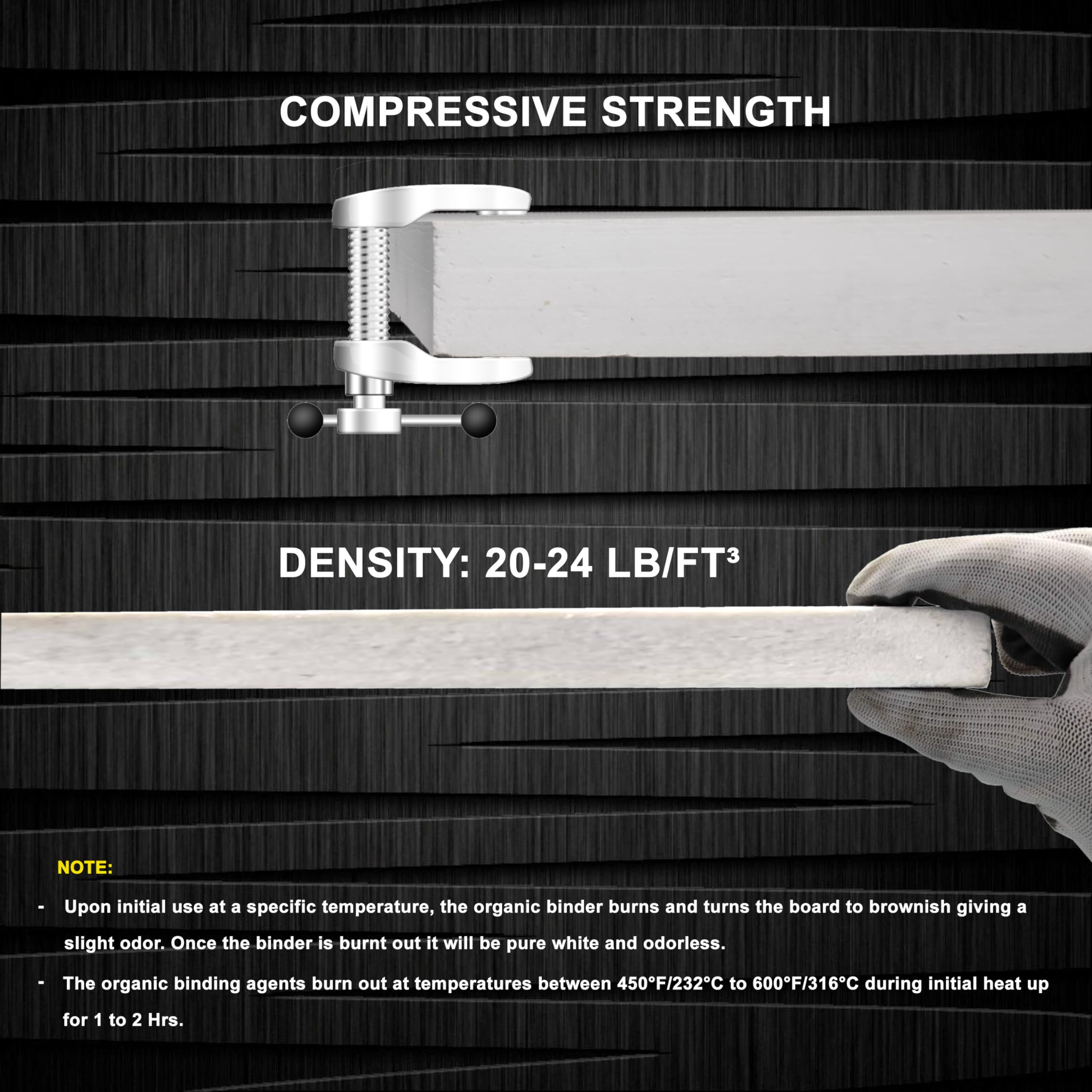

Good Compressive Strength - This fiber board has good compressive strength at 25% deformation - 78 PSI, Permanent Linear Shrinkage - 3.5% Max at 2200F when exposed to 24 hours soaking heat, Loss on Ignition (LOI) at 1832F 4-7 %
