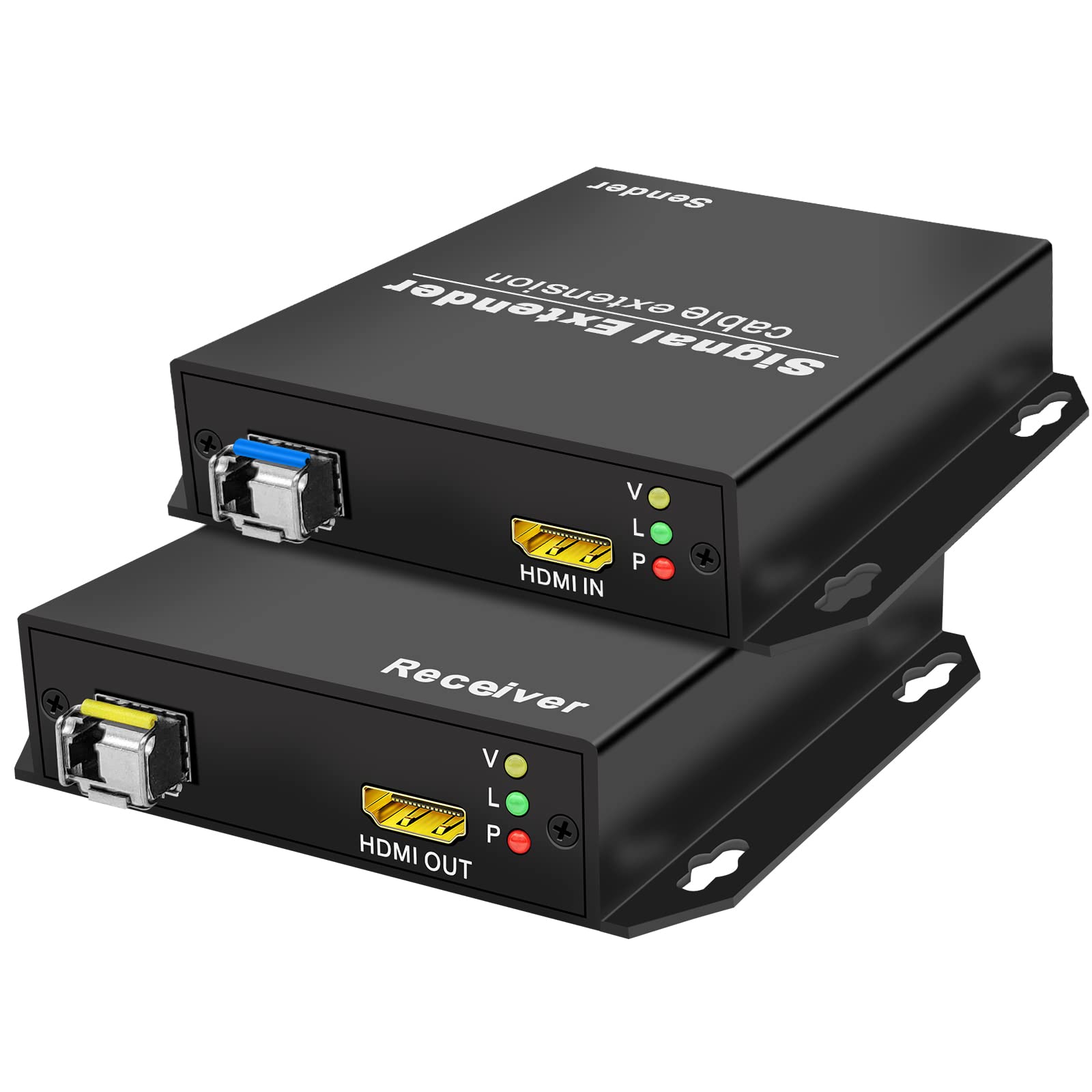

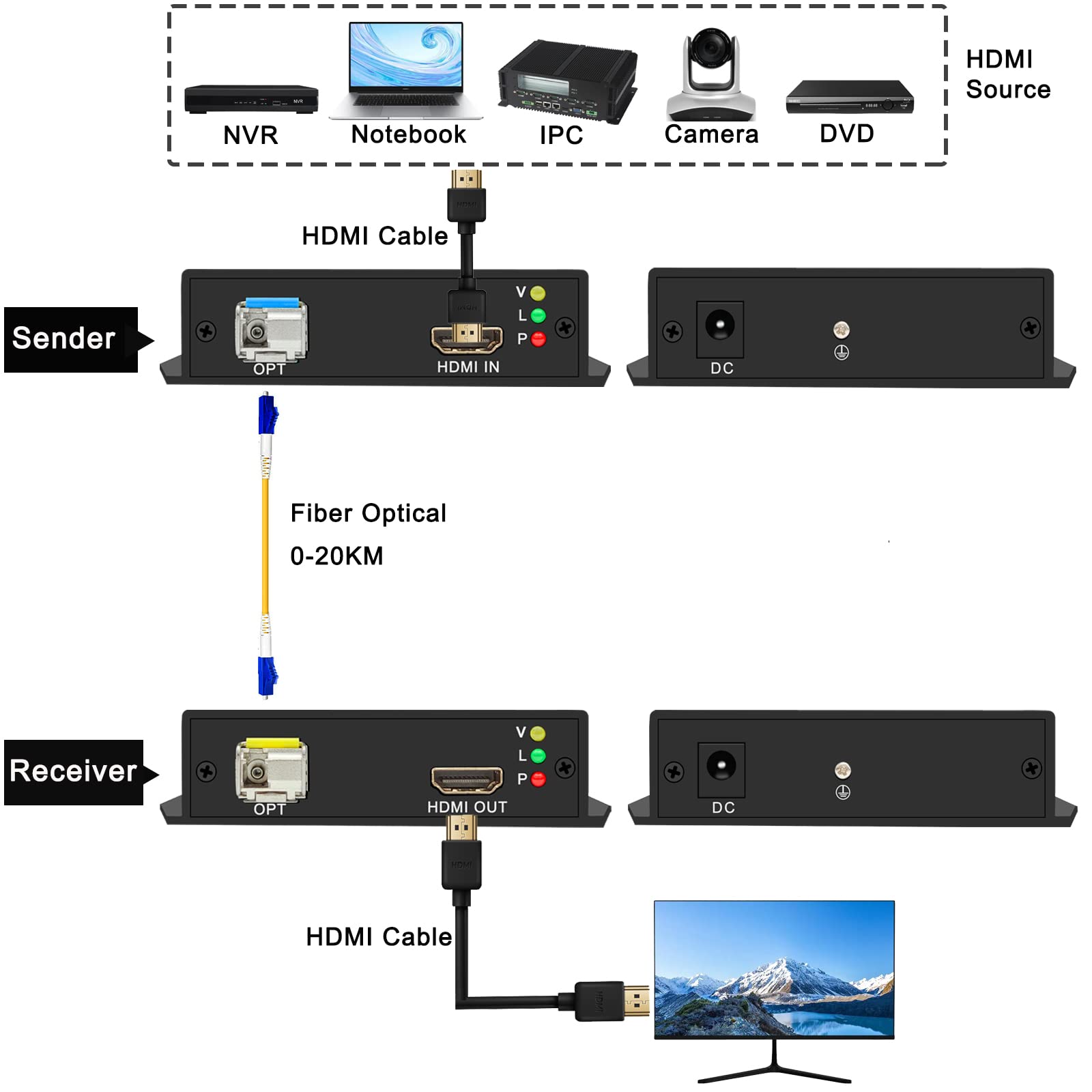

1080P@60Hz HDMI Extender over Fiber 20KM Features: Extend HDMI signal up to 20KM through a single SM Fiber cableDigital uncompressed transmission, clear image and strong anti-interference abilitySupport multiple resolutions up to 1920×1080@60Hz, Support HDMI1.3 and HDCP1.2Compatible with DVI signals when using an HDMI-to-DVI adapterPremium metal housing offers excellent heat dissipation, enhances durability, and minimizes EMI/RF interference for long life and dependable performance LornCeng HDMI Extension Adapter Repeater Installation Steps: Make sure you have all the cables needed, power off the all connected devices including your HDMI video source and HDMI display. Then install in the following order: Connect your HDMI source to the Sender's "HDMI IN" connector with an HDMI cable.Connect an SM/MM fiber cable to the OPT connector on the Sender unit. Plug one of the included power adapters into the DC power jack of the Sender, then plug the power adapter into any reliable power sources.Connect your HDMI display to the Receiver's "HDMI OUT" connector with an HDMI cable.Connect the other end of the fiber cable to the OPT connector on the Receiver Unit. Plug the second power adapter into the DC power jack of the receiver, then plug the power adapter into any reliable power sources.Power on all the connected devices. Now, the HDMI extender is ready to use. Specifications Transmission distance Single-mode fiber: 0-20km HDMI version HDMI1.3 HDCP version HDCP1.2 Video resolutions 1080p/1080i/720p/720i/576p/576i/480p/480i Color depth 24-bit/30-bit deep color/36-bit deep color Audio formats DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD TMDS 0.5-1.5Vp-p(TTL) DDC 5Vp-p(TTL) Cabling type LC connector, SM/MM fiber cable Power supply Input: AC110V-220V, 50/60HZ, Output: DC9-12V/1A Working temperature -15℃-55℃ Storage temperature -40-80℃ Humidity 0-95% (non-condensation) 1080P HDMI Extender over Ethernet Cable 1080P HDMI Extender over Fiber Cable 4K HDMI Extender over Ethernet Cable 4K HDMI USB KVM Extender over Ethernet Cable 4K HDMI USB KVM Extender over Fiber Cable Add to Cart Add to Cart Buying Options Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars 10 4.1 out of 5 stars 13 5.0 out of 5 stars 1 4.4 out of 5 stars 22 2.9 out of 5 stars 4 Price $49.99$49.99 $93.99$93.99 — no data $145.99$145.99 $239.99$239.99 Interface HDMI HDMI HDMI HDMI & 4 ports USB HDMI & 4 ports USB Video Resolution 1080P@60Hz 1080P@60Hz 4K@30Hz 4K@30Hz 4K@30Hz Transmission Range 558ft (170m) 65617ft (20km) 410ft (150m) 394ft (120m) 65617ft (20km) One to Many over IP ✓ no data ✓ no data no data Microphone no data no data no data ✓ ✓ Bidirectional Audio no data no data no data ✓ ✓ Bidirectional RS232 no data no data ✓ ✓ ✓ IR Control no data no data ✓ ✓ ✓
Up to 20KM Extension This HDMI over fiber sends HD 1080p HDMI signal to remote transmission through a Fiber Optic cable with LC connector
Full HD Resolution HDMI fiber extender supports up to 1920*1080@60Hz resolution, specially supports 1600*1200@60Hz. Compatible backwards with lower resolution
Uncompressed Transmission HDMI to fiber converter can transmit the uncompressed signals up to 20km with no delay and no loss, audio and video synchronous transmission
Multi-scene Application HDMI over fiber extenders is great ideal for applications such as security monitoring, broadcast, video conferencing, multimedia classrooms, high-end medical imaging, interactive digital signage, home theatres, education systems and even industrial automation

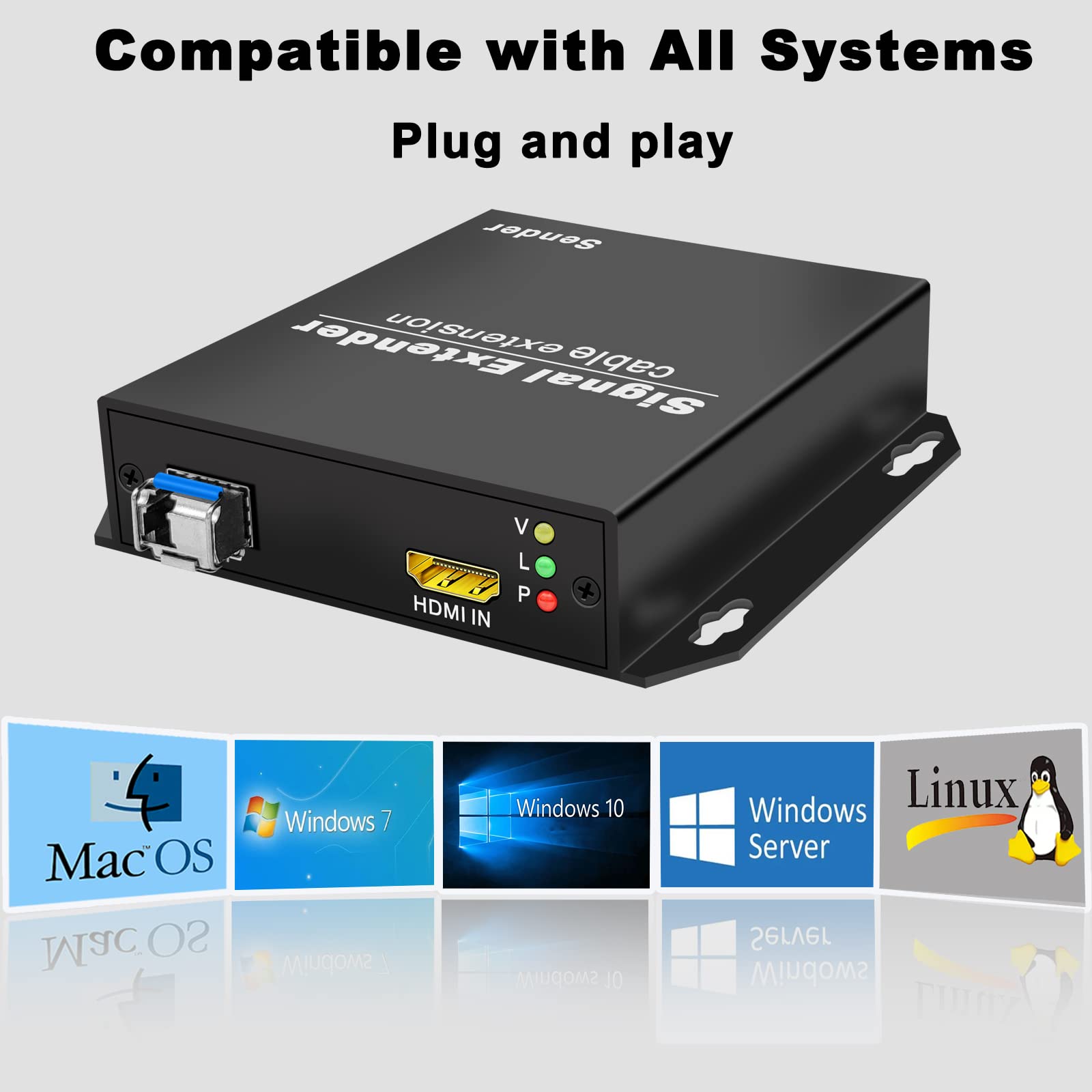

Simple Plug and Play No APP or driver needed. Our products are backed with a 1-year limited warranty and experienced tech support team. If you have any questions or concerns, click on our name in the buy box and select "Ask a Question"
