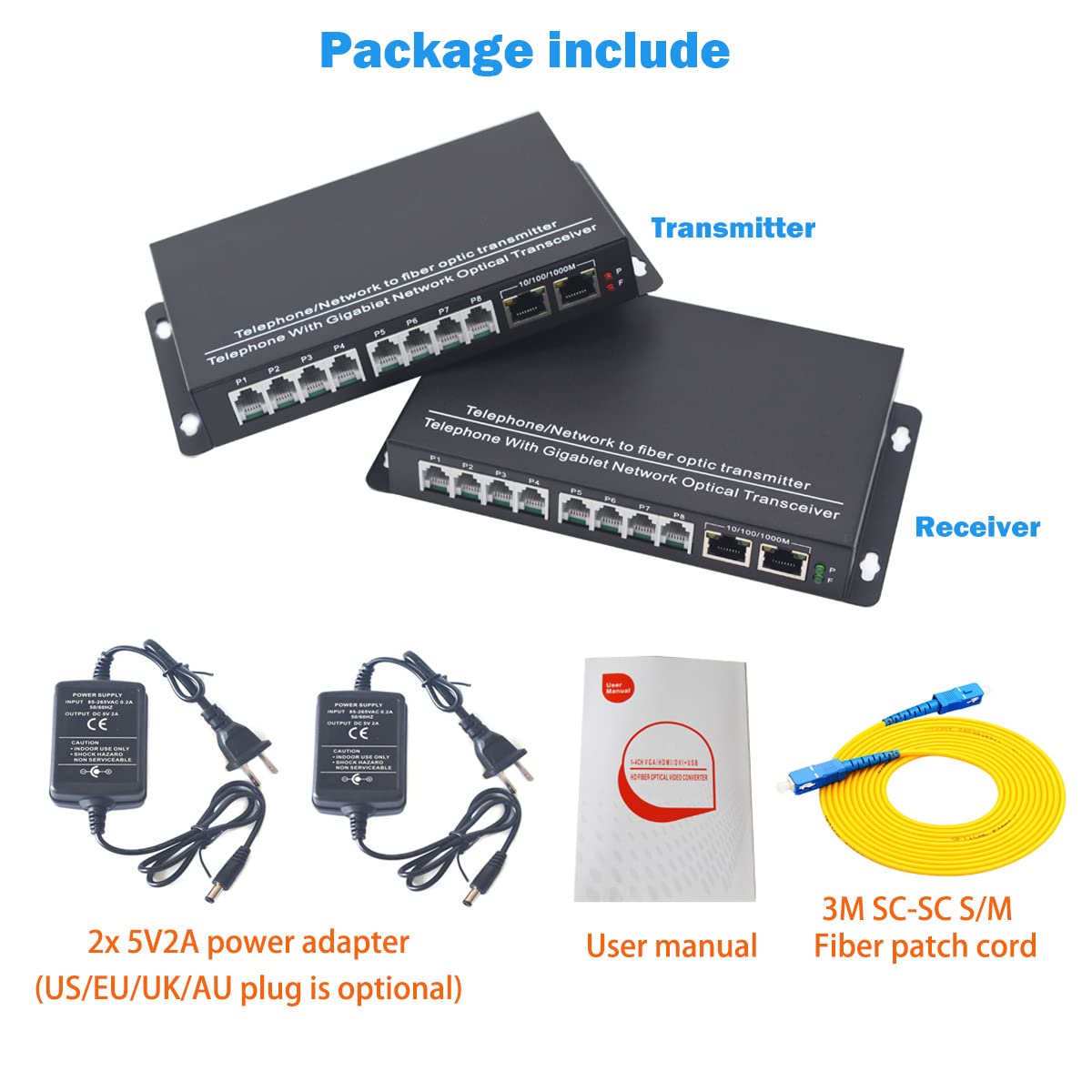

Specification: Phone RJ11 port specifications: 1.Voice coding: PCM coding, 64Kbps per voice 2.Crosstalk attenuation: ≥65dB 3.Balanced noise: ≤63.7dBmop 4.Insertion loss: -3 ± 0.75dB 5.Frequency characteristics: 300 to 3400 Hz (-0.6 to +3 dB) 6.Relay port (FXO): connected to the switch 7.Two-wire AC input impedance: 200+680//0.1 Ω (three components) 8.Ringing voltage: 35 ~ 150V 9.Ringing frequency: 17~60HZ 10.Return loss: 20 db 11.User Interface (FXS): Connect to the user's telephone 12.Two-wire AC input impedance: 200+680//0.1 Ω (three components) 13.User line loop resistance: less than 1KΩ (including phone) 14.Ringing voltage peak-to-peak value: 110~150V 15.Ringing frequency: 22~28HZ 16.Feed voltage: 28V 17.Feed current: 20~50mA; 18.Return loss: 20 db 19.Bell flow: AC90 plus or minus 15V Ethernet RJ45 port specifications: 1. Rate: 100M/1000Mbps, full duplex, half duplex fully adaptive 2. Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN) 3. Physical interface: RJ45, support AUTO-MDIX (cross line straight line adaptive) Power supply: 1.Working voltage AC100~240V, DC5V/2A. 2.US/EU/UK/AU power supply adapter is available. Package include: 1x Telephone over fiber Transmitter 1x Telephone over fiber Receiver 1x FREE 3M SC/SC SM fiber patch cord. 2 x External power supply adapters 1 x Manual

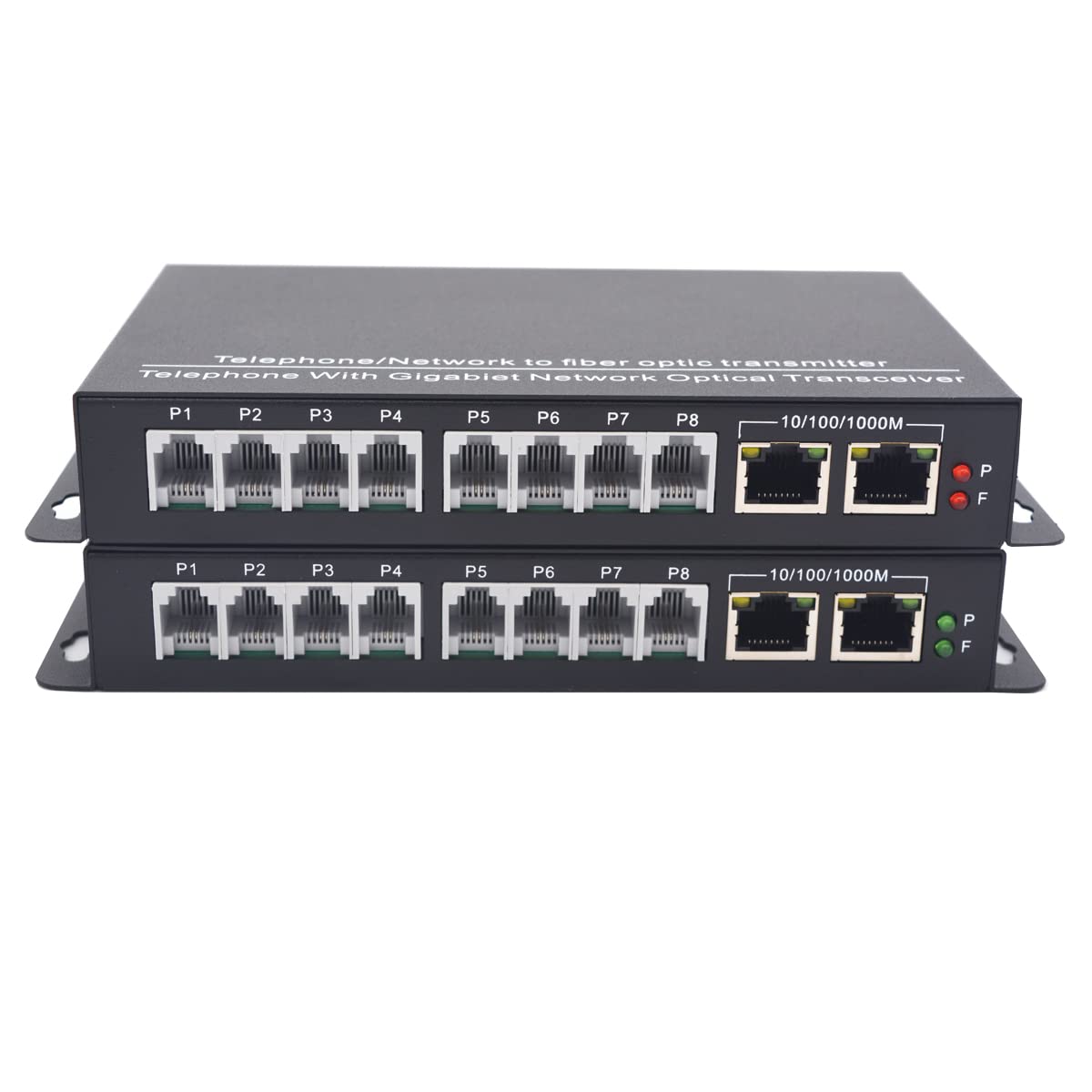

Extend your landline phones and Network 2 Independent telephone lines + 2 Gigabit Ethernet (10/100/1000 Mbit/s) Autosensing port over fiber optic to far end. Gigabit Ethernet connection will over SAME fiber optic along with 2 phones.
Suitable for Both Fiber Types (Single-mode and multimode). Single-mode (SM) fiber for a long distance up to 20 km(12.4miles), Multimode (MM) fiber for a distance up to 500m(0.31miles).
Support Called id & Ring, even Fax Supported. No Delay Transmission and Protocol Support Unlike VoIP products - these converters transmit signals directly over fiber cables, thus offering NO DELAYS, plus support for fax & legacy applications that is not supported by VoIP lines.

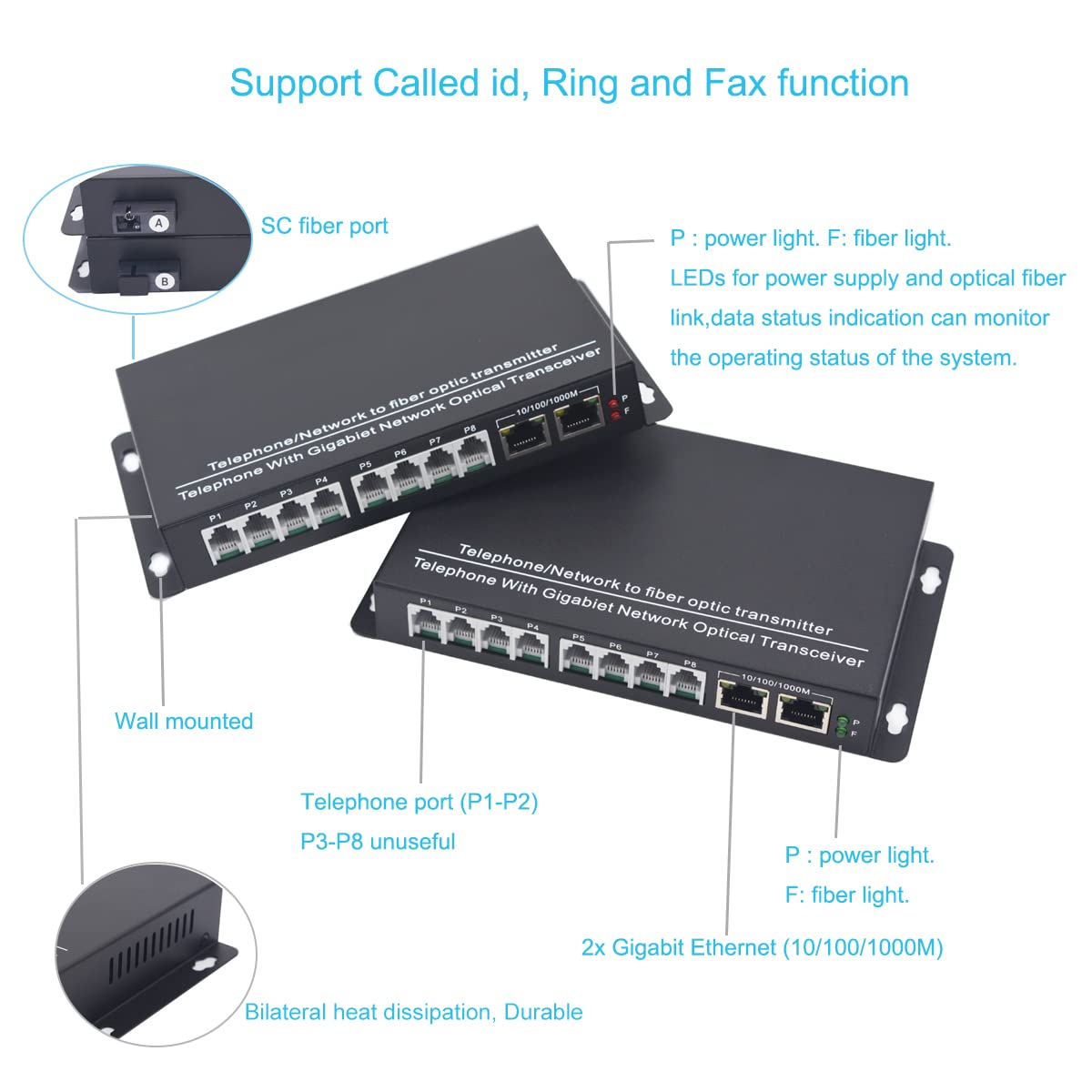

Compact design, Durable Metal. Bilateral heat dissipation. LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system.

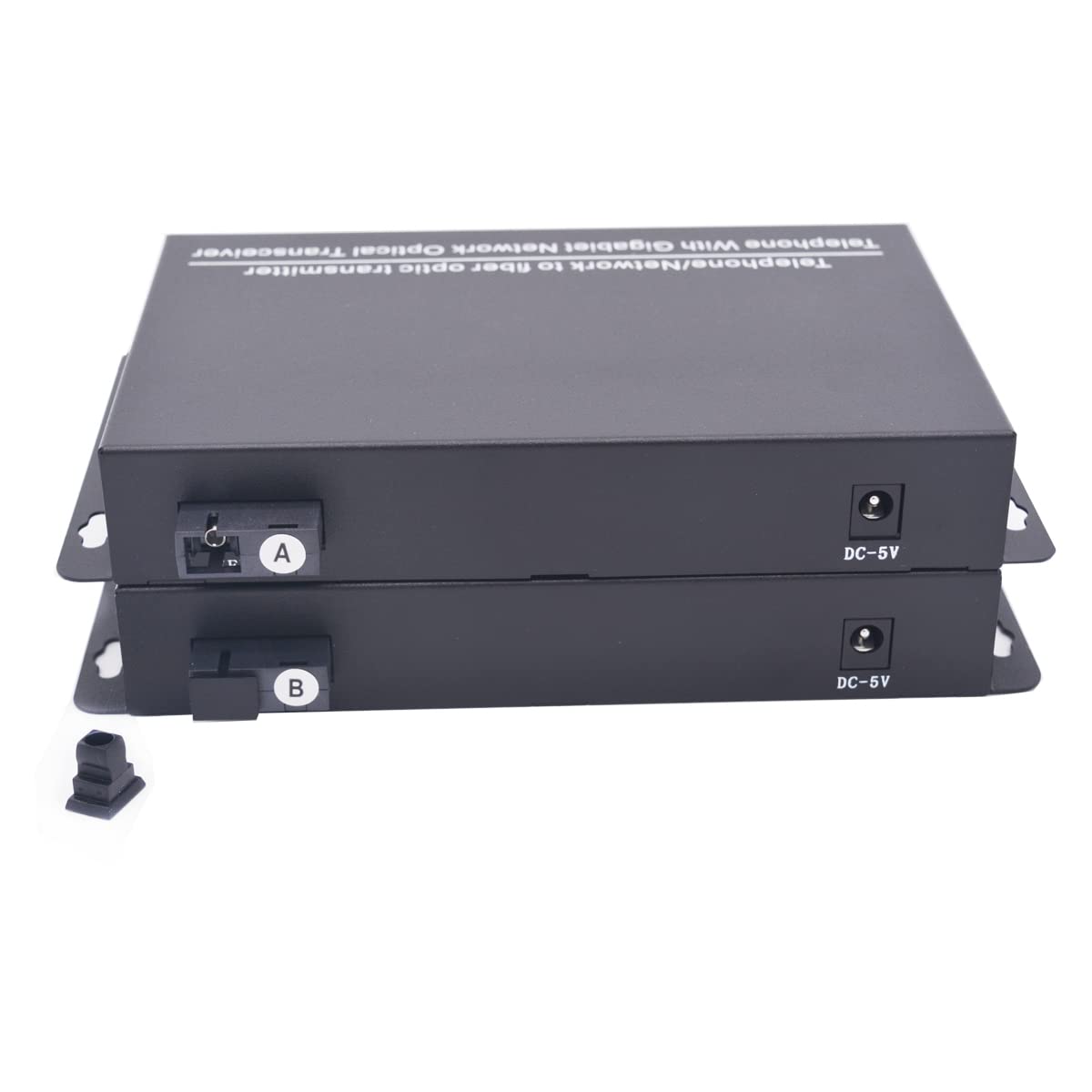

Simple to Install, Plug and Play, No setup or configuration needed, SC connector for fiber optical port, RJ-11 connector for telephone ports and RJ-45 for Ethernet.
