Gigabit Fiber to Ethernet Media Converter Kit - LC Single Mode, 20km Fiber Optic Network, Plug & Play, Industrial SFP Modules | Point-to-Point Networking Solution for Office, Data Center & Industrial Applications

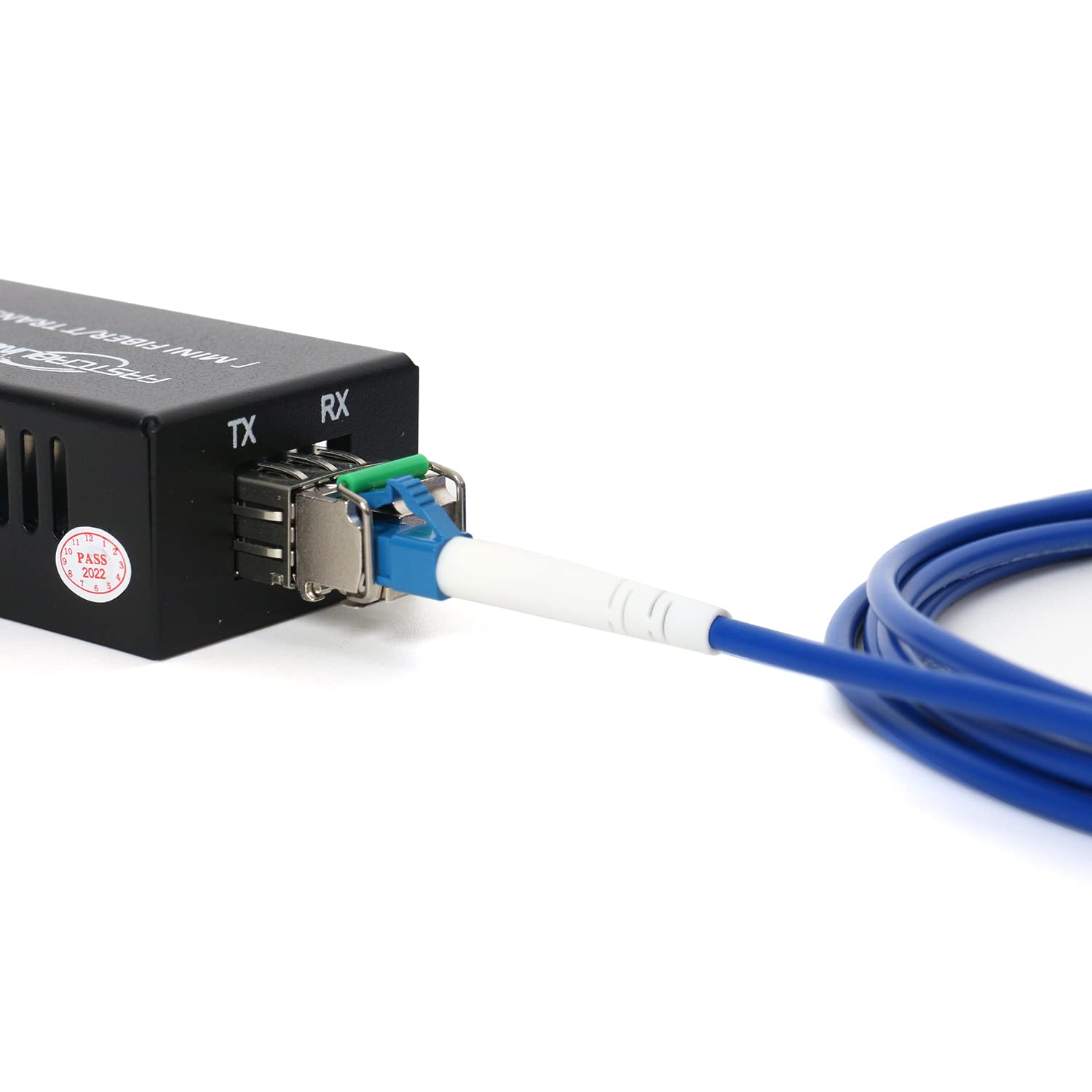

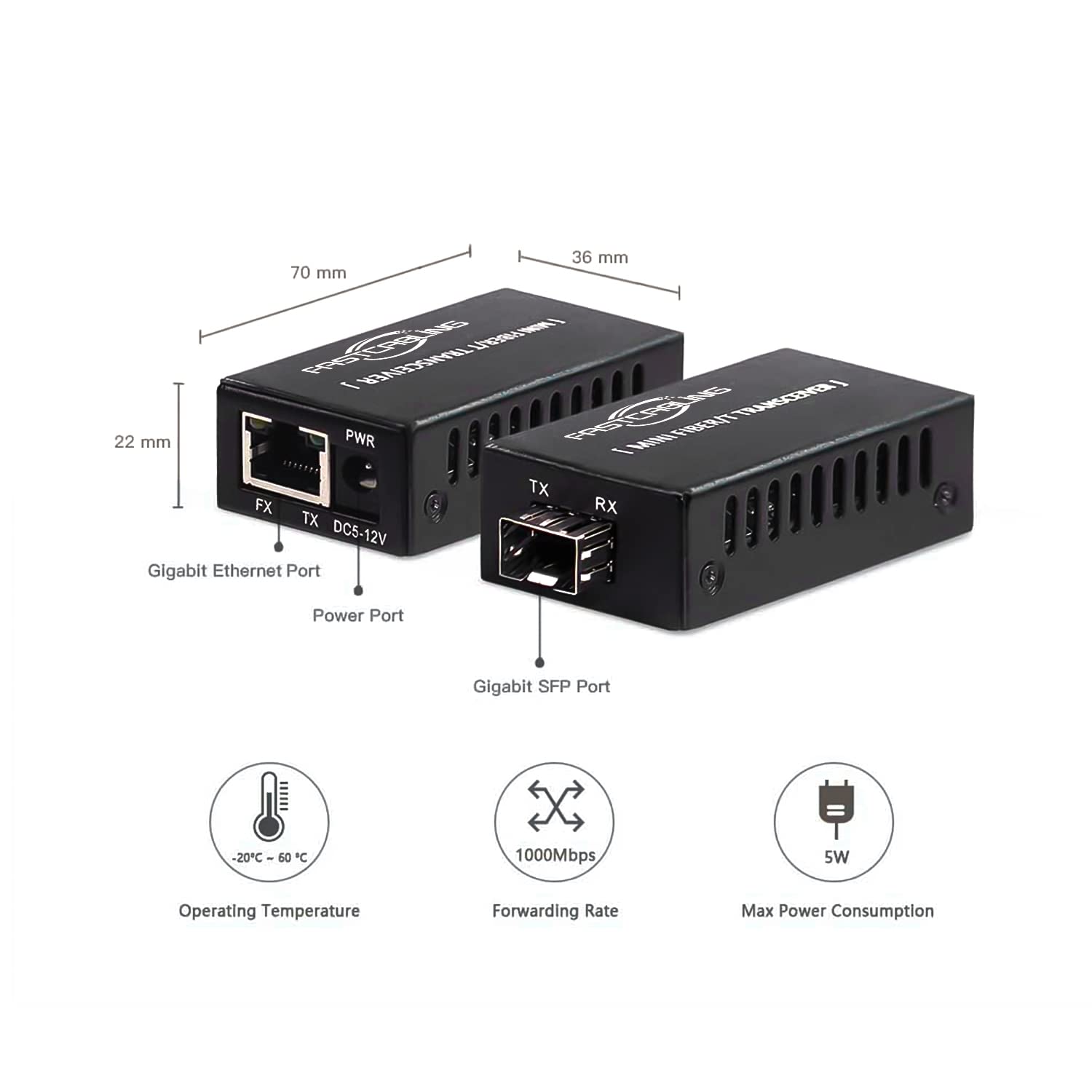

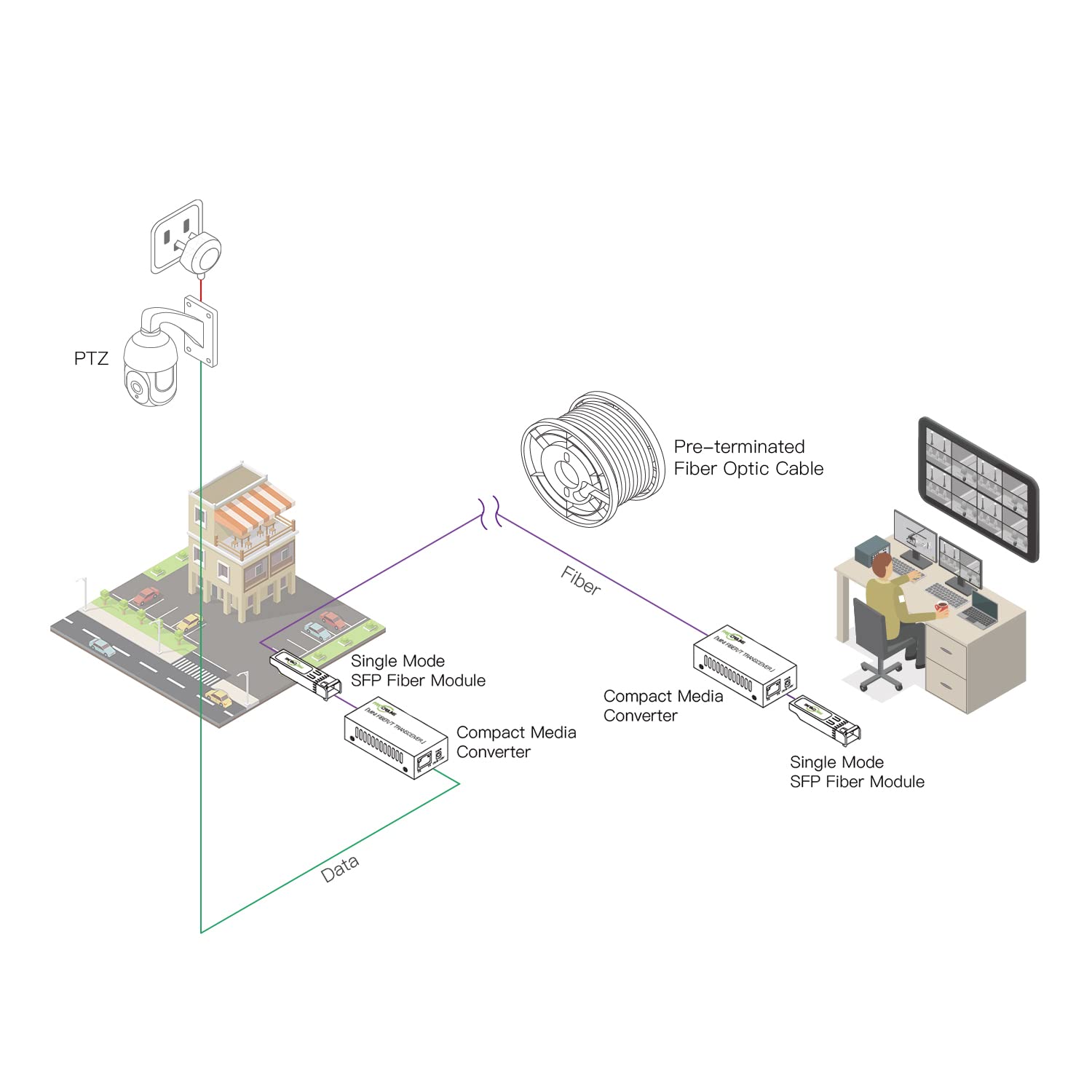

You can’t attach fiber optical cable to most IP devices such as IP cameras, and access points directly. 5843-29 is the complete kit to provide the conversion between fiber optical cable and cat5e/cat6. The BiDi transceiver takes different wavelengths to transmit and receive data. You only need a single fiber core to set up the network link. The temperature is a challenge for all IP devices. 5843-29 can work under a wide range of temperatures between -20 degrees to 60 degrees. The media converter also accepts the voltage between DC5V to DC12V. The DC12V power supplies are included Working with pre-made fiber optical cable (LC type UPC surface) from Fastcabling, you don’t even need to deal with the fiber cable connector. Simply pull the fiber cable between point A and point B, then attach the LC connector to the media converter at both ends. The whole system setup could just take a few minutes after you have wired the cable. Technical Specifications Standards IEEE802.3, IEEE802.3u, IEEE802.3z Transmission Mode Full / Half Duplex Networking Interfaces (1) 1 Gbps SFP slot (1) 1 Gbps RJ45 Ethernet Ports Management Interface Plug and play Power Method DC5V 1A LEDs Per Port PWR, FDX, FX/ACT, TX/ACT, 100M, 1000M ESD/EMP Protection Air: ± 4 kV, Contact: ± 2 kV Surge Protection Different mode ±2 kv, Common mode ±4 kv Operating Temperature -20°C ~ 60 °C Cooling Mode Fanless Operating Humidity 5% ~ 90% non-condensing Certifications CE, FCC, IC Casing Aluminum case Mouting Options Desktop / Wall Mounted 100M Pre-terminated Fiber Optic Cable 300M Pre-terminated Fiber Optic Cable 500M Pre-terminated Fiber Optic Cable LC to LC Fiber Optic Cable Extension Coupler Buying Options Buying Options Buying Options Add to Cart Customer Reviews — — — 5.0 out of 5 stars 2 Price — no data — no data — no data $20.85$20.85 Length 100m 300m 500m no data Connectors LC to LC LC to LC LC to LC no data Jacket Type Armor + PVC Armor + PVC Armor + PVC no data Operating Temperature > -20 ~ +60°C > -20 ~ +60°C > -20 ~ +60°C no data
