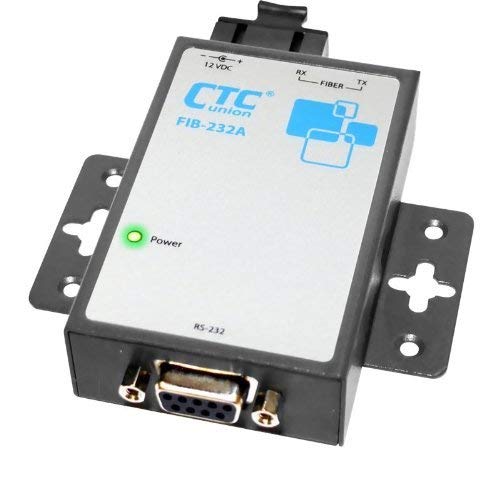

The FIB-232A-SC002 provides a fiber converter solution to extend 3 wire serial RS-232 interface transmission up to 2km over multi-mode fiber. Unit is also available with longer range optics, single-mode and BiDi WDM optical modules for operation on single strand fiber optic circuits. The FIB-232A secures data transmission over EMI resistant fiber at speeds up to 230.4kbps for asynchronous RS-232. It is presented in a compact size with wall mounting holes and it is available also with optional DIN rail mounting.
Interfaces DB9 female connector for RS-232 serial asynchronous port up to 230.4Kbps and SC 155M fiber port
Operating wavelength 1310nm multimode, Operating distance 2Km on 62.5/125um fiber, power budget 11dB, Optical connector dual SC
Power LED, rugged metal casing with wall mounting holes
Power External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug - included in the box
Temperature 0 — 70°C (Operating); -20 — 90°C (Storage), Humidity 0 — 90% non condensing, Consumption less than 4W, Dimensions(WxDxH) 85.6mm x 122.6mm x 20mm, Weight 260g (without AC adapter), Compliance CE, FCC Class A, MTBF 67,000 hours
