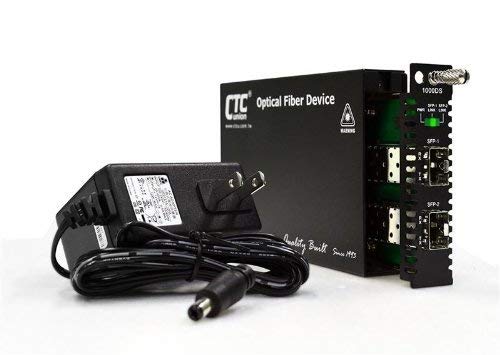

The core strength of FRM220-1000DS media converter is the ability to convert any signaling rate, from 155Mbps to 1.25Gbps, being an Universal Fiber Converter - ideal for any communication standard like: Fast and Giga Ethernet, STM-1 and STM-4, OC-1, OC-3, OC-12 and OC-24, FDDI or Fibre Channel. The FRM220-1000DS Universal Fiber Converter is the state of the art versatile optical fiber media converter for 1000Base-SX/LX/LHX/ZX, WDM /CWDM to 1000Base-SX/LX/LHX/ZX or WDM/CWDM. FRM220-1000DS can accomodate any type of miniGBIC (SFP) optical modules, either multimode or singlemode type, being a perfect choice for applications requiring change from multimode to singlemode fiber operation or to single strand WDM fiber needs. Unit is offering unparalleled flexibility and easy migration from short-haul to long haul fiber connections by simply changing the optical module interface. The unit can be used also as a repeater, to extend fiber optic communication, unit working as a 2R device (reshape and reamplify).
Interfaces two SFP slots supporting multi-rate up to 1.25Gbps, Connectors two SFP(Small Form Pluggable) slots for optical modules, SFP slot multi-rate OC1, OC3, OC12, OC24, STM-1, STM-4, FDDI, Fibre Channel 1G, Fast and Gigabit Ethernet rates supported
Functions 2R, reshape and re-amplify, SFP 2 copies the SFP 1 slot rate; it is mandatory that SFP modules run at same rate
Front LEDs PWR, SFP1 link, SFP2 link
Power External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug - included in the box
Temperature 0 — 50°C (Operating); 0 — 70°C (Storage), Humidity 20 — 80% non condensing (Operating); 0 — 90% (Storage), Consumption less than 4W, Dimensions(WxDxH) 85.6mm x 122.6mm x 20mm, Weight 340g (without AC adapter), Compliance CE, FCC Class A, MTBF 59,000 hours
