50166366

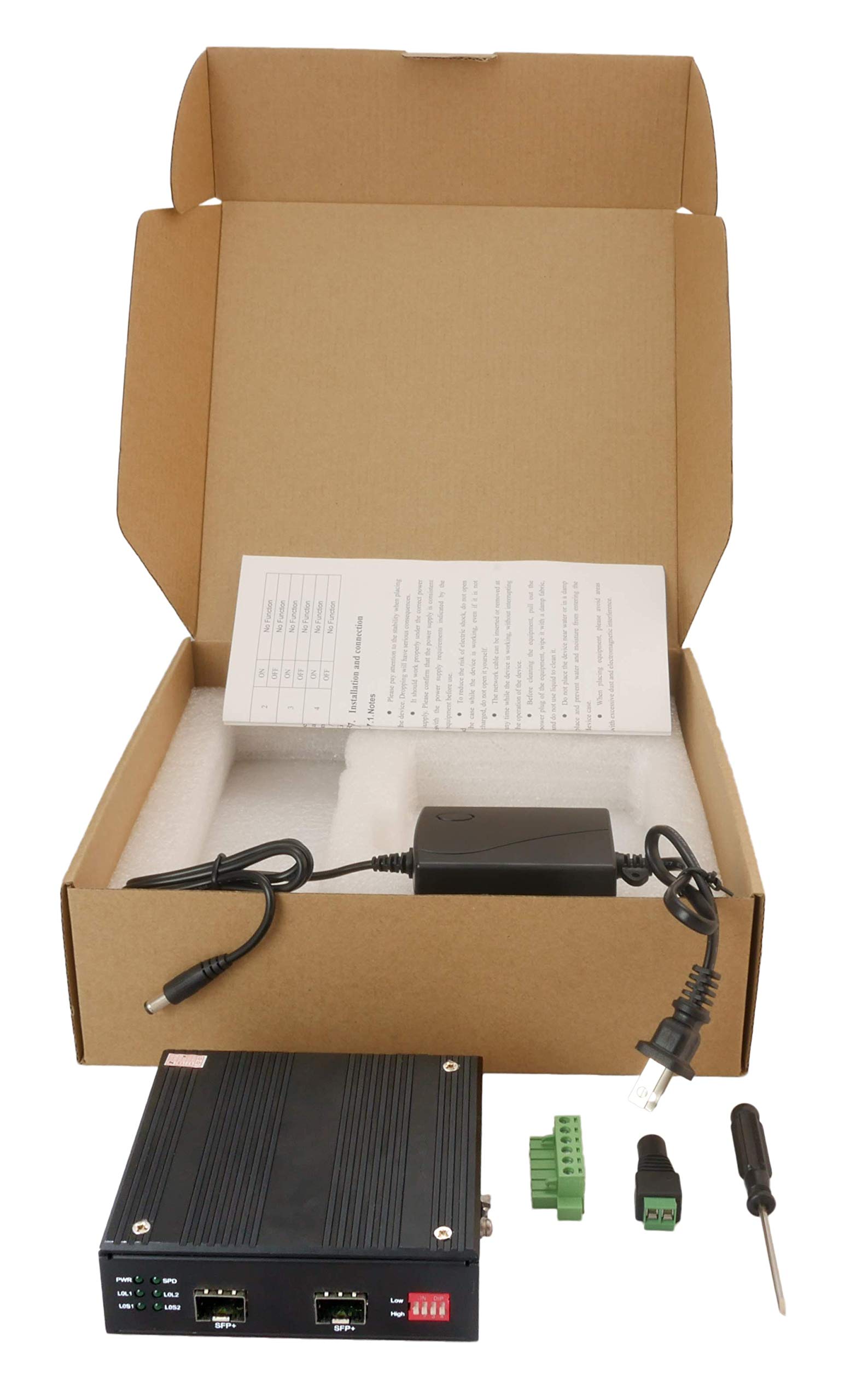

10G Extended Temperature Range SFP+ to SFP+ fiber to fiber converter with DIN rail mount support is a fiber-to-fiber type 10Gbps device that acts not only as fiber optic media converter or as a fiber optic repeater for long-haul transmission, but is an all in one solution to get 10GE fiber network to be Re-Amplificated, Re-Shaped and Re-Timed. 3R Repeater / Extender / Media converter for all your 10G fiber network mode & wavelength conversion needs. More than that - unit supports not only 10G SFP+ type modules - but, also 1G (1.25G) standard MSA compliant SFP transceivers are supported - just select the mode using the dip switch on the front panel! It is commonly used in network backbones (SAN, LAN, MAN, WAN). Supports various protocols such as SDH / SONET STM-64 / OC-192, 10G Fiber Channel, 10G Ethernet, etc. can be used in a telecommunications room, R&D lab, data center, etc. Supports any standard SFP+ 10G or 1G modules with 850nm, 1310nm / 1550nm / CWDM / DWDM optical wavelength conversion. Product featuresJumbo frames supportTransparent signal transmission and low latencyThe rate supports 8.5Gbps~11.7Gbps or also 1.25G (selectable by dip switch)Supports OEO 3R functions: signal amplification and regeneration, waveform shaping, clock retimingEasy installation - Plug & PlayWide Range Protocol Support 8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS Technical ParametersTransmission rate:8.5Gb/s-11.7Gb/sInterface Type: SFP+ standard slotPower supply input voltage:DC 12V~48V(AC adapter comes in set)Power consumption:≤4WOperating temperature:-40°C to +85°C (-40°F to 104°F) Size 110mm(L)*104.5(W)*35mm

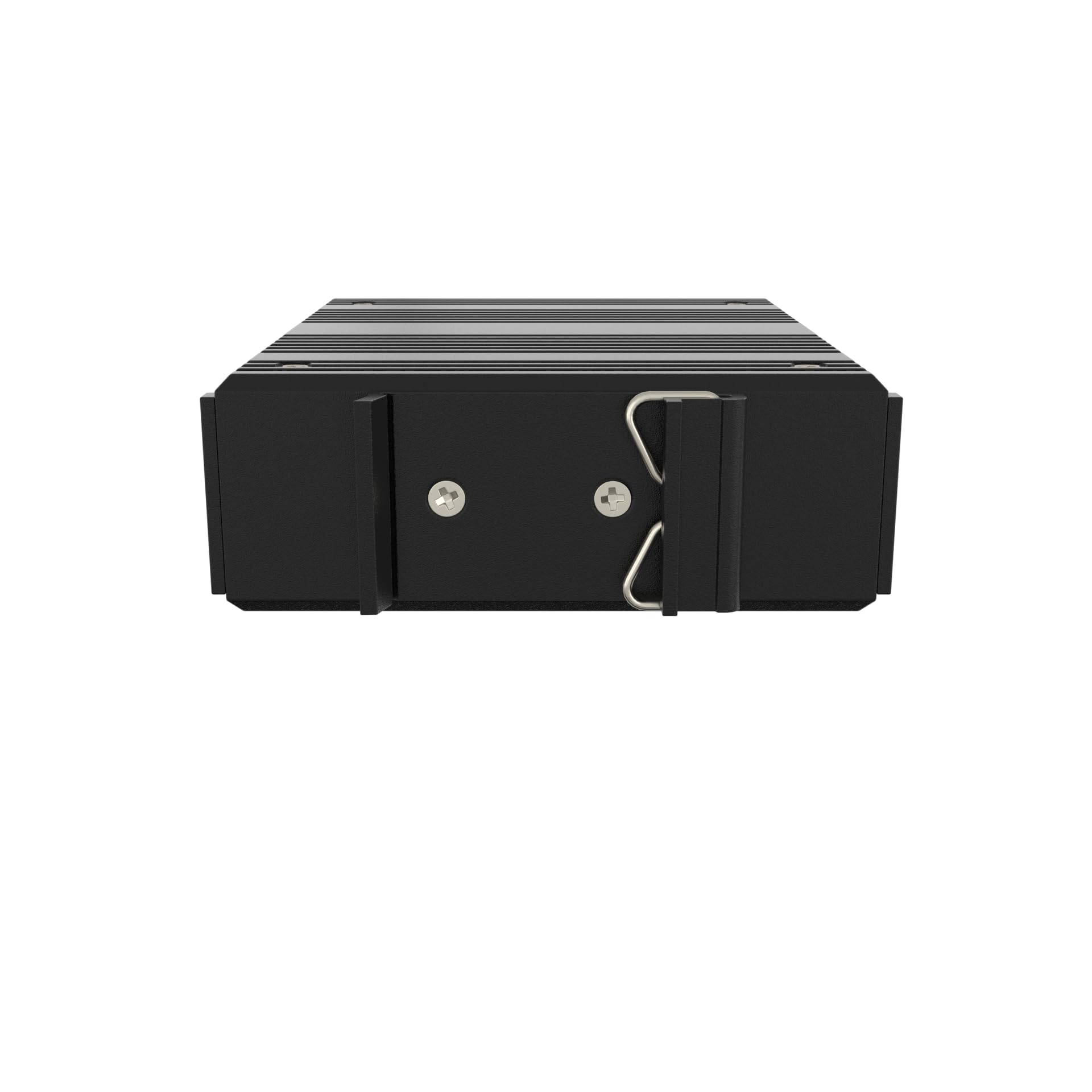

Extended Operating Temperature Range -40°C to +85°C (-40°F to 104°F) & DIN rail support
Durable & Reliable 3R OEO 10G Re-amplification, Re-shaping And Re-timing Device - Signal Repeater, Converter and Extender all in the same box!

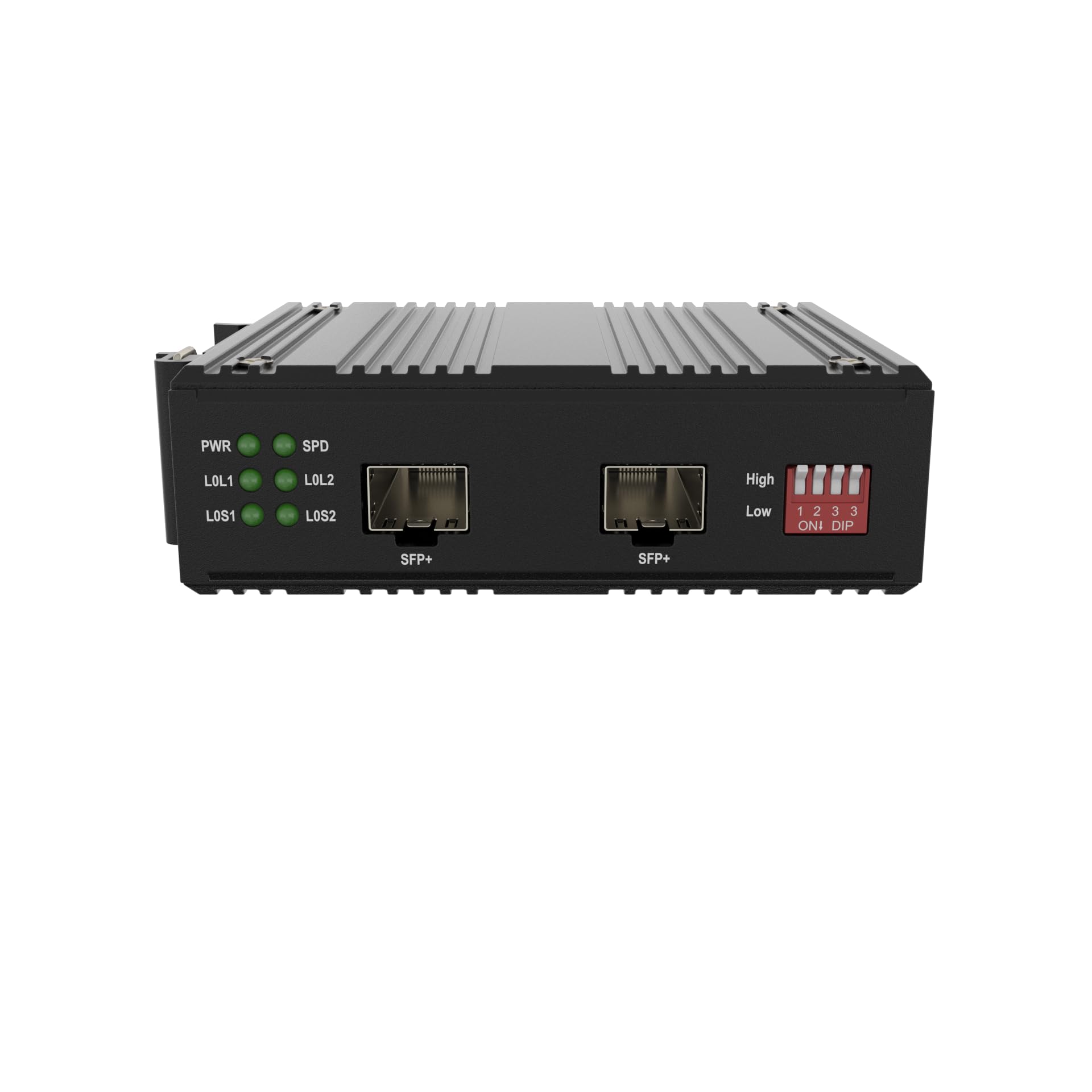

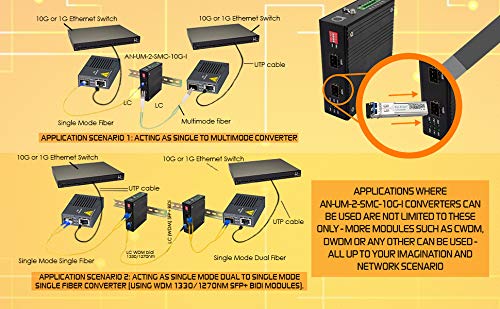

Use it as a Single to Multimode Media Converter - 2 X standard open SFP+/SFP slots for any type of SFP+ modules
Use it for converting & matching wavelengths when interconnecting third party 10Gbps or 1Gbps network devices - i.e. 850 nm to 1300/1310 nm, 1310 nm to 1550 nm, even DWDM and CDWM wavelengths are supported. Just find the correct and matching SFPs for both slots!
Wide range of protocols supported 10G Ethernet, 10G WAN (10Gbps), 10G LAN (10.31Gbps), 8.5G Fiber Channel, 10G LAN with 255/237 FEC coding (11.09Gbps) and more!
