50672845
Support Cameras: TVI: 1080P (1920×1080), 960P (1280×960), 720P (1280×720) CVI :1080P (1920×1080), 960P (1280×960), 720P (1280×720) AHD :1080P (1920×1080), 960P (1280×960), 720P (1280×720) PAL, NTSC and SECAM CCTV camera Optical index: 1.Optical Interface : FC 2.Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm 3.Wavelength: 1310/1550μm4.Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~500meters Video Index: 1.Video : 4 channels 2.Video Interface: BNC 3.Video format support:1080P/960P/720P HD TVI CVI AHD and PAL, NTSC, SECAM analog cameras. 4.Support 1280×720, 1280×960,1920×1080 @25Hz, @30Hz,@50Hz,@60HZ 5.Coaxial cable transmission length: 1080p up to 300meters.720p up to 500meters 6.Video Input / Output Impedance : 75ohm ( unbalanced ). Data index: RS-485 reverse direction data, for remote control camera. Connector: terminal block, 2 wires. Package Include: 1 x 2 channels Video Transmitter 1 x 2 channels Video Receiver 1 X 3M FC/FC singlemode fiber patch cord 2 x Power supply adapter AC100~240V DC5V2A (default US, EU/UK/AU optional) 1 x User manual

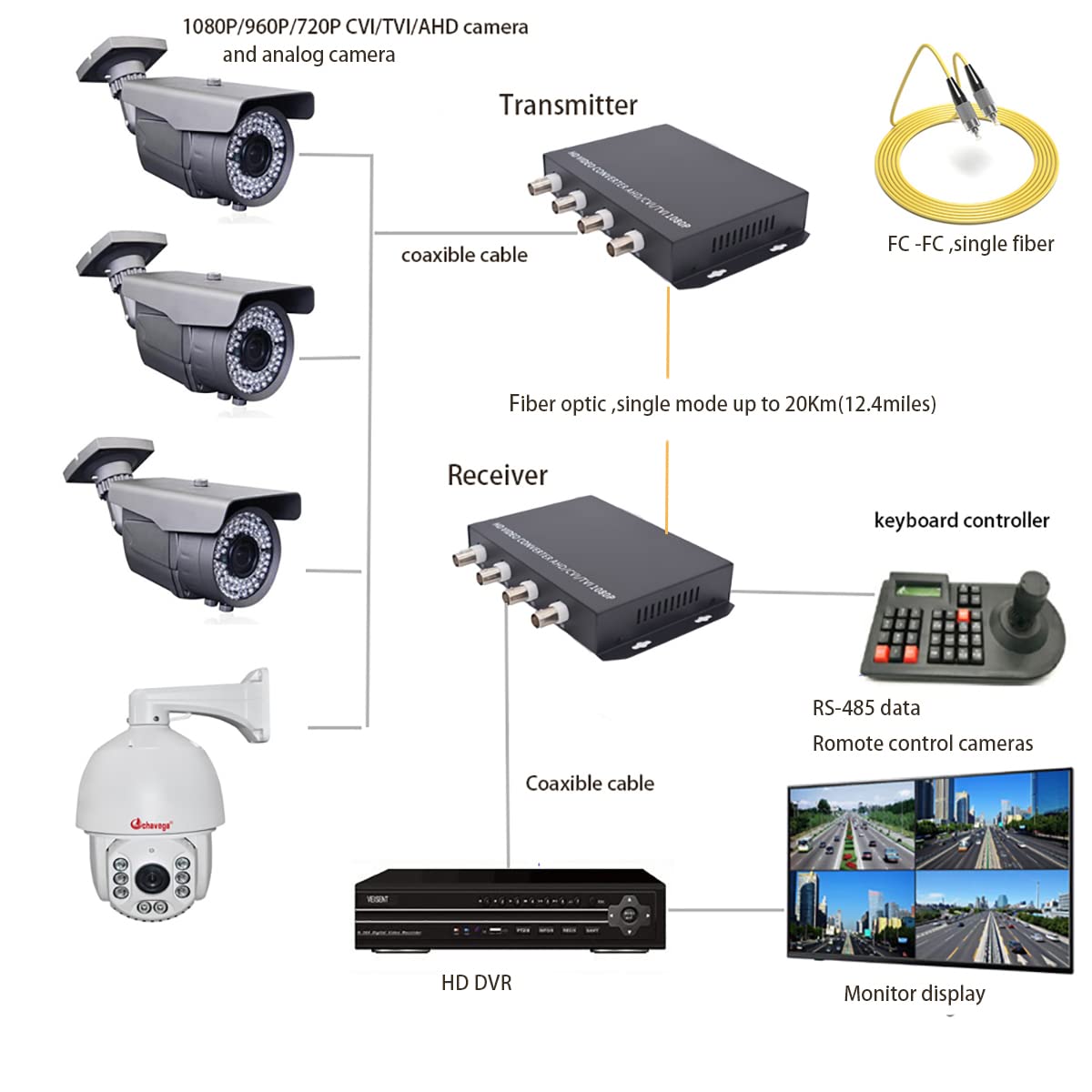

The 4 channels Video over fiber system is used to send HD Video over single fiber to remote display devices, using a single FC/FC Fiber Optic cable. with RS485 data which can control PTZ.
Universal for Fiber Types Same converter (extender) supports Multimode Fiber with distance 500m (0.31miles) and Single Mode Fiber with distance up to 20 km (11.42 miles), wavelength 1310/1550 nm
Support 1080P/960P/720P HD TVI CVI AHD and Analog camera PAL, NTSC, SECAM .

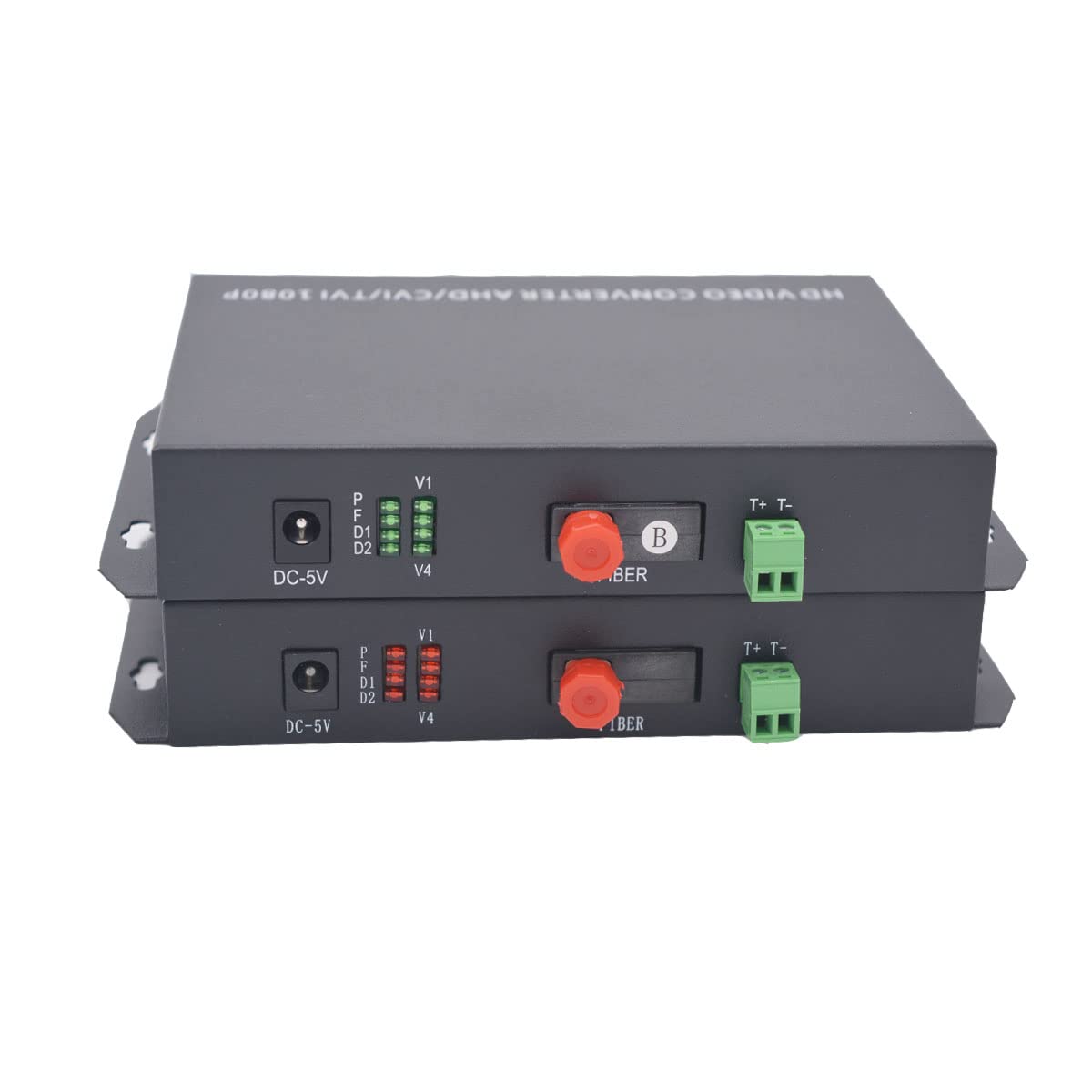

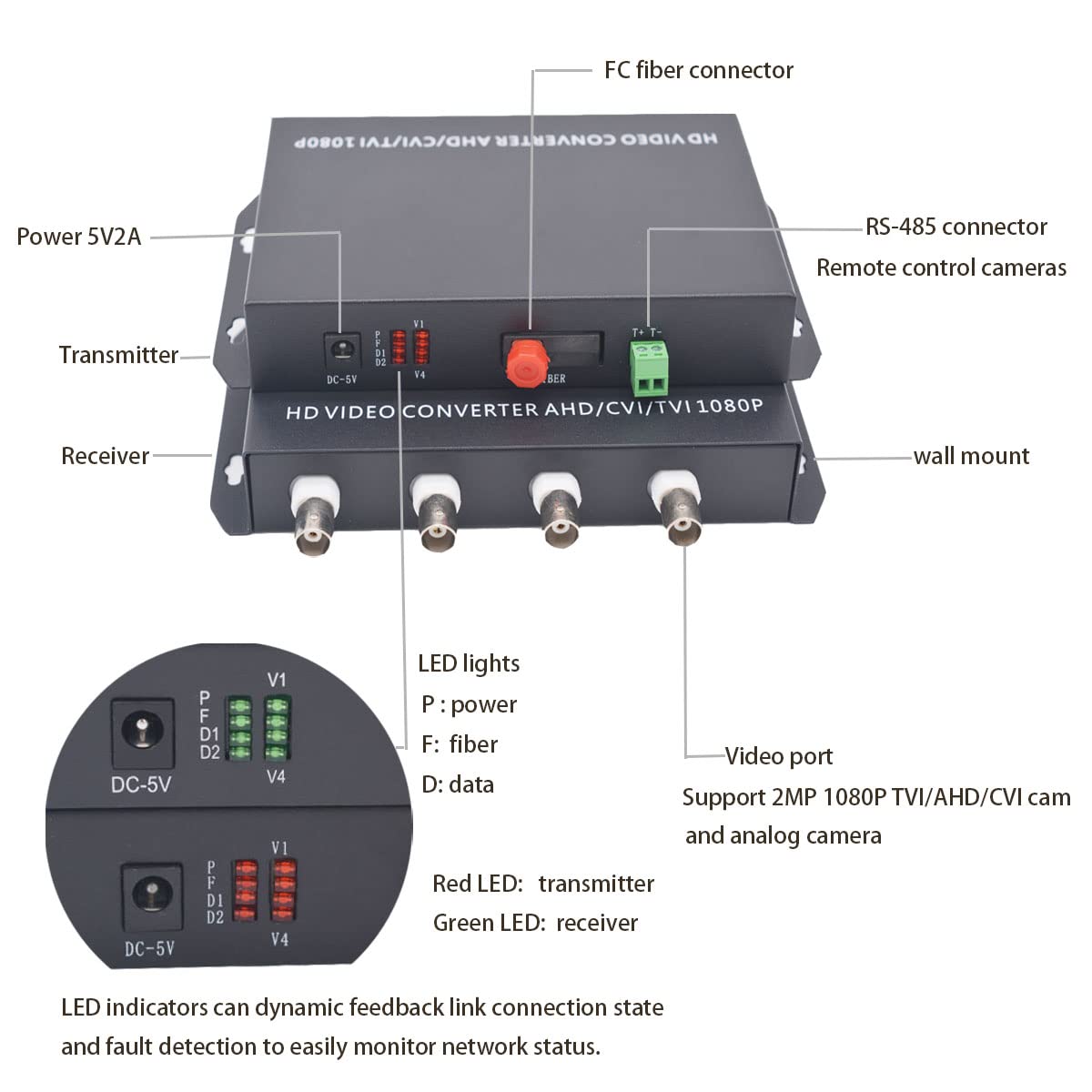

FC connector for Fiber Optical Port, BNC connector for Video Port. Green terminal block is for RS-485 data(reverse direction) ,which can control PTZ.
Plug and Play,Simple to Install - No Setup or Configuration is needed.
