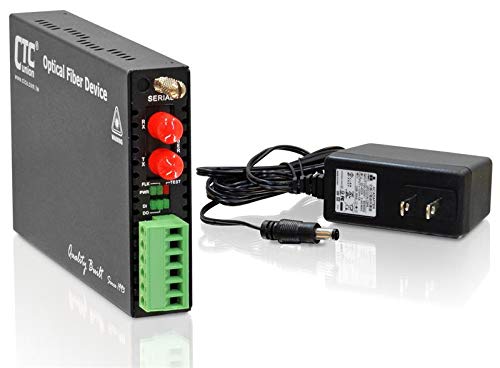

The FRM220-SERIAL-ST015 provides a fiber converter solution to extend RS-232 or RS-485/422 transmission distance up to 15km over single mode 9/125um fiber. The converter is equipped with multiple interface circuits, for connection to RS-232, RS-423, or RS-485/422 (2 or 4 wire). The FRM220-SERIAL secures data transmission over EMI resistant fiber at speeds up to 256kbps for RS-232 or up to 1024kbps for RS-422/485. When the FRM220-SERIAL is linked to the FRM220 series chassis equipped with FRM220-NMC management card , it allows network administrators/engineers to get greater functionality through advanced SNMP/Web/In-band management features. The network administrator can manage any converter module from anywhere on the network, detect any link loss and maintain each loop.
6 pin screw block connector for RS-485/RS-232/RS-422 serial asynchronous port and ST duplex fiber port, 1310nm, reaching up to 15Km on 9/125um single-mode fiber
Front LEDs PWR, DI, DO, Test, FX Link; Power External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug (AC adapter is included in package)
Temperature 0 ~ 60°C (Operating); -10 ~ 85°C (Storage); Humidity 10~90% non condensing (Operating) and 0~90% (Storage); Consumption less than 5W
Dimensions(WxDxH) 85.6mm x 122.6mm x 20mm; Weight 330g (without AC adapter)
Compliance CE, FCC Class A, MTBF 65,000 hours
